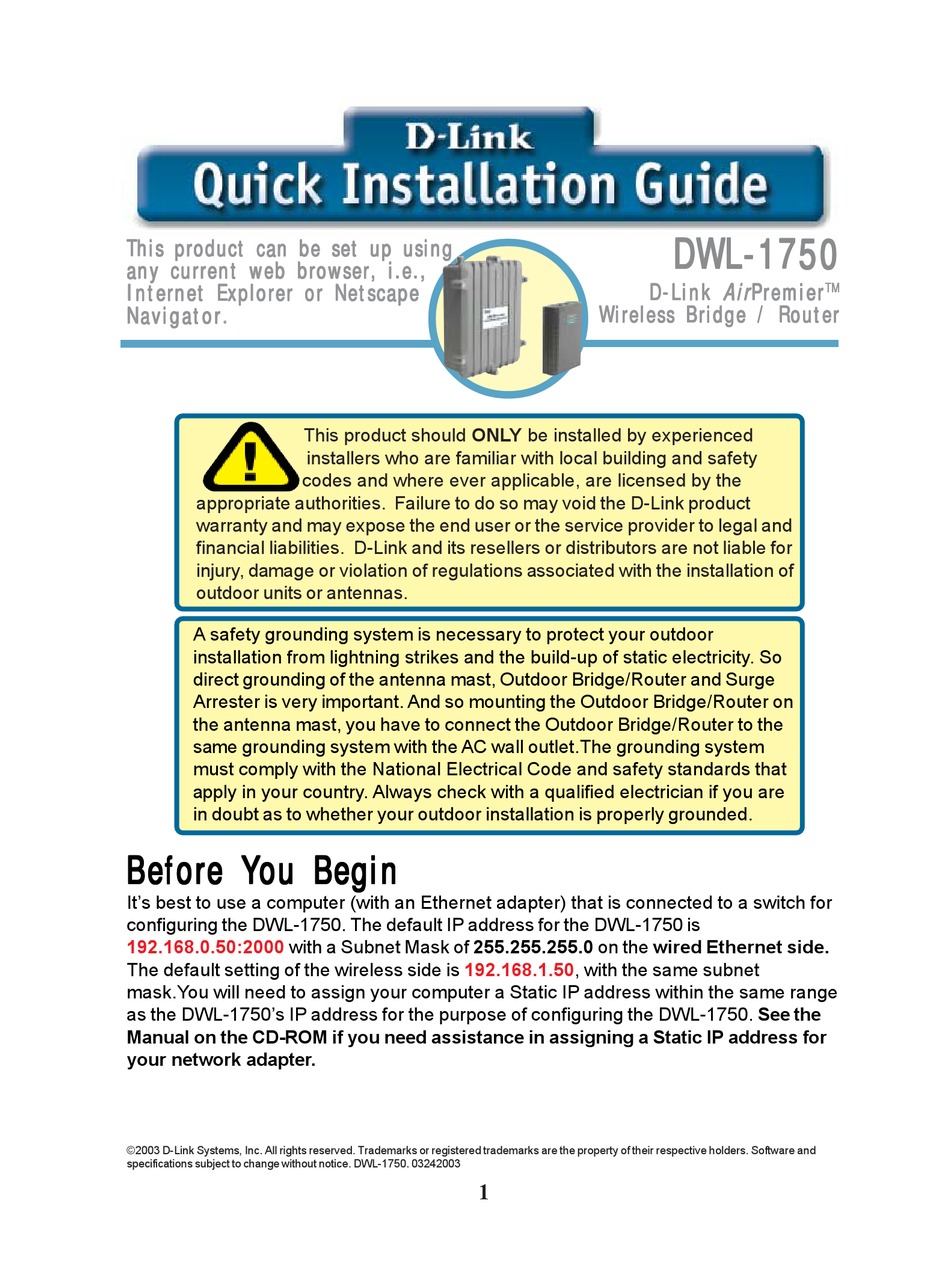

D-Link AirPremier DWL-1750 Quick Installation Manual

This product can be set up using This product can be set up using
This product can be set up using This product can be set up using This product can be set up using
any current web browser, i.e., any current web browser, i.e., any current web browser, i.e., any current web browser, i.e., any current web browser, i.e.,
Internet Explorer or Netscape Internet Explorer or Netscape Internet Explorer or Netscape Internet Explorer or Netscape Internet Explorer or Netscape
Navigator Navigator. . . . . Navigator
Navigator Navigator
This product should ONLY be installed by experienced
installers who are familiar with local building and safety
codes and where ever applicable, are licensed by the
appropriate authorities. Failure to do so may void the D-Link product
warranty and may expose the end user or the service provider to legal and
financial liabilities. D-Link and its resellers or distributors are not liable for
injury, damage or violation of regulations associated with the installation of
outdoor units or antennas.
A safety grounding system is necessary to protect your outdoor
installation from lightning strikes and the build-up of static electricity. So
direct grounding of the antenna mast, Outdoor Bridge/Router and Surge
Arrester is very important. And so mounting the Outdoor Bridge/Router on
the antenna mast, you have to connect the Outdoor Bridge/Router to the
same grounding system with the AC wall outlet.The grounding system
must comply with the National Electrical Code and safety standards that
apply in your country. Always check with a qualified electrician if you are
in doubt as to whether your outdoor installation is properly grounded.
Before You Begin Before You Begin
Before You Begin Before You Begin Before You Begin
It's best to use a computer (with an Ethernet adapter) that is connected to a switch for
configuring the DWL-1750. The default IP address for the DWL-1750 is
192.168.0.50:2000 with a Subnet Mask of 255.255.255.0 on the wired Ethernet side.
The default setting of the wireless side is 192.168.1.50, with the same subnet
mask.You will need to assign your computer a Static IP address within the same range
as the DWL-1750's IP address for the purpose of configuring the DWL-1750. See the
Manual on the CD-ROM if you need assistance in assigning a Static IP address for
your network adapter.
©2003 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DWL-1750. 03242003
D-Link D-Link Air D-Link
D-Link D-Link
Wireless Bridge / Router Wireless Bridge / Router Wireless Bridge / Router
Wireless Bridge / Router Wireless Bridge / Router
1
DWL-1750 DWL-1750 DWL-1750
DWL-1750 DWL-1750
Air Air
Air Air Premier Premier Premier Premier
Premier TM TM TM
TM TM
