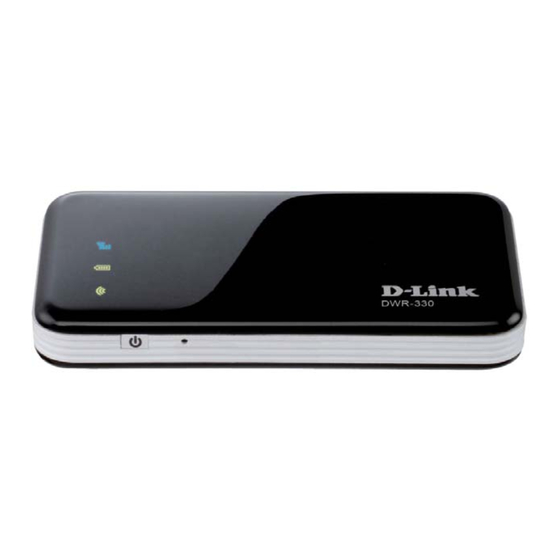

- Page 1 Portable Wi-Fi Router DWR-330 User Manual By Jack...
-
Page 2: Table Of Contents
Contents 1 Introduction ............................ 3 1.1. Features ..........................3 1.2. Product Overview ......................3 2. Connect to the internet ........................6 2.1 Wi-Fi Router mode ......................6 3. Router Web-based settings ......................7 3.1 Status ........................... 7 3.2 Dial up ..........................9 3.3 WLAN .......................... -
Page 3: Introduction
1 Introduction DWR-330 is a HSIA Wi-Fi device, working in EV-DO network. This device is a Wi-Fi router. It can provide up to 8 connections to various Wi-Fi devices such as smart phones, laptops, or tablet PCs. This quick guide provides instructions on how to use and get started with the product. -
Page 4: Led Indicator
LED indicator: indicator Color Solid Blinking Comment Wi‐Fi Green Router mode Transmitting ‐‐ Less than 30% Battery 0%~30% capacity Red ‐‐ capacity when without charger charging 60% to 30% 60%~30% Battery Green capacity without ‐‐ capacity when charging charger 99%~60% ... - Page 5 Power button: Press 3 seconds to turn on or turn off the device Reset: For system reset to default setting (Press 3 seconds) Micro USB port: Charging via a USB cable. Router mode Please refer to the illustration below for Wi-Fi Router mode. The HSIA Mobile Router can provide up to 8 Wi-Fi connections for various Wi-Fi devices to share the HSIA mobile broadband service.
-
Page 6: Connect To The Internet
2. Connect to the internet The Wi-Fi Router mode can provide 8 Wi-Fi connections to share the HSIA mobile broadband. 2.1 Wi-Fi Router mode The product is used standalone and computers are connected to with Wi-Fi link and in turn connect to Internet via network. -
Page 7: Router Web-Based Settings
3. Router Web-based settings DWR330 has built-in web page interface for users to configure router settings. Before you start using web browser to configure the Router, please make your client device is connecting to it. The default IP address is “192.168.0.1”, and you may use any web browser, such as Microsoft Internet Explorer, Firefox, Safari, Google Chrome and Opera, to perform following configurations. - Page 8 Connect: Press "Connect" button to connect to the internet. Disconnect: Press "Disconnect" button to disconnect the internet. Note: Connect and Disconnect button will brighten clickable when you set Connection Mode to Manual. DHCP Client List It shows IP/IP Type/Hostname/MAC address for each associated network client connected to this device.
-
Page 9: Dial Up
3.2 Dial up Mobile Connection Automatic: The mobile network connection is always maintained. Manual: You have to open "Status-> Status" web setting page and click the "Connect" button manually to connect to network. 2) Profile Management Dial Number, Username and Password: You can check Dial Number, Username and Password here. -
Page 10: Wlan
3.3 WLAN 1) WLAN Basic Settings SSID: Service Set Identifier. The SSID of device appears in the wireless network. You can assign an ID up to 32 characters here. Broadcast SSID: It is enabled by default, and anyone can see this device in the wireless network. - Page 11 2) Advanced Settings Channel: You can change the Wi-Fi radio channel in this drop-down menu. Wireless Mode: 802.11b: Only clients that support the 802.11b standard are allowed to access the Mobile Wi-Fi. The maximum rate for wireless transmission is 11 Mbit/s. ...
-
Page 12: System
DHCP DHCP Server：The device could be used as a DHCP server and assign IP address to the network client in your wireless network. The default is “Enable”. IP: The IP address for administrator to log in the web setting page. ... - Page 13 Password: The default username and password are "admin". You can change username and password here to login setting page. Restore Defaults Restore Default: Press this button to restore to factory default settings. Reboot Reboot: Restart your Device. Logout ...
-
Page 14: Troubleshooting
4 Troubleshooting 1. Why can’t I access to the web setting page in HSIA Router mode? Ans: 1. Please check if the LED is illuminating. 2. Please make sure if you Clients has connected to device. 3. The default IP address is 192.168.0.1, please make sure you have typed it correctly in your web browser. -
Page 15: Fcc Announcement
5 FCC announcement FCC Compliance: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 16 the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg. This device is compliance with SAR for general population /uncontrolled exposure limits in ANSI/IEEE C95.1-1992 , and had been tested in accordance with the measurement methods and procedures specified in OET Bulletin 65 Supplement C.
