This product can be set up using
any current web browser, i.e.,
Internet Explorer or Netscape
Navigator.
Before You Begin
1. If you purchased this router to share your high-speed Internet connection with other
computers, you must have either an Ethernet-based Cable or DSL modem with an
established Internet account from an Internet Service Provider (ISP).
2. It's best to use the same computer that is connected to your modem for configuring
the DI-714P+ Multimode Wireless Router. The DI-714P+ acts as a DHCP server
and will assign all the necessary IP address information on your network. See
Appendix at the end of this Quick Installation Guide or the Manual on the CD-
ROM for setting each network adapter to automatically obtain an IP address.

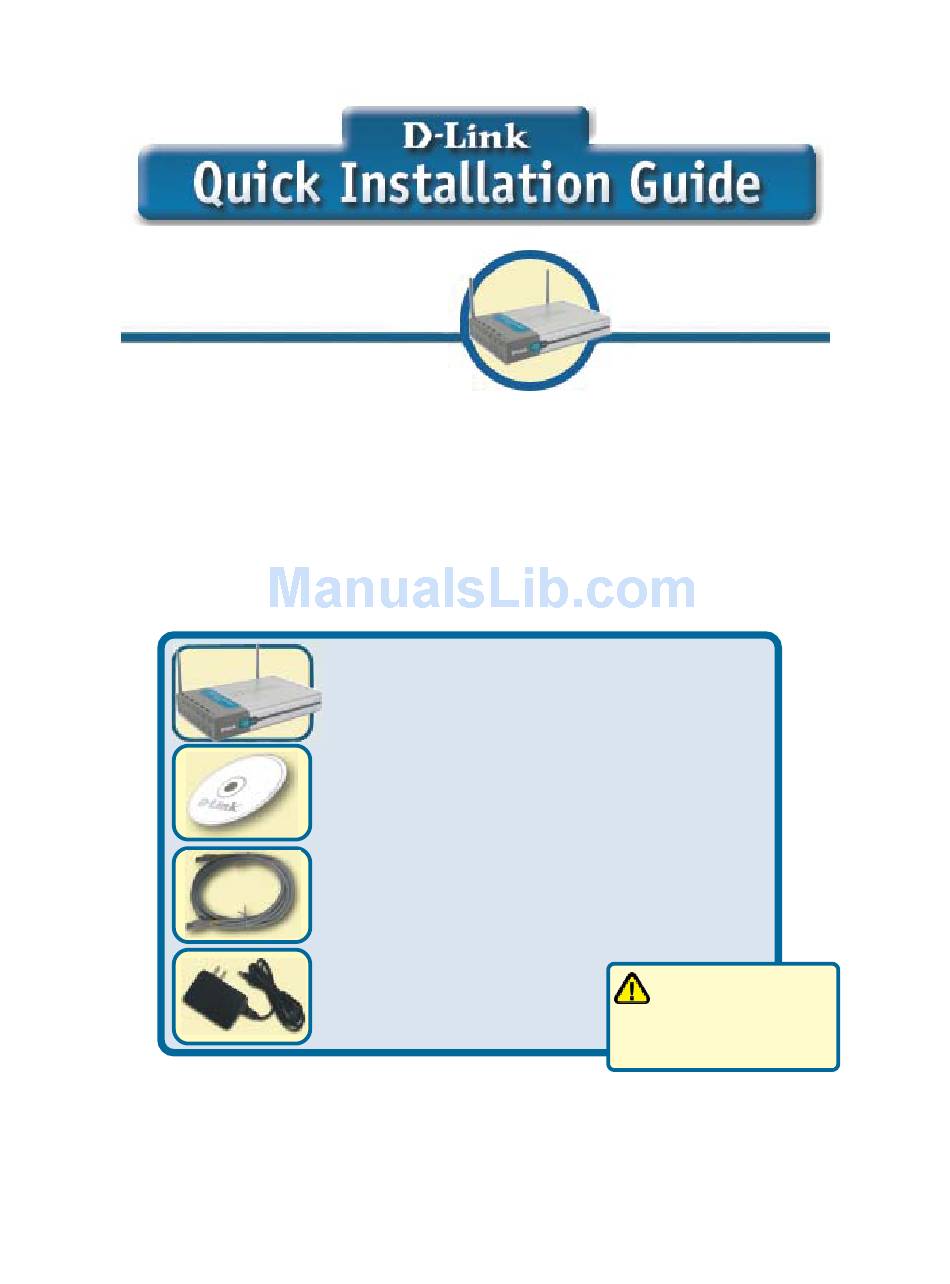

Check Your Package Contents
If any of the above items are missing, please contact your reseller.
©2002 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and
specifications subject to change without notice. DI-714P+.10022002
DI-714P+ 2.4GHz Wireless Router
CD-ROM (containing Manual and Warranty)
Ethernet (CAT5 UTP/Straight Through) Cable
5V DC Power Adapter
DI-714P+
2.4GHz Wireless Router
and Print Server
Using a power supply
with a different voltage
rating will damage and void
the warranty of this product.
Advertisement
Table of Contents
Related Manuals for D-Link DI-714P+
Summary of Contents for D-Link DI-714P+
-
Page 1: Before You Begin
5V DC Power Adapter If any of the above items are missing, please contact your reseller. ©2002 D-Link Systems, Inc. All rights reserved. Trademarks or registered trademarks are the property of their respective holders. Software and specifications subject to change without notice. DI-714P+.10022002 DI-714P+ 2.4GHz Wireless Router... - Page 2 Connecting The DI-714P+ Wireless Router To Your Network First, connect the power adapter to the receptor at the back panel of the DI-714P+ and then plug the other end of the power adapter to a wall outlet or power strip. The Power LED will turn ON to indicate proper operation.
-
Page 3: Restart Your Computer
Restart Your Computer Connecting Additional Computers To The DI-714P+ Using additional Ethernet (CAT5 UTP) cables, connect your Ethernet-equipped computers to the remaining Ethernet LAN ports on the back panel of the DI-714P+ M1 LED – a solid light indicates M2 LED – A solid light indicates that the DI-714P+ that the unit is defective. -
Page 4: Using The Setup Wizard
When you have completed the steps in this Guide, your connected network should look similar to this: Using The Setup Wizard Open your Web browser and type “http://192.168.0.1” into the URL address box. Then press the Enter or Return key. The logon pop-up screen will appear. - Page 5 The Setup Wizard (continued) Once you have logged in, the Home screen will appear. Click Run Wizard You will see the following screens Click Next Set up your new password. You have the option to establish a password. Click Next...
- Page 6 The Setup Wizard (continued) Choose your time zone from the drop down list. Click Next Select your Internet Connection. You will be prompted to select the type of Internet connection for your router. If you are unsure of which setting to select, please contact your Internet Service Provider.
- Page 7 The Setup Wizard (continued) If you selected Dynamic IP Address, this screen will appear: (Used mainly for Cable Internet service.) Click the “Clone MAC Address” button to automatically copy the MAC address of the network adapter in your computer. You can also manually type in the MAC address.
- Page 8 The Setup Wizard (continued) If your ISP uses PPPoE (Point-to-Point Protocol over Ethernet), and this option is selected, then this screen will appear: (Used mainly for DSL Internet service.) Please be sure to remove any existing PPPoE client software installed on your computers. Enter in the username and password provided to you by your ISP.
- Page 9 The Setup Wizard (continued) If you wish to use encryption for your 802.11b network, the DI-714P+ is capable of three levels of wireless encryption - 64-bit, 128-bit, and 256-bit. By default the encryption is disabled. You can change the encryption settings for more secure wireless commu- nication.
-
Page 10: Test Internet Connection
Test Internet Connection. You will be returned to the Home tab. Click to Exit Then relaunch your Web browser (i.e., Internet Explorer or Netscape Navigator), to link to your favorite Web site to test your Internet connection. For additional settings or information, refer to the Advanced, Tools, or Status tabs on the... -
Page 11: Installing The Print Server Software
APPENDIX Installing the Print Server Software Insert the installation CD-ROM into the CD-ROM drive. The following window will be shown automatically. If it is not, please run “autorun.exe” on the CD- ROM. Click Install Windows Printer Software Select your Windows operating system Wait until the following Welcome dialog appears. -
Page 12: Configuring On Windows 98Se/Me Platforms
Installing the Print Server Software (continued) Then, the setup program will begin to install the programs into the destination folder. When the following window is displayed. Click Finish Click After rebooting your computer, the software installation procedure is finished. Configuring on Windows 98se/Me Platforms After you finish the software installation procedure, your computer will be capable of network printing provided by the DI-... - Page 13 Configuring on Windows 98se/Me Platforms (continued) Click on the Details tab Choose the “PRTmate: (All-in-1)” from the list attached at the Print To item. Be sure that the Printer Driver item is configured to the correct driver of your printer server. Click Port Settings Type in the IP address of the...
- Page 14 Microsoft Windows XP: Go to Start > right click on My Network Places > select Properties > Double-click on the Network Connection associated with the Ethernet adapter (i.e., D-Link DFE-530TX+). Click Internet Protocol (TCP/IP) Click Properties Select Obtain an IP address...
- Page 15 Apple Macintosh OS X: Go to the Apple Menu Click on Network and Select System Preferences Select Built-in Ethernet in the Show pull-down menu Select Using DHCP in the Configure pull- down menu Click on Apply Now The IP address information, the Subnet Mask, the Router’s IP address and the Ethernet adapter address will appear...
-
Page 16: Technical Support
Technical Support You can find the most recent software and user documentation on the D-Link website. D-Link provides free technical support for customers within the United States for the duration of the warranty period on this product. U.S. customers can contact D-Link technical support through our web site or by phone.
