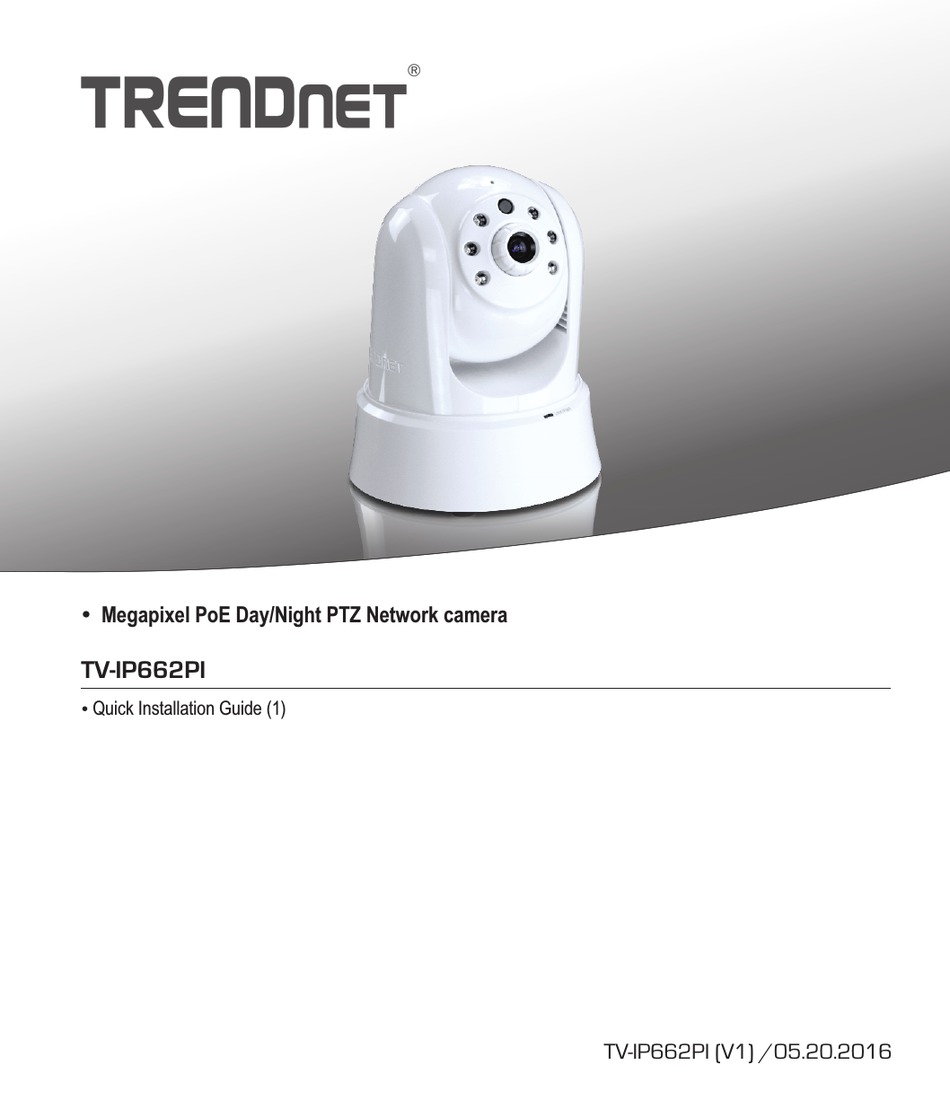

- Page 1 Ÿ Megapixel PoE Day/Night PTZ Network camera TV-IP662PI Quick Installation Guide (1) Ÿ TV-IP662PI (V1) /05.20.2016...
-
Page 2: Package Contents
Ÿ Wired network (e.g. router or switch with DHCP server) Ÿ Power over Ethernet (PoE) switch (e.g. TPE-S80) (Optional) or PoE Injector (e.g. TPE-113GI optional) Note: The TV-IP662PI only works with Power over Ethernet (PoE) devices that follow the IEEE 802.3af standard. TRENDnetVIEW Pro Requirements 1-8 Cameras... -
Page 3: Hardware Installation And Configuration
2. Hardware Installation and Configuration 1. Do not install or mount the IP camera until 7. Congratulations! Your camera is now ready to after you complete the installation steps be installed in its final location. Click Finish. below. Temporarily place the IP camera next Scan the QR code if you would like to install to your computer. - Page 4 Using the TV-IP662PI with a PoE switch (TPE-S80) Internet TPE-S80 TV-IP662PI Ÿ Connect the provided network cable from the Power over Ethernet switch (e.g. TPE-S80) to the network port on the IP Camera. Ÿ Connect the switch to your network.
- Page 5 Ÿ Connect the power adapter to the TPE-113GI and then to a power outlet. Ÿ Connect a network cable from the TV-IP662PI to the TPE-113GI's PWR+DATA OUT port. Ÿ Connect a network cable from a switch or router (e.g. TEW-731BR) to the TPE-113GI's DATA IN port.
- Page 6 Megapixel PoE Day/Night PTZ Network Camera Trade Name: TRENDnet TRENDnet hereby declare that the product is in compliance with the essential requirements and other relevant provisions under our sole responsibility. Safety EN 60950-1: 2006 + A11: 2009 + A1: 2010 + A12: 2011 + A2: 2013...
- Page 7 License ("GPL") or GNU Lesser General Public License ("LGPL"). These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. The details of the GNU GPL and LGPL are included in the product CD-ROM.
- Page 8 License) ou ao LGPL (GNU Lesser General Public License). Estes códigos são distribuídos SEM GARANTIA e estão sujeitos aos direitos autorais dos desenvolvedores. TRENDnet não presta suporte técnico a estes códigos. Os detalhes do GNU GPL e do LGPL estão no CD-ROM do produto. Favor acessar http://www.gnu.org/licenses/gpl.txt ou http://www.gnu.org/licenses/lgpl.txt para os termos específicos de cada licença.
- Page 9 каждого продукта на сайте компании TRENDnet. Garantia Limitada A TRENDnet garante seus produtos contra defeitos de material e mão de obra sob condições normais de uso e serviço. Os períodos de garantia específicos estão listados em cada uma das páginas dos respectivos produtos no site da TRENDnet.
- Page 10 Safety notes Before using your TRENDnet device for the first time, it is essential to read and understand all safety and operating instructions. Keep instructions in a safe place for future reference. Some TRENDnet products are rated for outdoor applications and can sustain certain weather conditions.
- Page 11 Product Warranty Registration If you have any questions regarding the product Please take a moment to register your installation, please contact our Technical Support. product online. Go to TRENDnet’s website at: www.trendnet.com/register Toll free US/Canada: 1-866-845-3673 Regional phone numbers available at www.trendnet.com/support...
