Vision Fitness X20 Service Manual
Frame with classic / elegant / touch console
Hide thumbs
Also See for X20:
- Service manual (68 pages) ,
- Owner's manual (29 pages) ,
- Assembly manual (3 pages)
Related Manuals for Vision Fitness X20
Summary of Contents for Vision Fitness X20

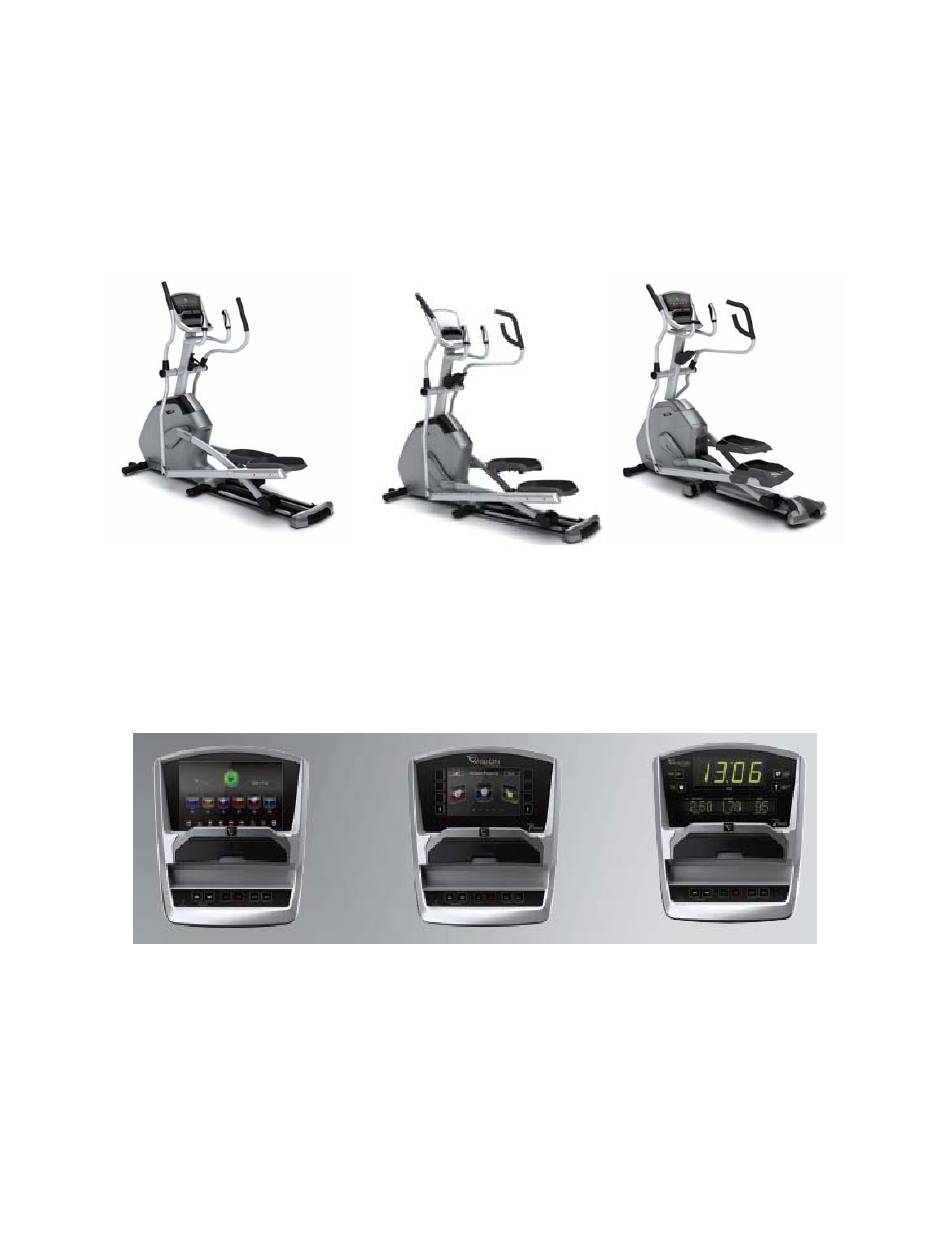

- Page 1 Vision Fitness X20 - X40 - XF40 Frame with Classic / Elegant / Touch Console Service Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS CHAPTER 1: SERIAL NUMBER LOCATION Serial Number Location – X20 Frame…………………………………………………………………..…..…….……..…..4 Serial Number Location – X40 Frame…………………………………………………………………………………..……5 Serial Number Location – XF40 Frame………………………………………………………………………….…………..6 Serial Number Location – Classic / Elegant / Touch Console………………………………………………….….………7 CHAPTER 2: ENGINEERING MODE Engineering Mode –... - Page 3 TABLE OF CONTENTS CHAPTER 4: TROUBLESHOOTING Troubleshooting – No Power to the Console…………………………………………….…………………….……...…...30 Troubleshooting – No RPM Display………………………………………………………..………………………………..31 Troubleshooting – No Resistance or Incorrect Resistance…………………………………………….………………….32 Troubleshooting – System Will Not Start……………………………………….……………………………………………33 Troubleshooting – Console No Response..…………………………………………………..………..…………………..34 Troubleshooting – Touch Panel Issues……….……………………………………………….…………………...….…….35 Troubleshooting –...
-
Page 4: Chapter 1: Serial Number Location
CHAPTER 1: SERIAL NUMBER LOCATION 1.1 Serial Number Location - X20... -
Page 5: Serial Number Location - X40 Frame
CHAPTER 1: SERIAL NUMBER LOCATION 1.2 Serial Number Location - X40... -
Page 6: Serial Number Location - Xf40 Frame
CHAPTER 1: SERIAL NUMBER LOCATION 1.3 Serial Number Location - XF40... -
Page 7: Serial Number Location - Classic / Elegant / Touch Console
CHAPTER 1: SERIAL NUMBER LOCATION 1.4 Serial Number Location – Classic / Elegant / Touch Console Touch Elegant Classic... -
Page 8: Chapter 2: Engineering Mode
CHAPTER 2: ENGINEERING MODE 2.1 Engineering Mode – Classic Console 1) To enter Engineering Mode, press and hold the RESISTANCE UP and DOWN keys at the same time for 3-5 seconds until Engineering Menu appears on the display. 2) Use the RESISTANCE UP or DOWN keys to scroll through a list of parameters. 3) Press ENTER to enter a parameter setting. -
Page 9: Engineering Mode Overview - Classic Console
CHAPTER 2: ENGINEERING MODE 2.2 Engineering Mode Overview – Classic Console MODE FUNCTION DESCRIPTION ENG 0 Display Test Start Key – LCD/LED on Stop Key – LCD/LED off Any Other Key - Will show on the display window. Hold the STOP key for 3 seconds to return to the Engineering Menu. ENG 1 Hardware Test ECB TEST and HEART TEST and USB TEST and LCB VERSION and... -
Page 10: Engineering Mode - Elegant Console
CHAPTER 2: ENGINEERING MODE 2.3 Engineering Mode – Elegant Console 1) To enter Engineering Mode, press and hold the RESISTANCE UP and DOWN keys at the same time for 3-5 seconds until Engineering Menu appears on the display. 2) The Engineering Mode parameter list will be displayed on the screen. 3) Press the ATM style key on either side of the screen to enter the appropriate screen settings. -
Page 11: Engineering Mode Overview - Elegant Console
CHAPTER 2: ENGINEERING MODE 2.4 Engineering Mode Overview – Elegant Console Elegant Console – About Tab 2.4.1 The Engineering Mode displays the basic parameters of the console, such as Model Type, Software Version, MCB Version, etc… Use the ATM style keys located on both sides of the screen to enter into the parameter. NOTE：Navigation of the other Engineering Mode screens is the same, instructions are not repeated. -
Page 12: Elegant Console - Settings Tab
CHAPTER 2: ENGINEERING MODE 2.4 Engineering Mode Overview – Elegant Console – Continued 2.4.2 Elegant Console – Settings Tab The Settings Tab includes options for setting Machine Type, Model Type, Energy Saver, First Boot, and Program Speed. Go UP and DOWN to choose Press the key next to "Continue"... -
Page 13: Elegant Console - Default Tab
CHAPTER 2: ENGINEERING MODE 2.4 Engineering Mode Overview – Elegant Console – Continued 2.4.3 Elegant Console – Test Tab – Continued Display test – This tab tests the color settings of the console. The console will cycle between red, green, and blue when the Continue key is selected. -
Page 14: Elegant Console - Region Tab
CHAPTER 2: ENGINEERING MODE 2.4 Engineering Mode Overview – Elegant Console – Continued 2.4.3 Elegant Console – Test Tab – Continued Key Test – Press any key to test the function. Audio Test – When this test is chosen, the console chime should sound. 2.4 Engineering Mode Overview –... - Page 15 CHAPTER 2: ENGINEERING MODE 2.4 Engineering Mode Overview – Elegant Console – Continued 2.4.5 Elegant Console – Error Log Tab The console will automatically show an error code history for the unit. 2.4.6 Elegant Console – Region Tab The Region Tab includes settings for Month, Day, Year, Time (hour / minute), Language, Country, and Units (miles / kilometers).
-
Page 16: Elegant Console - Service Log Tab
CHAPTER 2: ENGINEERING MODE 2.4 Engineering Mode Overview – Elegant Console – Continued 2.4.7 Elegant Console – Service Log Tab The Service Log Tab allows the club / service provider to keep track of the service history. -
Page 17: Engineering Mode - Touch Console
CHAPTER 2: ENGINEERING MODE 2.5 Engineering Mode – Touch Console 1) To enter Engineering Mode, touch the four corners of the touch screen from 1-4 as shown below. 2) An Engineering Mode parameter list will be displayed on the screen. 3) Select the parameter by touching the parameter list. -
Page 18: Touch Console - About Tab
CHAPTER 2: ENGINEERING MODE 2.6 Engineering Mode Overview – Touch Console 2.6.1 Touch Console – About Tab The About Tab shows the basic parameters of the console, such as Model Type, Software Version, MCB Version etc… NOTE: Press the Home key at any time to return to normal operation. About Setting Default... -
Page 19: Touch Console - Settings Tab
CHAPTER 2: ENGINEERING MODE 2.6 Engineering Mode Overview – Touch Console – Continued 2.6.2 Touch Console – Settings Tab The Settings Tab used to set the Machine Type, Model and if the Energy Saver is turned on. Setting: Pressing the will automatically bring up the corresponding select block, use the frame type to select the appropriate machine, TREADMILL, ELLIPTICAL or BIKE. - Page 20 CHAPTER 2: ENGINEERING MODE 2.6 Engineering Mode Overview – Touch Console – Continued 2.6.2 Touch Console – Default Tab – Continued Engineer Function and Default Descriptions Modified Mode - Default Time M a x i m u m W o r k o u t T i m e This option enables you to set the maximum Ma xim um : 9 9 Mi nu tes Default: 99 minutes...
-
Page 21: Touch Console - Region Tab
CHAPTER 2: ENGINEERING MODE 2.6 Engineering Mode Overview – Touch Console – Continued 2.6.4 Touch Console – Region Tab The Region Tab is used to set Date, Time, Language, Country, and Units. Touch the item that needs to be set, the screen will display a number keypad. - Page 22 CHAPTER 2: ENGINEERING MODE 2.6 Engineering Mode Overview – Touch Console – Continued 2.6.5 Touch Console – Test Tab – Continued Display Test – Tests the reliability of the LCD and Touch panel. Display Test – Touch Panel Test Use your finger to draw a line following the instructions on the screen. If the test fails, selecting "continue" will bring the user directly into the calibration screen.
- Page 23 CHAPTER 2: ENGINEERING MODE 2.6 Engineering Mode Overview – Touch Console – Continued 2.6.5 Touch Console – Test Tab – Continued Key Test – Tests the functionality of the keys. Select any key on the keypad to display the definition, the function, and the code of the key.
-
Page 24: Touch Console - Error Log Tab
CHAPTER 2: ENGINEERING MODE 2.6 Engineering Mode Overview – Touch Console – Continued 2.6.6 Touch Console – Error Log Tab The console will automatically show an error code history for the unit. 2.6.7 Touch Console – Service Log Tab The Service Log Tab allows the club / service provider to keep track of the service history. -
Page 25: Chapter 3: Electrical Diagrams
CHAPTER 3: ELECTRICAL DIAGRAMS 3.1 Electrical Diagram – Classic Console... -
Page 26: Electrical Diagram - Elegant Console
CHAPTER 3: ELECTRICAL DIAGRAMS 3.2 Electrical Diagram – Elegant Console... -
Page 27: Electrical Diagram - Touch Console
CHAPTER 3: ELECTRICAL DIAGRAMS 3.3 Electrical Diagram – Touch Console... -
Page 28: Electrical Diagram - X20 Frame
CHAPTER 3: ELECTRICAL DIAGRAMS 3.4 Electrical Diagram – X20 Frame 3.5 Electrical Diagram – X40 Frame... -
Page 29: Electrical Diagram - Xf40 Frame
CHAPTER 3: ELECTRICAL DIAGRAMS 3.6 Electrical Diagram – XF40 Frame... -
Page 30: Chapter 4: Troubleshooting
CHAPTER 4: TROUBLESHOOTING 4.1 Troubleshooting – No Power to the Console Symptom: Console does not light up. Reason: 1. The power adaptor is not correct or is defective. 2. The console cable has a bad connection or is defective. 3. The console is defective. Solution: 1. -
Page 31: Troubleshooting - No Rpm Display
2. Check the connection of the speed sensor wire at the ECB motor. Also check the gap between the speed sensor and the magnet on pulley. It should be within 5mm. Adjust the gap if it is too big. 3. Install a new magnet. 4. Replace the console set. (Fig. A) X20-X40 XF40 (Fig. B) -
Page 32: Troubleshooting - No Resistance Or Incorrect Resistance
(around 45 degrees). If the head of the steel rope points toward the bottom or left side, the resistance will be reversed, adjust the head of the steel rope to the correct position. X20-X40 XF40 3. -
Page 33: Troubleshooting - System Will Not Start
ECB track. It should be within 1-2 mm of the bottom of the ECB track. If the gap is bigger than 1-2 mm, the resistance will be heavier than normal. Adjust the cable to the correct gap range. X20-X40 XF40 X20-X40 XF40 4. -
Page 34: Troubleshooting - Console No Response
CHAPTER 4: TROUBLESHOOTING 4.5 Troubleshooting – No Console Response Symptom: The power is on, the console lights up, and a program can be started, but there is no control over the program. Reason: 1. The Machine Type is set incorrectly. 2. -
Page 35: Troubleshooting - Touch Panel Issues
CHAPTER 4: TROUBLESHOOTING 4.6 Troubleshooting – Touch Panel Issues Symptom: The touch screen is not accurate or invalid. Reason: 1. The screen needs to be calibrated. 2. The touch screen is damaged. 3. The FPC wire does not have a good connection to the UCB. Solution: 1. -
Page 36: Troubleshooting - Heart Rate Issues
CHAPTER 4: TROUBLESHOOTING 4.7 Troubleshooting – Heart Rate Issues Symptom: The console does not display heart rate or it is consistently inaccurate. Reason: 1. The heart rate grips are not connected correctly. 2. The heart rate wiring is damaged. 3. The heart rate board or console is defective. Solution: 1. -
Page 37: Troubleshooting - Ipod Issues
CHAPTER 4: TROUBLESHOOTING 4.8 Troubleshooting – iPod Issues Symptom: “ Cannot Connect the iPod” is shown on the screen. Reason: 1. The iPod cable is damaged or disconnected. 2. The FFC wire is damaged or disconnected. 3. The iPod board or console is defective. Solution: 11nfir1. -
Page 38: Troubleshooting - Speaker / Audio Issues
CHAPTER 4: TROUBLESHOOTING 4.9 Troubleshooting – Speaker / Audio Issues Symptom: The speaker or headphones have no sound output. Reason: 1. The speaker wire is not well connected to the UCB. 2. The audio short circuit terminal is missing. 3. The software is obsolete. 4. -
Page 39: Troubleshooting - Radio Frequency Board Issues
CHAPTER 4: TROUBLESHOOTING 4.10 Troubleshooting – Radio Frequency Issues Symptom: The Radio Frequency Board (RF Board) cannot connect with Passport. Reason: 1. The Passport keys are not functional. 2. The FFC wire is damaged or disconnected. 3. The console is defective. Solution: 1. -
Page 40: Troubleshooting - Virtual Active (Va) Issues
CHAPTER 4: TROUBLESHOOTING 4.11 Troubleshooting – Virtual Active Issues Symptom: Cannot play Virtual Active files. Reason: 1. The SD card is not fully seated in the UCB. 2. The software version is not correct on the console. 3. The console is defective. Solution: 1. -
Page 41: Chapter 5: Software Upgrade Guide
CHAPTER 5: SOFTWARE UPGRADE GUIDE 5.1 Software Upgrade Procedure 5.1.1 Update File Description OS Update File: NK.rom； Elegant Console Update Software File: DeluxeGUIDeploy.CAB; Touch Console Update Software File: PremierGUIDeploy.CAB OS update file Software update file Configuration file Sub MCU update file * Note: update the software after the OS is updated.
