Crestron Touchpanel Mounting
Touchpanel Mounting
Congratulations on your purchase of a Crestron touchpanel!
NOTE: Please read prior to touchpanel installation.
Crestron offers an assortment of mounting options for its Series 1000, TPS-2000L, and
TPS-3000L Series touchpanels. There are pre- and post-construction options as well as
pre-construction accessories.
Pre-Construction Options
Pre-construction refers to framed walls prior to hanging drywall. Pre-construction options
require access to an adjacent structural support (i.e., stud) so that the mounting option can
be directly secured.
•

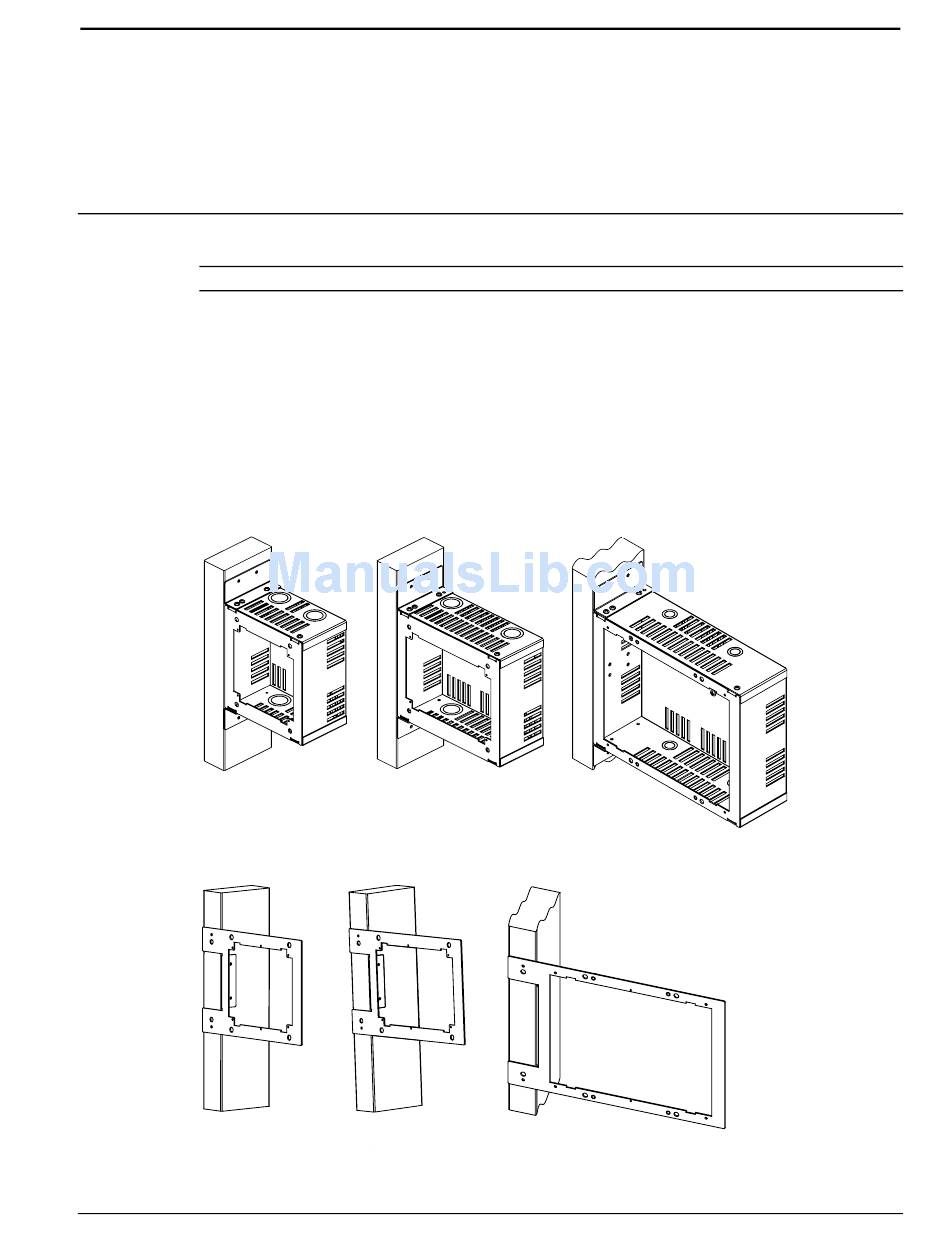

Pre-Construction Option - Back Box Kit or BB
BB-1000L
•
Pre-Construction Option - Pre-Construction Mount Kit or PMK
PMK-1000L
Quick Start - DOC. 6140A
BB-2000L
PMK-2000L
BB-3000L
PMK-3000L
Touchpanel Mounting • 1
Quick Start
