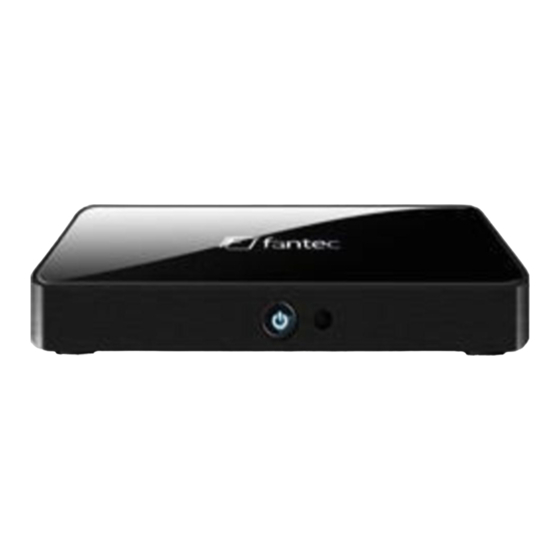

Fantec TV-FHDS User Manual

Hide thumbs Also See for TV-FHDS:
Table of Contents

Advertisement

Quick Links

Download this manual
English

Advertisement

Table of Contents
loading

Related Manuals for Fantec TV-FHDS

Summary of Contents for Fantec TV-FHDS

  • Page 1 English...

  • Page 2: Table Of Contents

    Table of Content 1. Introduction .......................... 3 1.1 Preface ......................3 1.2 Packing List ..................... 4 1.3 Cautions ......................4 1.4 Connection ....................... 6 1.5 Power On / Off ....................10 1.6 Menu Language ..................... 10 2. About the Player ......................... 11 2.1 Remote Control ....................

  • Page 3: Introduction

    1. Introduction 1.1 Preface Thank you very much for purchasing the product. We hope you will enjoy using it as a great home entertainment partner. The FANTEC TV-FHDS has the following functionality. Audio Video Output  HDMI V1.3 for high-definition video and digital audio ...

  • Page 4: Packing List

    1.2 Packing List Part Quantity Player A/V cable Y/Pb/Pr cable Remote Control Remote Control Battery AC/DC adaptor User Manual (printed) Warranty card Note: The actual contents in the package might be different from the packing list in this manual. 1.3 Cautions This player’s design and manufacture has your safety in mind.
  • Page 5 1.3.5 Disposing of the Player When you dispose of the player, be sure to dispose it appropriately. Some countries may regulate disposal of electrical devices. Please consult with your local authority. 1.3.6 Others When using this player, please do not let the player come into contact with water or other liquids.

  • Page 6: Connection

    1.4 Connection 1.4.1 Connecting the Power Supply (1) Follow the picture and connect the AC adaptor to the player’s DC IN jack; (2) Follow the picture and plug in the AC adaptor to the power outlet. 1.4.2 Connecting a USB Device (1) Make sure the player is powered on;...
  • Page 7 1.4.3 Connecting a Memory Card Memory cards can be used by inserting to the card slot. (1) Follow the picture to insert the memory card into the card slot properly. (2) Insert the card by following the arrow pointer in the picture. In this way, you can browse content on the memory card.
  • Page 8 1.4.4.2 Y/Pb/Pr Component OUT (1) Follow the picture and plug in the 3 colour connector to the player’s Y/Pb/Pr jack. (2) Follow the picture and plug in the 3 colour connector to the TV’s Y/Pb/Pr jack. Note: Audio Connection while using Y/Pb/Pr Video out: First method: Use the audio output from the A/V OUT jack.
  • Page 9 1.4.5 Connecting to a Digital Amplifier (1) Follow the picture and plug in the RCA connector on your coaxial cable to the player’s S/PDIF Coaxial jack. Or if you use optical fibre, please plug in the Toslink connector on your optical fibre to the player’s S/PDIF Optical jack.

  • Page 10: Power On / Off

    1.4.7 Connecting to a WLAN (1) Make sure the player is powered on. (2) Plug the Wireless LAN USB Adapter (i.e. Wi-Fi USB Dongle) to the USB HOST port of the player. Note: The Wi-Fi Dongle is an optional accessory sold separately. (Please refer to ‘3.3 Changing Network Settings’...

  • Page 11: About The Player

    2. About the Player 2.1 Remote Control All procedures in this manual can be carried out using the remote control buttons. See the following for details on each button and its function: 1. STANDBY 2. MUTE 3. TV SYSTEM 4. BROWSER 5.
  • Page 12 REPEAT Press to set repeat option: One Press to fast rewind the current playback. Press repeatedly to select speeds. VOL- Press to decrease the volume. Press to fast forward the current playback. Press repeatedly to select speeds. PLAY Press to begin playback. HOME Press to enter the home screen.

  • Page 13: Front Panel

    PREV Press to view the previous file / page up. GOTO Press to jump to a specific point on a title. Specify the point using Title, Chapter and Time. COPY Press to enter the file copy menu. MUSIC Not available INFO Press to hide or display the information bar during playback.

  • Page 14: Side Panel

    2.4 Side Panel 1. USB HOST port 2. Memory Card slot English 14 / 51...

  • Page 15: Setup Menu

    3. Setup Menu The Setup menu allows you to personalize and configure the preferences for your player. To select a Setup option: Select the Setup icon on the home screen or press the SETUP button on the remote control. Use the LEFT/RIGHT navigational buttons to select an option and then press ENTER. There are five Setup options, including Audio, Video, Network, System and MISC.

  • Page 16: Changing Video Settings

    Note: In raw mode, Dolby Digital, DTS sound can be by passed to the HDMI TV or Digital amplifier. Due to the bandwidth requirement, Dolby Digital Plus sound and Dolby TrueHD only can be by passed through HDMI cable. 3.2 Changing Video Settings Use this menu to configure video settings.

  • Page 17: Changing Network Settings

    TV SYSTEM Select to adjust video output resolution: NTSC / PAL / 480P / 576P / 720P 50HZ / 720P 60HZ / 1080I 50HZ / 1080I 60HZ / 1080P 50HZ / 1080P 60HZ. Screen Size Adjust the video output size according to the size of TV screen. Plasma Mode Help to protect your plasma TV by reducing the level of brightness.
  • Page 18 Wireless Setup Selecting a connection profile This player can store up to three wireless network connections. Press ENTER to go to next step, press RETURN to cancel, and press PLAY to connect. Get Connection Mode Choose between Infrastructure (AP), Peer to Peer (Ad Hoc) or WPS (AP). Press ENTER to go to next step, and press RETURN to cancel.
  • Page 19 Access) means the network is encrypted, i.e. an encryption key is needed to access the network. NONE means it is an open system network. Input WEP / WPA Key Encryption keys can be inputted via the virtual keyboard. Press the navigational buttons to select, ENTER to input, CAPS to switch between uppercase and lowercase, <- to delete a character, ->...
  • Page 20 The testing process will take for a while, please be patient to wait. If the test is ok, the network information (Profile Name, IP address, Subnet Mask, Gateway, etc.) will be displayed on the screen. Peer to Peer (Ad Hoc) Peer to Peer mode, which is also called Ad Hoc mode or computer-to-computer mode, is used to connect wireless clients directly together, without the need for a wireless router or access point.

  • Page 21: Changing System Settings

    PPPoE Setup Input the ADSL accountant and password in this menu, system will obtain IP address automatically from the server based on PPPOE protocol. Remote Control – Network Service Select to turn on / off network based remote control. Please refer to chapter ’10. Virtual Remote Control’...
  • Page 22 Text Encoding Select to set the text encoding option (subtitle display). You can choose between Unicode (UTF8), Western, Turkey, Central European, Greek, Cyrillic, Hebrew and SE European (Southern and Eastern European). System Update Select to update the firmware via a USB stick. 1) Copy ‘install.img’...

  • Page 23: Miscellaneous

    Manual Press the left / right button to select each field and the up / down button to adjust each setting. Numeric buttons are available here. Press the enter button to confirm. System Info Select to view system information (firmware version, boot loader version, Mac address, etc.) Restore Default Select to restore factory defaults.
  • Page 24 Transition Effect Select to set the transition effect for photo slide show. Ken Burns Apply PAN-Scan effects during Photo playback. Background Music Select to set the background music options while view pictures: Off / Folder Seamless Playback Uninterrupted playback of video files(.ts and .m2ts) (the naming of the files should be alike “abc01.ts”...

  • Page 25: Browser Menu

    4. Browser Menu The browser menu allows you to browse and play media files stored on USB devices, Memory cards, Network shares and UPnP-server. To enter the menu, select the Browser icon on the home screen, or press the BROWSER button on the remote control. The following buttons can be used while navigating the browser menu.

  • Page 26: Browsing Music

    4.2 Browsing Music In this mode, all folders and supported audio files in current directory will be displayed. The following buttons can be used to control music playback. Button Function PLAY Begin playback. PAUSE / STEP Pause playback. FR / FF Fast rewind or fast forward.

  • Page 27: Browsing Movies

    You can view photos in slide show mode with background music. When it is enabled, the slide show starts automatically once you press PLAY button. (Please refer to Slide Show Timing, Transition Effect and Background Music in chapter ‘3.5 Miscellaneous’ for more details) 4.4 Browsing Movies In this mode, all folders and supported video files in current directory will be displayed.
  • Page 28 4.5.1 Browsing through Workgroup You can choose the workgroup which your PC belongs to from the workgroup list. Select your PC name and press the ENTER button to confirm. Then you can select and play the shared media files that you want to browse. Note: ...

  • Page 29: Audio Video Streaming Via Upnp-Server

    Select Add to open a popup menu where you can input: Net User ID (User name), Net Password and Specific File Server IP. Under detailed setting you can add Label, Domain and Host Name. Select OK to confirm, Cancel to cancel and Simple / Detail to switch between simple and advanced options.
  • Page 30 Click Allow to authorize your player. 4.6.3 Streaming Media on your Player Connect your FANTEC TV-FHDS to the home network (LAN or WLAN). Visit Browser - > UPnP menu on the player, select the UPnP-server and press ENTER. English...

  • Page 31: Renaming / Deleting Files

    Then you can browse the media library shared by Windows Media Player 11. Note:  Make sure your player and your computer are on the same local area network and subnet.  Firewalls may prevent your player communicating with your computer. Please open the ports manually and add your player to the ‘trusted’...

  • Page 32: File Copy Menu

    5. File Copy Menu Select the File Copy icon from the home screen to enter the File Copy menu, which allows you to copy files between USB devices, Card and Network. The following buttons can be used under the file copy menu. Button Function Move cursor up / down to select devices, folders...

  • Page 33: Internet Radio

    6. Internet Radio The FANTEC TV-FHDS integrates the SHOUTcast free Internet radio function. Select the Internet Radio icon on the main interface to enter this menu. Note:  Make sure the player is connected properly to a LAN or WLAN with internet access, please refer to ‘3.3 Changing Network Settings’...

  • Page 34: Media Library

    7. Media Library This is a powerful search engine. The media library menu allows you to search and browse multimedia files stored on the internal HDD. To enter this menu, select the Media Library icon on the home screen. 7.1 Music library Use the left / right button on the remote control to select the Music tab.
  • Page 35 Use the navigational buttons to select, and press the enter button to confirm. Select OK and press the enter button, and then the files you desired will be displayed on the screen. Select to list all the music files in the library. Artist Select to list all the music files by artist.
  • Page 36 Genre Select to list all the music files by genre. Press the up / down button to select the genre, and press the enter button to confirm. Album Select to list all the music files by album. Press the up / down button to select the album, and press the enter button to confirm.

  • Page 37: Photo Library

    7.2 Photo Library Use the left / right button on the remote control to select the Photos tab. Press the up / down button to select from Update, Search, All, and Date. And press the enter button to confirm. Select to update and synchronize all the photos stored on the internal Update HDD to the library.
  • Page 38 Select to list all the photos in the library. Date Select to list all the photos by date. Press the up / down button to select the date, and press the enter button to confirm. Quick-Search You can also press the right button to turn on a Quick-Search bar while previewing photos in the library.

  • Page 39: Movie Library

    7.3 Movie Library Use the left / right button on the remote control to select the Movies tab. Press the up / down button to select from Update, Search, All, Actor, Genre, and Year. And press the enter button to confirm. Select to update and synchronize all the movies stored on the internal Update HDD to the library.
  • Page 40 Select to list all the movies in the library. Select to search for movies by actor. Actor Press the up / down button to select the actor, and press the enter button to confirm. Select to search for movies by genre. Genre Press the up / down button to select the genre, and press the enter button to confirm.
  • Page 41 Year Select to search for movies by year. Press the up / down button to select the year, and press the enter button to confirm. Quick-Search You can also press the right button to turn on a Quick-Search bar while previewing movies in the library.

  • Page 42: Ims (Internet Multimedia Service) Menu

    8. IMS (Internet Multimedia Service) Menu This feature is additional function. All contents and services under this feature are provided by third-party service providers, our company does not offer any contents and services of this feature and it not responsible for any contents and services provided under this feature. Our company is not responsible for any operational stability of the contents and services, for example, if you cannot access certain web site for video streaming or news broadcast, or the content of a web site has been changed etc, are all responsible and control by the third-party...

  • Page 43: Appendixes

    11. Appendixes 11.1 Specifications I/O INTERFACES SUPORTED:  USB 2.0 HOST port x 2 (compatible to USB 1.1)  Memory Card slot (supports SD/SDHC//MMC/MS/MS Pro)  Composite (CVBS) A/V jack  Component Y/Pb/Pr jack  HDMI V1.3 interface  S/PDIF optical jack ...

  • Page 44: Frequently Asked Questions

    11.2 Frequently Asked Questions Question: I find new file names and folder names that I never created before or they have strange gibberish names. Answer: Most likely, the hard disk’s file allocation table (FAT) has been corrupted. This might be due to the PC’s shutting down while reading or writing to your hard disk by the USB connection.

  • Page 45: Copyrights And Trademarks

    Question: I configured everything correctly, but still cannot get the wireless network or UPnP function to work. Answer: Are you using a firewall such as Norton Internet Security, McAfee Personal Firewall, Zone Alarm, etc. or even the built-in firewall of Windows XP? (Don’t forget that Service Pack 2 for Windows XP automatically upgrades your firewall and turn it on by default) If you have a firewall, it may need to be configured or have exceptions created to allow you to see and communicate with the player on the network.

  • Page 46: Warranty

    11.4 Warranty What your warranty does not cover: -Acts of nature, such as fire, static discharge. -Damage from unauthorized repair, alteration or accident. -Damage from misuse or neglect. -A unit that has been modified or incorporated into other products or is used for institutional or other commercial purposes.
