Heating & Cooling Systems
72
AUTO
C
74
OOL
H
72
EAT
Heat Pump & Heat Cool
USERS INFORMATION MANUAL
M O D E L T S T A T B B N B 0 0 1
P R O G R A M M A B L E D I G I T A L
T H E R M O S T A T
NON-PROGRAMMABLE DIGITAL
THERMOSTAT
Dual Setpoint
Thermoglow
No Batteries Required
Auto Changeover
Locking Keypad
Meets California Title 24 Residential
Backlight
Advertisement
Table of Contents
Related Manuals for Bryant TSTATBBNB001
Summary of Contents for Bryant TSTATBBNB001
- Page 1 Heating & Cooling Systems T H E R M O S T A T AUTO Meets California Title 24 Residential Heat Pump & Heat Cool USERS INFORMATION MANUAL NON-PROGRAMMABLE DIGITAL THERMOSTAT Dual Setpoint Thermoglow Backlight No Batteries Required Auto Changeover Locking Keypad...
-
Page 2: Table Of Contents
DISPLAY BASIC OPERATION ADVANCED SETUP ABOUT ADVANCED OPERATION WARRANTY CAUTION Follow Installation Instructions before proceeding. SET THERMOSTAT TO MODE “OFF” PRIOR TO CHANGING SETTINGS IN SETUP OR RESTORING FACTORY DEFAULTS. Residential Light Commercial Systems TSTATBBNB001 Page 1 Carrier Corporation 04/01... -
Page 3: Front Panel

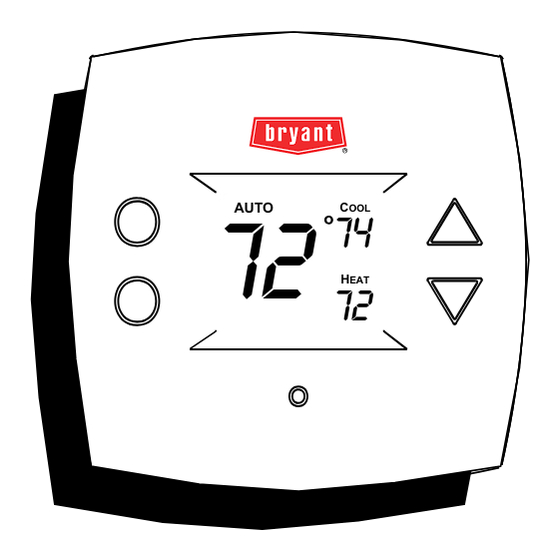

Front Panel AUTO Liquid Crystal Display with Thermoglow Up/Down Buttons Mode Button Fan Button Heat or Cool Indicator Heat = Red, Cool = Green Page 2... -
Page 4: Display
Display AUTO Fan On Mode Indicators Selects the operation mode of the equipment. HEAT - indicates the heat mode. COOL - indicates the air conditioning mode. AUTO - indicates the system will automatically changeover between heat and cool modes as the temperature varies. OFF - indicates the entire system is turned off. -
Page 5: Basic Operation
Basic Operation Select Mode The HEAT setting indicates the temperature the room has to reach before the furnace will turn on to heat the room. The COOL setting indicates the temperature the room has to reach before the air conditioner will turn on to cool the room. -
Page 6: Select Desired Temperature
Pressing the Up or Down buttons in Heat or Cool modes will adjust only the heat or cool set temperature. Press Operation AUTO Fan On indicates constant fan operation. This feature is active even if the thermostat is set to Off. Fan On Page 5 In any mode, adjust the desired Set Temperature with buttons. -
Page 7: Advanced Setup
Advanced Setup Press the Mode button. MODE While holding the Mode, press the Fan button for 5 seconds to enter Setup screens. Select 2 for dual setpoint 1 for single setpoint. Select residential Heat Pump, ON or OFF. Select the reversing valve polarity for Heat Pump, O or B. - Page 8 Advanced Setup Select Electric Heat On or Off. (Step 6 only appears if heat pump is off in step 4) Adjust the deadband from 1 - 6 degrees. Adjust the minimum difference between cooling & heating setpoints. (0 - 6 ) Select the cycles per hour limit.
- Page 9 Advanced Setup Select the display back- light always On, or Off after 8 seconds. Select thermostat operation in degrees Fahrenheit or Centigrade. Press the Mode button. While holding the Mode, press the Fan button for 2 seconds to leave the Setup screens.
-
Page 10: Advanced Setup Table
Advanced Setup Advanced Setup Table Step # Description Display Type Dual (2) or Single (1) Heat Pump Reversing Valve polarity Electric Heat Deadband or Temperature swing Forced minimum difference heat/cool Cycles per hour Thermoglow backlight Fahrenheit or Centigrade Page 9 Range Factory Default Off / On... -
Page 11: About Advanced Operation
‘EH’. Press for Emergency Heat During Emergency Heat the thermostat will turn on the fan and the 2nd stage of heat, when there is a demand for heat, locking out the 1st stage compressor. Exiting Emergency Heat is the same as entering. During Emergency Heat only OFF and HEAT are available. - Page 12 About Advanced Features & Operation ELECTRIC HEAT - Selecting Electric Heat on, page 7, step 6, will cause the thermostat to turn on the fan immediately any time there is a heat demand. Since all gas furnaces control the fan, this feature should be off unless the heater is only electric.
- Page 13 About Advanced Features & Operation DUAL SETPOINT BEHAVIOR - The adjustable setpoint range is: 35 - 99 degrees in Fahrenheit and 7 - 35 degrees in Centigrade. When in the modes Heat or Cool, this adjustable range is unhampered. When adjusting any Auto mode, including programming Occupied and Unoccupied periods, the 1050 will not allow the Heat setpoint to get closer to the Cool setpoint than the value programmed as the minimum difference in...
-
Page 14: Warranty
Warranty Five-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If defect appears within five years from the date of original installation, whether or not actual use begins on that date, then the product does meet this warranty. A new or remanufactured part, at the manufacturer’s sole option, to replace any defective part will be provided without charge for the part itself;...
