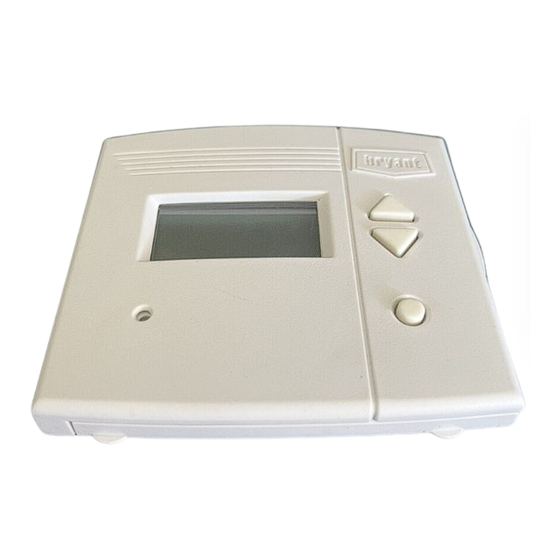

USERS INFORMATION MANUAL
M O D E L T S T A T B B P S 7 0 1
P R O G R A M M A B L E D I G I T A L
T H E R M O S T A T
NOTE TO INSTALLER:
This manual must be left with the equipment user.
7 Day Programmable
4 Time Periods per Day
Auto Changeover
Large, Easy To Read
Display
Thermoglow
Very Easy to Program
Programmable Fan
No Batteries Required
Outdoor Temperature
Sensor Available
Meets California Title 24 Residential
Backlight
Advertisement
Table of Contents
Related Manuals for Bryant TSTATBBPS701
Summary of Contents for Bryant TSTATBBPS701
- Page 1 M O D E L T S T A T B B P S 7 0 1 P R O G R A M M A B L E D I G I T A L Heating & Cooling Systems T H E R M O S T A T This manual must be left with the equipment user.
-
Page 2: Table Of Contents
4 Time Periods ADVANCED SETUP ABOUT ADVANCED OPERATION WARRANTY CAUTION Follow Installation Instructions before proceeding. SET THERMOSTAT TO MODE “OFF” PRIOR TO CHANGING SETTINGS IN SETUP OR RESTORING FACTORY DEFAULTS. Residential Light Commercial Systems TSTATBBPS101 Page 1 Carrier Corporation 4/01... -
Page 3: Front Panel
AUTO OUTSIDE Page 2 Backlit LCD Display Warmer or + Button Cooler or - Button Mode Button Heat or Cool Indicator Red = Heat, Green = Cool Programmable Thermostat 6:03 AUTO OUTSIDE VACATION PROGRAM SET CLOCK MODE VACATION PROGRAM SET CLOCK... -
Page 4: Display
Display 12:00 Program Start SMTWTFS ServiceFilter AUTO Night Morning Evening Fan On Mode Indicators Selects the operation mode of the equipment. HEAT - indicates the heat mode. COOL - indicates the air conditioning mode. AUTO - indicates the system will automatically changeover between heat and cool modes as the temperature varies. - Page 5 Page 21. Morning, Day, Evening & Night Indication Indicates the program time period. Page 8-11. Setup Indication Indicates the thermostat is in the programming mode. Page 12. Fan Operation Indication Fan On - indicates constant, continuous fan operation.
-
Page 6: Quick Start
This thermostat is preprogrammed from the factory to operate 1 or 2 Stage equipment without the need for further programming. To optimize the installation of this thermostat follow the instructions in the Advanced Setup section. Page 5 During Setup & Programming:... -
Page 7: Basic Operation
Basic Operation Select Mode 12:00 The HEAT setting indicates the temperature the room has to reach before the furnace will turn on to heat the room. 12:00 The COOL setting indicates the temperature the room has to reach before the air conditioner will turn on to cool the room. -
Page 8: Select Desired Temperature
Pressing the Up or Down buttons in Heat or Cool modes will adjust only the heat or cool set temperature. Press Operation 12:00 Fan On indicates constant fan operation. This feature is active even if the thermostat is set to Off. Fan On Page 7 In any mode, adjust the desired Set Temperature with buttons. -
Page 9: Programming
Programming 4 Time Periods Press Press the PROGRAM button to enter time period programming. PROGRAM Use the back cover Programming Worksheet to help with this section. Select the day of week (M - S) 7 30 Adjust the start time for Morning. - Page 10 Programming 4 Time Periods I0 30 Adjust the start time for Day. I0 30 Adjust the cooling setpoint for Day. (35 - 99 ) I0 30 Adjust the heating setpoint for Day. (35 - 99 ) 5 30 Adjust the start time for Evening.
- Page 11 Programming 4 Time Periods 5 30 Adjust the heating setpoint for Evening. (35 - 99 ) Evening I I 30 Adjust the start time for Night. Night I I 30 Adjust the cooling setpoint for Night. Night (35 - 99 ) I I 30 Adjust the heating setpoint for Night...
- Page 12 Programming 4 Time Periods The copy command becomes available after programming the entire previous day. 18:no Select Yes or No to copy the previous day’s program to this day. If Yes is selected: Selecting Yes, then pressing mode will copy the previous day’s program and then will ask the Press same copy question again.
-
Page 13: Advanced Setup
Advanced Setup Press the Mode button. MODE While holding the Mode, press the Program button PROGRAM to enter Setup screens. I2:00 Adjust the time of day clock. Tip: To change hours quickly, press and hold the override button in and press the up or down buttons. - Page 14 Advanced Setup Select Electric Heat On or Off. (Step 5 only appears if heat pump is off in step 3) Adjust the deadband from 1 - 6 degrees. Adjust the minimum difference between cooling & heating setpoints. (0 - 6 ) Select the cycles per hour limit.
- Page 15 Advanced Setup 7:00 Adjust the programmable fan start time. (step 10 appears only if step 9 is not 0:00) Fan On 9:00 Adjust the programmable fan stop time. (step 11 appears only if step 9 is not 0:00) Fan On Select the display back- light always On, or Off after 8 seconds.
- Page 16 ServiceFilter run before the Service Filter icon appears on the display. 0 = off. (0 - 1950) Select thermostat operation in degrees Fahrenheit or Centigrade. Press the Mode button. While holding the Mode, press the Fan button for 2 seconds to leave the Setup screens.
-
Page 17: Advanced Setup Table
Advanced Setup Advanced Setup Table Step # Description Time of day clock set Day of the week Heat Pump Reversing Valve polarity Electric Heat Deadband or Temperature swing Forced minimum difference heat/cool Cycles per hour Programmable Fan Programmable Fan Start Time Programmable Fan Stop Time Thermoglow backlight Energy Watch - Heat Timer... -
Page 18: About Advanced Operation
The Programmable Fan timer will start the fan at the top of each hour. The Programmable Fan may be active even if the thermostat mode is Off. Steps 10 & 11 restrict the hours in which Programmable Fan may operate. Step# 10, page 14 is the start time and step# 11 is the stop time. - Page 19 Exiting Emergency Heat is the same as entering. During Emergency Heat only OFF and HEAT are available. ELECTRIC HEAT - Selecting Electric Heat on, page 13, step 5, will cause the thermostat to turn on the fan immediately any time there is a heat demand. Since all...
- Page 20 About Advanced Features & Operation KEYPAD LOCK - To prevent unauthorized use of the thermostat, the front panel buttons may be disabled. To disable, or ‘lock’ the keypad, press and hold in the Mode button. While holding the Mode button in, press the Up and Down buttons in together.
- Page 21 About Advanced Features & Operation VACATION MODE - When the thermostat is in Vacation mode, the thermostat will operate under the Vacation time period set points. In order for Vacation mode to become active the thermostat must be in the Program On mode. Vacation mode will take effect when the time clock reaches 12:00am.
- Page 22 Centigrade. When in the modes Heat or Cool, this adjustable range is unhampered. When adjusting any Auto mode, including programming 4 Time periods, the thermostat will not allow the Heat setpoint to get closer to the Cool setpoint than the value programmed as the minimum difference step 7, page 13.
- Page 23 About Advanced Features & Operation OUTSIDE SENSOR (Optional Accessory) - When connected to terminals RS+5, RS, & GND on the back of the thermostat, the thermostat will read the temperature from the Outside Sensor when asked to. This thermostat will not control to this sensor, it is only to read outside temperature.
-
Page 24: Warranty
Warranty Five-Year Warranty - This Product is warranted to be free from defects in material and workmanship. If defect appears within five years from the date of original installation, whether or not actual use begins on that date, then the product does meet this warranty. A new or remanufactured part, at the manufacturer’s sole option, to replace any defective part will be provided without charge for the part itself;... - Page 25 Programming Worksheet DAY PERIOD START TIME COOL Morning Evening Night Morning Evening Night Morning Evening Night Morning Evening Night Morning Evening Night Morning Evening Night Morning Evening Night Printed on recycled paper. P/N 88-307 Rev. 1 see page 8 HEAT Copy Mon Copy Tue Copy Wed...
