Cradlepoint MBR90 Quick Start Manual

QUICK START GUIDE

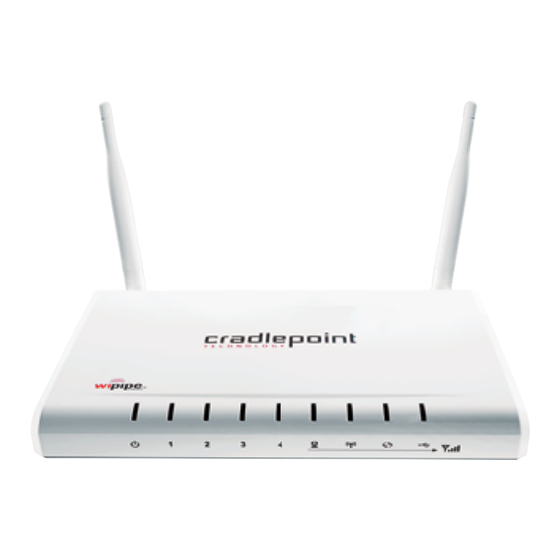

MBR90

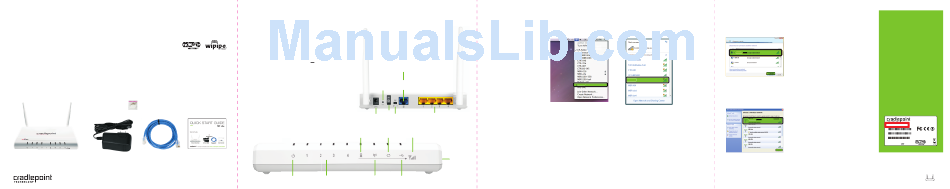

What's In The Box
Mounting Hardware
Wireless N Home Router 12v Power Supply Ethernet Cable Quick Start Guide
( Color May Vary )
www.cradlepoint.com/mbr90
to receive support, you must register your product:
SETTING UP THE ROUTER
1 ) Plug the power supply into
an electrical outlet.
Using Cable, DSL, or Satellite?
2 )
Connect the power supply to the
Connect the provided
MBR90 and turn on " ".
Ethernet cable from your
Modem into the blue WAN port.
3 ) Connect a modem: Cable, DSL,
Satellite, T1, T3, USB Wireless
CABLE/DSL
MODEM
Broadband Data Modem with
( WAN )
RESET
Active Subscription, or a supported
Smart Phone with Active Data +
Tethering Plan .
ON/OFF
POWER CONNECT
WiFi
ON/OFF COMPUTERS
4 ) Ensure the WiFi switch is on " | "
or PRINTERS
INTERNET WPS MODEM
CONNECTION SECURITY SIGNAL STRENGTH
POWER STATUS ETHERNET CONNECTION WiFi 3G/4G
BROADCAST MODEM
( PORT 1-4 )
CONNECTING YOUR COMPUTER
MAC OSX
After you connect your
modem to the router, you're
now ready to connect to the
CradlePoint MBR90 WiFi.
802.11n antennas provide up
to 750 feet of range from the
CradlePoint router to your
connected computers or
CradlePoint_MBR90-xxx
WiFi-enabled devices.
Find your operating system
and follow the connection
steps. 1) Open your wireless connection list
by clicking the AIRPORT wireless
Find your default password
icon on your menu bar
( LAN )
on the bottom of your router.
You'll see a list of available wireless
networks
2) Click on the CradlePoint_MBR90-xxx
3) Enter Default Password
NOTE: If you are asked for an
3G/4G "8-digit PIN", click CONNECT
MODEM SLOT
USING A SECURITY KEY and
(USB)
enter your eight character
default password.
2
WINDOWS 7 WINDOWS VISTA
1) Click START
2) Hover over CONNECT TO
3) Click WIRELESS NETWORK CONNECTION
CradlePoint_MBR90-xxx CradlePoint_MBR90-xxx CradlePoint_MBR90-xxx
You'll see a list of available wireless networks
4) Click CradlePoint_MBR90-xxx
5) Enter Default Password
6) Click CONNECT
CradlePoint_MBR90-xxx
NOTE: If you are asked for an "8-digit PIN", see note on page 3.
WINDOWS XP
1) Click the NETWORK CONNECTION icon 1) Click START
in the lower right hand corner taskbar.
2) Hover over CONNECT TO
CradlePoint_MBR90-xxx CradlePoint_MBR90-xxx CradlePoint_MBR90-xxx
You'll see a list of available wireless networks 3) Click WIRELESS NETWORK CONNECTION
2) Click CradlePoint_MBR90-xxx You'll see a list of available wireless networks
3) Enter Default Password 4) Click CradlePoint_MBR90-xxx
5) Enter Default Password
4) Click CONNECT
6) Click CONNECT
www.cradlepoint.com/mbr90
For additional information, visit:
© 2010 CradlePoint, Inc. All rights reserved. CradlePoint is not responsible for omissions or errors in typography or photography. CradlePoint, WiPipe™,
3
and the WiPipe logo are trademarks of CradlePoint, Inc. in the US and other countries. Other trademarks are property of their respective owners.
FINDING
YOUR
PASSWORD
Your unique default password
is shown on the product label
on the bottom of your router.
It is the last eight characters
of your MAC Address.
You will be asked for this
password when you connect a
new device to the WiFi network
or log into the administration
pages.
The default password provides
WiFi security out-of-the-box.
Part number: MBR90
H/W ver.: V 1.0
F/W ver.: V 1.7.3
www.cradlepoint.com
Default Password: 440cb825
WLAN MAC Address : 0030440cb825
Serial No.: MM100055505005
FCC ID: SI5WRT383UV2
IC: 6921A-MBR900
WPS PIN: 25601299 Model: MBR900
SSID:CradlePoint_MBR90-825
RoHS
MFG DATE: 02-SEP-10
Made in Taiwan 12V 1A R06
find this label on the bottom of your router
