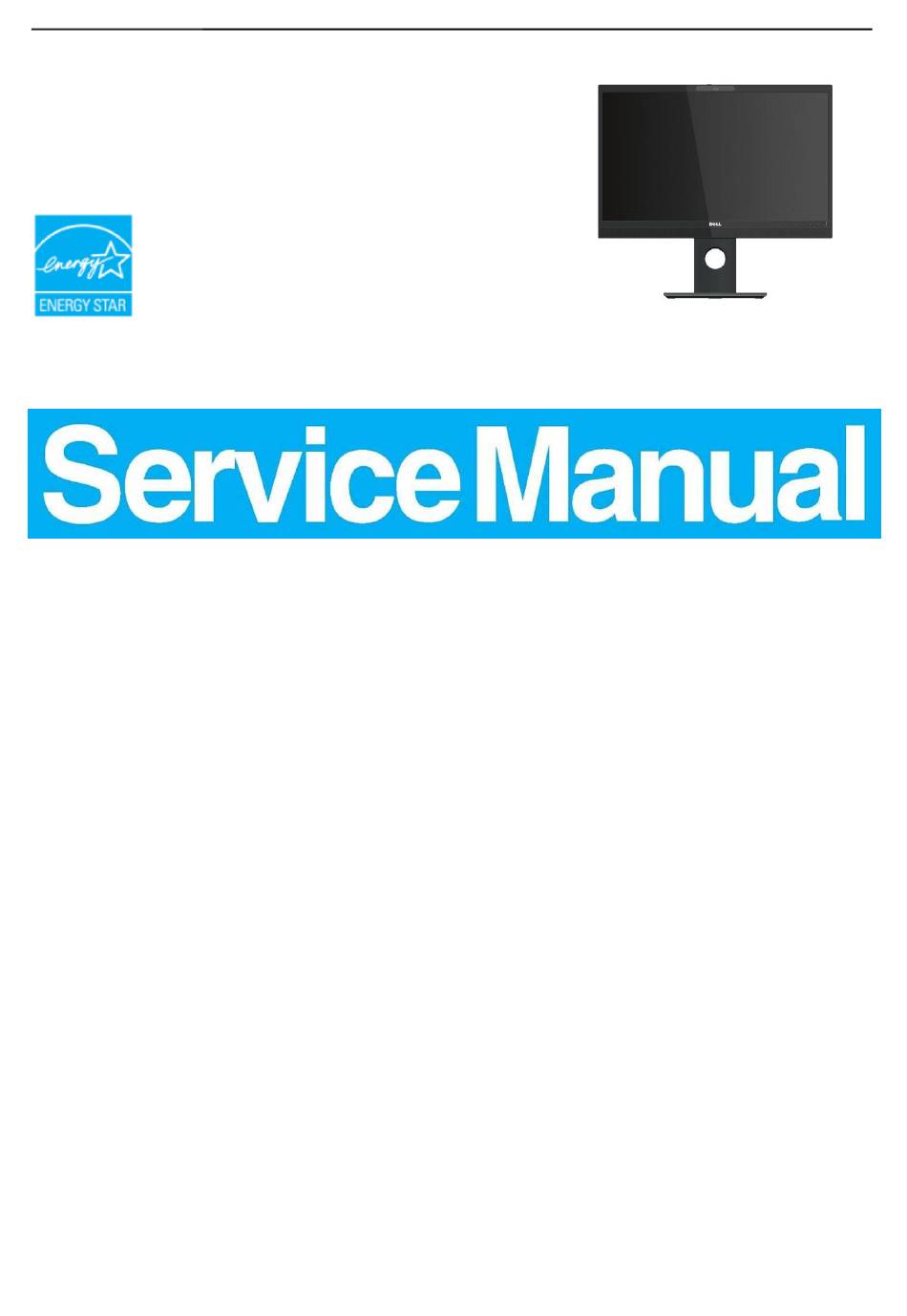

- Page 1 23.8" LED Monitor DellP2418HZ(M) Service Service Service Simplified...
- Page 2 Accordingly, a servicer who uses a service procedure or tool which is not recommended by DELL must first satisfy himself thoroughly that neither his safety nor the safe operation of the equipment will be jeopardized by the service method selected.
- Page 3 1. Exploded view diagram with list of items Item Part NO. Description Quantity Q24G0264101 Glass A34G4273-VHA1S0100 BEZEL A33G2082-VH-1X0100 Latch A33G2081-VH-1S0100 COVER_WEBCAM A33G2084--2-1C0100 LENS_WEBCAM 317GAWCM030LON WEBCAM MODULE 5SF209N2 Q85G0309101 webcam shielding Q23G3155700005 BEZEL LOGO (27mm) Q27G6217101 Speaker mesh Q52G1201086 Lens tape A33G2083--2-1C0100 LENS KEPCKQ1...
-
Page 4: Tools Required
Q19G5023--1 spring Q15G0233--2 KS BKT 378G060A678YAA00HF SPEAKER USBKQ1 USB BOARD Q85G0310101 USB shielding A34G4274-VH-1S0130 REAR_COVER Q37G0686101 Stand Q37G0687101 Base 0Q1G2030--6120 screw QM1G3840060120 screw 0M1G2940-10225-CR3 screw 2. Wiring connectivity diagram 3. Tools Required List the type and size of the tools that would typically can be used to disassemble the product to a point where components and materials requiring selective treatment can be removed. - Page 5 Tools: 2 Power screwdrivers (φ=5mm, L=60mm); 1 small cross screwdriver; turnbuckle driver; Setting: Power screwdriver torque A=6 kgF.Cm Step Figure TOOl Remark Unscrew the 4 screws by the Philips-head Screwdriver and Press the button by hand to remove the Remove the hinge assy Base ass’y.
- Page 6 Unscrew the screws by the hexagon screwdriver. Torque=6±1kgf.cm Tear out the four wires. Remove the screws by the Philips-head Remove the Screwdriver. Mainboard Torque=6±1kgf.cm Main board...
-
Page 7: Assembly Procedures
Power board Mainframe Remove the screws by the Philips-head Screwdriver. Torque=6±1kgf.cm rear cover Separate the USB board and rear cover. 3.2 Assembly Procedures:... - Page 8 Tighten the screws by the Philips-head Assemble Screwdriver. Torque=6±1kgf.cm board and assemble the USB speaker board and speaker Tighten the screws Assemble by the Philips-head Screwdriver. Torque=6±1kgf.cm Mainboard tighten the screws by the hexagon connect the screwdriver. FFC cables Torque=6±1kgf.cm connect all the and LVDS cabel...
-
Page 9: Troubleshooting Instructions
Tighten the 4 screws by the Assemble Philips-head the rear Screwdriver. cover Torque=6±1kgf.cm Assemble Tighten the screws by the Base ass’y. Philips-head and stand Screwdriver ass’y 4. Trouble shooting instructions...
