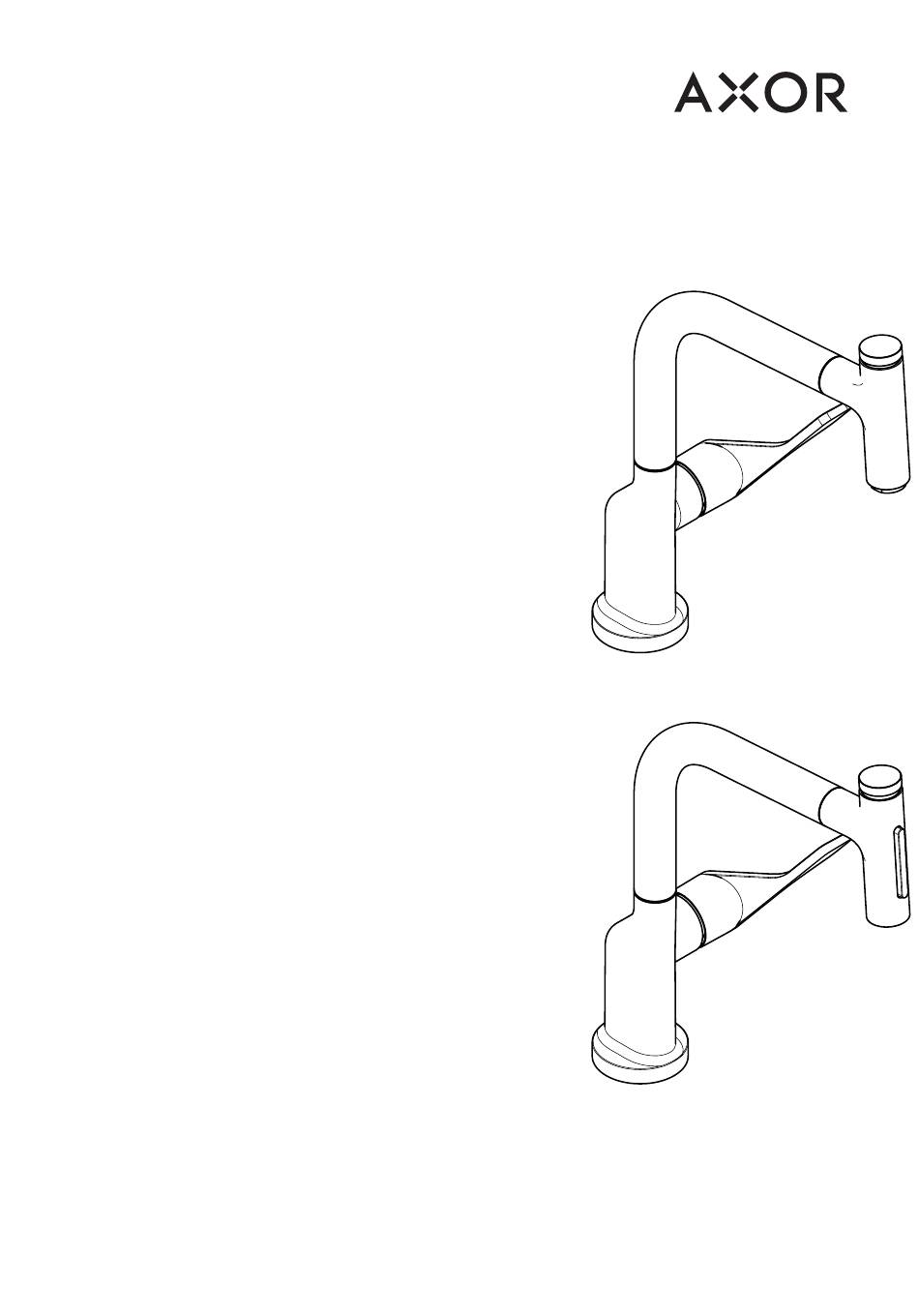

- Page 1 A XOR Citterio Select 39861XX7 Z H ⁄ 用户手册 ⁄ 组装说明 A XOR Citterio Select E N ⁄ Instructions for use ⁄ assembly instructions 39863XX7 I N S T A L L A T I O N...
- Page 2 安全技巧 装配时为避免挤压和切割受伤，必须戴上手套。 冷热水管间过大的压力差必须予以平衡。 安装提示 ⁄ 安装前必须检查产品是否受到运输损害。 安装后将不认可运输损害或表面 损伤。 ⁄ 管道和阀门必须根据通用标准进行安装、冲洗和检查。 ⁄ 请遵守当地国家现行的安装规定。 ⁄ 首次调试时和维护作业之后，管接头中的空气可能产生噪音。大约使用管 接头 15 次后噪音消失。 技术参数 1 MPa 工作压强： 最大 推荐工作压强： 0,1 - 0,5 MPa 1,6 MPa 测试压强： (1 MPa = 10 bar = 147 PSI) 热水温度： 60°C 最大 70°C ⁄ 4 分钟 热力消毒: 该产品专为饮用水设计！ 符号说明 请勿使用含有乙酸的硅胶！ 调节 (参见第页 06) 热水温度调节。如果使用即热式喷头，则不建议安装热水阀门。 保养 (参见第页 08) 单向阀必须在符合国家或当地的法律的情况下按照EN 806-5定期检查 ...
- Page 3 S A F E T Y N O T E S ⁄ Use the lever to open the tap and set the desired temperature. The water flow can be paused by pressing the Select button on the face side of the Gloves should be worn during installation to prevent crushing and cutting injuries. spout. When the tap is not used for a longer period of time, f.e. when The hot and cold supplies must be of equal pressures. retiring at night or leaving the house, it must be closed completely by means of the lever. I N S T A L L A T I O N I N S T R U C T I O N S ⁄ Prior to installation, inspect the product for transport damages. After it has been installed, no transport or surface damage will be honoured.
- Page 4 (3 Nm) 150° SW 10 mm 110° SW 19 mm SW 24 mm (4 Nm) (4 Nm) 150° 75° 75° 24 x 15° 105° 45° 105° 45°...
- Page 5 110° 55° 55° 24 x 15° 110° 85° 25° 85° 25° SW 12 mm SW 17 mm > 2 min CLICK...
- Page 6 60 °C 10 °C 0,3 MPa SW 3 mm 60°C 36°C 55°C SW 3 mm 38°C 50°C (5 Nm) 43°C...
- Page 7 A XOR Citterio Select 230 A XOR Citterio Select 230 39861XX7 39863XX7 Ø Ø Ø Ø Ø 34 Ø 34 G1/2 G 1/2 A XOR Citterio Select 230 A XOR Citterio Select 230 39861XX7 39863XX7 0,60 0,60 0,55 0,55 0,50 0,50 0,45 0,45 0,40 0,40 0,35 0,35 0,30 0,30 0,25 0,25 0,20 0,20 0,15 0,15...
- Page 8 39861XX7 39861XX7 ⁄ 39863XX7 SW 19 mm SW 10 mm SW 10 mm SW 19 mm (4 Nm) 开 ⁄ open 开 ⁄ open 热 ⁄ hot 关 ⁄ close 关 ⁄ close 冷 ⁄ cold...
- Page 9 C L E A N I N G R E C O M M E N D A T I O N F O R H A N S G R O H E P R O D - U C T S Today, modern sanitary and kitchen tapware, showers, accessories, washstands, tubs and radiators consist of very different materials to comply with the needs of the market with regard to design and functionality.
- Page 10 A XOR Citterio Select 230 92566XX0 39861XX7 ⁄ 39863XX7 95962000 (19x1,5) 98112000 92570XX7 (8x2) 92567000 (39861XX7) 92583XX0 98463000 96456000 92566XX0 39891XX0 98201000 (14x1,5) (110°⁄150°) 96029000 (M6x10) 98365000 96461000 98211000 92961XX0 (21x2,5) 96338000 95008000 98603XX0 92567000 98193000 (32x2) 98463000 92730000 98422000 97827000 (7x1,5) (8x1,75) 93410XX7 (39863XX7) 92568000 (600 mm) 97825000...
- Page 16 A XOR ⁄ Hansgrohe SE Auestraße 5–9 77761 Schiltach Deutschland info@axor-design.com axor-design.com...
