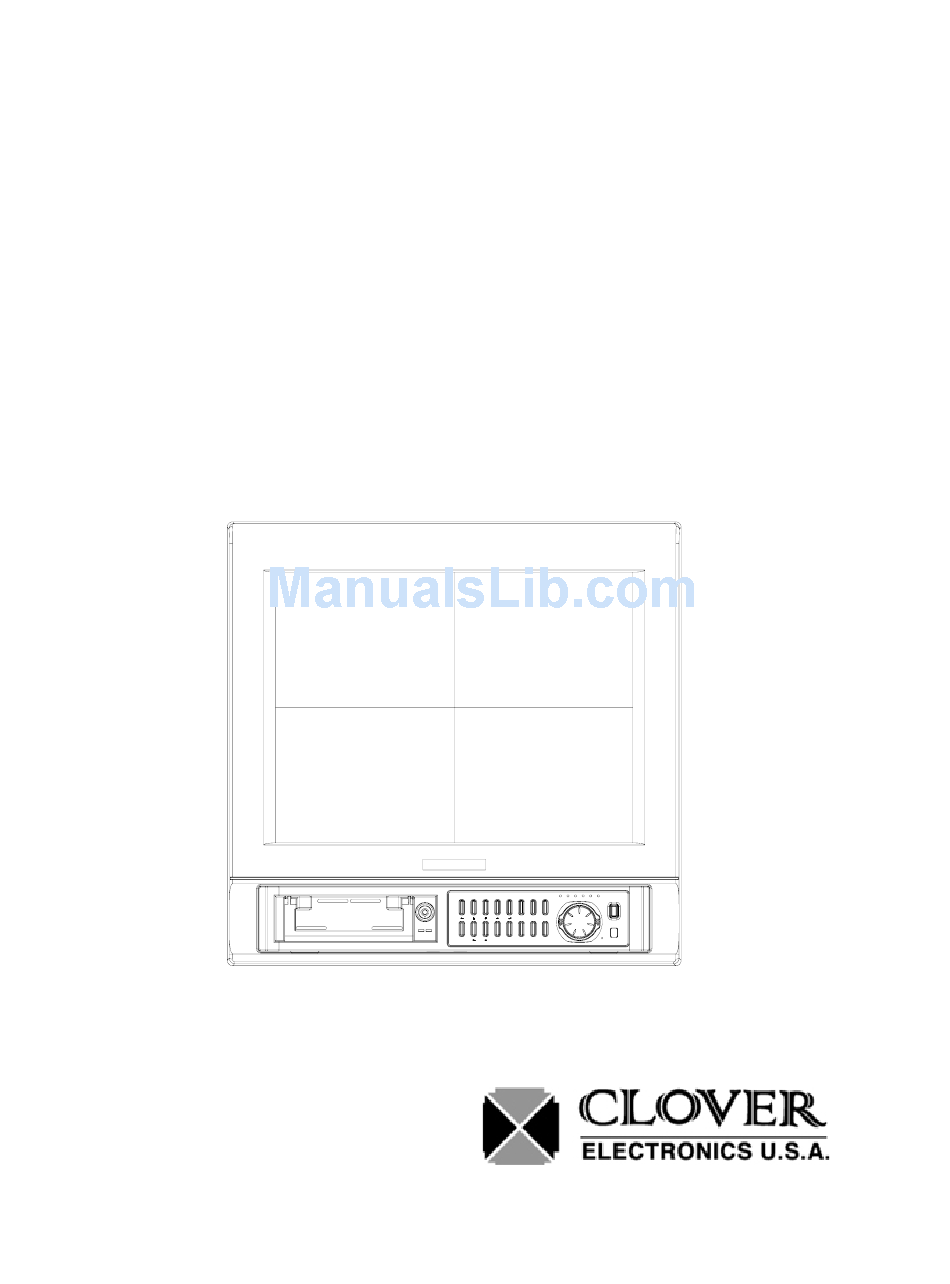

INSTRUCTION MANUAL
17" ALL IN ONE
MONITORING SYSTEM
MODEL: C1704DVR
C1714DVR
CLOVER
CH1
SEARCH
SYS LOG
Copyright © 2006 Clover Electronics U.S.A. All Rights Reserved.
REC
PLAY
TIMER
ALARM
FULL
POWER
QUAD
SETUP
A-SEL
CH2
CH3
CH4
TALK
STAND-BY
AUTO
PTZ
ALRST
STOP/ESC
REW
PLAY
FF
REC
VOLUME
OSD
PAUSE
RE
C STO
P
Advertisement
Table of Contents
Related Manuals for Clover C1704DVR
Summary of Contents for Clover C1704DVR
- Page 1 INSTRUCTION MANUAL 17” ALL IN ONE MONITORING SYSTEM MODEL: C1704DVR C1714DVR Copyright © 2006 Clover Electronics U.S.A. All Rights Reserved. CLOVER PLAY TIMER ALARM FULL POWER QUAD SETUP A-SEL TALK STAND-BY AUTO ALRST SEARCH STOP/ESC PLAY VOLUME SYS LOG PAUSE...
- Page 2 RISK OF ELECTRIC SHOCK. DO NOT OPEN. CAUTION! TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. Explanation of two Symbols The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of un-insulated "dangerous voltage"...
- Page 3 NOTE: This equipment has been certified and found to comply with the limits regulated by FCC, EMC and LVD. Therefore, it is designed to provide reasonable protection against interference and will not cause interference with other appliance usage. However, it is imperative that user follows this manual's guidelines to avoid improper use which may result in damage to the unit, electrical shock and fire hazard or injury.
-
Page 4: Table Of Contents
1. GENERAL PRECAUTIONS 2. SPECIFICATIONS 3. OPERATION 3.1 FRONT PANEL & REMOTE CONTROLLER 3.2 BACK PANEL 4. BASIC CONFIGURATION OF THE MONITOR SCREEN 4.1 START UP 4.2 LIVE SCREEN 4.3 RECORDING SCREEN 4.4 PLAYBACK SCREEN 4.5 RECORD AND PLAYBACK SCREEN 4.6 LIVE 4.7 RECORDING 4.8 PALYBACK... - Page 5 7. PTZ CONTROL 8. INSTALLATION 8.1 SYSTEM CONFIGURATION DIAGRAM 8.2 CAMERA 8.3 AUDIO 8.4 MONITOR 9. NETWORKING 9.1 REQUIREMENTS 9.2 INSTALLING THE PROGRAM TO THE PC 9.3 CONNECTING THE DVR THROUGH GUI (CLDVR) 9.4 CLDVR SCREEN 9.5 EXPLANATION OF CLDVR FUNCTION 9.6 LOCAL VIEWER APPENDIX RECORDING TIME TABLE (DAYS)
-
Page 6: General Precautions
1 GENERAL PRECAUTIONS Read Instructions All of the safety and operating instructions should be read and understood before the product is used. Retain Instructions : The safety and operating instructions should be retained for future reference. Heed Warnings : All warnings on the product and the instruction manual should be followed. Follow Instructions : All operating and use instructions should be followed for optimal performance Cleaning : Disconnect this video product from the power supply before cleaning. - Page 7 result in damage and will often require extensive work by a qualified service technician to restore the product to its normal operation If the product has been dropped or the cabinet has been damaged When the product displays a distinct change in performance - this indicates a need for service 17.
-
Page 8: Specifications
2. SPECIFICATIONS System NTSC or PAL (Auto Detection) Video Input 4 Inputs (BNC / 6-Pin Mini Din): 1Vp-p composite, 75ohms Video Output 2 Outputs (RCA): 1Vp-p composite, 75ohms, Monitor/VCR Audio Input 4 Channel (RCA / 6-Pin Mini Din) Audio Output 2 Channel (RCA) Alarm Input 4 Ch alarm Inputs: Normally Open (N.O) - Page 9 Jog-Shuttle Setup On screen Display setup User Interface Menu driven User Input Device Front Panel keypad Timer Built-in real time clock MONITOR Picture tube 17” flat square picture tube Horizontal Resolution 420 TV Lines Convergence Less than 1.1mm at center AC power source AC 90 to 240V, 50/60Hz, power consumption 70W Operation temperature...
-
Page 10: Operation
3 OPERATION 3.1 FRONT PANEL & REMOTE CONTROLLER 2 3 4 5 6 7 8 9 QUAD AUTO SEARCH STOP/ESC VOLUME SYS LOG 13 14 15 16 17 18 19 20 STAND BY SETUP ZOOM REC STOP ENTER WTMK BACKUP PLAY/PAUSE STOP FRZ1... - Page 11 1. HDD RACK Master HDD-160GB installed 2. CH 1 / LEFT - While in Quad mode, press this button momentarily (at least 3 seconds) and channel 1 will appear in full screen. - In full screen mode, channel 1 single screen or on PIP / POP / QUAD screen, press this button once and the screen will freeze.
- Page 12 ENTER - On SETUP / PTZ mode, pressing this button can select item or change the values. - Press this button in LIVE mode, the monitor displays QUAD screen and a full screen at a time in a continuous sequence – one camera after another. - If the channel (s) has no video signal or channel that is set up dwell time to 0 second, the corresponding channel (s) will be skipped in sequential mode.
- Page 13 R-E : It stands for Recording End. P-S : It stands for Playback Start. P-E : It stands for Playback End. S-S : It stands for Setup Start. S-E : It stands for Setup End. PWR : It indicates when the system was powered on. USB : It indicates when the system saved data on the USB memory.
- Page 14 recorded images generated by DVR in terms of the legal purpose or confidential use. The Watermark is usually visible by a detector chip or by special software. 24. BACKUP (On the Remote Controller Only) This button is used to backup data on USB memory. HOW TO BACKUP DATA ON USB - Format the USB with your computer and plug it on USB PORT (See #12).
-
Page 15: Back Panel
3.2 BACK PANEL VIDEO INPUT AUDIO INPUT 1. VIDEO INPUT 4 - Video Inputs (6-Pin Mini Din), 1 V p-p composite @ 75 ohm 2. VIDEO INPUT 4 - Video Inputs (BNC), 1 V p-p composite @ 75 ohm 3. AUDIO INPUT 4 - Audio Inputs (RCA) 4. -
Page 16: Basic Configuration Of The Monitor Screen
4. BASIC CONFIGURATION OF THE MONITOR SCREEN 4.1 START UP When the system starts up, the following pictures will be displayed in sequence. Function Title. Operational information Firmware Version # Hard Drive Information. Network Configuration - 11 -... -
Page 17: Live Screen
4.2 LIVE SCREEN Camera Title Camera Title Camera Title Full Screen in Live Mode Quad Screen in Live Mode PIP Screen in Live Mode - 12 - Indicates recording HDD Time and Date Indicates recording HDD Time and Date Indicates recording HDD Time and Date... -
Page 18: Recording Screen
Indicates recording HDD Camera Title Time and Date POP Screen in Live Mode 4.3 RECORDING SCREEN Indicates recording HDD Recording Camera Title Time and Date Quad Screen in Record Mode - 13 -... -
Page 19: Playback Screen
4.4 PLAYBACK SCREEN Playback OSD & Speed Camera Title Playback OSD & Speed Camera Title Playback OSD & Speed Camera Title Full Screen in Playback Mode Quad Screen in Playback Mode Nine Screen in Playback Mode - 14 - Indicates recording HDD Time and Date Indicates... -
Page 20: Record And Playback Screen
4.5 RECORD AND PLAYBACK SCREEN REC, Playback OSD & Speed Camera Title Quad Screen in Record and Playback Mode REC, Playback OSD & Speed Camera Title Nine Screen in Record and Playback Mode - 15 - Indicates recording HDD Time and Date Indicates recording HDD Channel Title... -
Page 21: Live
4.6 LIVE Live means viewing the present video images from the cameras on the monitor. 4.6.1 Full Screen display Full screen display is possible in the Live mode or Record mode. Use channel selection button to choose a corresponding video input. Refer to 4.2 “Full Screen in LIVE Mode”... -
Page 22: Recording
screen. - Press the same channel selection button to release the freeze function. 4.6.7 OSD On / Off Available in the LIVE, RECORD or PLAYBACK mode. When the OSD button is pressed, all the texts except the REC and PB (PLAYBACK) OSD are cleared temporarily. -
Page 23: Palyback
recording. The whole recording lists are updated hourly up to 1,000 lists on both Master and Slave. 4.7.3 Schedule recording Recording by scheduled time The time of record start and finish can be set to hour: minute. Refer to section 5.7.6 for more information. 4.7.4 ALARM recording When an alarm signal is received, the system begins to record automatically. - Page 24 4.8.3 Playback by the last recording list When the SEARCH button is pressed, the SEARCH/HDD SET menu appears on the screen. Select THE LAST RECORD LIST and press the ENTER button. It will replay from the beginning of the last recorded list. Press the ESC button to return to the SEARCH/HDD SET menu.
- Page 25 Set the TIME/DATE by using the UP/DOWN buttons for changing the values and use the LEFT/RIGHT buttons to move to next field. Press the ENTER button to search the recorded image. If the recorded image exists, it automatically plays data and if not, it returns to the LIVE mode. In order to pause during playing, press the PLAY button.
-
Page 26: Setup
5. SETUP 5.1 SETUP SCREEN TREE - 21 -... - Page 27 - 22 -...
- Page 28 - 23 -...
-
Page 29: How To Setup
5.2 HOW TO SET UP - Setup is possible in the LIVE mode and partly in the recording mode, not in the playback mode. - Press the SETUP button. - Choose a setup item by using the UP/DOWN buttons and press the ENTER button. - Choose the desired values with the ENTER button. -
Page 30: Motion
5.3.6 REC SPEED • Choose the REC SPEED in the ALARM OPTION menu by using the UP/DOWN buttons. • Choose one REC SPEED among 01, 02, 03, 05, 10, 15, 30 and 60 IPS by repeatedly pressing the ENTER button, if the REC RESOLUTION in the RECORD menu set to 720H or 360H. -
Page 31: System
5.4.4 AREA • Choose the AREA in the MOTION menu with the UP/DOWN buttons • Press the ENTER button to create the motion detection AREA. • Move the symbol “O” by using the UP / DOWN / LEFT / RIGHT buttons and select the area where you would like to create, and press the ENTER button. - Page 32 • To apply the setting, press the ENTER button. 5.5.1.3 DATE FORMAT • Choose the DATE FORMAT in the TIME /DATE SET menu with the UP/DOWN buttons. • Select the DATE FORMAT by pressing the ENTER button. There are three formats to display the time and date as follows. MM / DD / YYYY: For U.S.A.
- Page 33 by using the LEFT/RIGHT/ENTER button, it starts to formatting or select NO for going back to the previous mode. 5.5.2.3 HDD INFO • Choose the HDD INFO in the HARD DISK menu by using UP/DOWN buttons. • Select BYTE, PERCENTAGE or OFF by pressing the ENTER button. •...
- Page 34 5.5.6.1 IP MODE • Choose the IP MODE in the IP CONFIGURATION menu with the UP/DOWN buttons. • Choose DYNAMIC IP or STATIC IP by pressing the ENTER button. DYNAMIC IP: The IP is automatically allocated via router. Therefore the IP address, subnet mask and gateway address will be automatically allocated.
-
Page 35: Video
NOTE: - Router has to be set as a virtual server (or port forwarding) in order to utilize the DDNS service (See section 5.11 for more details). - Do not use the public port numbers. - Four Port numbers (in sequence) including the default port number should be forwarded. -
Page 36: Record
5.6.2 DWELL TIME • Choose the DWELL TIME in the • Press the ENTER button, and the DWELL TIME menu will be displayed. • Select the desired channel by using UP/DOWN buttons and press the ENTER button to change the dwell time of the desired channel. •... -
Page 37: Display
5.7.5 AUDIO REC • Choose the AUDIO REC in the RECORD menu by using UP/DOWN buttons. • Select ON or OFF by pressing the ENTER button. NOTE: The system does not record when the recording speed is set to less than 4 IPS. 5.7.6 SCHEDULE REC •... -
Page 38: Buzzer
At “ON” mode, the borderline will be shown on the screen. 5.8.3 TIME/DATE • Choose the TIME/DATE in the DISPLAY menu by using UP/DOWN buttons. • Select ON or OFF by pressing the ENTER button. At “ON” mode, the time/date will be shown on the screen. 5.8.4 POSITION •... - Page 39 5.10.1.1 PASSWORD • Select the PASSWORD in the DVR ACCOUNT menu by using UP/DOWN buttons. • Select ON or OFF by using the ENTER button. • If ON is selected, the password has to be entered to get into the following mode. Setup mode, Search mode, Record mode, Record stop mode, PTZ mode and System Log mode.
-
Page 40: Ddns
• Press the ENTER button and the NETWORK ACCOUNT menu will be displayed. 5.10.2.1 USER ID • Select the USER ID in the NETWORK ACCOUNT menu by using UP/DOWN buttons. • Press the ENTER button. • Change the values up to 5 digits with the UP/DOWN buttons and move the digits with the LEFT/RIGHT button. - Page 41 5.11.2 HOST NAME • Choose the HOST NAME in the DDNS SET menu with the UP/DOWN buttons. • Press the ENTER button to change the values with the UP/DOWN buttons and select the digits (up to 8 digits) by using the LEFT/RIGHT buttons. •...
-
Page 42: Monitor
10. To complete, click Add Host on the bottom. 11. After registration, go to the DDNS SET menu on the DVR. 12. Refer to section 5.11 DDNS in this manual for the next step. Registration to CLOVERDVR.COM 1. Go to website www.cloverdvr.com 2. -
Page 43: Install The Hdd
5.12.4 TINT • Choose the TINT with the UP/DOWN buttons. • Press the ENTER button to change the values with the UP/DOWN buttons. • After changing the values, press the ENTER button. 5.12.5 SHARPNESS • Choose the SHARPNESS with the UP/DOWN buttons. •... -
Page 44: Install The Hdd2
6. Turn the power on and see if the HDD is being recognized. If the HDD is not recognized after installing, please check the HDD jumper setting, NOTE power cable and data cable connection. 6.2 INSTALL THE HDD2 TO INSTALL A HARD DISK DRIVE (HDD) FOR SLAVE, UNPLUG CAUTION THE AC POWER CORD AS THIS CAN RESULT IN A RISK OF ELECTRIC SHOCK. - Page 45 4. Make sure the power connector and the flat cable are properly connected. 5. Assemble the cover. 6. Turn the power on and see if the HDD is being recognized. If the HDD is not recognized after installing, please check the HDD jumper setting, CAUTION power cable and data cable connection.
-
Page 46: Ptz Control
7. PTZ CONTROL 1. Connect Pan/Tilt/Zoom camera’s control to RS485(+) / RS485(-) port on the rear of the system. 2. The video output of Pan/Tilt/Zoom camera to the one out of channel you wish to connect. 3. Press and hold the PTZ button for about 3 seconds on the front panel and the PAN/TILT CONTROL screen will be displayed on the monitor. -
Page 47: Installation
8. INSTALLATION 8.1 System Configuration Diagram The following illustration is showing the fully installed system. CAMERA (BNC) VIDEO INPUT AUDIO INPUT ALARM PTZ CAMERA TIME LAPS VCR CAMERA (6 PIN MINI DIN) RS232 VIDEO AUDIO VIDEO TRIGGER OUT RS-485 VCR OUT MONITOR OUT - 42 - Audio Input... -
Page 48: Camera
8.2 CAMERA This product can be installed up to 4 cameras. Connect the provided cameras (6 Pin Din) to the VIDEO IN on the back panel of the product. To connect a PTZ camera, connect the PTZ camera’s control line to the RS-485 (+, -) terminal and connect the video output to one out of VIDEO IN on the back panel of the product. -
Page 49: Audio
8.3 AUDIO The system includes two indoor cameras built-in Audio and two outdoor camera (without Audio) built-in IR LEDs (Infrared) to view objects in the darkness. Install two indoor cameras to any channel and select one of the corresponding channel with A-SEL button on the front panel to record the audio along with video signal or communicate with others where the camera is installed (Press the TALK button to communicate). -
Page 50: Monitor
8.4 MONITOR There are two video outputs (BNC) on the rear panel of this system. Connect monitors, Time Lapse VCR for backup on the tape and etc. depending on your application. VIDEO INPUT AUDIO INPUT 9. NETWORKING 9.1 REQUIREMENTS • DVR system •... -
Page 51: Installing The Program To The Pc
• IP address • Client program (supplied) 9.2 INSTALLING THE PROGRAM TO THE PC Install the program into the PC by using program CD (supplied) as follows. How to install the client program (CLDVR) 1. Start the operating system (Windows 98/2000/XP). 2. -
Page 52: Cldvr Screen
The following CONFIG screen will be shown. • Enter the IP/URL, Port number (default: 5700) and ID (default: admin), which must be the same as for DVR. NOTE: ■ If the registered Host Name is CLOVER11 at www.dyndns.org, enter clover11.dyndns.org in IP/URL. ■... -
Page 53: Explanation Of Cldvr Function
The LED is lit depends on mode such as LIVE, PLAYBACK and RECORD. And the clock indicates the present time. 4. PTZ CONTROL These buttons enable you to control the PTZ camera that is connected to the system. 9.5 EXPLANATION OF CLDVR FUNCTION 9.5.1 FUNCTION OF BUTTONS clover.cloverdvr.com - 48 -... - Page 54 1. F/W (FIRMWARE) The FIRMWARE can be upgraded by pressing the F/W button or USB device. This button is not for users, only for manufacturers and distribution center. 2. SAVE • Click the SAVE button to save the video images that is currently being displayed on the GUI.
- Page 55 admin Select the HDD (Master or Slave) Select 1 out of the lists for setting up the Backup Start Time. Setup the Backup End Time and click on blank box. If the End Time is not selected, the BACKUP continues until the Playback automatically ends. Click the Play&Backup button, and data will be saved on the BACKUP folder.
- Page 56 7. PRINT • Click the PRINT button to print the current pictures shown on the GUI and then the following window pops up along with “WAIT…”. Please wait a couple of seconds until the system loads data to print. 8. REC •...
- Page 57 10. QUAD BUTTON • Click the Quad button to display the quadrant pictures. 11. AUTO BUTTON • The GUI will be viewed a full screen at a time in a continuous sequence (one camera after another) by clicking this button. •...
- Page 58 on the window and press the Update REC.Quality button to save them. • Installed HDD and Recording HDD: Shows currently installed HDD information such as connection information, whole capacity and used space. It shows currently being recorded HDD as well. Do not change the recording HDD as possible as you can. •...
- Page 59 1. Select HDD (Master/Slave) you wish to search. 2. Choose one of recording lists, which are updated hourly up to 1,000 lists on both Master and Slave. 3. Click the Play button to replay the selected list, or double click the selected list to replay.
- Page 60 16. REW • Press this button to rewind the recorded images. • The speed will be increased up to x16 speed when you keep clicking this button. • The speed is shown below the buttons. 17. PLAY Press this button to replay from the beginning of the first recording list on HDD. 18.
-
Page 61: Local Viewer
9.5.2 PTZ CONTROL The following picture enables you to control PTZ camera connected to the system. TILT control PAN/TILT CONTROL Press UP key for TILT UP, DOWN key for TILT DOWN, LEFT key for PAN LEFT and RIGHT key for PAN RIGHT. FOCUS/ZOOM CONTROL Press “Z+”... - Page 62 3. Click in the box of WATER MARK to put WATER MARK while replaying (See section 9.5.1 #14 setup for more details). 4. Select TV system between NTSC and PAL depending on the broadcasting system in your country (NTSC in USA). 5.
-
Page 63: Appendix
1. RECORDING TIME TABLE (DAYS) 1.1 REC RESOLUTION (720H) / REC QUALITY (VERY HIGH) SPEED 40G HDD 01 IPS 15-Days 19-Hours 02 IPS 7-Days 22-Hours 03 IPS 5-Days 07-Hours 05 IPS 3-Days 05-Hours 10 IPS 1-Days 14-Hours 15 IPS 1-Days 02-Hours 30 IPS 14-Hours 60 IPS... - Page 64 30 IPS 1-Days 00-Hours 60 IPS 12-Hours 1.5 REC RESOLUTION (360H) / REC QUALITY (VERY HIGH) SPEED 40G HDD 01 IPS 24-Days 22-Hours 02 IPS 12-Days 09-Hours 03 IPS 8-Days 07-Hours 05 IPS 5-Days 00-Hours 10 IPS 2-Days 12-Hours 15 IPS 1-Days 17-Hours 30 IPS 19-Hours...
-
Page 65: Factory Default Table
10 IPS 4-Days 17-Hours 15 IPS 3-Days 02-Hours 30 IPS 1-Days 14-Hours 60 IPS 19-Hours 1.9 REC RESOLUTION (CIF) / REC SPEED (120 IPS) QUALITY 40G HDD VERY 12-Hours HIGH HIGH 17-Hours NORMAL 22-Hours 1-Days 00-Hours 2. FACTORY DEFAULT TABLE 1] ALARM [1] ALARM : OFF [2] ALARM HOLD / INPUT... - Page 66 [1-2] TIME : Time does not get initialization. [1-3] DATE FORM : MM/DD/YYYY [1-4] DATE : Date does not get initialization. [2] HARD DISK [2-1] HDD1 : Shows information on HDD that is connected to HDD1. [2-2] HDD1 : Shows information on HDD that is connected to HDD2. [2-3] HDD INFO : BYTE [3] FACTORY DEFAULT SETTING [4] SYSTEM INFORMATION : SYSTEM FIRMWARE VERSION...
- Page 67 [6-1] SCHEDULE REC : OFF [6-2] SCHEDULE REC SETTING : No setup data 6] DISPLAY [1] TITLE DISPLAY : ON [2] BORDER LINE : ON [3] TIME / DATE : ON [4] POSITION : BOTTOM 7] BUZZER [1] KEY BUZZER : ON [2] VIDEO LOSS : ON 8] ACCOUNT [1] DVR ACCOUNT SET...
-
Page 68: Faq
PARTIAL MALFUNCTION OF SURVEILLANCE SCREEN 1. CERTAIN CHANNEL UNAVAILABLE - Check the camera power, connection or cleaning of connection part. - In case of camera defect, replace the camera. 2. CERTAIN CHANNEL SHAKERING, BLURING, SPLITTING, etc. - Check the camera power, connection or cleaning of connection part. - Check the system Setting (NTSC or PAL). - Page 69 NOISE FROM THE SYSTEM - Check the HDD. Replace the HDD if possible. Old HDD’s may make the noise when it is running. - 64 -...
-
Page 70: Limited 2 Years Warranty
Limited 2Year Warranty This warranty gives the original purchaser specific legal rights and you may also have other rights, which may vary from state to state. If our products do not function because of any defect in material or workmanship, we will repair it for free for 2 year on parts and labor from the date of original purchase. This warranty does not cover modification, abuse, incidental or consequential damages unless the state of owner’s residence specially prohibits limitations on incidental or consequential damages.
