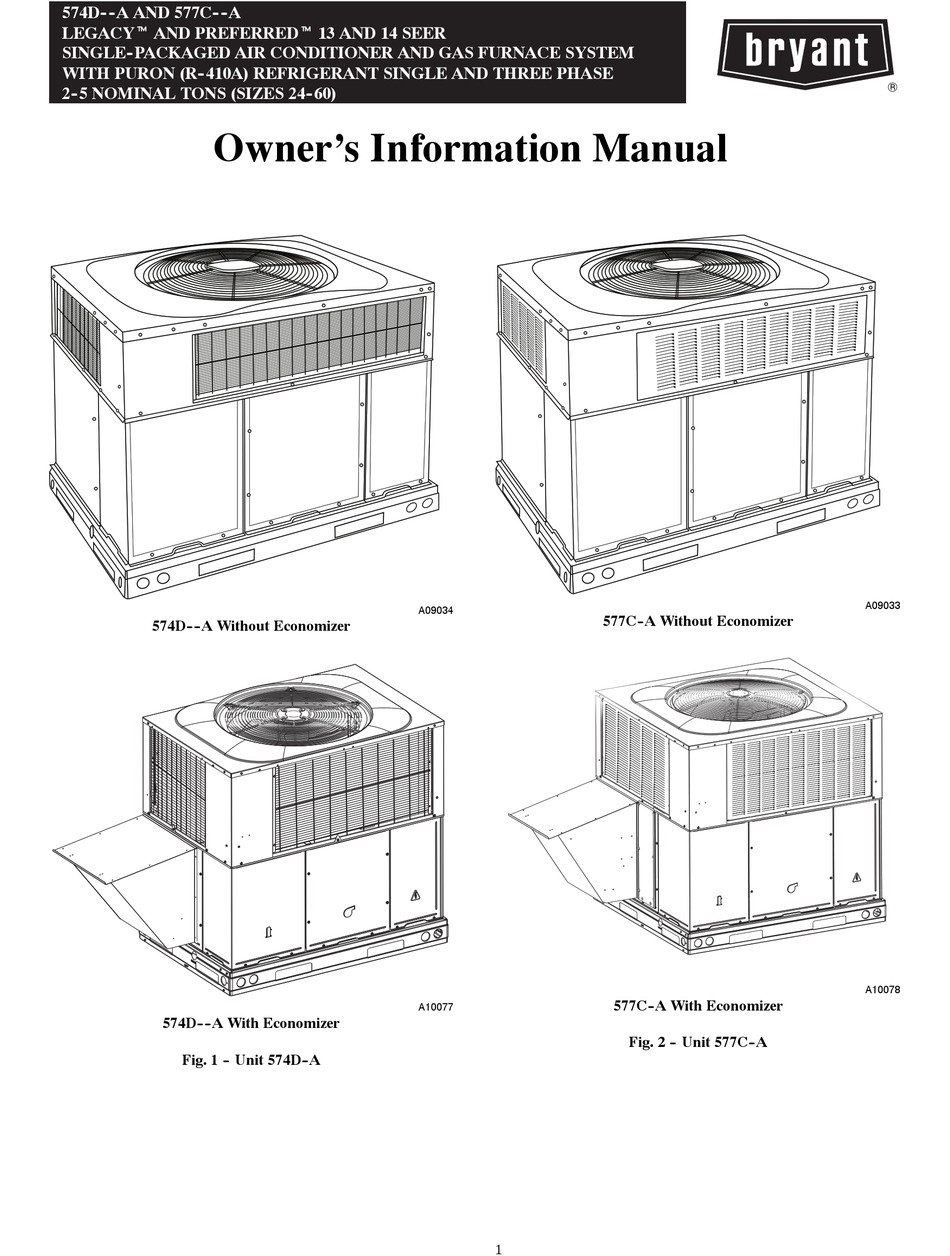

574D- - - - A AND 577C- - - - A LEGACYt AND PREFERREDt 13 AND 14 SEER SINGLE- - PACKAGED AIR CONDITIONER AND GAS FURNACE SYSTEM WITH PURON (R- - 410A) REFRIGERANT SINGLE AND THREE PHASE 2- - 5 NOMINAL TONS (SIZES 24- - 60) Owner’s Information Manual...
Page 2
NOTE TO EQUIPMENT OWNER: For your convenience, please record the model and serial numbers of your new equipment in the spaces provided. This information, along with the installation data and dealer contact information, will be helpful should your system require maintenance or service. UNIT INFORMATION Model # Serial #...
Improper installation, adjustment, alteration, service maintenance, or use can cause explosion, fire, electrical shock, or other conditions which may cause death, personal injury, or property damage. Consult a qualified installer, service agency, or your distributor or branch for information or assistance. The qualified installer or agency must use factory- -authorized kits or accessories when modifying this product.
These units are small packaged gas heat/electric cooling system that can utilize the comfort of gas heating packaged along with efficient electric air conditioning. This unit uses Puronr, the ozone friendly refrigerant for cooling. Starting or Shutting Off Unit NOTE: Your combination heating/cooling unit is equipped with an automatic direct spark ignition and power combustion blower.
The operation of your unit is controlled by the indoor temperature control (thermostat). You simply adjust the thermostat and it maintains the indoor temperature at the level you select. Most thermostats of heating and cooling systems have 3 controls: a temperature control selector, a FAN control, and a SYSTEM or MODE control.
izers Small Chassis (See Fig. 5) 1. Remove return air duct cover at rear of unit using a 5/16- -in. nut driver. 2. Remove the filter(s) by pulling it out and through the unit duct opening. If filter is dirty, replace both filters with new ones.
WARNING PERSONAL INJURY UNIT HAZARD Failure to follow this warning could result in personal injury, death or property damage. Do not insert sticks, screwdrivers, or any other objects into revolving fan blades. The fan must be kept free of all obstructions to ensure proper cooling.
Page 8
MAIN STEP 1 STEP 2 STEP 3 STEP 5 STEP 4 STEP 6 STEP 7 MAIN STEP 8 STEP 9 STEP 10 A07662 Fig. 7 - - To Start Unit Gas Heat...
Page 9
STEP 1 STEP 4 STEP 6 Fig. 8 - - To Shut- -off Unit Gas Heat STEP 2 STEP 1 Fig. 9 - - To Start Unit Electric Cooling STEP 2 MAIN STEP 3 MAIN STEP 3 STEP 5 A07663 STEP 4 &...
Page 10
Have available the Model No., Series Letter, & Serial No. of your equipment to ensure correct replacement part. Copyright 2010 Bryant Heating & Cooling Systems, 7310 W. Morris St. Indianapolis, IN 46231 Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
