IBM TotalStorage L10 Quick Reference

Managing with the Intuitive Web Manager
A quick list of frequent configuration tasks and their
locations is shown below.
To... Click...
View switch status Storage Switch
Change general switch settings Switch > Configuration
Change the IP Address Switch > Configuration
Change the switch speed Switch > Configuration
View the event log Switch > Event Log
Upgrade the firmware Switch > Files
Change the port settings Port > Smart Settings
Configure zoning Advanced Functions >
One Step Zoning
Reset the switch Reboot
Documentation
Links to the User's Guide, Technical Briefs, and other
product documentation are available through the Web
Manager.
To view the latest product documentation, click:
Help > Documentation.
Troubleshooting Management Connections
If a serial connection does not occur, cycle power by
removing the power cord, waiting for approximately 5
seconds, and then reinstalling the power cord. In addition,
check the terminal session's serial port parameters or
replace the serial cable. (Make sure it is a null modem
cable, preferably the cable that shipped with the switch.)
If the Ethernet activity LED is on, make sure you are using
a cross-over Ethernet cable (unless using an Ethernet
hub), or check the IP addresses on the switch and
workstation as follows:
At a command line prompt, type ping DNSorIP (where
DNSorIP is the switch's DNS name or IP address) and
press E .
NTER
If a "Reply from..." or "...is alive..." message appears, the
devices can communicate.
If a "Request timed out" message appears (or the
command times out), the devices cannot communicate.
Trace the cabling. If needed, reconnect the devices.
GC26-7653-00
26K7914
© Copyright International Business Machines Corporation 2004
All Rights Reserved.
© Copyright Emulex Corporation 2004
All Rights Reserved.
00041446-001 Rev. A
®

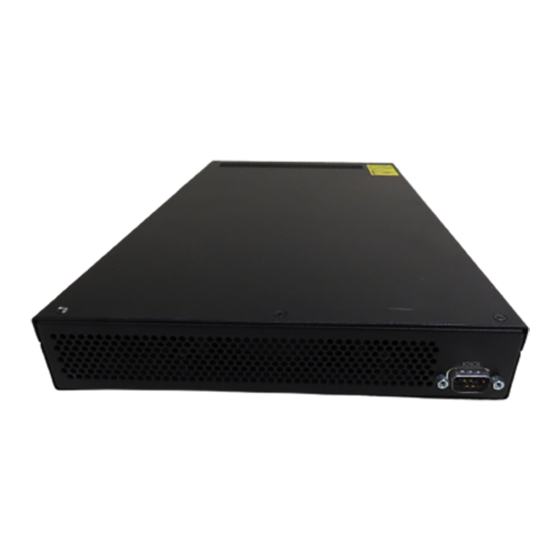

IBM TotalStorage
Storage Switch
2006 Model L10
Quick Reference
GC26-7653-00
