HEATING/COOLING
COIL
CD5A
CC5A
The CC5A and CD5A evaporator coils incorporate proven stan-
dards for reliable system operation and performance throughout
the life of a quality Bryant Air Conditioner or Heat Pump system.
Evaporator coils manufactured by Bryant and installed as part of
a total comfort system provide ARI rated performance ratings
and are additionally listed with UL, c-UL, and RADCO.

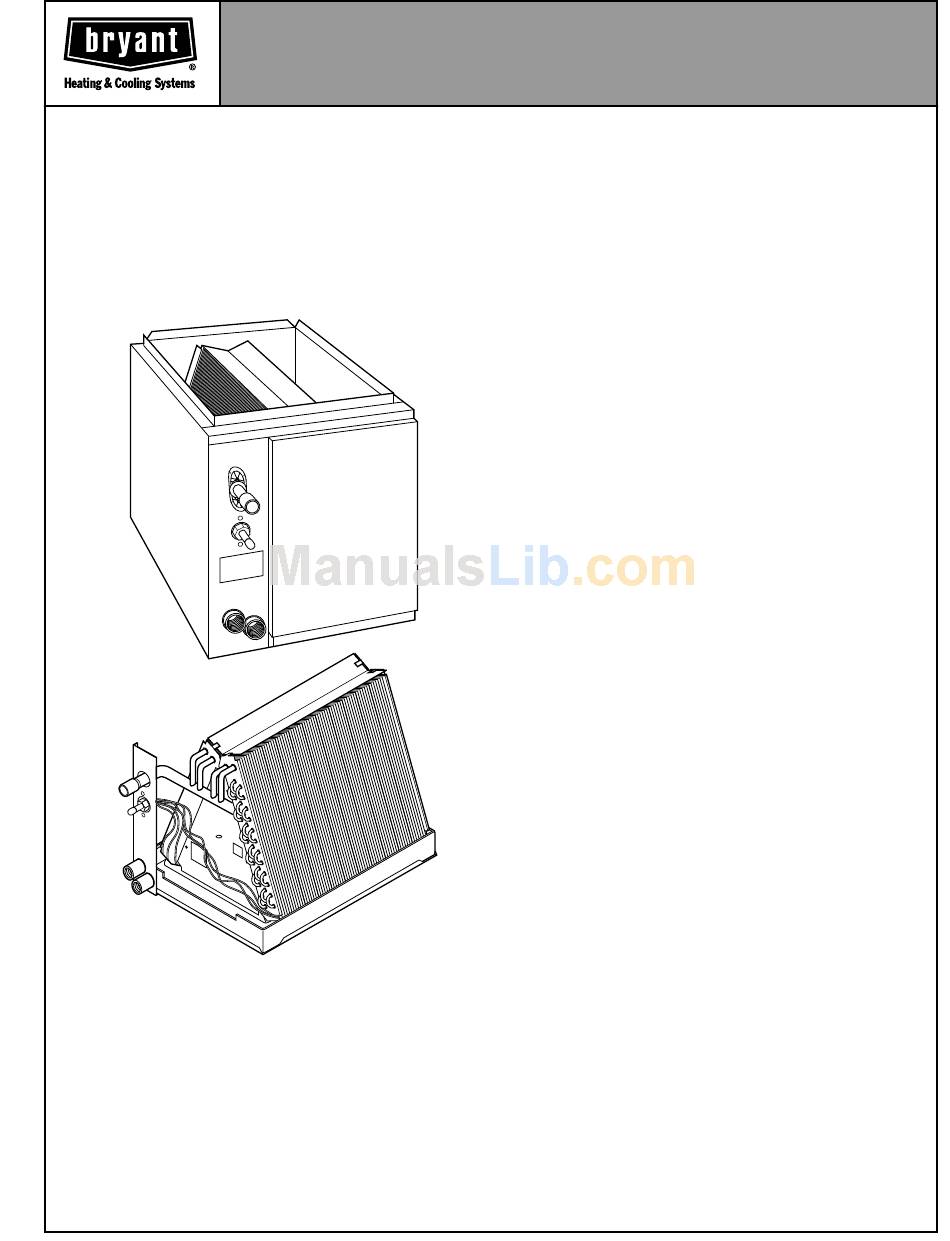

The CC5A is an uncased A-coil that provides flexibility for a wide
variety of field applications installed in either a factory manufac-
tured accessory casing, or a field supplied plenum enclosure.

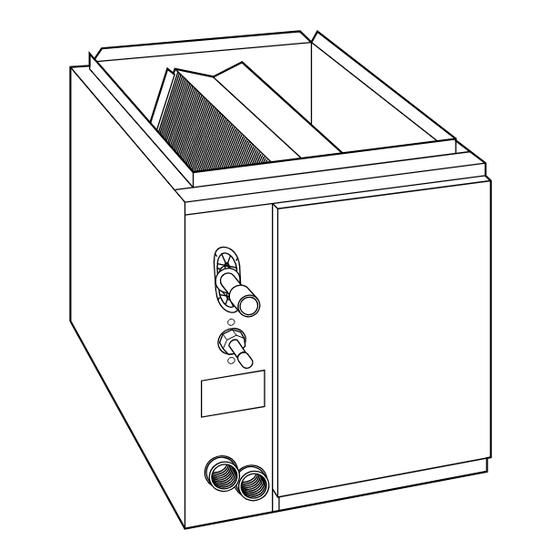

The CD5A is a cased A-coil that is housed in a durable, pre-
painted cabinet. The fully insulated cabinet provides for quiet,
efficient operation of the evaporator coil.
The coils are available in sizes 018 through 060 (1-1/2–5 tons).
COMMON FEATURES
Durable Condensate Pan —Each coil is equipped with a corro-
sion resistant condensate drain pan. The condensate drain pan
is designed with a slope to help ensure proper drainage,
improved moisture removal, and home comfort.
Brass Inserts —Every condensate pan features two 3/4 in.
female threaded brass insert connections. The Bryant unique
brass inserts provide for a leak-free condensate line connection
to prevent water damage.
Refrigerant Connections —The coils are provided with proven
sweat-connections for leak-free operation maintaining system
reliability.
Burst Pressures —These coils meet or exceed burst pressure
of 2100 psi which is at least three to five times the pressure they
will see in actual application.
External Piston Location —Provides easy access to the piston
metering device, for quick installations and standard service
procedures.
Liquid Line Bracket —Holds the piston body in place for quick,
safe piston access without needing a back-up wrench.
Neoprene Ring —The ring, installed inside the liquid line con-
nection, is the best option for preventing refrigerant leaks and
future service calls. Neoprene works with both Puron® and R-22
Refrigerant.
Protective Tube Sheets —Protect the durable copper tubing
from being damaged during the manufacturing and installation
process.
Warranty —All Bryant coils feature a 1-year limited warranty
on parts, with additional extended warranties available for the
system.
CC5A FEATURES
Coil Support —Bryant provides a standard factory support for
the uncased coil. This provides precise, durable support in the
plenum for easier installations.
Face Plate —A unique Bryant feature that provides for a more
professional installation and prevents air leaks at the refrigerant
line connections.
CD5A FEATURES
Easy Serviceability —Every coil is designed to slide out of the
casing easily, for quick installations and service.
CC5A, CD5A
Sizes 018 thru 060
Form No. PDS CC5A.18.6
