Page 1: Quick Start Guide

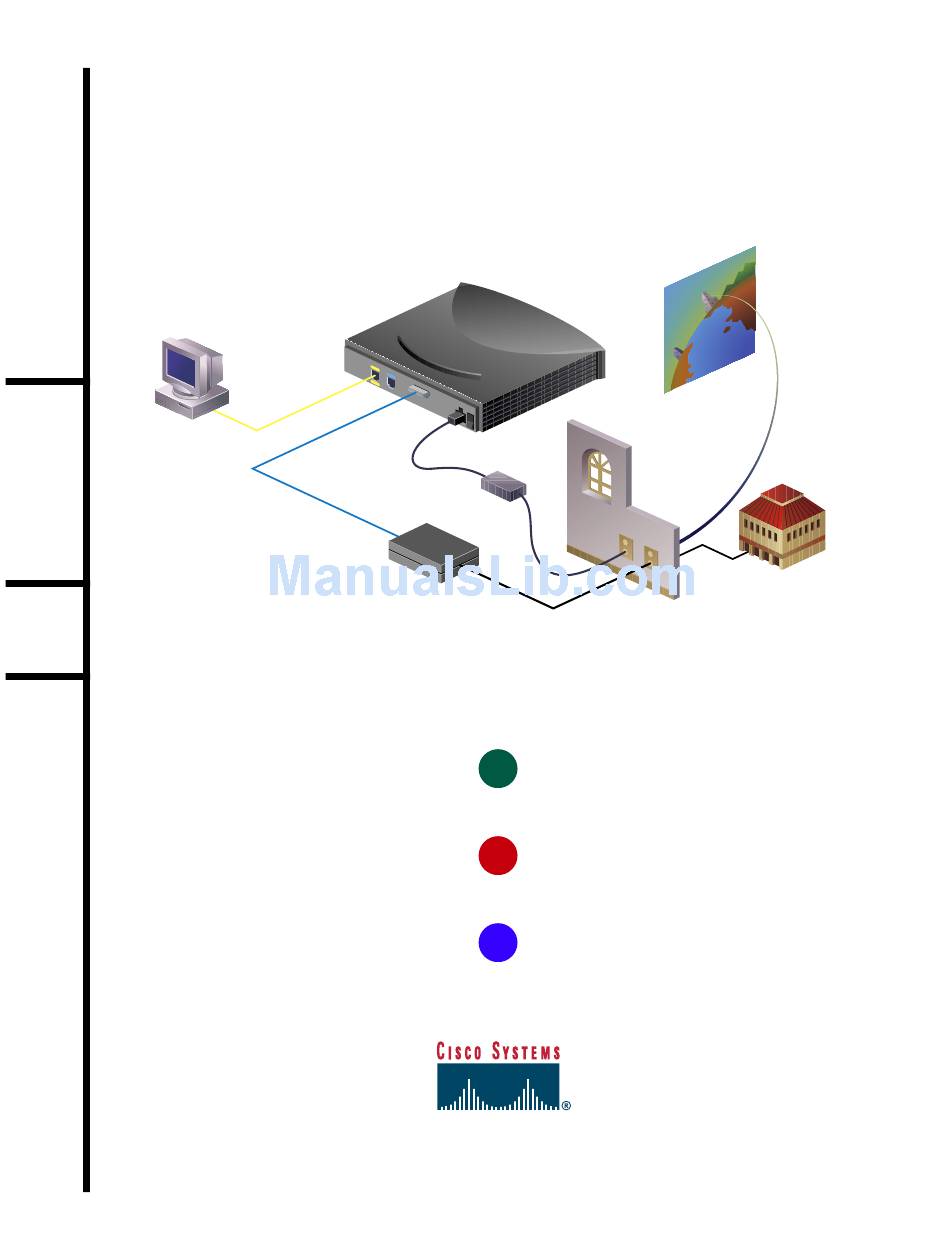

Quick Start Guide E T T I N G P T H E Personal computer ONNECT P THE 805 R I S C O Cisco 805 Router Power supply Modem or CSU/DSU NPACK THE OUTER ABLES TO THE OUTER OUTER... -
Page 3: Unpack The Router
Black power cord Fast Step CD-ROM The router does not ship with a serial cable. If you need help deciding which serial cable to order, see Appendix A, “Selecting a Serial Cable” in the Cisco 805 Router Hardware Installation Guide. - Page 4 PC, or workstation. For information on how the setting of this button on a hub can affect the setting of this router button, see Chapter 2, “Installing the Cisco 805 Router” in the Cisco 805 Router Hardware Installation Guide.
- Page 5 Connect an Ethernet device. Connect a Hub This section describes how to connect a hub to the router Ethernet port. HU B E TH E R N E T NO HU LIN K C is c o C O N S...
- Page 6 10 B A S E T Connect the yellow Ethernet cable to the yellow Ethernet port on your router. Connect the other end of the cable to the Ethernet port on the server, PC, or workstation. Set the HUB/NO HUB button to NO HUB (out) to indicate that you are connecting a server, PC, or workstation.
- Page 7 • X.25 If you need help deciding which serial cable to order, see Appendix A, “Selecting a Serial Cable” in the Cisco 805 Router Hardware Installation Guide. Then order one of the serial cables described in the following table. Mode...
- Page 8 Note: In some countries, a modem or CSU/DSU might not be necessary or might be provided by your WAN service provider. Connect the appropriate end of the serial cable to the dark blue serial port on your router. Connect the other end of the cable to the modem or CSU/DSU.
-
Page 9: Connect The Power Supply
Connect the power supply. This section describes how to connect the power supply to the router. To electrical outlet HU B NO HU LIN K Desktop power supply Make sure that the power switch is set to STANDBY ( ). - Page 10 Verify the router connections. Verify the power, Ethernet, and serial connections by checking the LEDs. The following figure shows the components that you must verify and the location of their corresponding LEDs. LINK Ethernet port CD LED OK LED Serial...
- Page 11 For information on how the setting of this button on a hub affects the setting of the router HUB/NO HUB button, see Chapter 2, “Installing the Cisco 805 Router” in the Cisco 805 Router Hardware Installation Guide. The CD LED will not light until you configure the serial interface. For more information on configuring the serial interface, see the Cisco 805 Router Software Configuration Guide.
- Page 12 Cisco 805 Fast Step software, a Microsoft Windows 95, Windows 98, and Windows NT based configuration tool. The Cisco 805 Fast Step software ships with the router; it is also available through Cisco Connection Online (CCO) on the World Wide Web.
