Summary of Contents for Chauvet LX10
-
Page 1: User Manual
Snapshot LX10™ OK on Dimmer Outdoor OK Sound Activated DMX512 Master/Slave 115V/230V Switch Replaceable Fuse User Serviceable Duty Cycle USER MANUAL Chauvet, 3000 N 29 Ct, Hollywood, FL 33020 U.S.A. (800) 762-1084 – (954) 929-1115 FAX (954) 929-5560 www.chauvetlighting.com... -
Page 2: Table Of Contents
OUNTING Orientation... 6 Rigging ... 6 4. OPERATING INSTRUCTIONS... 7 ... 7 ROUBLESHOOTING ... 8 ENERAL ROUBLESHOOTING ... 8 ECHNICAL UPPORT ... 9 ENERAL AINTENANCE ... 9 ETURNS ROCEDURE ... 9 LAIMS ... 10 ECHNICAL PECIFICATIONS LX10 9/11/2007 2:36 PM... -
Page 3: Before You Begin
1. B EFORE What is included 1 x LX10™ Power Cord Warranty Card User Manual Unpacking Instructions Immediately upon receiving a fixture, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damaged from shipping or the carton itself shows signs of mishandling. -
Page 4: Safety Instructions
Do not daisy chain power to more than 50 units. Caution! There are no user serviceable parts inside the unit. Do not open the housing or attempt any repairs yourself. In the unlikely event your unit may require service, please contact CHAUVET at: 954-929-1115. LX10 9/11/2007 2:36 PM... -
Page 5: Introduction

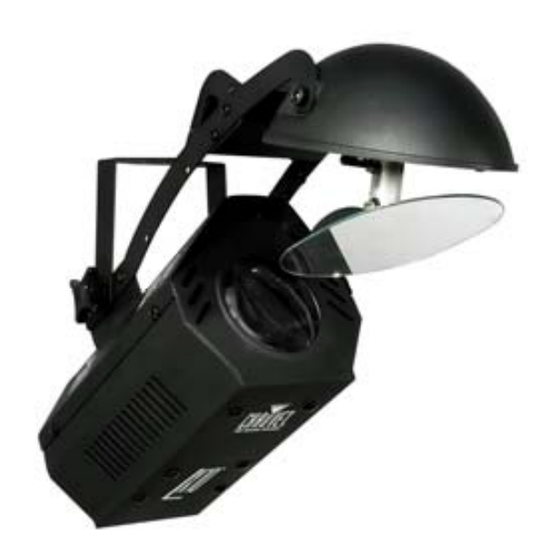

• Additional power output for daisy chaining units (max 50 units) • Sound sensitivity knob • Ultra bright LEDs • Low power consumption Product Overview Mounting Bracket Connection Panel (rear) LX10 Scanning Mirror Lens Mode Selector Switch IEC Power Connector with Fuse Holder 110/230V... -
Page 6: Setup
• Safety cables must always be used. • Never mount in places where the fixture will be exposed to rain, high humidity, extreme temperature changes or restricted ventilation. LX10 The fuse is located inside this compartment. Remove using a flat head screwdriver. -
Page 7: Operating Instructions
4. O PERATING The LX10 motors can operate in Sound-Active, Auto, or static mode. The mode is determined by the position of the switch located on the rear of the unit. To switch between the three modes, place the switch in either the “I” or “II” position for movement, or “O” for static operation. -
Page 8: General Troubleshooting
If you still have a problem after trying the above solutions, please contact CHAUVET Technical Support at the location below. Technical Support Address: Service Dept. -
Page 9: General Maintenance
Package must be clearly labeled with a Return Merchandise Authorization Number (RA #). Products returned without an RA # will be refused. Call CHAUVET and request RA # prior to shipping the fixture. Be prepared to provide the model number, serial number and a brief description of the cause for the return. -
Page 10: Technical Specifications
Power Output...50 units max at 110V, 100 units at 230V LIGHT SOURCE LED... 57 (17 Red, 24 Green, 16 Blue) 100,000 hrs PHOTO OPTIC Beam Angle ... 58.5° THERMAL Maximum ambient temperature...104°F (40°C) ORDERING INFORMATION LX10 ... LX10 WARRANTY INFORMATION Warranty ... 1-year limited warranty LX10 9/11/2007 2:36 PM...
