Motor Unit Assembly Parts - Chamberlain Power Drive Security+ PD610 Owner's Manual

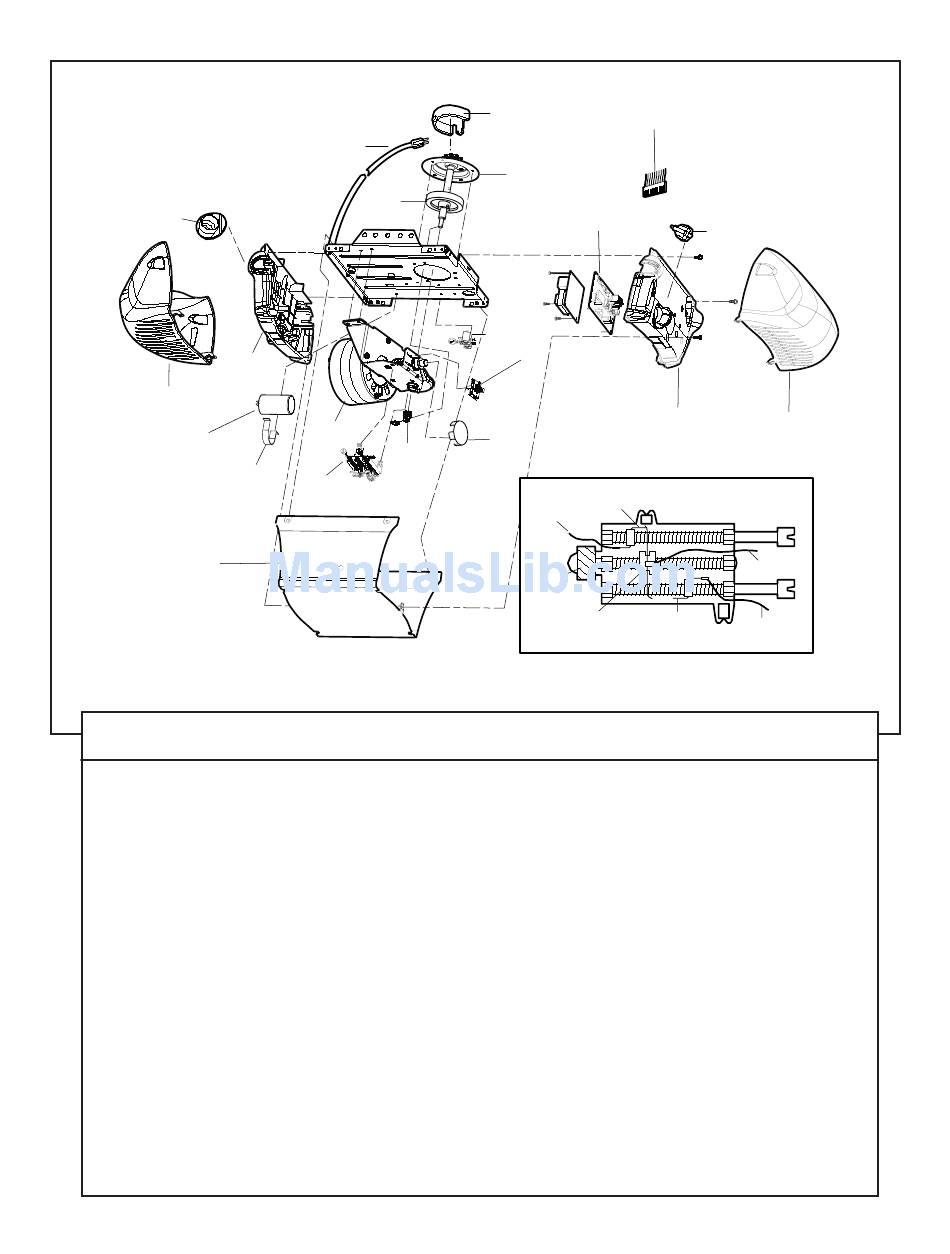

Motor Unit Assembly Parts

6
7
8
12
KEY PART
NO. NO.
1 31D380
2 41C4220A
3 41A2817
4 41B4245
5 41A5484-1
6 4A1344
7 108D68
8 30B363
9 12A373
10 41A3150
11 41D3058
4
3
19
11
13
14
9
DESCRIPTION
Sprocket cover
Gear and sprocket assembly
Complete with: Spring washer,
thrust washer, retaining ring,
bearing plate, roll pins (2), drive
gear and worm gear, helical gear
w/retainer and grease
Drive/worm gear kit w/grease,
roll pins (2)
Line cord
End panel w/all labels
Light socket
Lens
Capacitor - 1/2 HP
Capacitor bracket
Terminal block w/screws
Universal replacement motor &
bracket assembly
Complete with: Motor, worm,
bracket, bearing assembly, RPM
sensor
1
18
2
17
10
16
15
(Down)
Brown
Contact
Wire
DN
Drive
Gear
Center Limit
Contact
KEY PART
NO. NO. DESCRIPTION
12 41A5525-5 Cover
13 41A2818 Limit switch drive & retainer
14 41D3452 Limit switch assembly
15 41A2822-1 Interrupter cup assembly
16 41C4398A RPM sensor assembly
17 41A5483 Receiver logic board assy.
Complete with: Logic board, end
panel w/all labels
18 41C5497 High voltage wire harness assy.
41C5498 Low voltage wire harness assy.
19 41D180-1 End panel w/all labels
NOT SHOWN
41A2826 Motor shaft bearing kit
41A2825 Opener assembly hardware kit
(includes screws not designated
by a number in illustration)
38
6
5
7
LIMIT SWITCH
ASSEMBLY
Grey
Wire
UP
(Up)
Yellow
Contact
Wire
