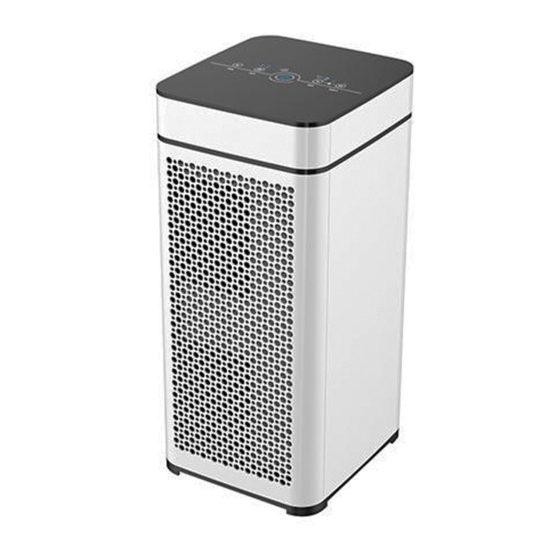

- Page 1 Air Purifier USER MANUAL MODEL: FA330H Please read the user manual carefuly before use. And please keep it properly after reading for checking in the future.
- Page 2 USER MANUAL CONTENTS...
-
Page 3: Table Of Contents
USER MANUAL 1 Safety precautions 2 Product introduction Function description of control panel. 3 Before use Learning about air quality indicator light Disassembly and installation methods of the back cover Placement of air purifier Install filter net 4 Purification principle 5 How to use Function description of control panel. Turn on the air purifier Manual adjustment of wind speed Timer mode... -
Page 4: Safety Precautions
USER MANUAL 1. Safety precautions In order to avoid possible damage to you, others or any property, please make sure to pay attention to the following safety precautions. If the machine power line is out of order, you must entrust machine manufacturer, main- tenance service center or qualified technicians to replace it to keep danger away. - Page 5 USER MANUAL Notice Please turn off the power immediately in case of any of the following situations: • Malfunction of any swtich; • Circuit breaker worked or fuse burned • Anomal heating of wires or plugs • Any burnt smell, anomal sound or shock •...
-
Page 6: Product Introduction
USER MANUAL 2. Product introduction Indicator light of Handle air quality Air quality sensor Air inlet Air outlet Front panel Control panel Back cover HEPA filter and Activated carbon filter... -
Page 7: Function Description Of Control Panel
USER MANUAL Function description of control panel Indicator light of AUTO mode 1 h,2h,4h,8h Indicator light of Timing indicator filter replacement Indicator light of High Speed Child-lock Light hole Indicator light of Medium Speed Speed ANION Child-lock Timer button Speed button ANION button ON/OFF button... -
Page 8: Before Use
USER MANUAL 3. Before use Learning about air quality indicator light Air quality indicator reflects the current air quality condition. Indicator light of air quality Hint Considering power consumption, air quality sensor doesn’t work in ready mode. Indicator lights color of air purifier Blue Good Green Ordinary Poor... -
Page 9: Disassembly And Installation Methods Of The
USER MANUAL Disassembly and installation Placement of air purifier methods of the back cover 1 Disassembly method of the back cover To make sure good air circulation effect, Press play button in the back cover and please ensure there is 50cm distance bet- pull the cover, then you can lift the back ween air inlet and wall or curtain. -
Page 10: Install Filter Net
USER MANUAL 1 Place the machine in a dry, smooth and Install filter net flat ground. Information All the filters are equipped with the puri- fier together, you should remove all the packings of the filter before use. Please disassemble filters according to the follo- wing instructions, reinstall the filter to air purifier. Attention Make sure power plug is outage when do 2 Press play button in the back cover and installation, maintenance or transportation pull the cover, then you can lift the back work. - Page 11 USER MANUAL 4 Remove all package of the filter nets. Hint Please be careful when install the back cover, watch your hands. 5 Replace filters into the air purifier. 6 To reinstall the back cover, please align at the fixed groove and insert the cover into the groove, making the play button and frame withhold.
-
Page 12: Purification Principle
USER MANUAL 4. Purification principle Second step: The purifier adopted passive adsorption and active type at the same time. The air High efficiency HEPA filter absorb into the air purifier by motor. and through the filters and anion generator, High efficiency HEPA filter is specially then send out of purifier.lt can filter dust. focused on particle with dia .bigger than Remove formaldehyde and eliminate 0.25 micron. peculiar smell. And anion generator can generate air negative ions, also known as Third step: air vitamin. -
Page 13: How To Use
USER MANUAL 5. How to use Function description of control panel Plug in Turn on the air purifier Press ON/OFF button, purifier enters AUTO mode. The indicator light of AUTO mode and power light will be on. Indicator light of air quality will show green colour when the purifier turn on, after 2 min’s preheating, it will detect the air quality automatically. -
Page 14: Manual Adjustment Of Wind Speed
USER MANUAL Press ANION button, with beeps ,anion Automodus Manual adjustment of wind speed function will work, and the indicator light of ANION will be on. Press ANION button again, the purifier will out of anion function, the indicator light of ANION will be off. Child-lock function Press SPEED button, you can choose air speed in turn ‘AUTO mode, speed 1, speed 2 and speed 3’. -
Page 15: Maintenance And Cleaning Methods
USER MANUAL 6. Maintenance and cleaning method Please make sure to pull out power plug 1 Use soft brush to clean inlet and outlet before cleaning the machine. Do not of air quality sensor. immerse machine in water or any other liquid. -
Page 16: Change Filter
USER MANUAL Change filter Operating steps Information 1 The machine remind to replace the filters. If the indicator light of filter replacement 2 Turn off the power, then pull out the is on, it is to remind users to change the power plug. filters. Attention Please turn off and pull out power plug before replacing the filters. - Page 17 USER MANUAL 4 Remove all the filters assembly. 7 W hen the filter replacement is comple- ted, plug in and turn on the air purifier, press the SPEED button and ANION button for 3s to reset the machine. 5 R emove all packages of filters, then install the new filters into the air purifier in order. 6 To reinstall the back cover, please align at the fixed groove and insert the cover into the groove, making the play button and frame withhold.
-
Page 18: Long Term Idling
USER MANUAL Suggested frequency of Long term idling replacing the filter net Pull out power plug( there is also power When the purifier running for 1500 hours, consumption in stand by mode) the air purifier will send a siren, and the indicator light of filter replacement will on Dry machine inside thoroughly (else there to remind the users to replace the filter. maybe malfunction because of rust) At this condition, the purifier can work normally. -
Page 19: Fault Handing
USER MANUAL 7. Fault handling The following table lists failure possible to appear in dairy use. Please contact company service center or dealer if you cannot find answer from the listed examples. Status possible reason possible solution Machine power supply for plug pull out the plug and pull in again cannot work power plug or wire is wrong contact customer service center or dealer... -
Page 20: Warranty And Service
USER MANUAL Warranty and service Order parts or accessories If you want to know more information or If you want to change parts or purcha- have any questions , please contact custo- se additional parts, please contact your mer service center or the dealer. customer service center or the dealer. - Page 21 ISET S.r.l. Unipersonale Sede Legale e Uffici Cap. soc. i.v. € 10.200,00 Via Donatori di sangue, 9 - 46024 Moglia (MN) Cod. Fisc. e P.IVA Reg. Imprese 02 332 750 369 Tel. e fax +39 (0)376 598963 02 332 750 369 www.iset-italia.eu iset@iset-italia.com Cap.
