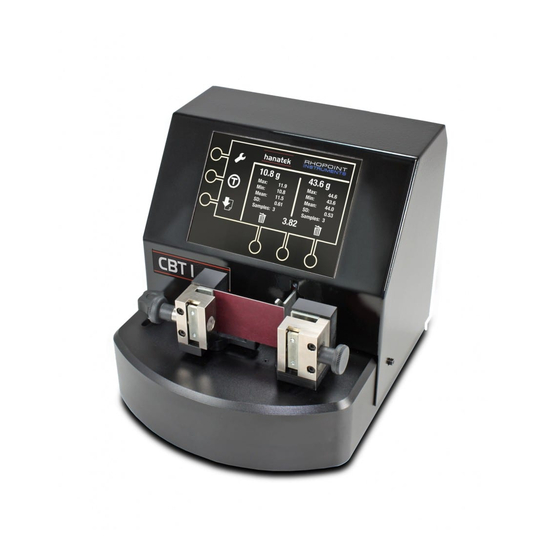

Crease and Board Stiffness Tester
INSTRUCTION MANUAL
CBT1.2 Operating Manual Issue C
28-05-19
HANATEK
CBT1
Model 9011
Rhopoint Instruments
Hanatek Instruments
Rhopoint House
Enviro 21 Park
Queensway Avenue South
St Leonards on Sea
TN38 9AG UK
Tel. No. +44 (0)1424 739623
Fax No. +44 (0)1424 730600
sales@hanatekinstruments.com
www.hanatekinstruments.com
0
Advertisement
Table of Contents
Related Manuals for Hanatek CBT1
Summary of Contents for Hanatek CBT1
- Page 1 Model 9011 INSTRUCTION MANUAL Rhopoint Instruments Hanatek Instruments Rhopoint House Enviro 21 Park Queensway Avenue South St Leonards on Sea TN38 9AG UK Tel. No. +44 (0)1424 739623 Fax No. +44 (0)1424 730600 sales@hanatekinstruments.com www.hanatekinstruments.com CBT1.2 Operating Manual Issue C 28-05-19...
-
Page 2: Table Of Contents
Identifying grain direction Sample for board testing Sample for crease testing 12 - 13 Board test 14 - 16 Crease test 18 – 19 Interpretation of results Exporting results 20 - 21 Calibration Maintenance CBT1.2 Operating Manual Issue C 28-05-19... -
Page 3: Introduction
The Hanatek Crease and Board Stiffness Tester Identifying parts on the crease and board stiffness tester The crease and board stiffness tester measures the force required to hold a creased sample folded to 90 or a board sample bent through 15 , the results being taken after these conditions have been maintained for 15 seconds (s). - Page 4 PCBs inside the CBT instrument. This information may be requested by Hanatek or approved repair centres if you require technical assistance at any stage. It is recommended with any measuring equipment that it is left for thirty minutes to warm up before commencing testing.
-
Page 5: Instrument Menus And Screen
Wait until the screen display is as below and then tough any of the cap sense buttons to continue. Cap buttons are highlighted with a red X Last Certified 28/03/2014 SN: CBT01010101A Ver: G: 2.00 T: 1.00 L: 4.00 CBT1.2 Operating Manual Issue C 28-05-19... - Page 6 The main operating screen is shown below. On the left-hand side are the following Icons. Enter Options Menu Tare/Zero the instrument Output test data Max: Max: Min: Min: Mean: Mean: Samples: Samples: - - - - - - CBT1.2 Operating Manual Issue C 28-05-19...
- Page 7 Adjust time and date Adjust test time from 10-15 Seconds * 15seconds is specified in the standard BS6965 and the recommended time Turn Stats display on and off 15 s Return to main test screen CBT1.2 Operating Manual Issue C 28-05-19...
- Page 8 Pressing the middle button will skip to the next field. When finished press the left hand button to save and exit to the main screen 11 : 44 : 51 April 04 2014 Return to main test screen Set Time and Date CBT1.2 Operating Manual Issue C 28-05-19...
- Page 9 Turning Stats On and Off From the options screen press the button next to the Icon. This will cycle from On - Off. 15 s Return to main test screen CBT1.2 Operating Manual Issue C 28-05-19...
- Page 10 The bin Icon is shown allowing the and 4 board tests. The ratio has user to discard the last test result. been calculated automatically. Pressing and holding the button will delete all the samples. CBT1.2 Operating Manual Issue C 28-05-19...
-
Page 11: Identifying Grain Direction
The board will feel stiffer when the machine direction runs from hand to hand. The stiffness tester can be used to measure the force required to bend board in the machine and cross directions. CBT1.2 Operating Manual Issue C 28-05-19... -
Page 12: Sample For Board Testing
Machine direction Diagram 1 These samples are easily prepared using the sample templates supplied or any of the optional Hanatek sample preparation cutters. A number of samples should be tested in each direction. It is recommended that you test MD and CD separately to get accurate results and a crease to board stiffness ratio. -
Page 13: Sample For Crease Testing
38mm The CBT1 instrument is designed to test crease samples of the above size only. If it is not possible to cut a standard size sample the Hanatek CFA instrument will allow the user to test non standard size samples. - Page 14 MD board stiffness samples must be tested with MD crease stiffness samples. CD board stiffness samples must be tested with CD crease stiffness samples. More on this subject is below in the section, Interpretation of results. CBT1.2 Operating Manual Issue C 28-05-19...
-
Page 15: Board Test
15 . Before the clamp is rotated, check that the board sticks out straight from the clamp. It should just touch the load cell blade without pushing on it. CBT1.2 Operating Manual Issue C 28-05-19... - Page 16 Diagram 5B, so that it does not touch it. Then, when the jaw is rotated, the board will be bent through less than 15 , and again the result will be incorrect. Load cell blade Diagram 5 CBT1.2 Operating Manual Issue C 28-05-19...
- Page 17 The measurement of board stiffness is made by rotation of the LH clamp anti-clockwise through 15 against its stop. At the end of 15 seconds, the display will stabilise and record the board stiffness. Repeat the test with the remaining board stiffness samples. CBT1.2 Operating Manual Issue C 28-05-19...
-
Page 18: Crease Test
The countdown timer will start automatically. 44.1g 14 s Max: 43.9g Max: 44.4g Min: 43.7g Min: 44.0g Mean: 43.8g Mean: 44.2g SD: 0.099 SD: 0.173 Samples:4 Samples: 4 0.992 After 15 s, the crease stiffness will be shown. CBT1.2 Operating Manual Issue C 28-05-19... -
Page 19: Interpretation Of Results
The Hanatek CBT tester automatically calculates the Crease/Board stiffness ratio giving quick and easy analysis or results. - Page 20 Should it be necessary to reduce crease stiffness for a particular board, then an optimum crease width should be selected which avoids visual defects in the folds. At this groove width, deeper impressions will reduce crease stiffness. CBT1.2 Operating Manual Issue C 28-05-19...
-
Page 21: Exporting Results
Exporting Results The Hanatek CBT instrument has three data export options. 1) Export to USB data stick, (Standard with all instruments) Attach a USB drive to the instrument via the supplied Micro USB to USB adapter. When testing is complete press the data export button. - Page 22 Serial No Certified samples Mean samples Mean Ratio Apr 04 2014 12:12:00 CBT120314001A 28/03/2014 44.4 44.2 0.173 43.9 43.7 43.8 0.099 0.992 The above shows an example of the data sent directly to the PC. CBT1.2 Operating Manual Issue C 28-05-19...
-
Page 23: Calibration
+/- 2g. REMEMBER TO RE TARE THE INSTRUMENT WHEN IT IS BACK THE ITS NORMAL OPERATING POSITION. In the event of problems, please contact the manufacturers. CBT1.2 Operating Manual Issue C 28-05-19... -
Page 24: Maintenance
The instrument must be kept clean at all times. Service This can be done by the nearest agent, A list is available on the Hanatek website or please contact Hanatek Instruments using the details below. The instrument should be serviced and calibrated once per year.
