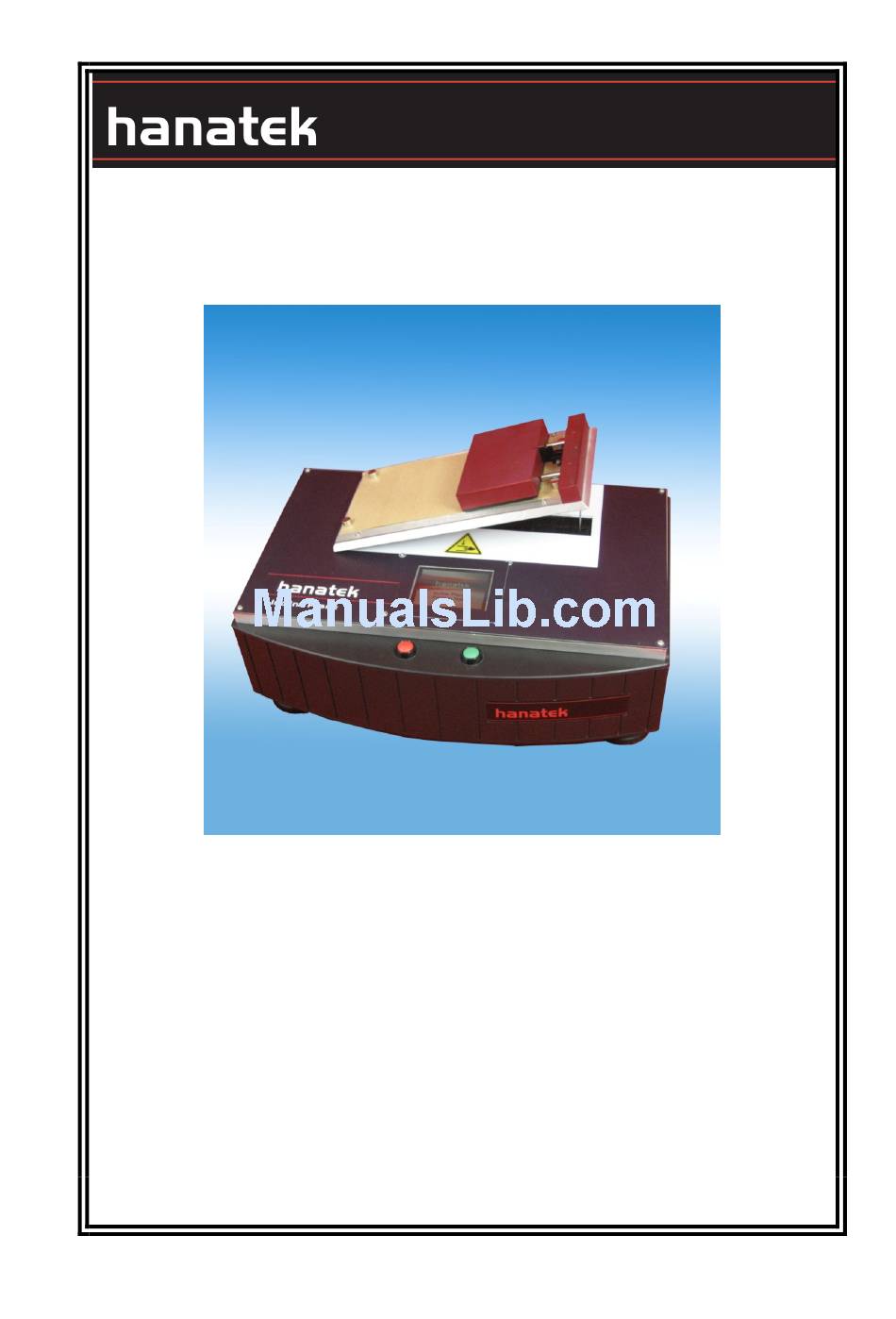

- Page 1 Incline Plane Tester OPERATING MANUAL Rhopoint Instruments Bexhill on Sea TN39 3LG Tel. No. +44 (0)1424 739623 Fax No. +44 (0)124 730600 www.hanatekinstruments.com IPT Manaul V2.0 05-09-2012...
-
Page 2: Packing List
PACKING LIST Incline Plane Tester Bull’s Eye Spirit Level Calibration Certificate Sample Securing Magnets Calibrated Sled Power Adapter and Cables OPTIONAL EXTRAS Hanatek Results Printer IPT Manaul V2.0 05-09-2012... - Page 3 WARNING – THE HANATEK IPT HAS MOVING PARTS WHICH MAY CONSTITUTE PINCHING RISK FINGERS. REASONABLE CARE MUST BE TAKEN AT ALL TIMES – DO NOT TOUCH THE MOVING PARTS DURING OPERATION AND ENSURE HAIR AND CLOTHING IS KEPT CLEAR. ASSEMBLY Unpack the unit carefully and check the contents against the packing list.
- Page 4 Power Up Switch on the mains power to power up the instrument. Calibration Interval It is recommended that the operation of the instrument is verified using external standards every 12 months. Set Time/Date & Adjust Calibration When powering up the instrument press and hold the green and red buttons on the front of the instrument to adjust time and date settings/ calibration constants.
- Page 5 Sample Preparation Sled Sample- Cut a sample 64mm x 64mm This can be either rested under the foam bed during test. Alternatively it can be fixed to the foam bed with a small piece of double sided tape. Bed Sample- Cut a sample with a width of 70mm-100mm and between 80-180 mm long, hold it in place with the small magnets.
-
Page 6: Running A Test
RUNNING A TEST Press “Test” or the green button to proceed to the test set up screen Use the +/- to select the number of repeat tests required. Press the “Next” to proceed to test screen If the plane is raised ensure the lowering area is free from obstructions. Press “Lower”... - Page 7 Press the start or green button. Note- The start button is not accessible unless the sample is loaded onto the bed and the black flag is between the optical sensor. The bed will raise until the sample slips and the COF will be stored. Repeat until all the tests are complete.
- Page 8 Printing Results Results can be output to the optional Hanatek results printer. IPT Manaul V2.0 05-09-2012...
- Page 9 SERVICE Contact- HANATEK Instruments: Telephone No: +44 (0)1424 739623 Fax Number: +44 (0)1424 730600 E-mail: sales@hanatekinstruments.com Web Site: www.hanatekinstruments.com IPT Manaul V2.0 05-09-2012...
- Page 10 EU Directive 2002/96/EC on WEEE (Waste Electrical & Electronic Equipment) and RoHS (Restriction of the use of certain Hazardous Substances). The European Union's Directive on Restriction of the use of certain Hazardous Substances in electrical and electronic equipment (ROHS) defines each of 10 categories of electrical and electronic equipment in Annex I .
