TM
Series

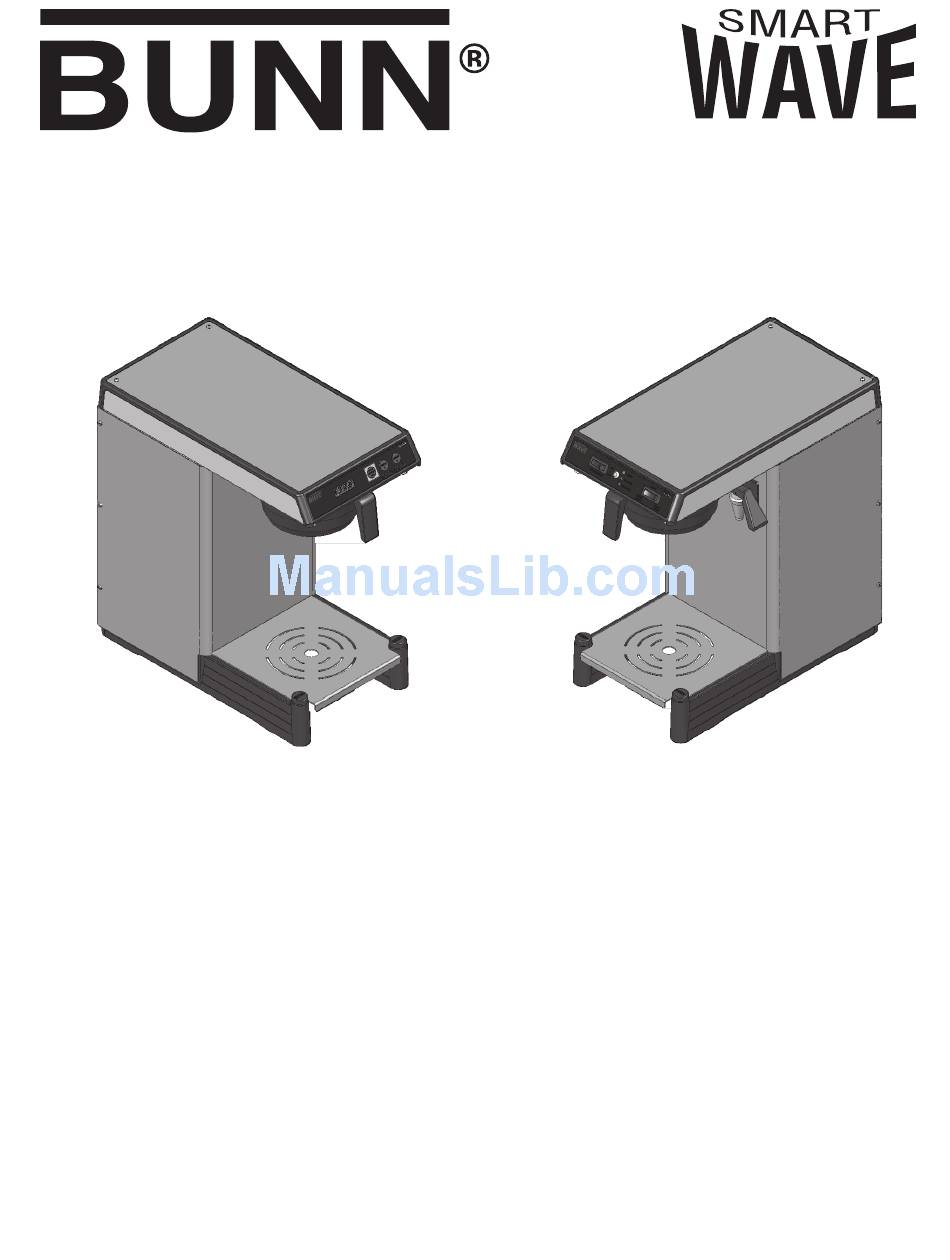

Smart Wave Series
Smart Wave Silver Series
TM
INSTALLATION & OPERATING MANUAL
BUNN-O-MATIC CORPORATION
POST OFFICE BOX 3227
SPRINGFIELD, ILLINOIS 62708-3227
PHONE: (217) 529-6601
FAX: (217) 529-6644
To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit the Bunn-O-Matic
website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates.
Contact Bunn-O-Matic Corporation at 1-800-286-6070 to obtain a paper copy of the required Illustrated Parts Catalog
mailed via U.S. Postal Service.
40410.0000A 09/07 ©2007 Bunn-O-Matic Corporation
www.bunn.com
Advertisement
Table of Contents
Related Manuals for Bunn SmartWave APS
Summary of Contents for Bunn SmartWave APS
- Page 1 FAX: (217) 529-6644 To ensure you have the latest revision of the manual or to obtain the illustrated parts catalog, please visit the Bunn-O-Matic website, at www.bunn.com. This is absolutely FREE, and the quickest way to obtain the latest catalog and manual updates.
-
Page 2: Warranty
SOLE OPTION AS SPECIFIED HEREIN, TO REPAIR, REPLACEMENT OR REFUND. In no event shall BUNN be liable for any other damage or loss, including, but not limited to, lost profi ts, lost sales, loss of use of equipment, claims of Buyer’s customers, cost of capital, cost of down time, cost of substitute equipment, facilities or services, or any other special, incidental or consequential damages. -
Page 3: Table Of Contents
FAILURE TO COMPLY RISKS EQUIPMENT DAMAGE, FIRE OR SHOCK HAZARD. READ THE ENTIRE OPERATING MANUAL BEFORE USING THIS PRODUCT 00986.0000E 5/98 ©1994 Bunn-O-Matic Corporation #00986.0000 #00656.0000 To reduce the risk of electric shock, do not remove or open cover. No user-serviceable parts inside. -
Page 4: Electrical Requirements
CAUTION - The brewer must be disconnected from the power source until specifi ed in Initial Set-Up. All 120V models have an attached cordset and plug. Model 15 requires 2-wire grounded service rated 120 volts ac, 15 amp, single phase, 60 Hz. Model 35 requires 3-wire, grounded service rated 220-240 volts ac, 10 amp, single phase, 50/60 Hz. -
Page 5: Plumbing Requirements
" water supply line. A tight coil of tubing in the water line will facilitate moving the brewer to clean the countertop. Bunn-O-Matic does not recommend the use of a saddle valve to install the brewer. The size and shape of the hole made in the supply line by this type of device may restrict water fl ow. -
Page 6: Initial Setup
CAUTION - The brewer must be disconnected from the power source throughout the initial set-up, except when specifi ed in the instructions. 1. Insert an empty funnel into the funnel rails. (FIG 4) 2. Place an empty server under the funnel. For taller servers, lift up on the front of the booster plate, and slide it back into the trunk housing. -
Page 7: Brewing
1. Begin each brew cycle with a clean empty brew funnel. 2. Insert a BUNN fi lter into the funnel. (FIG 6) 3. Pour (or grind) fresh coffee into the fi lter and level the bed of grounds by gently shaking. -
Page 8: Operating Controls/ Programming
OPERATING CONTROLS - SILVER SERIES Smart Wave Silver Series (A) ENABLE BREW ON/OFF SWITCH Pressing the "ENABLE BREW ON/OFF" switch (indicator on) enables the brew circuit, and energizes the tank refi ll circuit. Pressing the switch again (indicator off) stops tank refi lling and brewing. Stopping a brew cycle after it has been started will not stop the fl... - Page 9 BREW VOLUME SET-UP: NOTE: Set small and large batches separately. Maximum water on time is 5 minutes. Use the following steps when the setting is unknown. 1. Place an empty funnel in the funnel rails and an empty server beneath the funnel. 2.
- Page 10 OPERATING CONTROLS - SMART WAVE WITH DISPLAY FIG 8 Smart Wave Series (A) ENABLE BREW ON/OFF SWITCH Pressing the "ENABLE BREW ON/OFF" switch (indicator/display on) enables the brew circuit, and the tank refi ll circuit. Pressing the switch again (indicator/display off) stops tank refi lling and brewing. Stopping a brew cycle after it has been started will not stop the fl...
-
Page 11: Brew Volume Set-Up
PROGRAMMING BREW VOLUME SET-UP: NOTE: Maximum water on time is 5 minutes. 1. Press the "HIDDEN" switch until display reads A1. This represents the adjust mode "Brew Time" for the "A" brew switch. The display will then change to (minutes-seconds). Press "BREW A" to decrease time (-) or "BREW B"... -
Page 12: Deliming
Bunn-O-Matic recommends deliming your coffee brewer periodically. The actual frequency of deliming de- pends on the mineral content of the water you use. NOTE: In hard water areas, this may need to be done daily. It will help prevent liming problems in the brewer and takes less than a minute. -
Page 13: Cleaning
CLEANING The use of a damp cloth rinsed in any mild, non-abrasive, liquid detergent is recommended for cleaning all surfaces on Bunn-O-Matic equipment. CLEANING OPTIONAL LARGE SPRAYHEAD 1. Remove the brew funnel. 2. Remove the sprayhead by turning it counterclockwise with your fi ngertips. -
Page 14: Cover Removal
Unplug the brewer and let it cool down before proceeding. Front Wrap: 1. Remove the brew funnel. 2. Remove upper and lower screws on either side of front cover. 3. Loosen middle screw on either side of front cover. 4. Pull front cover towards front of brewer. Top Cover: 1. -
Page 15: Draining Tank
DRAINING TANK 1. Unplug the brewer and let it cool down before proceeding. 2. Remove the brew funnel. 3. Remove the front cover. 4. Pinch fi ll hose. 5. Loosen clamp from fi ll solenoid.. 6. Remove hose from solenoid and drain into sink as shown (or 2 gallon bucket). 7. -
Page 16: Switch Settings
Program Switches: 1. Unplug the brewer and let it cool down before proceeding. 2. Remove the brew funnel. 3. Remove the front cover. 4. Flip the dip switches as needed (ON toward rear, OFF toward front) NOTE: All switches are turned OFF from factory. KEY # 4. -
Page 17: Troubleshooting
RED LED FLASHES DISPLAY ER 1 ER 2 ER 3 ER 4 ER 5 ER 6 ER 7 ER 8 Not Applicable ER 9 TROUBLESHOOTING DESCRIPTION TEMP SENSOR SHORTED TEMP SENSOR OPEN HEATING TOO LONG REFILL TOO LONG HIGH TANK LEVEL-DURING BREW CHECK "ENABLE BREW ON/OFF"... -
Page 18: Schematic Wiring Diagrams
J3-1 J5-1 J1-1 J1-1 J1-5 WAVE 15 APS J1-1 120V AC 2 WIRE + GND WAVE 15 S APS SINGLE PHASE 40405.0000B 09/07 ©2007 BUNN-O-MATIC CORPORATION LIMIT THERMOSTAT TANK HEATER BLK-14 VENT VALVE SOLENOID 12VDC LEVEL PROBE WHI/RED -12V +12V...
