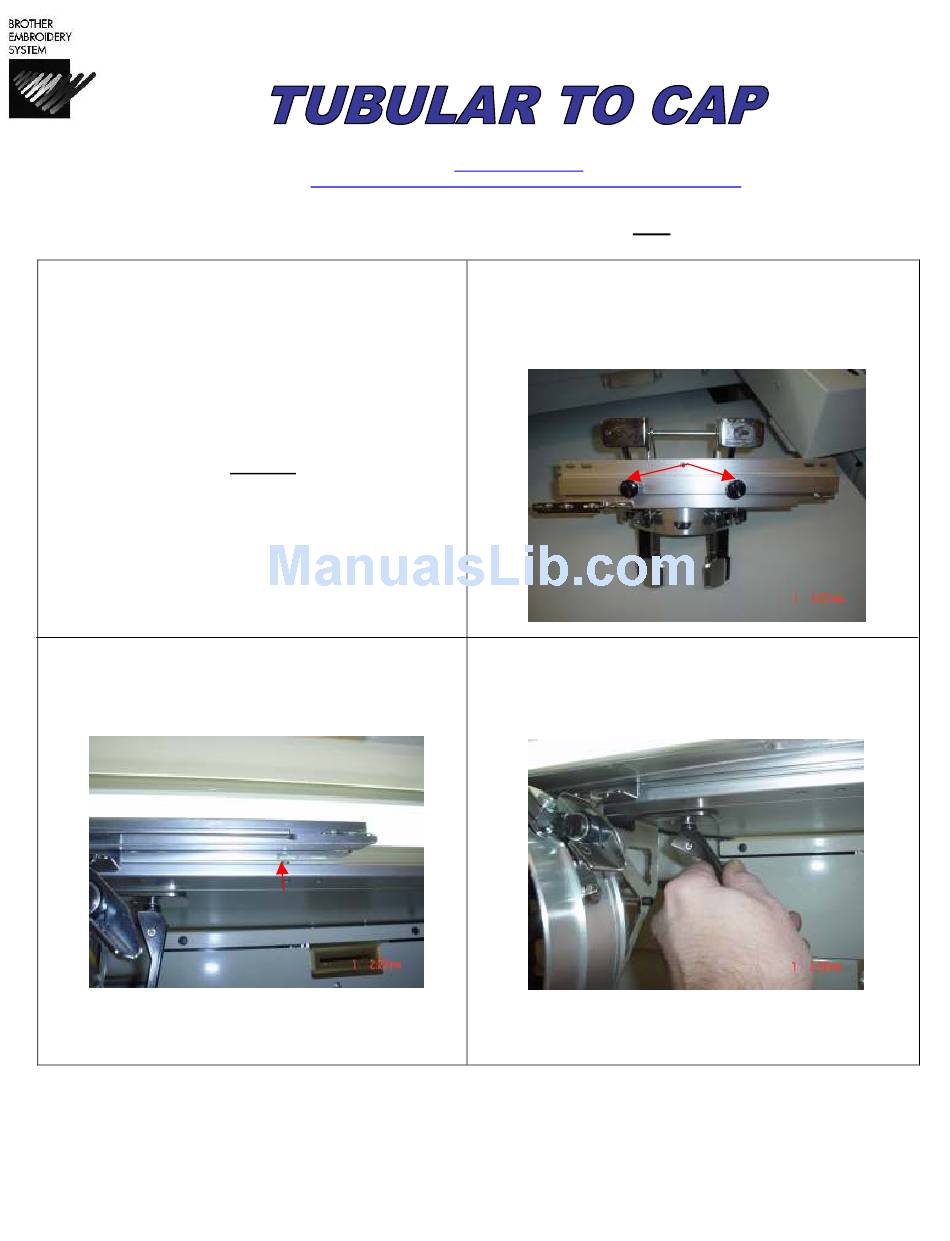

Brother BE-1204B Supplement Manual

1. Remove the tubular attachment. This will vary
depending on your machine model.
BE-1204B/BE1206B – Loosen the pair of
black thumbscrews on the pantograph that
hold on each the tubular arms. Slide the
thumbscrews toward the center of the
tubular arms and them remove the arms.
BE-1204C - Remove the pair of black
thumbscrews on the pantograph that hold
on each the tubular arm and remove each
tubular attachment.
3. Lift up on the cap frame sash so that the
positioning pins fit into the oval holes and lower
on to the pantograph.
Positioning Pin
B E -
B E -
For Technical Assistance Please Call Toll Fre e 1-877-4BROTHER
Email:
Website: http://www.brother-usa.com/industembroidery/tech_down.aspx
With the power to the machine OFF.
3/10/05
1 2 0 4 , 1 2 0
1 2 0 4 , 1 2 0
tsupport@brother.com
2. Remove the two black thumbscrews from the cap
frame assembly. Then slide the cap driver onto the
machine. Each cap assembley is labeled as to what
head it goes on.
4. Hold the fixed lever as shown and insert in to the
hole underneath the pantograph. Push up and
toward the inside until it stops. Then lock the fixed
lever by pushing down. Do this to the other side.
1
6
6
