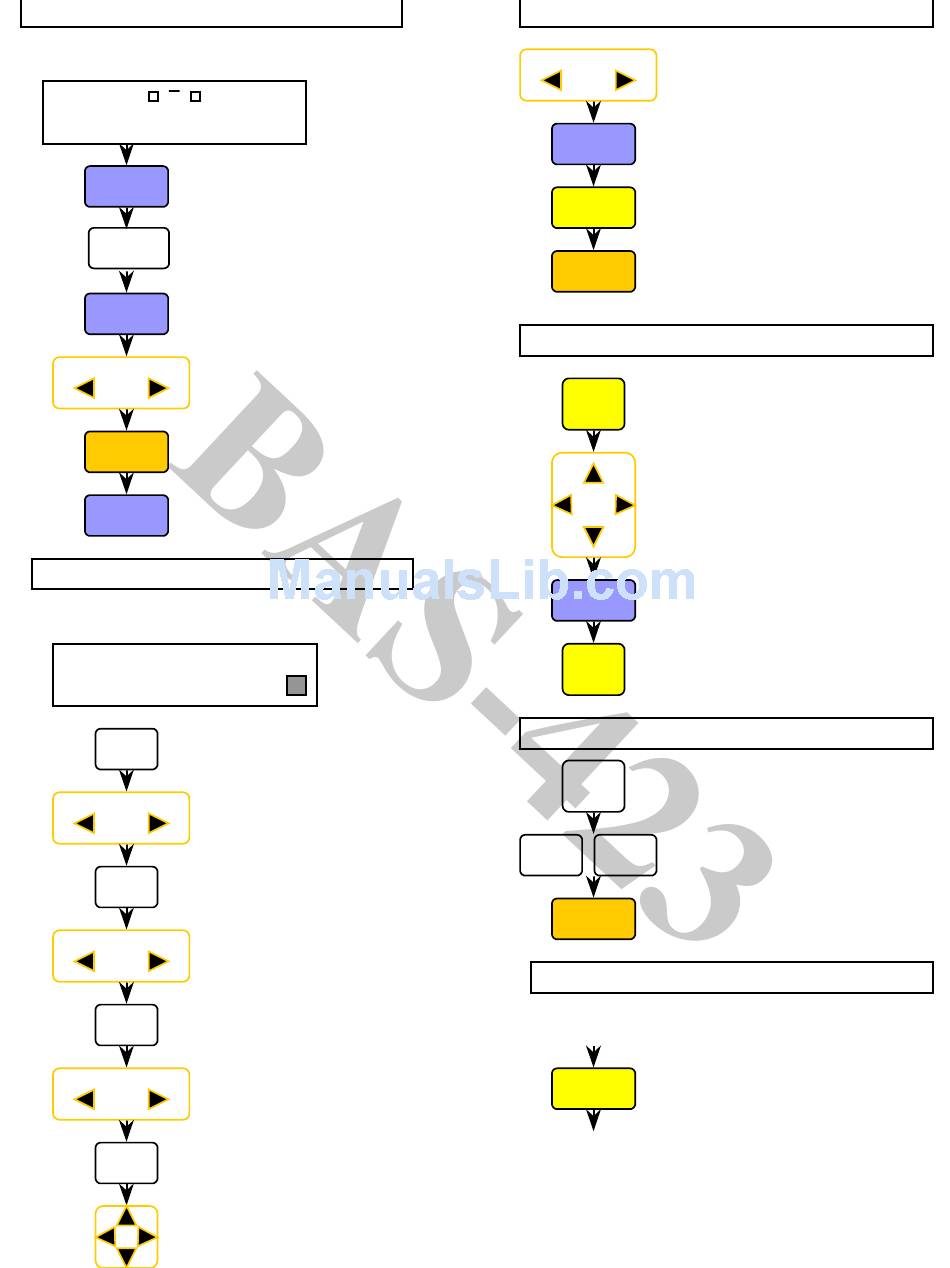

SETTING THE ROTATE, MIRROR, REPEAT
After loading your design and at the
display below, do the following.
Set STR_P.
N_No. # # # # # # # # #
EDIT
To enter EDIT mode.
MODE To select which option you wish
to change.
To enter that options EDIT
EDIT
values.
BACK FORWARD
To change the values of the
option you choose
END
To EXIT the edit mode
To return to the above display
START
with changes in effect.
"FLOATING" THROUGH A DESIGN
To move through a design after you have started
sewing you must first STOP the machine.
R_St: # # # # # # # # #
N_No. # # # # # # # #
Press "MODE" to display a "J" in
MODE
the gray box
BACK FORWARD
To move by 100 stitches either
FORWARD or BACK in design
Press "MODE" again to display a
MODE
"C" in the gray box
BACK FORWARD
To move by color changes either
FORWARD or BACK in design
Press "MODE" again to display a
MODE
"T" in the gray box
BACK FORWARD
To move BACK only to the first stitch
of the design
Press "#" To display a "I" in the gray
#
box
To move the frame in small increments
to correct registration
Co. # #
Co. # #
ERASING A STORED DESIGN FROM MEMORY
BACK FORWARD
Use BACK and FORWARD keys
to pick a design from memory.
ENTER
Press ENTER to view design name
Press CLEAR to delete the design
CLEAR
from machine memory.
Press END to return to
END
"FileNo" screen
SETTING HOOP FEED POSITION
HOOP
Press HOOP FEED to move the frame to
the current HOOP FEED position
FEED
If you wish to change the position
Use the ARROW keys to move the frame
to a new position
Press ENTER to store the new HOOP
ENTER
FEED position
HOOP
Press HOOP FEED to toggle between
sewing position and hoop feed position
FEED
MOVING THE NEEDLE CASE
NEEDLE
To enter the NEEDLE
SELECT
SELECT mode
Use numeric keypad to select
1 9
the needle to move to.
To EXIT the NEEDLE SELECT
END
mode
ERASE ALL DESIGNS / HARD RESET
Turn the power OFF on the machine.
Press and HOLD the CLEAR key
CLEAR
while turning the power ON
The machine will continue to start
up as usual. You will notice that there
are no designs in memory.
The machine will continue the power up sequence.
