PRACTICES
CONTENTS
1.
GENERAL ............................................................... 1
2.
INSTALLATION ...................................................... 1
3.
REPLACEMENT PARTS ....................................... 4
4.
MAINTENANCE ..................................................... 4
5.
WARRANTY AND CUSTOMER SERVICE ........... 4
Figure 1. T400 Single Environmental Housing ............ 1
Figure 2. Clearances .................................................... 2
Figure 3. Mounting Holes ............................................. 2
Figure 4. Wiring Terminals ........................................... 2
Figure 5. T400 Environmental Housing Assembly ....... 3
Figure 6. Surge Arrestors and the
Insertion/Extraction Tool ............................... 3
Table A. Wiring ............................................................. 3
1. GENERAL
This practice provides installation and maintenance
information for the ADTRAN T400 Single
Environmental Housing, part number 1150087L1.
Figure 1 is a view of the T400 Single Environmental
Housing.
Features
The basic features of the T400 Single Environmental
Housing, part number 1150087L1, include the
following:
• Houses one of the following circuit packs: FNID,
BRIDLE-R, HTU-R, HRE, or Total Reach
• Seals the T400 circuit packs from the environment
• Allows separate, unsealed access to the customer
and network wiring
• Mounts above ground to a pole or wall
• Compact T400 Environmental Housing - 9" High x
3
3/4
" Deep x 8
5/8
" Wide, 2.6 lb. with mounting
bracket
• Four replaceable gas-tube surge arrestors that
provide primary lighting protection
61150.087L1-5A
C A U T I O N !
SUBJECT TO ELECTROSTATIC DAMAGE
OR DECREASE IN RELIABILITY.
HANDLING PRECAUTIONS REQUIRED.
T400 SINGLE ENVIRONMENTAL HOUSING
INSTALLATION/MAINTENANCE
FIGURES
TABLES
Section 61150087L1-5, Issue 1
CLEI Code # DDMOJHD1 _ _

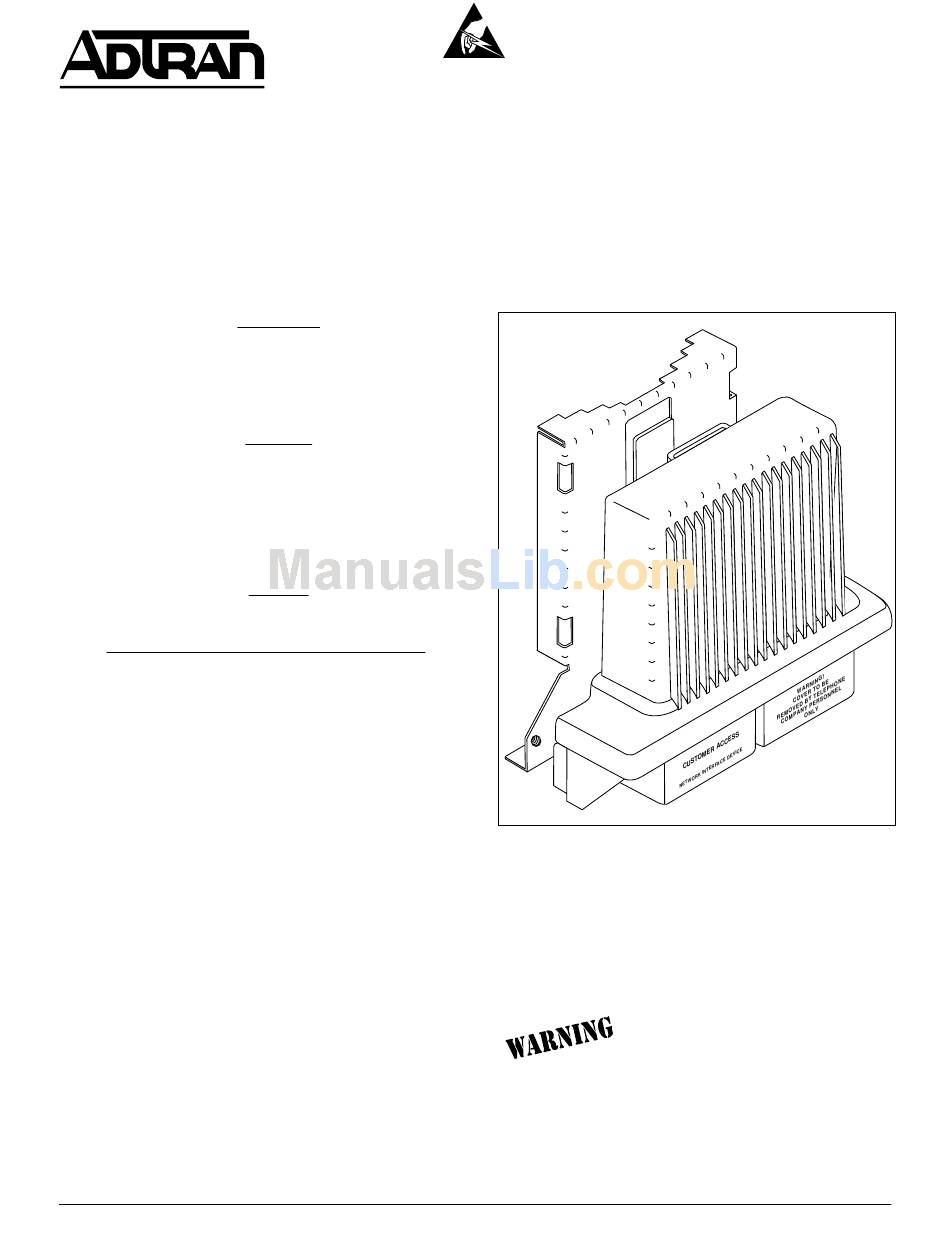

Figure 1. T400 Single Environmental Housing
2. INSTALLATION
The T400 Environmental Housing consists of a base,
cover, O-ring, mounting bolts for the base, mounting
bracket, lag screws and spacers for the mounting
bracket. See Figures 2, 3, 4 and 5.
The T400 Single Environmental
Housing is designed for above
ground only mounting. Never install
telephone wiring during a lightning
storm.
Install Mounting Bracket
1. Clearances between the T400 Environmental
Housing and adjacent structures must be observed
Section 61150.087L1-5
Issue 1, August 1996
1
