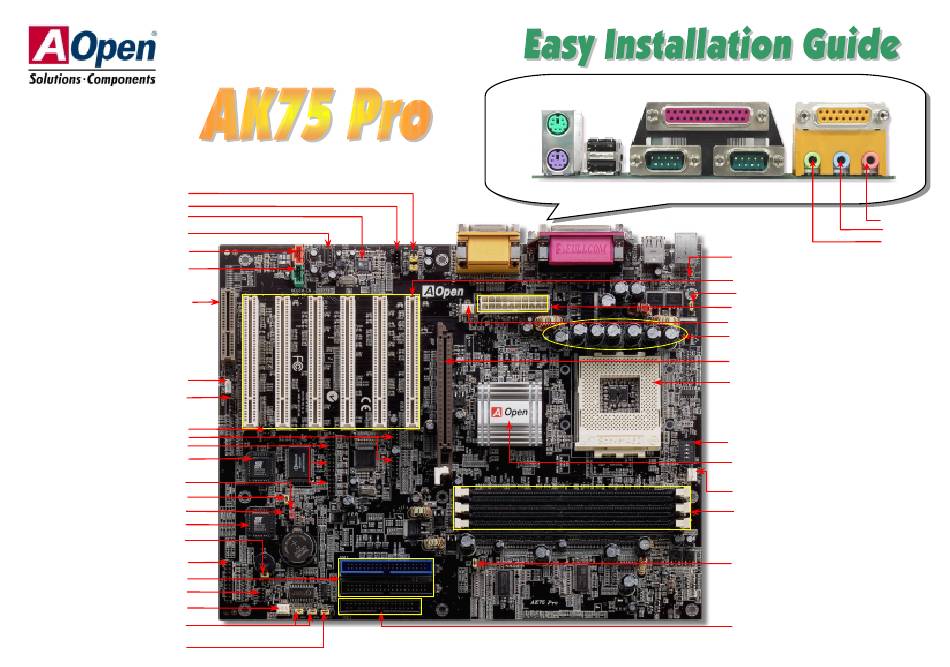

Front Audio Connector
CD-IN Connector
A'C97 CODEC
S/PDIF Connector
MODEM-CN Connector
AUX-IN Connector
CNR Expansion Slot
WOL (Wake on LAN) Connector
WOM (Wake on Modem) Connector
IrDA Connector
nd
rd
Supports 2
and 3
USB Connector
IEEE 1394a Connector
Die Hard BIOS with 100% Virus
Protection (Upgrade Optional)
JP14 CMOS Clear Jumper
JP30 Die Hard BIOS Select Jumper
Case Open Connector
2Mbit Programmable Flash ROM
JP1 Jumper (Buzzer)
Front Panel Connector
ATA/33/66/100 IDE Connector x2
Dr. LED Connector (Upgrade Optional)
FAN3 Connector
JP15 & 16 Dr. Voice
Language Select Jumper
JP2 Jumper (speaker)
PS/2 Mouse
SPP/EPP/ECP Parallel Port
Connector
PS/2 Keyboard
USB Port
COM 1 Port
Connector
MIDI/Game Port
COM 2 Port
MIC-In
Line-In
Speaker Out
Resettable Fuse
32-bit PCI Expansion Slot x6
JP28 Wakeup on Keyboard/Mouse
ATX Power Connector
FAN2 Connector
2200
μ
F Low ESR Capacitors
AGP 4x Expansion Slot
462-pin CPU Socket with Voltage and
Frequency Auto-Detection that supports
TM
TM
TM
AMD Athlon
/ Duron
/ and Athlon
SW1 CPU Ratio Select Switch
SIS 745 Chipset
CPU FAN connector
184-pin DIMM supports DDR SDRAM
DDR333 (DIMMx2 Max. to 2GB)
DDR266 (DIMMx3 Max. to 3GB)
JP21 FSB Select Jumper
FDD Connector
XP
