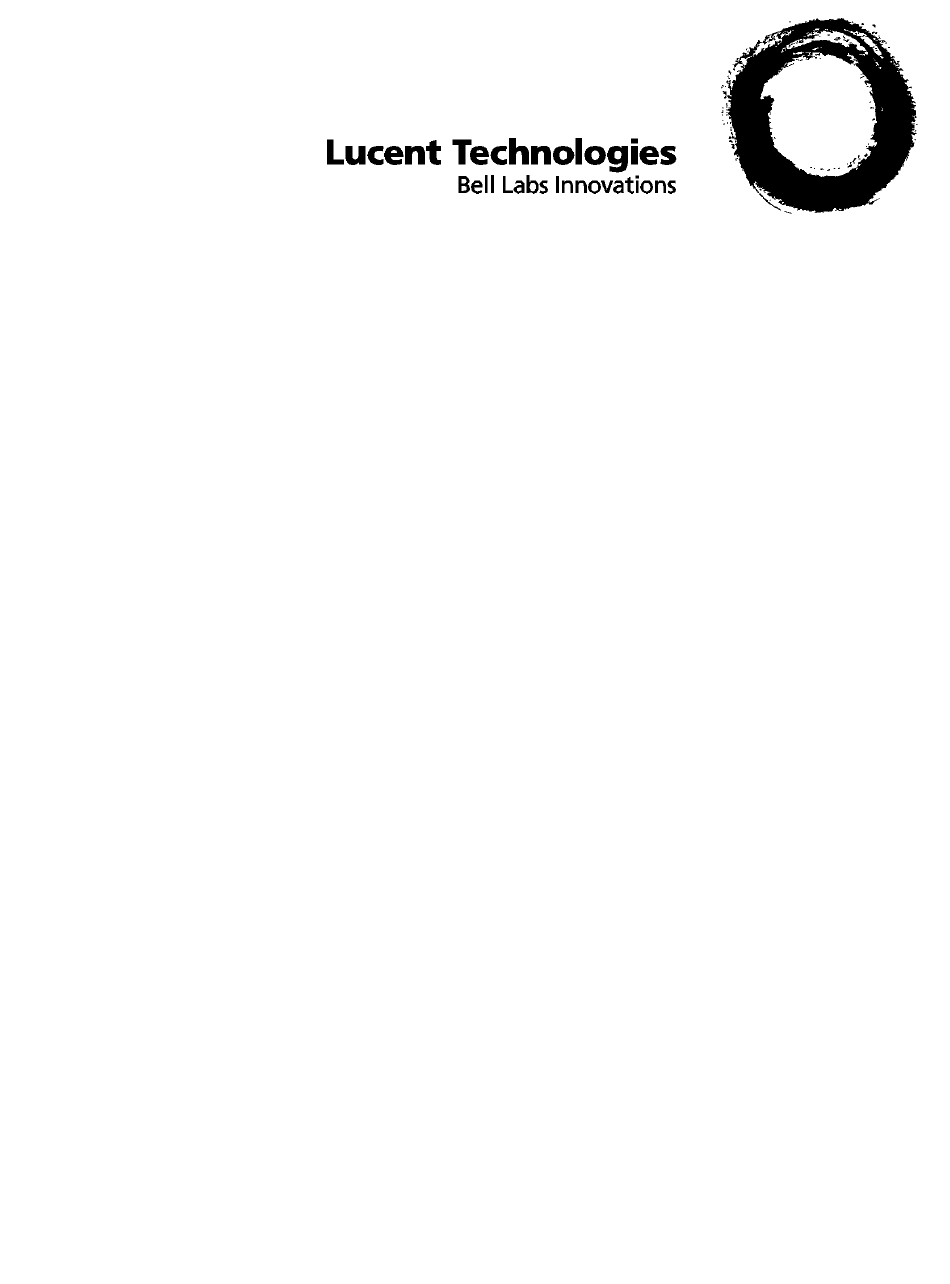

TRANSTALK 9000
MDC 9000 Cordless Telephone
Installation
503-801-101
Issue 1
May 1994

Advertisement

Table of Contents
loading

Related Manuals for Lucent Technologies TRANSTALK 9000

Summary of Contents for Lucent Technologies TRANSTALK 9000

  • Page 1 TRANSTALK 9000 MDC 9000 Cordless Telephone Installation 503-801-101 Issue 1 May 1994...
  • Page 2 Copyright ©1994 AT&T AT&T 503-801-101 Issue 1 All Rights Reserved Printed in U.S.A. May 1994 Notice Every effort was made to ensure that the information in this booklet was complete and accurate at the time of printing. However, information is subject to change.

  • Page 3: Table Of Contents

    Contents Introduction Privacy Information Automatic Security Coding Safety Information Parts List Installation Important Safety Instructions Additional Safety Instructions for Installation Personnel Base Connectors Positioning the Base Installing the Base a Desk Installing the Base on a Wall Inserting and Removing the Battery Pack Charging the Battery Replacing the Battery Pack Testing the Installation...
  • Page 4 AT&T Limited Warranty and Limitation of Liability Repair Information FCC Information FCC Part 15 Rules Hearing Aid Compatibility Specifications Wall Mount Template (inside back cover)

  • Page 5: Introduction

    Introduction Congratulations on the purchase of your new MDC 9000 Cordless Business Telephone, MDC stands for Multi-line Digital Cordless. Advanced radio technology and digital transmission provides more power, extended range, greater clarity, and higher security. This phone was designed to AT&T's high standards for reliability and convenience.

  • Page 6: Privacy Information

    Privacy Information This telephone is designed to protect the privacy and security of your voice conversation. The set uses continuously changing radio frequencies and digital encoding techniques to make it impossible for eavesdropping to occur through the use of commercially available analog radio scanners.

  • Page 7: Parts List

    Parts List Along with this booklet, the box should contain the items shown below. If it does not, call the AT&T Helpline at 1 800 628-2888. In Canada, contact your local AT&T Authorized Dealer. Carrying Holster Battery Pack Phillips Head Base Handset Wood Screws (2)

  • Page 8: Installation

    Installation IMPORTANT: Before beginning installation, please read and understand “Important Safety Instructions” and “Additional Safety Instructions for Installation Personnel” on the following pages. Important Safety Instructions Always follow these basic safety precautions when installing or using this product to reduce risk of injury from fire or electric shock.
  • Page 9 Read and understand all instructions in this booklet before using this product. Observe all warnings and instructions marked on the product. Unplug this product from wall outlets and telephone jacks before cleaning. Clean exposed parts with a soft, damp cloth. Do not use liquid or aerosol cleaners.
  • Page 10 Use only the battery pack model indicated in “Ordering & Optional Parts.” This device uses a 3-prong plug in continental U.S. locations. Such plugs are designed for your safety. Do not attempt to defeat this purpose. If your wall outlet will not accept the plug, the outlet should be replaced by an electrician.

  • Page 11: Additional Safety Instructions For Installation Personnel

    This product should be serviced by (or taken to) a qualified service center when service or repair work is required. Do not open the product, there are no user serviceable components inside. Additional Safety Instructions for Installation Personnel Install the product to meet all environmental and electrical requirements listed in this booklet.

  • Page 12: Base Connectors

    Base Connectors Before you install your telephone, familiarize yourself with these connectors on the underside of the base. Mounting Stand Slot Power Cord Channel Telephone Line Cord Channel Power Telephone Cord Line Cord Jack Jack Power Cord Channel Mounting Stand Slot For use only when installing the base on a desk.

  • Page 13: Positioning The Base

    Positioning the Base This phone uses radio transmissions to communicate. Its range depends on your particular operating environment, and the range can be improved by placing the base in an optimum location. The base can be placed on a desk or mounted on a wall. Before you install the phone, note the following considerations regarding its location and use: Mount the base near the center of the area in which the hand-...
  • Page 14 The handset does not need to be located with the base except for charging. For best coverage, place the base in a central loca- tion (see the figure below), and avoid metal objects which are in the line of sight to the operating area of the handset. Optimum Base Location Poor Base Location (Indoor Use)

  • Page 15: Installing The Base A Desk

    Installing the Base on a Desk Unit must be unplugged before Installing See “Parts List” and “Base Connectors” earlier in this booklet for additional picture detail Plug the telephone line cord Power Cord Telephone Line into the telephone line cord Cord jack on the underside of the base, then insert the power cord/AC...
  • Page 16 Insert the other end of the Modular Jack telephone line cord into a modular jack. Rotate the base antenna until it is standing upright. Plug the power cord/AC adapter into a properly grounded 3-prong wall outlet.

  • Page 17: Installing The Base On A Wall

    Installing the Base on a Wall Unit must be unplugged before Installing See “Parts List” and “Base Connectors” earlier in this booklet for additional picture detail Plug the power cord/AC adapter into the power cord jack on the underside of the base. Route the power cord through its channel and out the front end of the phone (as shown).
  • Page 18 Insert the telephone line cord through the hole indicated on the mounting stand (A). Push the telephone line cord up and then insert it into the telephone line cord jack (B) on the underside of the base. Reverse the handset hook on Press the hook the base.
  • Page 19 Mark the screw locations on the wall using the Wall Mount Template on the inside back cover of this booklet. Choose a location backed by a wooden stud (if unavailable, use toggle bolts instead of the wood screws). Lightly tap a nail into the marks on the wall to start holes.
  • Page 20 Plug the power cord/AC adapter into a properly grounded 3-prong wall outlet.

  • Page 21: Inserting And Removing The Battery Pack

    Inserting and Removing the Battery Pack Insert the tab on the battery pack into the hole along the top edge of the battery compart- ment on the handset. Battery Tab Press the battery pack down- ward to lock it into place.
  • Page 22 To remove the battery pack, grasp the finger grips on both sides of the battery pack, then gently pull the battery pack upward and out. Finger Grips...

  • Page 23: Charging The Battery

    Charging the Battery You must charge the battery for 12 hours before using the phone for the first time. To charge the battery, simply place the handset on the base, making sure that the base is plugged into an AC outlet. The Charge LED on the base lights to show that the handset is seated properly, and the battery is charging.

  • Page 24: Testing The Installation

    Testing the Installation NOTE: Before testing the installation, make sure the telephone line cord on the base is plugged into a modular jack and the power cord is plugged into a wall outlet. Also, verify that the battery is charged (see “Charging the Battery” on the previous page) and that the antenna on the base is in an upright position.

  • Page 25: Filling Out Labels

    Filling Out Labels Remove the protective film from the handset display. Using a ball- point pen or pencil only, write the following information on the erasable labels and directory card: Handset Display Labels (6) On the handset display labels, write line numbers or programmed features assigned to each of the outside line/programmable/inter-...

  • Page 26: Handset Range Indicators

    Handset Range Indicators This phone provides an audible and a visual warning signal to alert you when the handset is too far from the base: If the handset is off and you press to make a call, the [On/Off] handset emits two beeps and the RANGE indicator appears in the display.

  • Page 27: Using The Carrying Holster

    Using the Carrying Holster The carrying holster allows you to carry the handset with you without having to hold it in your hand. To attach the holster to your belt, simply thread your belt through the holster’s belt loop. Then slip the handset into the holster.

  • Page 28: Headsets

    Headsets This phone is equipped with a single-prong headset jack on the left side of the handset (near the earpiece volume control switch). Headsets assist in call answering and provide hands-free operation. AT&T offers a headset designed for use with your cordless phone.
  • Page 29 If desired, the headset cord can be removed from the handset without the call being dropped. You can then use the handset as you normally would. NOTE: Calls cannot be heard on the handset when the headset is connected to the headset jack. The handset microphone is also disabled.

  • Page 30: Mdc 9000 Compatibility

    MDC 9000 Compatibility After you have installed your phone and understand its controls and displays, use the programming and call handling instructions that come with your phone system; follow the user instructions for the phone type identified below: PARTNER systems: the MLC-6 Cordless Telephone; the MDC 9000 Is fully compatible with the PARTNER family of phone systems.

  • Page 31: Programming Sytem Features 2

    Programming System Features PARTNER Systems: PARTNER II and PARTNER Plus system buttons should be assigned as follows; 1, 2, 3, and 4 are line or feature buttons (for a PARTNER system, buttons 1 through 4 are line only): PSTAT M S G RANGE BATT MERLIN Systems:...
  • Page 32 MERLIN 206/410/820 and MERLIN Plus system buttons should be assigned as follows; 2, 3, 4, and 5 are line or feature buttons: PSTAT RANGE BATT To use MERLIN LEGEND system feature codes with this phone, program the top right-hand button as a system Feature button. This will permit you to use the wide array of LEGEND system features by turning the set on, pressing the system Feature button, and dialing the appropriate “...
  • Page 33 System 25: For Releases 1, 2, and 3, this phone must be administered as a 10-button MERLIN set (type 303). Assigning features may be done only by the system adminis- trator. Use the following features with caution: Automatic Intercom, Bridging, Coverage, Direct Station Selec- tion, Personal Line, Pooled Facility, Send All Calls (use with single ring reminder).
  • Page 34 System 75, System 85, and DEFINITY Systems: This phone must be administered as a 7303s Hybrid terminal for the following systems: System 75 - R1V1, R1V2, and R1V3 System 85 - R2V1, R2V2, R2V3, and R2V4 DEFlNITY G1 - (R1V4) DEFINITY G2 - G2.1 and G2.2 - (R2V5, R2V6) DEFINITY G3 Version 1 - (R1V5) DEFINITY G3 Version 1.1 and Version 2 - (D92)
  • Page 35 Set administration and button feature assignment may be done only by the system administrator. It is recommended that you do not use features that require visuals (the LCD feature indicator) to be updated while the set is turned off. Also, since some features, such as Send All Calls, provide visual indication that the feature is turned on, be aware that if you turn off the handset when using that feature, you may forget that the feature is on.

  • Page 36: Maintaining Your Mdc 9000

    Maintaining Your MDC 9000 This phone is designed to provide trouble-free performance without any special maintenance procedures. To reduce the risk of accidental damage: Keep the telephone in an area free of dust, smoke, and mois- ture. Do not place the phone near a heating duct, radiator, or other heat source, and do not drop or expose it to excessive shock or vibration.

  • Page 37: Ordering Replacement & Optional Parts

    Ordering Replacement & Optional Parts To order replacement parts or optional equipment, call the AT&T Sourcebook Sales, AT&T Catalog Sales, or the AT&T National Parts Sales Center toll free. When ordering, please use the part numbers shown In the table below. AT&T Catalog AT&T National AT&T Parts Sales...
  • Page 38 AT&T Limited Warranty and Limitation of Liability AT&T warrants to you, the customer, that your cordless telephone system will be in good working order on the date AT&T or its authorized reseller delivers or installs the system, whichever is later (“Warranty Date”).
  • Page 39 AT&T’S OBLIGATION TO REPAIR, REPLACE, OR REFUND, AS SET FORTH ABOVE, IS YOUR EXCLUSIVE REMEDY. EXCEPT AS SPECIFICALLY SET FORTH ABOVE, AT&T, ITS AFFILIATES, SUPPLIERS, AND DEALERS MAKE NO WARRAN- TIES, EXPRESS OR lMPLIED, AND SPECIFICALLY DISCLAIM ANY WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.
  • Page 40 In-Warranty Repairs If you purchased or leased your system directly from AT&T, AT&T will repair it free of charge during the one-year warranty period. Simply call the Helpline and ask for service. Business-Day service is standard during the warranty period for both the control unit and system phones.
  • Page 41 FCC Information Federal Communications Commission (FCC) rules require that you be notified of the following: FCC Part 15 Rules The AT&T MDC 9000 Cordless Business Telephone has been tested and has been found to comply with FCC Part 15 Rules. These specifications are designed to provide reasonable protec- tion against harmful interference in a commercial or residential installation.
  • Page 42 Specifications GENERAL Model: MDC 9000 Dimensions Handset 12.1''(L) x 2.3''(H) x 2.44''(W) 0.6 Ibs and Weights: 0.91 lbs Handset w/Battery 12.1''(L) x 2.3''(H) x 2.44''(W) 1.75 Ibs Base 9.4''(L) x 3.43''(H) x 7.52''(W) Battery Pack 3.3''(L) x 1.2''(H) x 2.45''(W) 0.31 Ibs 0.17 Ibs Headset w/Cord (Approx.) 7.6''(L) x 1.2''(H) x 6.3''(W)
  • Page 43 Using the Wall Mount Template 1. If you wish, remove the template from this booklet by cutting or tearing along this dotted line. If you do not use the template, note that screws should be installed on a vertical line, exactly 4 inches (10.2 cm) apart.) 2.
  • Page 44 Graphics © AT&T 1988 AT&T 503-801-101...
