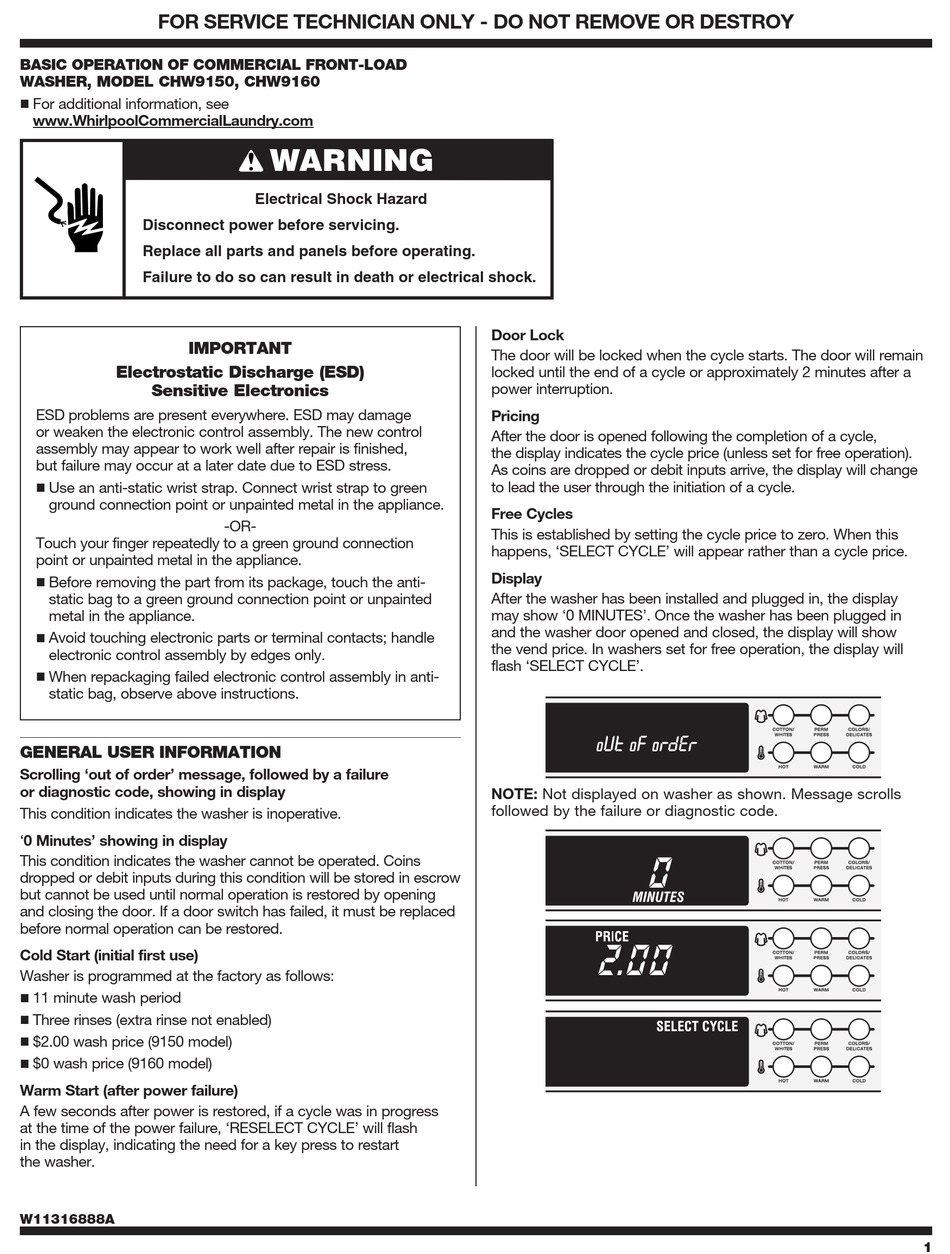

FOR SERVICE TECHNICIAN ONLY - DO NOT REMOVE OR DESTROY
BASIC OPERATION OF COMMERCIAL FRONT-LOAD
WASHER, MODEL CHW9150, CHW9160
For additional information, see
n
www.WhirlpoolCommercialLaundry.com
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
IMPORTANT
Electrostatic Discharge (ESD)
Sensitive Electronics
ESD problems are present everywhere. ESD may damage
or weaken the electronic control assembly. The new control
assembly may appear to work well after repair is finished,
but failure may occur at a later date due to ESD stress.
Use an anti-static wrist strap. Connect wrist strap to green
n
ground connection point or unpainted metal in the appliance.
Touch your finger repeatedly to a green ground connection
point or unpainted metal in the appliance.
Before removing the part from its package, touch the anti-
n
static bag to a green ground connection point or unpainted
metal in the appliance.
Avoid touching electronic parts or terminal contacts; handle
n
electronic control assembly by edges only.
When repackaging failed electronic control assembly in anti-
n
static bag, observe above instructions.
GENERAL USER INFORMATION
Scrolling 'out of order' message, followed by a failure
or diagnostic code, showing in display
This condition indicates the washer is inoperative.
'0 Minutes' showing in display
This condition indicates the washer cannot be operated. Coins
dropped or debit inputs during this condition will be stored in escrow
but cannot be used until normal operation is restored by opening
and closing the door. If a door switch has failed, it must be replaced
before normal operation can be restored.
Cold Start (initial first use)
Washer is programmed at the factory as follows:
11 minute wash period
n
Three rinses (extra rinse not enabled)
n
$2.00 wash price (9150 model)
n
$0 wash price (9160 model)
n
Warm Start (after power failure)
A few seconds after power is restored, if a cycle was in progress
at the time of the power failure, 'RESELECT CYCLE' will flash
in the display, indicating the need for a key press to restart
the washer.
W11316888A
WARNING
Electrical Shock Hazard
-OR-
Door Lock
The door will be locked when the cycle starts. The door will remain
locked until the end of a cycle or approximately 2 minutes after a
power interruption.
Pricing
After the door is opened following the completion of a cycle,
the display indicates the cycle price (unless set for free operation).
As coins are dropped or debit inputs arrive, the display will change
to lead the user through the initiation of a cycle.
Free Cycles
This is established by setting the cycle price to zero. When this
happens, 'SELECT CYCLE' will appear rather than a cycle price.
Display
After the washer has been installed and plugged in, the display
may show '0 MINUTES'. Once the washer has been plugged in
and the washer door opened and closed, the display will show
the vend price. In washers set for free operation, the display will
flash 'SELECT CYCLE'.
NOTE: Not displayed on washer as shown. Message scrolls
followed by the failure or diagnostic code.
1
