Radio / CD
Operating instructions

Advertisement

Table of Contents
loading

Related Manuals for Blaupunkt Calgary CD30

Summary of Contents for Blaupunkt Calgary CD30

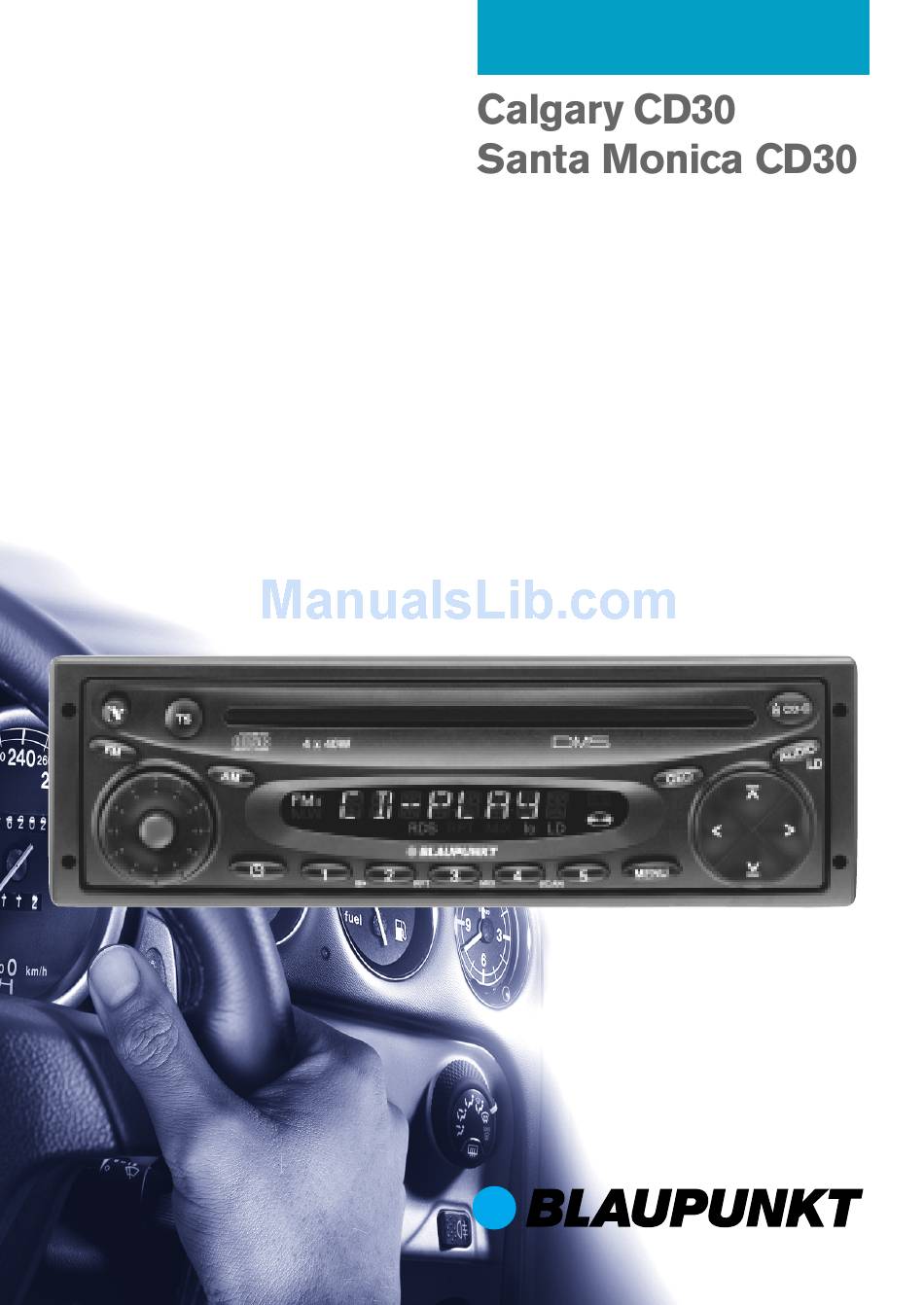

  • Page 1 Radio / CD Operating instructions...
  • Page 2 Open here Ouvrir s.v.p. Por favor, abrir Favor abrir...
  • Page 4 button to unlock release panel FM button, selects the FM memory bank Volume control knob ON button, switches the unit on/off Mute TS button, starts the Travelstore function AM button, selects the AM waveband CD slot CD eject CD•C button, switches sound source between radio, CD and CD changer (if connected) AUDIO button, adjusts bass and...

  • Page 5: Table Of Contents

    Important information ... 6 Traffic safety ... 6 Installation ... 6 Accessories ... 6 Guarantee ... 6 International telephone information ... 6 Theft protection system ... 7 Removable front panel ... 7 Switching the car audio system on/off ... 8 Volume control ...

  • Page 6: Important Information

    All Blaupunkt amplifiers can be used. The following CD changers can be con- nected directly: CDC A 06, CDC A 08, CDC A 072 and IDC A 09.

  • Page 7: Theft Protection System

    To prevent your car audio system from being stolen, it has been equipped with a removable front panel (release pan- el). Without the front panel, the car au- dio system is useless to thieves. Protect your car audio system against theft and take the operating panel with you each time you leave the vehicle.

  • Page 8: Switching The Car Audio System On/Off

    The car audio system can be switched on/off in a number of ways. Switching the car audio system on/ off with the vehicle ignition. If the car audio system has been con- nected to your vehicle ignition, it is pos- sible to switch it on and off with the igni- tion.

  • Page 9: Mute

    Once you have selected the desired settings, press MENU <. You can reduce the volume of the car audio system immediately (mute). Press 4. It is possible to select the mute level. Press MENU <. : repeatedly until Press “MUTE LVL” appears in the display.

  • Page 10: Radio Operation

    If you are currently using the CD player or CD changer, press CD•C 8 repeatedly until “RADIO” appears in the display. Using this car audio system, you can tune into radio stations on the FM and AM wavebands. There are three mem- ory banks for the FM waveband and one memory bank for AM.

  • Page 11: Storing Radio Stations Automatically (Travelstore)

    Press and hold down one of the station preset buttons 1 to 5 = on which you want to store the radio station for longer than one second. You can automatically store the five ra- dio stations with the strongest reception in the area.

  • Page 12: Cd Mode

    You can use this unit to play standard CDs with a diameter of 12 cm. Risk of damage to CD drive! So-called “CD singles” with a diam- eter of 8 cm and contoured CDs (“shape CDs”) are not suitable for playback in this unit.

  • Page 13: Repeating A Track (Repeat)

    If you want to repeat a track, press button 3 (RPT) =. RPT appears in the display. The track is repeated until you deactivate RPT. If you want to stop the repeat function, press button 3 (RPT) = again. RPT disappears. Normal playback is then continued.

  • Page 14: Cd Changer Operation

    Note: Refer to the instructions included with the CD changer for more information on how to handle CDs, how to insert CDs into the changer and how to operate the changer. Press CD•C 8 repeatedly until “CHANGER” appears in the display.

  • Page 15: Scanning All Of The Tracks On All Of The Cds (Scan)

    Note: The CDC A 08/ IDC A ß9 is able to play all of the CDs in the changer in random order. The other CD changers first play all of the tracks on a CD in random or- der and then select the next CD in the changer.

  • Page 16: Clock

    To display the time briefly, press >. To set the time, press MENU <. : repeatedly until Press “CLOCKSET” appears in the display. Press The time will appear in the display. The minutes will flash and can be altered. : to alter the minutes. Press Once you have altered the minutes, :.

  • Page 17: Adjusting The Tone

    To adjust the bass, press AUDIO 9. “BASS” will appear in the display. : to alter the bass. Press To adjust the treble, press AUDIO “BASS” will appear in the display. Press AUDIO 9 again. “TREBLE” will appear in the display. : to alter the treble.

  • Page 18: External Audio Sources

    MiniDisc player or MP3 player. If you would like to connect another ex- ternal audio source, you will require a Blaupunkt adapter cable with the Blau- punkt no.: 7 607 897 093. You must activate the AUX output in the menu.
  • Page 19 01-6 10 39-0 015 762 241 026 130 04 41 800-266 25 28 006 535 054 47 042 175 873 212 Blaupunkt-Werke GmbH Bosch Gruppe K7/VKD 8 622 402 207 Fax: 0 51 21 49 40 02 0 25 25 54 48...

  • Page 20: Installation Instructions

    Radio / CD Installation instructions Notice de montage Instrucciones de instalación Instrução de montagem...

  • Page 21: Safety Instructions

    - Do not connect the vehicle’s plug connectors to the radio! - You can obtain the adapter cable required for your vehicle type from any BLAUPUNKT dealer. Consignes de sécurité Respecter les consignes de sécurité suivantes pendant la durée du montage et du branchement.
  • Page 22 - Los cables adaptadores necesarios para su vehículo los encontrará en el comercio especializado en artículos de la marca BLAUPUNKT. Instruções de segurança Durante a montagem e a ligação do aparelho, queira respeitar as seguintes instruções de segurança. - Separar o pólo negativo da bateria ! Respeitar ao mesmo tempo as instruções de segurança do...
  • Page 23 1 2 V 7 607 621 . . . Car-specific adapter cable which is available at your dealer. Câble adaptateur spécifique au véhicule, disponible dans le commerce. Adaptador específico del vehículo, el cual se puede adquirir en el comercio especializado. Cabo de adaptação específico do automóvel que pode ser adquirido no comércio especializado.

  • Page 24: Remote Control

    Line Out LR Line Out RR Line Out GND Line Out LF Line Out RF +12V Amplifier Equalizer Telefon Mute Permanent +12V Aut. antenna Illumination Kl.15/Ignition RC +12V Remote Control RC - GND Amplifier Remote Control Speaker out RR+ Speaker out RR- Speaker out RF+ Speaker out RF- Speaker out LF+...
  • Page 25 Telefon Mute (low) This information is subject to change without notice! Sous réserve de modifications! Modificaciones reservadas! Sob reserva de alterações! (max. 150 mA) 4 Ohm 4 Ohm 4 Ohm 4 Ohm 1 3 5 Relais Kl. 15 +12V 1 2 V...
