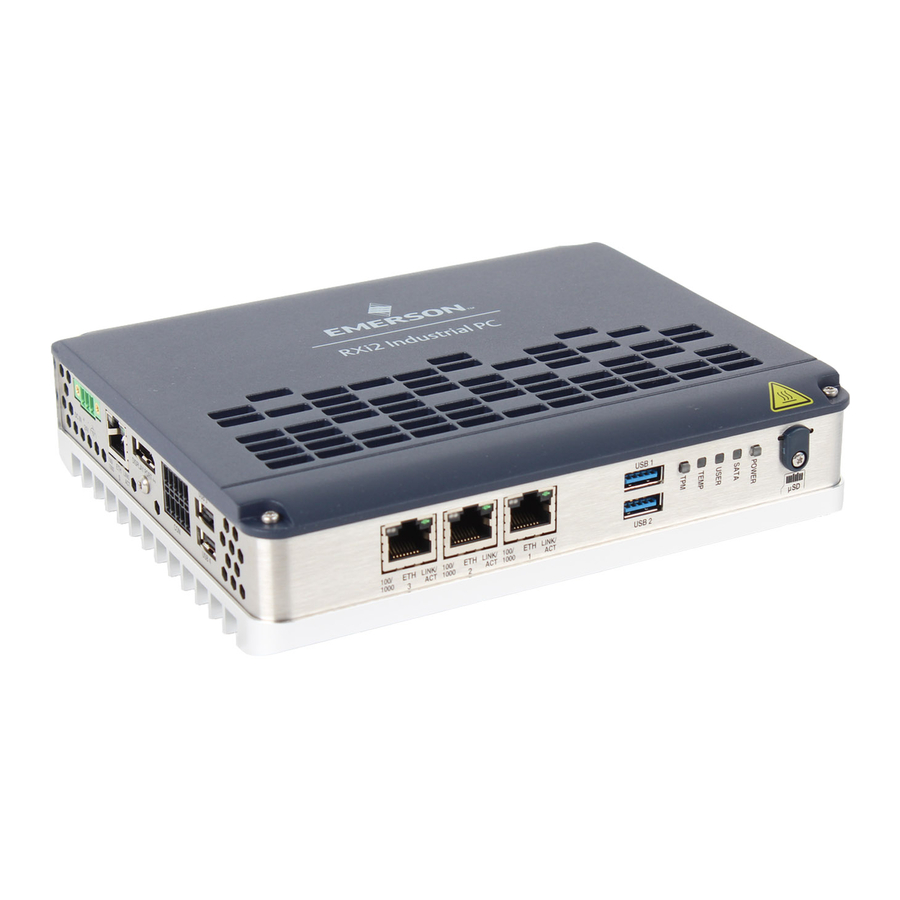

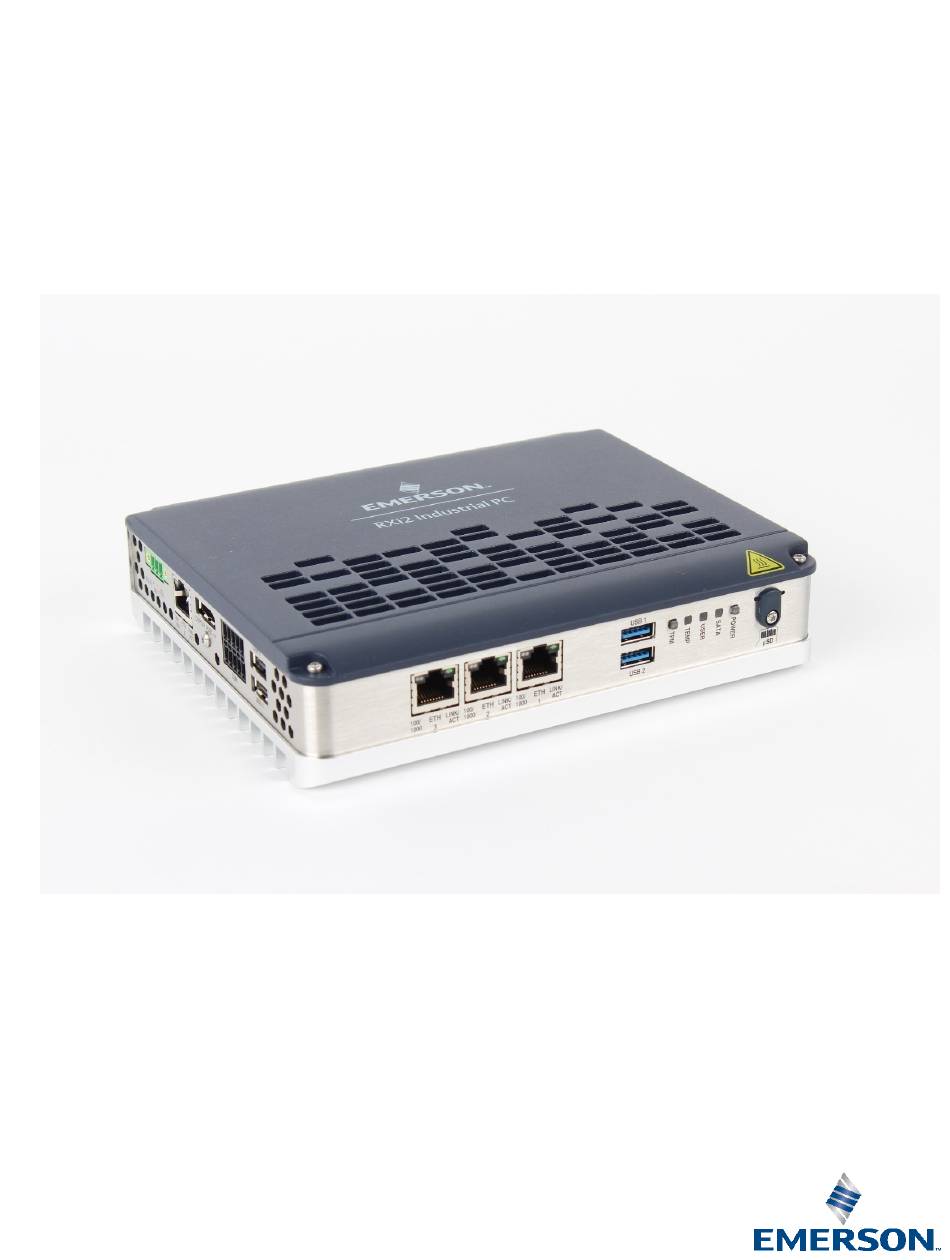

- Page 1 Quick Start Guide GFK-3196B Nov 2020 RXi2 – BP Industrial PC QUICK START GUIDE...
-
Page 2: Table Of Contents
Contents Physical Connection Overview and Startup ......... 1 Power-Input ........................1 Ethernet Ports ....................... 1 Initial Startup ......................... 1 RXi2-BP Pre-Installed Software Options ........2 PACEdge Startup ................ 2 PACEdge Usage Model ....................2 Getting Started ......................3 First Login ........................3 Mounting Information .............. -
Page 3: Physical Connection Overview And Startup
If the RXi2-BP IPC does not perform as described above, some damage may have occurred during shipment, or the board is not installed or configured properly. Contact Emerson for technical support. (Refer to the section Contact Information.) GFK-3196 - RXi2 - BP Industrial PC Quick Start Guide... -
Page 4: Rxi2-Bp Pre-Installed Software Options
RXi2-BP Pre-Installed Software Options Software Options Descriptions The user is responsible for installing an operating system and application RXI2-BP (No Pre- software. Please consult RXi2-BP Hardware Reference manual (GFK-3187) Installed Software) for details on how to change the UEFI boot order and install the operating system. -
Page 5: Getting Started
Please click on Advanced and Accept to proceed (this is due to self-signed certificate on the unit) Please read and accept the Emerson End User License Agreement. Shortcuts to Cockpit, Node-RED, Grafana, Portainer, and Chronograf will be shown on the PACEdge Landing Page (... -
Page 6: Mounting Information
Mounting Information WARNING If the RXi2-BP IPC operates in high ambient temperature up to 70°C (149 ° F), the surface of the enclosure, especially the heat sink, can reach a temperature of 85°C (185 °F) and above. Be careful and do not touch the RXi2-BP IPC with bare fingers. -
Page 7: Din Rail Mounting Options
DIN Rail Mounting Options There are two DIN rail mounting options available, depending on the size of the DIN rail connector. • If the DIN connector is 7.5 mm in height: use a single DIN rail support to offset the bottom of the IPC. •... -
Page 8: Panel Mounting
Panel Mounting To mount the IPC in a panel mount configuration, the user will need to connect Mounting Panel #R2B00ACCMP01 to the rear of the IPC: 1. Place the mounting plate on the rear of the IPC. 2. Using a T9 Torx driver, secure the mounting plate with two M3x6 screws, tightening to 0.6 Nm. (Do not overtighten.) 3. -
Page 9: Clearances Requirements For All Mounting Options
Clearances Requirements for all Mounting Options Pictures Figure 9 shows the required clearances required for the RXi-BP to operate within the thermal specifications for both DIN rail and panel mount options. Any deviation in required clearance will result in a reduced thermal performance and must be evaluated by the customer as a final setup. - Page 10 Note: If the product is purchased through an Authorized Channel Partner, please contact the seller directly for any support. Emerson reserves the right to modify or improve the designs or specifications of the products mentioned in this manual at any time without notice.
