Controlling the projector using a personal computer
This projector can be controlled by connecting a personal computer with RS-232C terminal.
PC-controllable functions :
• Turning the power ON or OFF
• Changing input signals
• Menu setting

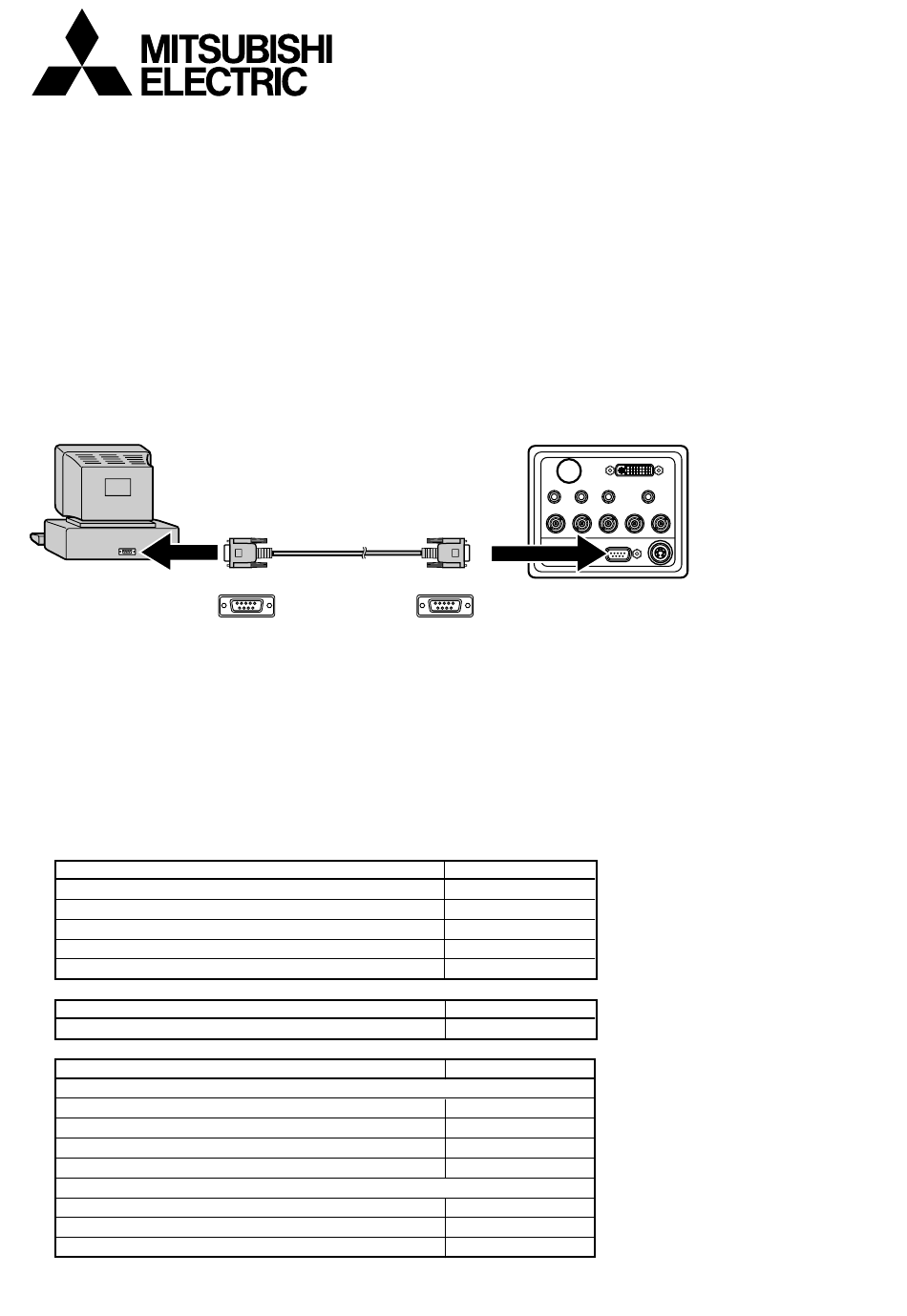

Connection
to SERIAL port
Important:
• Adapters may be necessary depending on the PC connected to this projector. Contact your dealer for details.
• Make sure that your computer and projector are turned off before connection.
• Turn on the personal computer and put the control software in the standby state before turning on the projec-
tor.
• This projector uses RXD, TXD and GND lines for RS-232C control.
• For RS-232C cable, the reverse type cable should be used.
1) Communication setting
Connection settings
Baud Rate
Data Bits
Parity
Stop Bits
Flow Control
Emulation settings
Emulation
ASCII settings
ASCII sending
Sending line ends with line feeds
Echo typed characters locally
Line delay (milliseconds)
Character delay (milliseconds)
ASCII Receiving
Append line feeds to incoming line ends
Force incoming data to 7-bit ASCII
Wrap lines that exceed terminal width
RS-232C cable
D-SUB 9P
Y Cb/Pb
G(Y) B(Cb/Pb)
to RS-232C terminal
D-SUB 9P
Value
9600 [bps]
8 [bits]
None
1 [bit]
None
Value
ANSI
Value
Enable
Enable
400
0
Disable
Disable
Enable
1
DVI
Cr/Pr VIDEO
R(Cr/Pr) H/HV V
S-VIDEO
RS-232C
