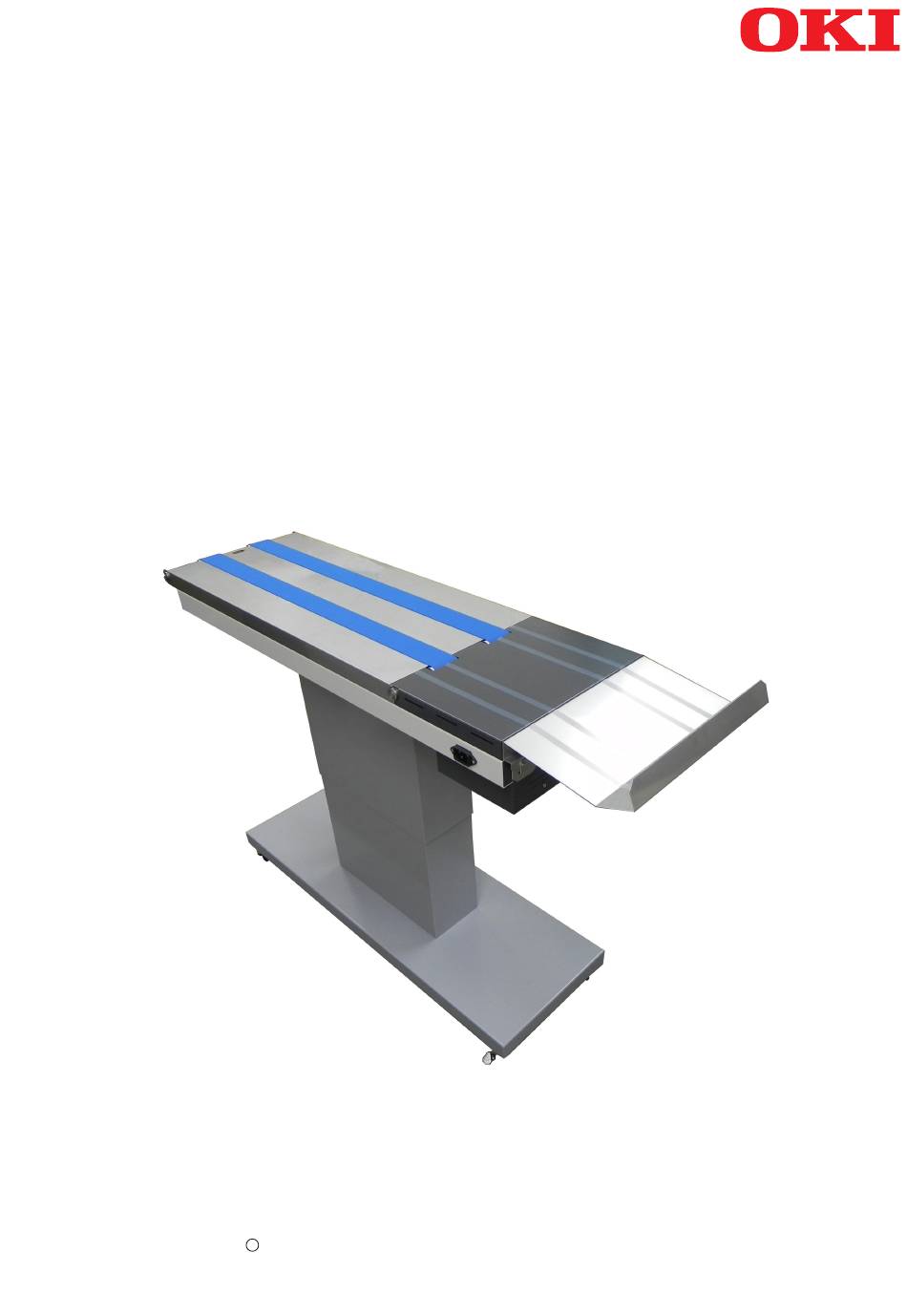

- Page 1 Conveyor User's Manual This manual contains cautions on how to use this product safety. Before you use this product, please make sure that you read this manual.
-
Page 2: Reading The Manual
Reading the Manual Symbols Note z These are cautions and restrictions for the correct operation of the conveyor. Make sure to read to avoid misoperation. Memo z Knowledge of the information before using the conveyor is useful and can act as a reference. Reading is recommended. Reference z These are the reference pages. -
Page 3: About The Product Warranty
All rights are reserved by Oki Electric Industry Co., Ltd. You must not copy, transfer, translate, etc. the content herein without authorization. You must obtain written permission from Oki Electric Industry Co., Ltd. -
Page 4: Environmental Information
Environmental information - 4 -... -
Page 5: For Your Safety
For Your Safety Read the User’s Manual for your safety before using the product. Cautions Related to Safety Indicates additional information which, if ignored or not followed, may result in personal injury or WARNING death. CAUTION Indicates additional information which, if ignored, may result in personal injury. General Cautions WARNING Do not touch the safety... -
Page 6: Power Supply Precautions
Power Supply Precautions There is a risk of getting an electric shock WARNING and/or causing fire. z Be sure to cut off the power supply when attaching or removing the power supply plug or the earth wire. z Be sure to connect an earth wire to the grounding terminal of exclusive use. z Please do not connect with the ground of a water pipe, a gas pipe, and a telephone wire, or lightning rod without fail. -
Page 7: Table Of Contents
Contents Reading the Manual .................2 Symbols ........................2 About the Product Warranty ..............3 Environmental information ...............4 For Your Safety ..................5 Cautions Related to Safety ....................5 General Cautions .........................5 Power Supply Precautions ..................6 Power Supply Conditions ......................6 1. Unpacking ................9 Checking the Installation Location .............9 Installation Environment .................... - Page 8 4. Maintenance ..............29 Caring for the Conveyor ................. 29 Cleaning the Paper Sensor ..................29 Cleaning the Conveyor Belts ..................29 5. Troubleshooting ..............30 6. Specifications ..............31 Main Specification ....................31 Dimensions ......................32 - 8 -...
-
Page 9: Unpacking
Unpacking For safe and pleasant use of the conveyor, install it in a location that satisfies the “Installation Environment” and “Installation Space”. This section also describes the installation precautions. Make sure to read the following before use. Checking the Installation Location Consider the following environmental conditions before selecting the conveyor installation location. -
Page 10: Installation Precautions
1.Unpacking Installation Precautions z Top view 200 mm (7.9") WARNING 661 mm (26.0") 1628 mm (64.1") z Do not install in high-temperature locations or close to open flames. z Do not install in locations where chemical reactions occur (e.g., laboratories). 1128 mm (44.4") 920 mm (36.2") z Do not install close to combustible solutions, such... -
Page 11: Unpacking The Conveyor
1.Unpacking Section B Unpacking the Conveyor This section explains the procedures for checking the package contents and taking the conveyor out of the package. Note z This section does not explain the procedures for taking the main unit and its accessories out of the package. That will be explained in the section about installing parts. - Page 12 1.Unpacking z 8 Screws for Stands z 2 Stopper Covers z 4 Wingnut Handles z 4 Stopper Screws z Power Cord z 2 Stoppers - 12 -...
-
Page 13: Removing The Package Contents
1.Unpacking Removing the Package Contents Open the package. Cut the binding bands and remove the stand package. Open the stand package. Remove the shock-absorbing material and the stands. - 13 -... - Page 14 1.Unpacking Remove the stoppers and stopper covers from the package. Take off all the materials on the stands packing bag and place the stands as illustrated. Take the rear stacker out of inside the stand packing bag. - 14 -...
- Page 15 1.Unpacking Remove the packing bag from the stands and place the stands as illustrated. Lift the stand (upper) to take it out of the stand (lower). Remove the packing bag from the stand (lower). Take the base out of the package. Remove the packing bag from the base.
-
Page 16: Installation
Installation This chapter explains how to assemble the conveyor, connect it to the printer, and remove it from the printer. Assembling the Conveyor For safe and pleasant use of the conveyor, install it in a location that satisfies the “Installation Environment”... -
Page 17: Installing Parts
2.Installation Installing Parts Make sure to install the conveyor in a sufficiently robust location that can support the weight of the conveyor and its options. Do not install it in unstable locations, such as on unsteady tables or inclines, or in locations with major vibrations. - Page 18 2.Installation Align the 4 bigger holes at the bottom of the stand (lower) with the mounted screws on the base to adjust the position as illustrated. Move the stand (lower) toward “a”. Make sure the screws are placed as illustrated, and tighten them with the screwdriver.
- Page 19 2.Installation Check the height of the printer’s drawers, and decide which slots you can use. 5 Drawer 4 Drawer Align the 4 bolts of the stand (upper) with the decided 4 slots in the stand (lower). Attach the 4 wingnut handles to the 4 bolts on the stand (upper). Tighten them to fix the position of the stands.
- Page 20 2.Installation Attach the stoppers and stopper covers to the base on the both sides as illustrated. Tighten them with the 2 stopper screws each with the screwdriver. Note z Make sure to attach the stoppers and stopper covers in this step. Failing to do so may cause the conveyer overturning due to an external strong force.
- Page 21 2.Installation Take the main unit out of the packing bag. Turn the main unit on one side and lightly screw the 4 screws into the holes. Memo z This step helps you to align the screws in the main unit with the holes in the stand (upper) in the next step. Have 2 people simultaneously lift the main unit and make its back side directing the locked casters on the base.
- Page 22 2.Installation Move the main unit toward “a”. Make sure the mounted screws are placed as illustrated, and tighten them with the screwdriver. Take the rear stacker out of the packing bag. Stick the rear stacker to the conveyor as illustrated. Note z Do not lean against the rear stacker or put heavy objects on the rear stacker.
-
Page 23: Names Of The Components
2.Installation Names of the Components a Conveyor Belts d AC Inlet These transport envelopes to the rear stacker. Insert the power cord here. b Paper Sensor e Rear Stacker While envelopes are being placed on top of this, the Envelopes are transported onto here. conveyor belts transport envelopes. -
Page 24: Installing The Conveyor
2.Installation Installing the Conveyor This section explains how to take off the faceup tray of the printer and bring the conveyor close to the exit tray. Lift the opener ( 1 ) of the output unit, and pull out the output unit. Open the faceup tray ( 1 ) of the output unit. - Page 25 2.Installation Take off both ends of the supporting arms as illustrated. Slide the faceup tray in the “a” direction and pull it off as illustrated. Note z Forcibly pulling off the faceup tray may cause the conveyor or the printer to be damaged. z Mount the faceup tray after removing the conveyor.
- Page 26 2.Installation Gently move the conveyor straight close to the left side of the printer while they face with each other. Note z If you push the conveyor hard and crash it into the printer, the conveyor or the printer may be damaged. z Tilting and moving the conveyor may cause overturning.
-
Page 27: Removing The Conveyor
2.Installation Removing the Conveyor Check that the status indicator is turned off. Push the levers on the base’s casters down in the “off” direction. Gently pull the conveyor out of the printer. If the conveyor will not be used, mount the faceup tray and the plastic ring to the printer. Reference z When you use the conveyor again, follow the procedures for “Installing the Conveyor”... -
Page 28: Checking Conveyor Operation
Checking Conveyor Operation This chapter explains how to check conveyor operation. Note z Do not place any objects other than envelopes on the conveyor belts for carrying them. Press the main switch in the on (|) direction. Prepare an envelope and place it so it covers the paper sensor as illustrated. CAUTION z Do not look directly at the red paper sensor light. -
Page 29: Maintenance
Maintenance This chapter explains how to care for the conveyor. Caring for the Conveyor Cleaning the Paper Sensor Cleaning the Conveyor Belts Items to be prepared: Cotton swab Items to be prepared: Soft, damp cotton cloth Press the main switch in the off ( Unplug the power cord from the outlet. -
Page 30: Troubleshooting
Troubleshooting This chapter explains how to solve problems that occur while using the conveyor. Reference z For more information about the problems that occurred with the printer, see “Troubleshooting and Daily Maintenance” provided with the printer. Symptom Cause Troubleshooting Conveyor does not work. The conveyor is not Check that the power plug is inserted into the power turned on. -
Page 31: Specifications
Weight Approx. 27.5 kg Power N36150A: 100 to 127 VAC (Range 90 to 140 VAC), 50/60 Hz ± 2 % N36150B: 220 to 240 VAC (Range 198 to 264 VAC), 50/60 Hz ± 2 % Power consumption During operations: Approx. 60 W Use environment Temperature: 10 ºC to 32 ºC, humidity: 20 % to 80 %RH... -
Page 32: Dimensions
