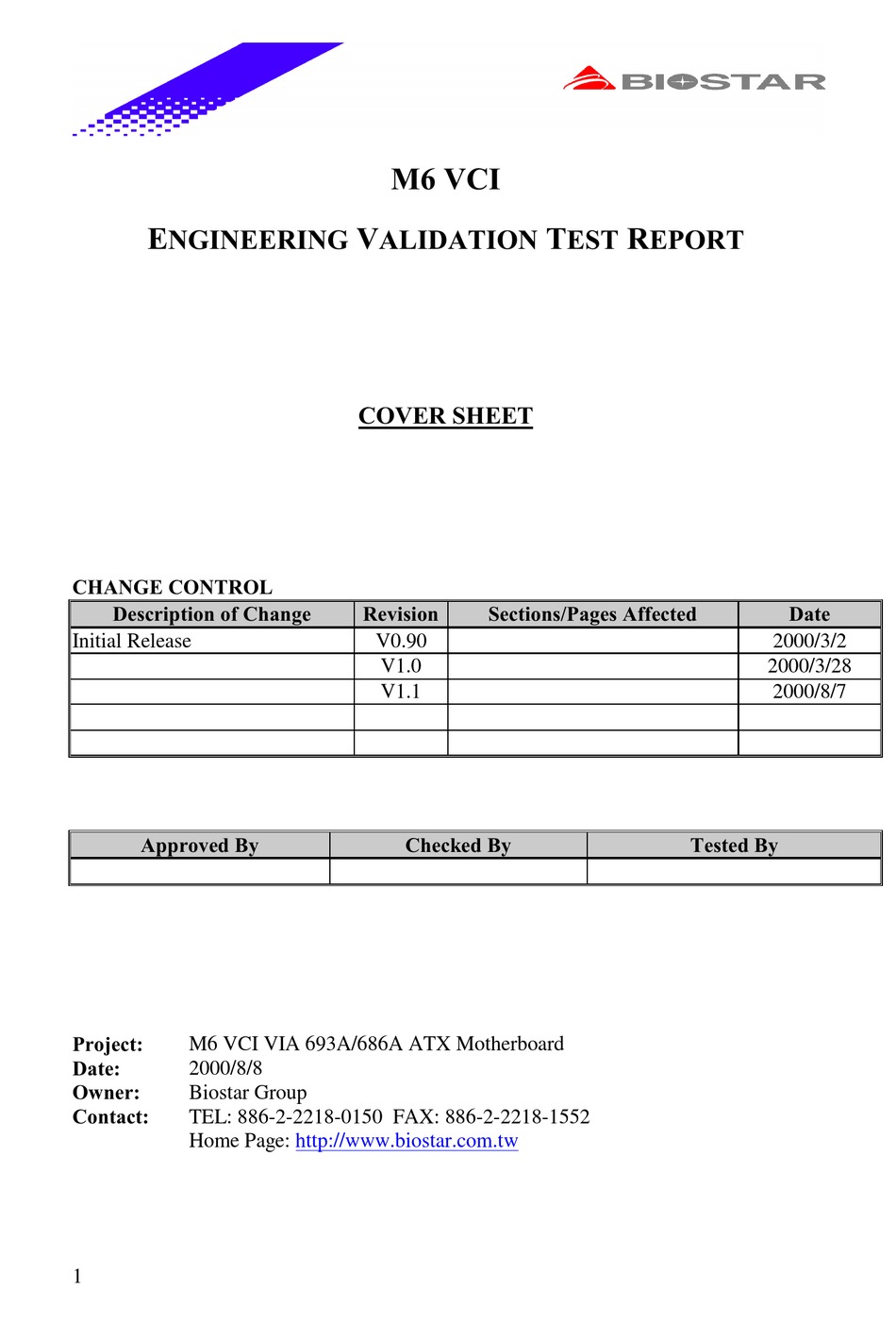

- Page 1 Initial Release M6 VCI VIA 693A/686A ATX Motherboard 2000/8/8 Biostar Group TEL: 886-2-2218-0150 FAX: 886-2-2218-1552 Home Page: http://www.biostar.com.tw V0.90 V1.0 V1.1 2000/3/2 2000/3/28 2000/8/7...
-
Page 2: Table Of Contents
Motherboard General Information ... 4 Chipset Details ... 4 BIOS Details ... 4 CPU Support ... 4 Memory Support ... 4 On-board Features and Devices ... 4 Mechanical ... 5 Mainboard Voltage Measurement... 7 Bus Clock ... 7 Other Tests ... 7 Adjustable Power Supply Test ... - Page 3 HDD ... 33 CD-ROM... 33 DVD-ROM... 34 Scanner ... 34 Joystick... 34 Power Supply ... 34 ZIP/LS120 ... 34 USB HUB... 35 LCD monitor ... 35 DOS... 36 Windows... 36 Server ... 36 Vcore ripple Waveform at Vcore Transient Waveform Measured at Vcore Transient Waveform Measured at Vcore Transient Waveform Measured at Vcore Transient Waveform Measured at...
-
Page 4: Memory Support
Vendor Model Number Version Number Platform FCC ID Number CE Logo PC 98 Logo System Chipset Vendor North Bridge Revision South Bridge Revision Clock Generator Vendor Clock Generator Revision Audio Codec Vendor Audio Codec Revision BIOS Vendor BIOS Revision Number BIOS Memory Size Flash EPROM BIOS Type... - Page 5 Support AGP SideBand Addressing Mode Ultra DMA 33 Support Ultra DMA 66 Support AMR Slot Support Power on by LAN Support Power on by Ring Support Power on by Keyboard Support Power on by Mouse Support Infrared Support Enhanced Parallel Port DMI Compliance Hardware Monitor Support ACPI v1.0/APM v1.2 Compliance...
- Page 6 Telephony Connector in PCB Digital Video Connector Comments: " Yes ! No ! None " Excellent ! Fair ! Poor ! Yes ! No " None ! Excellent ! Fair ! Poor...
- Page 7 Voltage List Battery Voltage +12V -12V +3.3V Vcore CPU Vcore Test Current Limit Test V2.5V Clock Frequency CPU and Clock Host SDRAM Clock ISA Clock PCI Clock AGP Clock USB Clock Reference Clock Clock Voltage Level CPU and Host Clock Voltage Level SDRAM Clock Voltage Level ISA Clock Voltage Level PCI Clock Voltage Level...
-
Page 8: Adjustable Power Supply Test
Power Regulator Temperature North Bridge Temperature South Bridge Temperature Audio Chipset Temperature Clock Generator Temperature Comments: The component temperature measured value was based on 35 Adjustable Power Supply Test 3.21 V 3.23 V 3.26 V 3.29 V 3.32 V 3.35 V 3.39 V 3.43 V... - Page 9 Virus Warning CPU Internal Cache External Cache CPU L2 Cache ECC Checking Processor Number Feature Quick Power On Self Test Boot From LAN First Boot Sequence Swap Floppy Seek Boot up Floppy Seek Boot Up Numlock Status IDE HDD Block Mode Gate A20 Option Memory Parity/ECC Check Typematic Rate Setting...
- Page 10 OnChip USB OnChip USB 2 USB Keyboard Support OnChip Sound OnChip Modem Power Management PM Control by APM Video Off After Video Off Method Modem Use IRQ Soft-off by PWRBTN PWRON After PW-Fail HDD Power Down Doze Mode Suspend Mode ** PM Events ** LPT &...
- Page 11 PCI Master 0 WS Write PCI Delay Transaction PCI#2 Access #1 Retry AGP Master 1 WS Write AGP Master 1 WS Read Assign IRQ for USB Assign IRQ for VGA OnChip IDE Channel0 OnChip IDE Channel1 IDE Prefetch Mode Primary Master PIO Primary Slave PIO Secondary Master PIO Secondary Slave PIO...
- Page 12 +3.3V +5.0V +12V Comments: 3.22 V 4.90 V 11.58 V...
-
Page 13: Nt 4.0 Workstation
DOS 6.22 Windows 98 Windows 98 Second Edition Windows NT 4.0 Workstation Windows 2000 Linux 6.0 (Red Hat) Clear CMOS with Jumper Cold Boot (Power Turn on ) CMOS Load Default Setup Memory Size Counter Check Warm Boot (HW/SW Reset) System Configuration Review (CPU Type/Cache/SDRAM/HDD…) Power Fail Function Test PS/2 Keyboard Test... - Page 14 Year 2000 Compliance Test Y2Kmark Ggreat Beyone Y2000 Millennium Date Test & Fix DOSCHK Novell Y2k test Fix 2000 Millennium Diagnose Memory Comparability Test Bmem Memory Test (15 Times) Memory Test Hard Disk Test Floppy Disk Test System Board Test Real Time Clock Test Serial Ports Test (Loop Back) Parallel Ports Test (Loop Back)
- Page 15 IDE HDD Test IDE CD Test Drive Speed Test Random R/W Test Sequential R/W Test Elevator Seek Test Controller Test Scan/ASCII code test Keyboard LED Test Keyboard Clock Line Test Keyboard Data Line Test Video Memory Test Attribute Test Page Selection Test Color Test Text Mode Test Graphics Mode Test...
- Page 16 Scandisk Test Disk Defragmenter Test Disk Converter Test (FAT32) System Properties Information Review Running AVI Files With Multi Stress Winstone 99 Test 3D Winbench 99 Test Final Reality 1.01 Test BCM Memory Test PS/2 Keyboard Test PS/2 Mouse Test Add Serial Mouse PnP Test Add Modem PnP Test Add Printer PnP Test Add ZIP Device Test...
-
Page 17: Video Card
Add Joystick PnP Test Add ZIP PnP Test Add LAN PnP Test Boot ROM Function Test Login Server Test Peer to Peer 10Mbps or 100Mbps Data Transfer Test Power On By LAN Test Playing AVI Files By The LAN Shut Down By LAN Test Shut Down To DOS Mode Then Resume Windows And Login Server Test Setup Installation Winstone 99 By The LAN Setup Installation Winbench 99 By The LAN... - Page 18 VGA Drivers Setup Installation Test Display Properties Information Review Change Resolution Test VGA Resolution Test (Prolink TNT2 & GF775) Resolution Color Depth 640x480 640x480 640x480 16 bit 640x480 32 bit 800x600 800x600 800x600 16 bit 800x600 32 bit 1024x768 1024x768 1024x768 16 bit 1024x768...
- Page 19 Speaker Out Quality Test Telephony Function Supports Playing Audio CD Test Playing Wave Test Playing MIDI Test Playing Video Test Playing MP3 Test WinTach 1.2 Speedy 1.0 System Info DMI Info Processor Test Memory Test Audio Test Video Test Modem Test Graphics Test Hard Disk Test Floppy Disk Test...
- Page 20 3D Processing 3D Quality 3D WinMark 3D Marks Demo Mode Direct Sound CPU Util 44.1 KHz 16bit Static Hardware Voices Voice 8 Voice 16 Voice 32 DirectSound CPU Util , 44.1 KHz , 16 bits Streaming Hardware Voice Voice 8 Voice 16 Voice 32 DirectSound CPU Util , 22 KHz , 8 bits Static...
- Page 21 Hardware Voice Voice 8 Voice 16 Voice 32 BIOS Video Storage Stress BAPCo SYSmark 98 CD Winbench 99 Final Reality Intel Media Benchmark Intel MMX Application Benchmark Morewins Continues Test For Over Night Morewins Pentium III Serial Number Read Test Power DVD Test USBready WinDVD 1.28...
-
Page 22: Keyboard
Microsoft pinball Microsoft the magic school bus Microsoft flight simulator98 Mikan NBA Live99 O.zone Quake 2 Rush Hour Red line SEGA Manx TT SEGA Rally 3D SEGA Rally 95 SEGA Challenge Rally Speed Demons Super Mario PC Turok Tomb 2 Tomb 2 gold Tonic trouble Worms: 2... -
Page 23: Printer
Add Printer PnP Test Format 1.44 Floppy Driver PIO Mode 4 Hard Disk Test Ultra DMA 33 Hard Disk Test Ultra DMA 66 Hard Disk Test CD-ROM Test DVD-ROM Data Read Test ZIP Device Driver Test Format ZIP Driver With Floppy A Type Format ZIP Driver With Removable Device Type LS120 Device Driver Test Boot ROM Function Test... - Page 24 Download Server Files For 24 hour Internet Explorer Browser Test Netscape Browser Test Send & Receive e-mail Test VGA Drivers Setup Installation Test Display Properties Information Review VGA Resolution All Test Screen Saver Test Check Screen Have No Any Shadow Or Garbage Playing MPEG Files Test Playing VCD Test Playing DVD Test...
- Page 25 Disk Inspection Tests Disk WinMark FPU WinMark GDI/USER Inspection Tests High-End Disk WinMark 99 High-End Graphics WinMark 99 Video Tests SYSmark 98 Pentium III Serial Number Read Test Wintune 98 Test Sysmark2000 Forsaken Quake II Age Of Empire Comments: Others Game Test Pass Pass...
- Page 26 0.90 2000/3/20 2000/4/1 2000/4/25 Comments: Biostar M6VCI 0 ~ 50 0 ~ 50 96 hr Morewins Temperature 50 ~ Humidity 50% ~ 12 hr. Temperature 0 ~ Humidity none ~ 12 hr. Temperature 50 ~ Humidity 50% ~ 36 hr.
- Page 27 Business Winstone 99 Comments: Winstone2000 Comments: CPUMark 99 FPU WinMark Business Disk WinMark 99 High-End Disk WinMark 99 Business Graphics WinMark 99 Hi-End Graphics WinMark 99 Comments: 3D WinMark Comments: Overall Comments: Overall Comments: Celeron-600 PIII-667 NEC 128MX2 MAXTOR 91024U3 A-Open 48x WinFast GeForce 256 22.2...
- Page 28 Business Winstone 99 High-End Winstone 99 Comments: Winstone2000 Comments: CPUMark 99 FPU WinMark Business Disk WinMark 99 High-End Disk WinMark 99 Business Graphics WinMark 99 Hi-End Graphics WinMark 99 Comments: Overall Comments: 700(100x7) 750(100x7.5) SIEMENS 256MB (128MBX2) IBM DJNA 370910 ULTRA 66 ACTIMA 50X SIGMATEL NVIDIA GEFORCE DDR...
- Page 29 Intel Intel Intel Intel Intel Intel Intel Intel Intel Intel Intel Intel Intel Intel Intel Intel Intel Intel APACER BUFFALO Fujitsu Hitachi (Korea) Hitachi (Malaysia) Infineon (Germany) Kingmax MITSUMI MOSEL Nanya Nanya Nanya NEC (Singapore) NEC (Japan) NEC (Singapore) NEC (Japan) Panasonic PENTIUM III/550MHz...
- Page 30 SEC (Korea) SIMENS (USA) SIMENS (USA) TOSHIBA Winbond (Taiwan) Winbond (Taiwan) Winbond (Taiwan) 3Dfx 3Dfx ASUS ASUS BIOSTAR CREATIVE DIAMAND DIAMAND GIGABYTE Joytech Matrox PROLINK POWERCOLOR TRILEX WinFast WinFast WinFast CREATIVE CREATIVE CREATIVE CREATIVE CREATIVE Ensoniq Crystrl AZTECH (PCI) AZTECH (PCI)
- Page 31 Lucent (PCI) LEMEL (External) 3com (External) Lucent (AMR) PCTEL(AMR) Rock 3COM (USB) Creative (USB) Logitech (USB) Logitech (USB) Logitech (USB) Kodak (USB) O’RIT (USB) SHIN-G TECH (USB) 3COM 3COM 3COM 3COM Digital DLINK DLINK (USB) Intel Intel ADAPTEC ADAPTEC ADAPTEC ADAPTEC AMD PC SCSI II ASUS...
- Page 32 BUS LOGIC BTC (USB) BTC (USB) BTC (PS/2) Chicony (USB) Eagle Touch K.A.CHEN LEMEL LEMEL Microsoft (USB) Microsoft (USB) ORTEK (USB) SAMPO SAMPO WIRELESS K/B (IR) WIRELESS K/B (IR) 3COM 100/10 Autosensing ARTEC DEXIN (USB) Logitech (USB) Logitech (PS/2) Logitech (Serial) Mouse (PS/2) Microsoft (USB/PS2) Qtronix...
- Page 33 SONY FUJI IBM OEM IBM Deskstar Maxtor Maxtor Maxtor Maxtor Maxtor Maxtor QUANTUM QUANTUM QUNATUM QUANTUM QUANTUM QUANTUM QUANTUM QUANTUM QUANTUM QUANTUM QUANTUM SEAGATE SEAGATE SEAGATE ASUS ACER ACER ACER ACTIMA A-OPEN LITE-ON LITE-ON PHILIPS PLEXTOR SONY SONY MPF-920-E MPD3108AT 10.8G DJNA-370910 DNES-309170 SCSI 9.1G DCAS-34330 WIDE SCSI...
- Page 34 TEAC TEAC TEAC CREATIVE CREATIVE HITACHI PIONEER TOSHIBA TOSHIBA HP (USB) HP (USB) Microtek MUSTEK UMAX UMAX Logitech (USB) Logitech Creative DEXXA Microsoft (USB) Microsoft (USB) Microsoft Microsoft RockFire (USB) RockFire (USB) Englight Enlight Enlight Seventeam KING YEAR KING YEAR YUAN-KEE DELTA PANASONIC...
- Page 35 Iomega MATSUSHITA KOUWEL SIIG ViewSonic ZIP 100 USB LS-120 580H UH0144 UH-400 ViewPanel VPD150 Pass Pass Pass Pass Pass Pass...
-
Page 36: Windows
MS-DOS IBM PCDOS Windows 95 Windows98 Windows98 Windows NT Workstation Windows 2000 Profession Linux Red hat NetWare NetWare SCO Unix Windows NT Windows 2000 6.22 OEMSR2 Original Second Edition Relesae 4.12 Release Pass Pass Pass Pass Pass Pass Pass Pass Pass Pass... - Page 37 VID Setting 1.65V Switching Frequency 192.308KHz Loading Not Loading Ripple Voltage 15mV Vcore Ripple Waveform...
- Page 38 VID Setting 1.65V Transient Frequency 1.82482KHz Loading 16.5A Voltage Vp-p 185.938mV Slew Rate 28A/us Vcore Transient Waveform...
- Page 39 VID Setting 1.65V Transient Frequency 1.82482KHz Loading 16.5A Voltage Vp-p 181.250mV Slew Rate 28A/us Vcore Transient Waveform...
- Page 40 VID Setting 1.65V Transient Frequency 1.82482KHz Loading 16.5A Voltage Vp-p 185.938mV Slew Rate 28A/us Vcore Transient Waveform...
- Page 41 VID Setting 1.65V Transient Frequency 1.82482KHz Loading 16.5A Voltage Vp-p 175.000mV Slew Rate 28A/us Vcore Transient Waveform...
