Belkin F8E449 User Manual

I. Introduction
Thank you for purchasing the Belkin Universal AC Travel Adapter. This
innovation makes it convenient for you to connect your devices to
virtually any AC power source in the world — without adding
country-specific adapters.
The Travel Adapter from Belkin includes our patented, integrated World
AC Plug that works in many countries the world over, including:
England, Europe, North America, South America, China, Asia, Australia,
and New Zealand.
II. Operation Instructions
(North America)

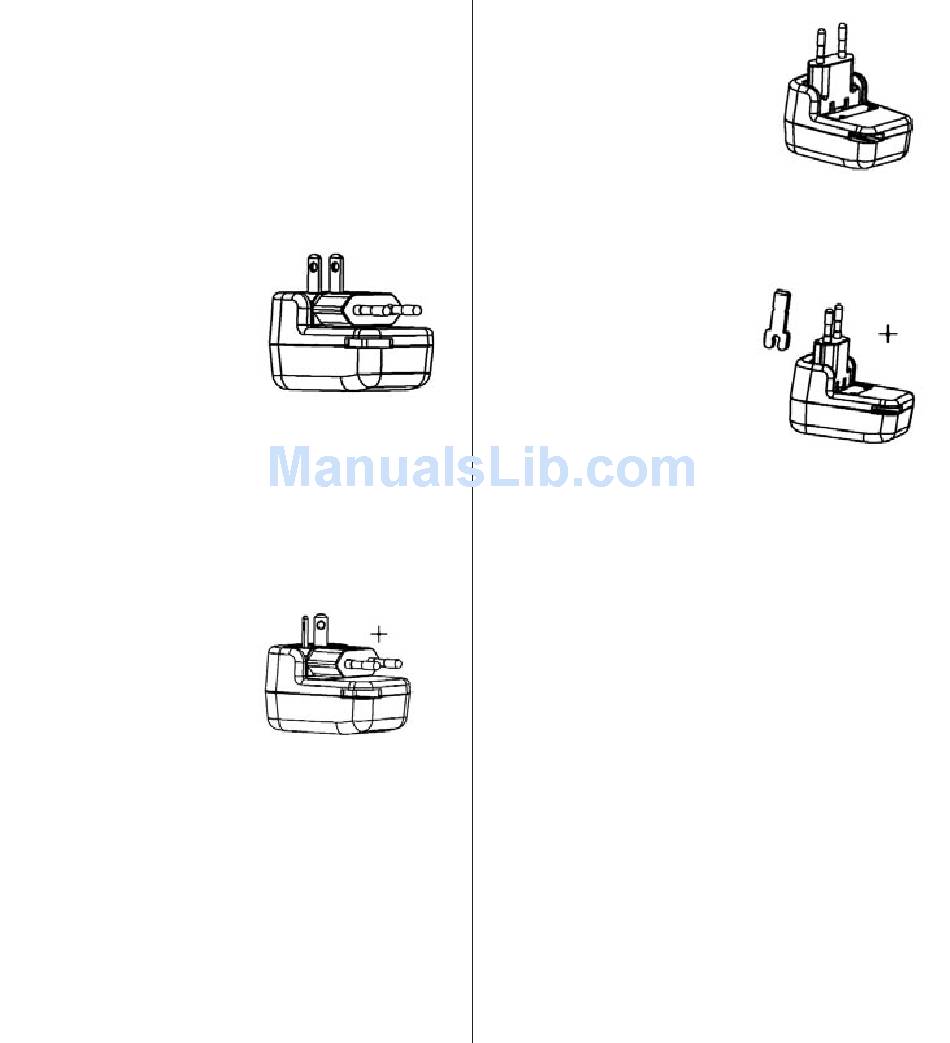

1. Locate the button/latch at the base
of the Travel Adapter where the
North American and Australian plugs
are embedded (see illustration).
2. Press the release button that frees
the North American/Australian plug
from its embedded position. Continue to push the North American
plug upward until it locks into a 90-degree position.
CAUTION:
For safe and proper use, make sure that the North American
plug locks into a 90-degree angled position. If, for some reason, it does
not lock into place, do not use the Adapter. Return it to your purchase
location in the original packaging.
3. You may now plug any portable device from around the world into
the open slots provided on the side opposite of the North American,
Australian, UK, and Euro plugs.
(Australia/New Zealand)
1. Locate the black button/latch at the
base of the Travel Adapter where the
North American plug is embedded.
2. Press the release button that frees
the North American plug from its
embedded position. Continue to push
the North American plug upward until
it locks into a 90-degree position.
CAUTION:
For safe and proper use make sure that the North
American plug locks into a 90-degree angled position. If for some
reason it does not lock into place, do not use the adapter. Return it
to your purchase location in the original packaging.
3. Twist the North American plug on the left side in a clockwise
direction until it reaches a 45-degree angled position. Twist the
North American plug on the right side in a counter-clockwise
direction until it reaches a 45-degree angled position.
4. Insert the North American/Australian plug into the wall outlet.
(Europe/Asia)
1. Locate the Euro plug on the same side as
the North American plug. Grasp the end of
the Euro plug and pull it up until it locks
into a 90-degree angled position.
CAUTION:
For safe and proper use, make
sure that the North American plug locks into
a 90-degree angled position. If for some
reason it does not lock into place, do not use
the Adapter. Return it to your purchase location
in the original packaging.
2. Insert the Euro plug into the now-opened power socket on the
wall outlet.
(United Kingdom)
1. Locate the Euro plug on the same side as
the North American plug. Grasp the end
of the Euro plug and pull it up until it
locks into a 90-degree angled position.
CAUTION:
For safe and proper use, make sure
that the North American plug locks into a 90-
degree angled position. If for some reason it
does not lock into place, do not use the
Adapter . Return it to your purchase
location in the original packaging.
2. Pull the UK key from its position on the side of the unit.
3. First insert the UK key into the ground socket of the wall outlet. This
action will open the two top power sockets. Now insert the Euro plug
into the now opened power sockets on the wall outlet.
4. You may now plug any portable device from around the world into the
open slots provided on the side opposite of the North American,
Australian, UK, and Euro plugs.
NOTE:
When you have completed your work on your computer reattach the UK
key to the iAdapt power cable.
NOTE:
This unit does not convert voltage.
III. Certifications
• CE
IV. Specifications
Dimensions: 63.5 (L) x 49 (W) x 40.5mm(H)
Weight: 60g
Input Voltage: 100 to 240 VAC
