Summary of Contents for Behringer EURODESK SL2442FX-Pro

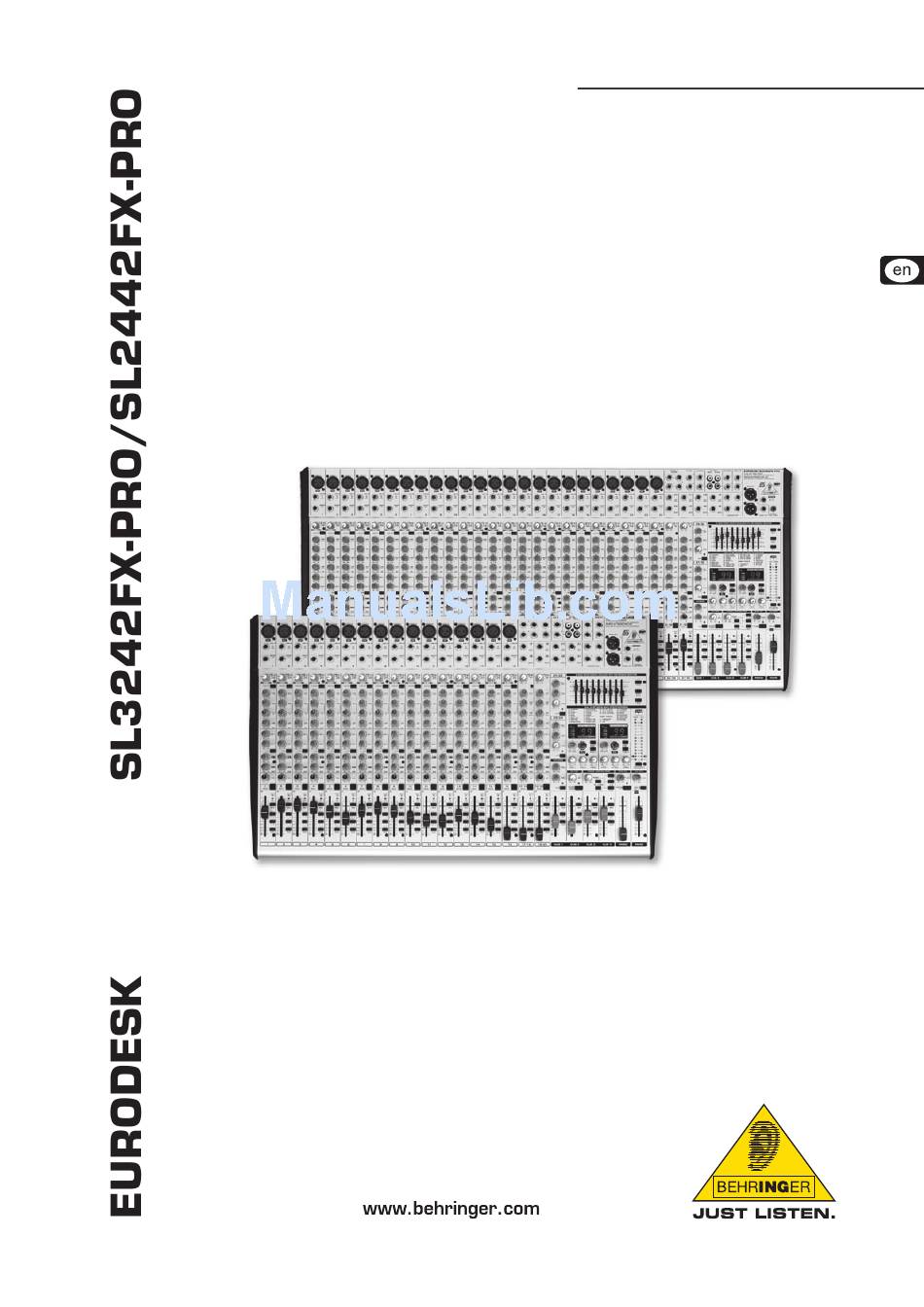

- Page 1 User Manual A50-24413-00002...
-
Page 2: Important Safety Instructions
EURODESK SL3242FX-PRO/SL2442FX-PRO Important Safety Instructions This symbol, wherever it appears, alerts you to the presence of uninsulated dangerous voltage inside the enclosure - voltage that may be sufficient to constitute a risk of shock. This symbol, wherever it appears, alerts you to im- portant operating and maintenance instructions in the accompanying literature. -
Page 3: Table Of Contents
It is our philosophy to share our joy with you, because you are the most important member of the BEHRINGER team. With your highly competent suggestions for new products you’ve greatly contributed to shaping our company and making it successful. -
Page 4: Introduction
BEHRINGER is a company with its roots in professional recording studio technology. For many years now we have been successful in developing products for studio and live use. These include mi-... -
Page 5: Control Elements And Connections
For +4 dBu increase TRIM, for -10 dBV increase it further. The fine-tuning can be done with a music Control elements and connections EURODESK SL3242FX-PRO/SL2442FX-PRO signal and the LEVEL SET LED, which will illuminate when the optimum operating level has been set. -
Page 6: Mono Channel Fader And Further Control Elements
EURODESK SL3242FX-PRO/SL2442FX-PRO For most applications when controlling an external ef- fects device from one of the aux buses, the aux sends must be set post-fader, so that the effect volume in a channel depends on the position of the channel fader. -
Page 7: Stereo Channel Fader And Othercontrol Elements
SUB switches, please be sure to set the BAL control to its mid position, so that the signal is sent to two subgroups and remains stereo. Stereo channels 21 - 24 (SL2442FX-PRO) or 29 - 32 (SL3242FX-PRO) Fig. 2.8:... -
Page 8: Mono Out Section For Subwoofer Applications
EURODESK SL3242FX-PRO/SL2442FX-PRO Mono out section for subwoofer applications Using this auxiliary mono output you can route the main mix signal to a separate power amp. The tunable low-pass filter allows you to limit the signal content to the low-frequency range to get a perfect subwoofer signal. -
Page 9: Talkback
Always make sure that the appropriate volume is set. Control elements and connections EURODESK SL3242FX-PRO/SL2442FX-PRO (47) TO MAIN controls the volume of, for example, a CD player connected to the CD/tape input connectors (see (49)). -
Page 10: Graphic 9-Band Stereo Equalizer
EURODESK SL3242FX-PRO/SL2442FX-PRO Graphic 9-band stereo equalizer Fig. 2.24: The graphic stereo equalizer (53) Your EURODESK is equipped with a graphic 9-band stereo equalizer processing either the main or the AUX 1 signal. Use the EQ to adapt the sound to the room acoustics. -
Page 11: Rear Panel
Blown fuses should only be replaced by fuses of the same type and rating. Please also read the information given in chapter 6 “SPECIFICATIONS”. (73) SERIAL NUMBER. EURODESK SL3242FX-PRO/SL2442FX-PRO Digital effects processor Fig. 3.1: 99 FIRST-CLASS PRESETS Here is the list of all multi-effects presets. The built-in... -
Page 12: Wiring Examples
EURODESK SL3242FX-PRO/SL2442FX-PRO The following wiring example shows a studio set-up for 4-track-recording: the drums are mixed down to two subgroups and then routed via the subgroup outputs to two tracks of the multi-track recorder. The remaining two subgroups are used to record the guitar, keyboard (stereo channel) and two vocal signals on the remaining two tracks. -
Page 13: Live Set-Up
EURODESK SL3242FX-PRO/SL2442FX-PRO Live set-up Fig. 4.2: Wiring the console for live operation This example shows a classic live set-up. As in the studio example, four drum microphones, bass, keyboard (stereo channel), guitar and two vocal microphones are connected. The four drum channels (kick drum, snare, overhead L, overhead R) are mixed down to two subgroups and then routed to the main mix. -
Page 14: Audio Connectors
EURODESK SL3242FX-PRO/SL2442FX-PRO Audio connectors The inputs and outputs of the BEHRINGER EURODESK are designed as unbalanced 1/4" TS connectors—except for the bal- anced line inputs of the mono and stereo channels and the main out connectors. Of course, all inputs and outputs work with both balanced and unbalanced connectors. -
Page 15: Presets
Guitar amp simulation. Vinylizer Adds the clicks and noise of old vinyl records. Test Tone 1-kHz test tone. EURODESK SL3242FX-PRO/SL2442FX-PRO Presets Solo instruments / vocals in slow pieces. A classic for drums (snare) and vocals. Creates an "atmosphere" (e.g. radioplay voices). -
Page 16: Specifications
1/3 as far left as possible; channels 2/4 as far right as possible; reference = +6 dBu. BEHRINGER is constantly striving to maintain the highest professional standards. As a result of these efforts, modifications may be made from time to time to existing products without prior notice. -
Page 17: Warranty
Colors and specifications may vary slightly from product. Our Products are sold through authorized dealers only. Distributors and dealers are not agents of BEHRINGER and have absolutely no authority to bind BEHRINGER by any express or implied undertaking or representation. This manual is copyrighted.
