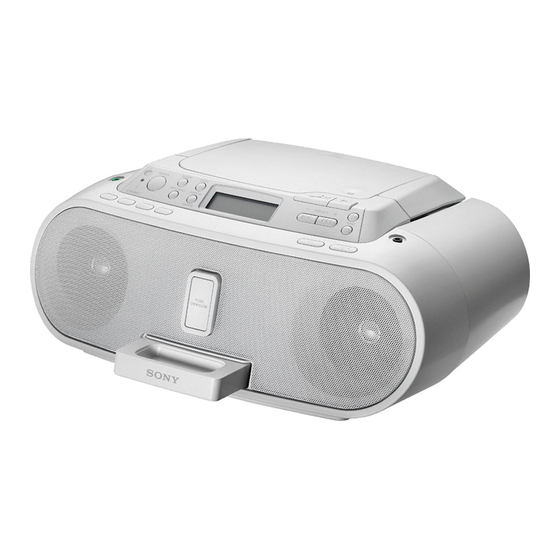

Sony ZS-S2IP Operating Instructions

Personal audio systems
Hide thumbs Also See for ZS-S2IP:

Advertisement

Personal Audio System
Operating Instructions
Owner's Record
The model number is located at the bottom and the serial number is located in the battery compartment.
Record these numbers in the space provided below. Refer to them whenever you call upon your Sony
dealer regarding this product.
Model No. ZS-S2iP Serial No. ______________
ZS-S2iP
© 2007 Sony Corporation
Printed in China
WARNING
WARNING
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
To reduce the risk of fire or electric shock,
reasonable protection against harmful interference in a
do not expose this apparatus to rain or
residential installation. This equipment generates, uses, and
moisture.
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
To reduce the risk of fire, do not cover the ventilation of the
interference to radio communications. However, there is
apparatus with newspapers, tablecloths, curtains, etc. And do
no guarantee that interference will not occur in a particular
not place lighted candles on the apparatus.
installation. If this equipment does cause harmful interference
The apparatus shall not be exposed to dripping or splashing
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to
and no objects filled with liquids, such as vases, shall be
try to correct the interference by one or more of the following
placed on the apparatus.
measures:
As the main plug is used to disconnect the unit from the
– Reorient or relocate the receiving antenna.
mains, connect the unit to an easily accessible AC outlet.
– Increase the separation between the equipment and receiver.
Should you notice an abnormality in the unit, disconnect the
– Connect the equipment into an outlet on a circuit different
main plug from the AC outlet immediately.
from that to which the receiver is connected.
Do not install the appliance in a confined space, such as a
– Consult the dealer or an experienced radio/TV technician for
bookcase or built-in cabinet.
help.
Do not expose the battery to excessive heat such as direct
sunlight, fire or the like.
CAUTION
You are cautioned that any changes or modifications not
Notes on DualDiscs
expressly approved in this manual could void your authority to
A DualDisc is a two sided disc product which mates DVD
operate this equipment.
recorded material on one side with digital audio material on
the other side. However, since the audio material side does not
conform to the Compact Disc (CD) standard, playback on this
For customers in the USA
product is not guaranteed.
Please register this product on line at
http://www.sony.com/productregistration.
Music discs encoded with copyright
Proper registration will enable us to send you periodic
protection technologies
mailings about new product, services and other
important announcements. Registering your product will
This product is designed to playback discs that conform to the
also allow us to contact you in the unlikely event that the
Compact Disc (CD) standard. Recently, various music discs
product needs adjustment or modification. Thank you.
encoded with copyright protection technologies are marketed
by some record companies. Please be aware that among those
discs, there are some that do not conform to the CD standard
Important Safety Instructions
and may not be playable by this product.
1)
Read these instructions.
2)
Keep these instructions.
CAUTION
3)
Heed all warnings.
The use of optical instruments with this product will increase
4)
Follow all instructions.
eye hazard.
5)
Do not use this apparatus near water.
Use of controls or adjustments or performance of procedures
6)
Clean only with dry cloth.
other than those specified herein may result in hazardous
radiation exposure.
7)
Do not block any ventilation openings.
Install in accordance with the manufacturer's instructions.
NOTICE FOR CUSTOMERS IN THE
8)
Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
U.S.A.
amplifiers) that produce heat.
9)
Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table
specified by the manufacturer, or sold with the apparatus.
This symbol is intended to alert the user
When a cart is used, use caution when moving the cart/
to the presence of uninsulated "dangerous
apparatus combination to avoid injury from tip-over.
voltage" within the product's enclosure that
may be of sufficient magnitude to constitute
a risk of electric shock to persons.
This symbol is intended to alert the user
to the presence of important operating and
13) Unplug this apparatus during lightning storms or when
maintenance (servicing) instructions in the
unused for long periods of time.
literature accompanying the appliance.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
The graphical symbols are at the bottom of the unit.
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
Class II equipment symbol
dropped.
This symbol indicates that the unit has a
double insulation system.
Power sources
3-271-628-15(1)
US
Connect the AC power cord  or insert six R14 (size C) batteries (not supplied) into the battery compartment .
Notes
• Replace the batteries when the OPR/BATT indicator
Replace all the batteries with new ones. Before you replace the batteries, be sure to take out the CD from the player.
• To use the player on batteries, disconnect the AC power cord from the player.
Preparing the remote
Insert two R6 (size AA) batteries (not supplied).
Replacing batteries
With normal use, the batteries for the remote should last about six months. When the remote no longer operates the unit,
replace all the batteries with new ones.
Before using the unit
To turn on/off the power
Press POWER
.
To adjust the volume
Press VOLUME +, –
.
To listen through headphones
Connect the headphones to the  (headphones) jack
To reinforce the bass sound
Press MEGA BASS
.
"MEGA BASS" appears in the display.
To return to normal sound, press the button again.
For carrying the unit
Always remove the iPod and store the sliding tray when
carrying the unit.
Specifications
AUDIO POWER SPECIFICATIONS
POWER OUTPUT AND TOTAL HARMONIC DISTORTION
With 4-ohm loads, both channels driven from 150 Hz - 10,000 Hz; rated 1 W
per channel-minimum RMS power, with no more than 10 % total harmonic
distortion in AC operation.
Other specifications
CD player section
System
Compact disc digital audio system
Laser diode properties
Emission duration: Continuous
Laser output: Less than 44.6 µW
(This output is the value measured at a distance of
about 200 mm from the objective lens surface on the
optical pick-up block with 7 mm aperture.)
Number of channels
2
Frequency response
20 Hz - 20,000 Hz +1/–2 dB
Wow and flutter
Below measurable limit
iPod section
DC out: 5V
MAX: 500mA
(AC only)
Radio section
Frequency range
FM: 87.5 MHz - 108 MHz
AM: 530 kHz - 1,710 kHz
Antennas
FM: Telescopic antenna
AM: Built-in ferrite bar antenna
General
Speaker
inches) dia., 4 Ω, cone type (2)
Full range: 8 cm (3
1
/
4
Outputs
Headphones jack (stereo minijack):
For 16 Ω - 32 Ω impedance headphones
Input
AUDIO IN jack (stereo minijack)
Power output
1.7 W + 1.7 W (at 4 Ω, 10% harmonic distortion)
Power requirements
For player:
120 V AC, 60 Hz
9 V DC, 6 R14 (size C) batteries
Power consumption
AC 17 W
Battery life
For player:
FM reception
Sony R14P: approx. 6 h
Sony alkaline LR14: approx. 20 h
CD playback
Sony R14P: approx. 1.5 h
Sony alkaline LR14: approx. 7 h
Dimensions
Approx. 360 mm × 141.5 mm × 240.5 mm (w/h/d)
(14
1
/
inches × 5
5
/
inches × 9
1
/
inches) (incl. projecting parts)
4
8
2
1
2
to AC IN
to a wall outlet
dims or when the player stops operating.
Falling asleep to music
1
Play the music source you want.
2
Press SLEEP
to display "SLEEP."
3
Press SLEEP
to select the minutes until the
player goes off automatically.
Each time you press the button, the indication
changes as follows:
"60"  "90"  "120"  "OFF"  "10" 
.
"20"  "30".
To cancel the sleep function
Press POWER
to turn off the power.
Mass
Approx. 2.7 kg (5 lb. 15 oz) (incl. batteries)
Supplied accessory
AC power cord (1)
Remote control (1)
Design and specifications are subject to change without notice.
Optional accessory
Sony MDR headphones series
Compatible iPod models
The compatible iPod models are as follows. Update your iPod to use the latest
software before you use it.
iPod nano
iPod nano 4th
5th generation
generation (video)
(video camera)
iPod touch 2nd
generation
iPod nano 3rd
generation (video)
iPod classic
iPod touch 1st
generation
iPod nano 2nd
iPod nano 1st
generation
generation
iPod 5th
(aluminium)
generation (video)
iPod mini
iPod 4th generation
iPod 4th
(color display)
generation
Precautions
Troubleshooting
Discs that this unit CAN play
General
• Audio CD
• CD-R/CD-RW (CD-DA*)
The power is not on.
* CD-DA is the abbreviation for Compact Disc Digital Audio. It is a
• Connect the AC power cord to the wall outlet securely.
recording standard used for Audio CDs.
• Make sure the batteries are inserted correctly.
• Replace all the batteries with new ones if they are weak.
Discs that this unit CANNOT play
• When you operate the unit on batteries, you cannot turn on the unit
• CD-R/CD-RW other than those recorded in music CD format
using POWER
• CD-R/CD-RW of poor recording quality, CD-R/CD-RW that
has scratches or are dirty, or CD-R/CD-RW recorded with an
There is no audio.
incompatible recording device
• Unplug the headphones when listening through speakers.
• CD-R/CD-RW which is finalized incorrectly
Noise is heard.
Notes on discs
• Someone is using a portable telephone or other equipment that
• Before playing, clean the CD with a
emits radio waves near the player.
cleaning cloth. Wipe the CD from the
 Move the portable telephone, etc., away from the player.
center out. If there is a scratch, dirt or
fingerprints on the CD, it may cause
iPod
tracking error.
There is no audio.
• Make sure the iPod is connected firmly.
• Adjust the VOLUME.
• Do not use solvents such as benzine, thinner, commercially
Operation is impossible.
available cleaners or anti-static spray intended for vinyl LPs.
• Make sure the iPod is connected firmly.
• Do not expose the CD to direct sunlight or heat sources such as hot
air ducts, nor leave it in a car parked in direct sunlight as there can
Cannot charge iPod.
be a considerable rise in temperature inside the car.
• You cannot charge the iPod when the unit is using DC power
• Do not stick paper or sticker on the CD, nor scratch the surface of
supply.
the CD.
• You cannot charge the iPod when "DC OUT" does not appear on
• After playing, store the CD in its case.
the display in radio mode.
On safety
CD player
• As the laser beam used in the CD player section is harmful to the
eyes, do not attempt to disassemble the casing. Refer servicing to
qualified personnel only.
The CD does not play or "no dISC" is displayed even
• Should any solid object or liquid fall into the player, unplug the
when a CD is in place.
player, and have it checked by qualified personnel before operating
• Place the CD with the label surface up.
it any further.
• Clean the CD.
• Discs with non-standard shapes (e.g., heart, square, star) cannot be
• Take out the CD and leave the CD compartment open for about an
played on this player. Attempting to do so may damage the player.
hour to dry moisture condensation.
Do not use such discs.
• The CD-R/CD-RW is blank.
• There is a problem with the quality of the CD-R/CD-RW, recording
On power sources
device or application software.
• For AC operation, use the supplied AC power cord; do not use any
• Replace all the batteries with new ones if they are weak.
other type.
• The player is not disconnected from the AC power source (mains)
The sound drops out.
as long as it is connected to the wall outlet, even if the player itself
• Reduce the volume.
has been turned off.
• Clean the CD, or replace it if the CD is badly damaged.
• Unplug the player from the wall outlet when it is not to be used for
• Place the player in a location free from vibration.
an extended period of time.
• Clean the lens with a commercially available blower.
• When the batteries are not to be used, remove them to avoid
• The sound may drop out or noise may be heard when using poor
damage that can be caused by battery leakage or corrosion.
quality CD-Rs/CD-RWs or if there is a problem with the recording
• The nameplate indicating operating voltage, power consumption,
device or application software.
etc., is located at the bottom.
On placement
Radio
• Do not leave the player in a location near heat sources, in a place
subject to direct sunlight, excessive dust or mechanical shock or in
Reception is poor.
a car subject to the direct rays of the sun.
• Reorient the antenna to
• Do not place the player on an inclined or unstable place.
improve FM reception.
• Do not place anything within 10 mm of the side of the cabinet. The
ventilation holes must be unobstructed for the player to operate
properly and prolong the life of its components.
• Since a strong magnet is used for the speakers, keep personal credit
cards using magnetic coding or spring-wound watches away from
the player to prevent possible damage from the magnet.
On operation
• If the player is brought directly from a cold to a warm location, or
• Reorient the player
is placed in a very damp room, moisture may condense on the lens
itself to improve AM
inside the CD player section. Should this occur, the player will not
reception.
operate properly. In this case, remove the CD and wait about an
hour for the moisture to evaporate.
Cleaning the cabinet
The audio is weak or has poor quality.
• Clean the cabinet, panel and controls with a soft cloth slightly
• Replace all the batteries with new ones if they are weak.
moistened with a mild detergent solution. Do not use any type of
• Move the player away from the TV.
abrasive pad, scouring powder, or solvent, such as alcohol or benzine.
The picture of your TV becomes unstable.
If you have any questions or problems concerning your player, please
• If you are listening to an FM program near the TV with an indoor
consult your nearest Sony dealer.
antenna, move the player away from the TV.
Remote
The remote does not function.
• Replace all the batteries in the remote with new ones if they are
weak.
• Make sure that you are pointing the remote at the remote sensor on
the unit.
• Remove any obstacles in the path of the remote and the unit.
• Make sure the remote sensor is not exposed to strong light such as
direct sunlight or fluorescent lamp light.
• Move closer to the unit when using the remote.
After trying the remedies, if you still have problems, unplug the AC
power cord or remove all the batteries. After all the indications in the
display disappear, plug the AC power cord or insert the batteries again.
If the problem persists, please consult your nearest Sony dealer.
on the remote.

Advertisement

loading

Summary of Contents for Sony ZS-S2IP

  • Page 1 Owner’s Record The model number is located at the bottom and the serial number is located in the battery compartment. Record these numbers in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product.
  • Page 2: Opening/Closing Sliding Tray

    Basic Operations  and   VOLUME + have a tactile dot.  VOLUME + have a tactile dot. Opening/closing the Sliding Tray Playing a CD  Press CD (direct power-on). Setting the iPod Press  PUSH OPEN/CLOSE  Press the PUSH OPEN/CLOSE button with the label side up in the CD compartment.

This manual is also suitable for:

Zs-s2ip/blackZss2ipb
