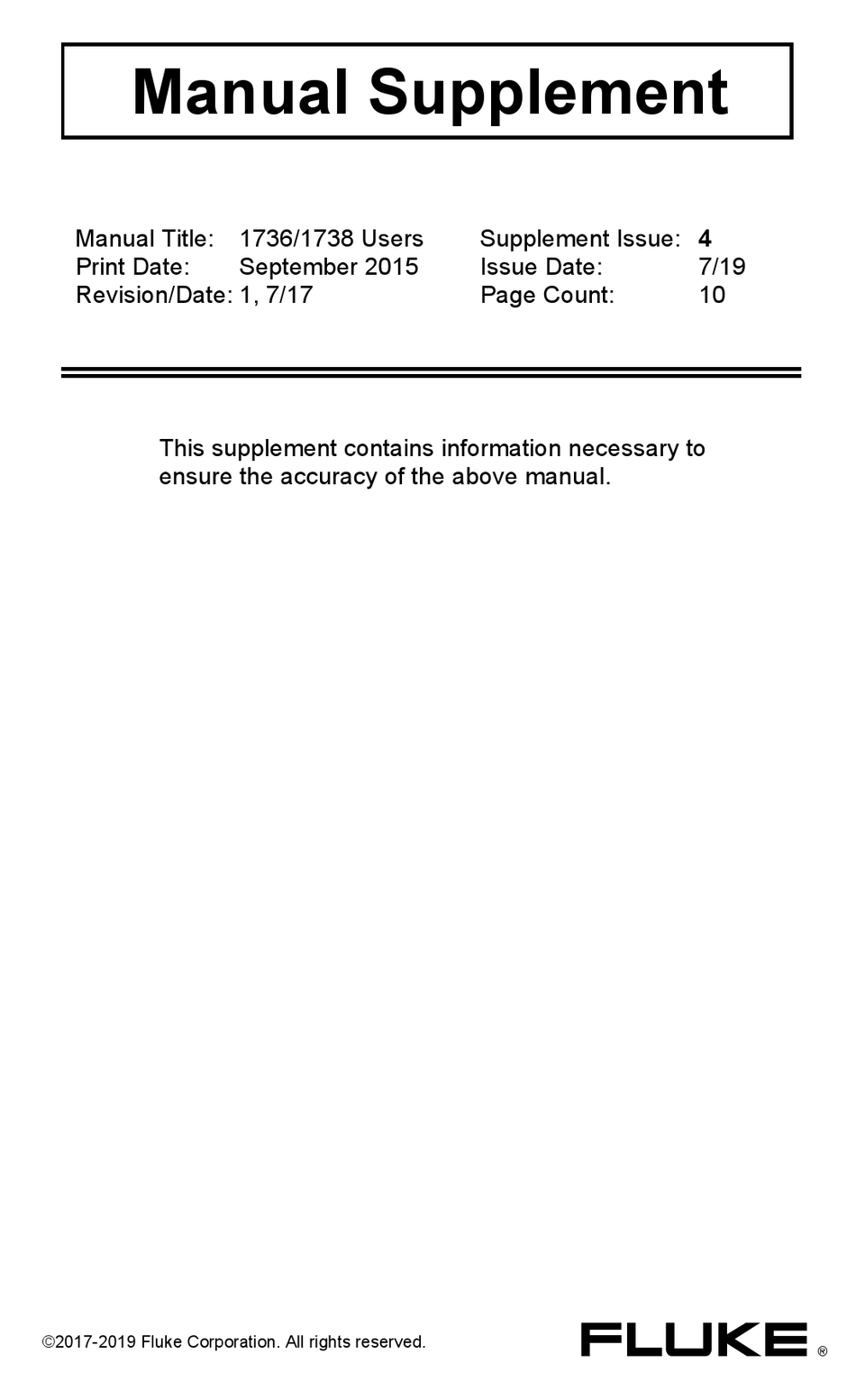

Manual Supplement
Manual Title: 1736/1738 Users
Print Date:
Revision/Date: 1, 7/17
This supplement contains information necessary to
ensure the accuracy of the above manual.
©2017-2019 Fluke Corporation. All rights reserved.
September 2015
Supplement Issue: 4
Issue Date:
Page Count:
x
7/19
10

Advertisement

loading

Related Manuals for Fluke 1736

Summary of Contents for Fluke 1736

  • Page 1 Manual Supplement Supplement Issue: 4 Manual Title: 1736/1738 Users Print Date: September 2015 Issue Date: 7/19 Revision/Date: 1, 7/17 Page Count: This supplement contains information necessary to ensure the accuracy of the above manual. ©2017-2019 Fluke Corporation. All rights reserved.
  • Page 2 Manual Supplement 1736/1738 Users Change #1, Symbol. On the Cover, add the É On page 4, add the following to the Symbols table: Conforms to the Appliance Efficiency Regulation (California Code of É Regulations, Title 20, Sections 1601 through 1608), for small battery charging systems.
  • Page 3 1736/1738 Users Manual Supplement Change #2, On page 6, replace Figure 1 with: hcf069.eps Figure 1. Adapter Installation 7/19...

  • Page 4: Measurement Line Power Source

    Manual Supplement 1736/1738 Users Change #3, On page 16, replace the Measurement Line Power Source section with: Measurement Line Power Source: XWWarning To prevent injury, do not touch the metal parts of one test lead when the other is still connected to hazardous voltage.
  • Page 5 Manual Supplement 1736/1738 Users • For measurement connection to the Logger (see Figure 7A): Figure 7A: Measurement connection to the Logger 7/19...
  • Page 6 1736/1738 Users Manual Supplement To supply power to the Logger from installations with neutral • voltage (see Figure 7B): Figure 7B: Measurement with neutral voltage and supplying instrument power. Note You must locate and connect an alternate power source to the instrument if the voltage to measure is <100 V or >500 V.
  • Page 7 Manual Supplement 1736/1738 Users To supply power to the Logger from installations without neutral • voltage (see Figure 7C): Figure 7C: Measurement without neutral voltage and supplying instrument power. Note You must locate and connect an alternate power source to the instrument if the voltage to measure is <100 V or >500 V.
  • Page 8 Input Connector Decal (see Table 6) • Documentation Info Pack (Quick Reference Card, Safety • Information) USB Flash Drive (includes Users Manual, Fluke Energy Analyze • Plus software, and Software Licenses) Note The power cord and input connector decal are country specific and vary according to the order destination.
  • Page 9 Manual Supplement 1736/1738 Users On page 9, replace the first paragraph and Figure 4, with: Figure 4. Test Leads with Cable Markers On page 10, replace Table 3 with: Table 3. Accessories Part ID Description i17xx-flexi 1500 Thin-Flexi Current Probe (single) 1500 A, 30.5 cm (12 in.)
  • Page 10 1736/1738 Users Manual Supplement i17xx flexi extension Set of 4 Thin-Flexi extension cable cable/4PK C17xx Soft Case Test Leads 0.18m 0.18 m (7 in.) Test Lead Set, blue Test Leads 2m with 2.0 m (79 in.) Test Lead Set plus 2x alligator clips, blue...
  • Page 11 Test Leads 2 M, 2x alligator clips, blue, 1 set 5020006 1000 V CAT III Cable marker 1 set 5046009 USB Flash Drive (includes Users Manual, Fluke Energy Analyze Plus software, and Software Licenses) On page 56, replace Figure 11, with: Figure 11. Replacement Parts 7/19...
