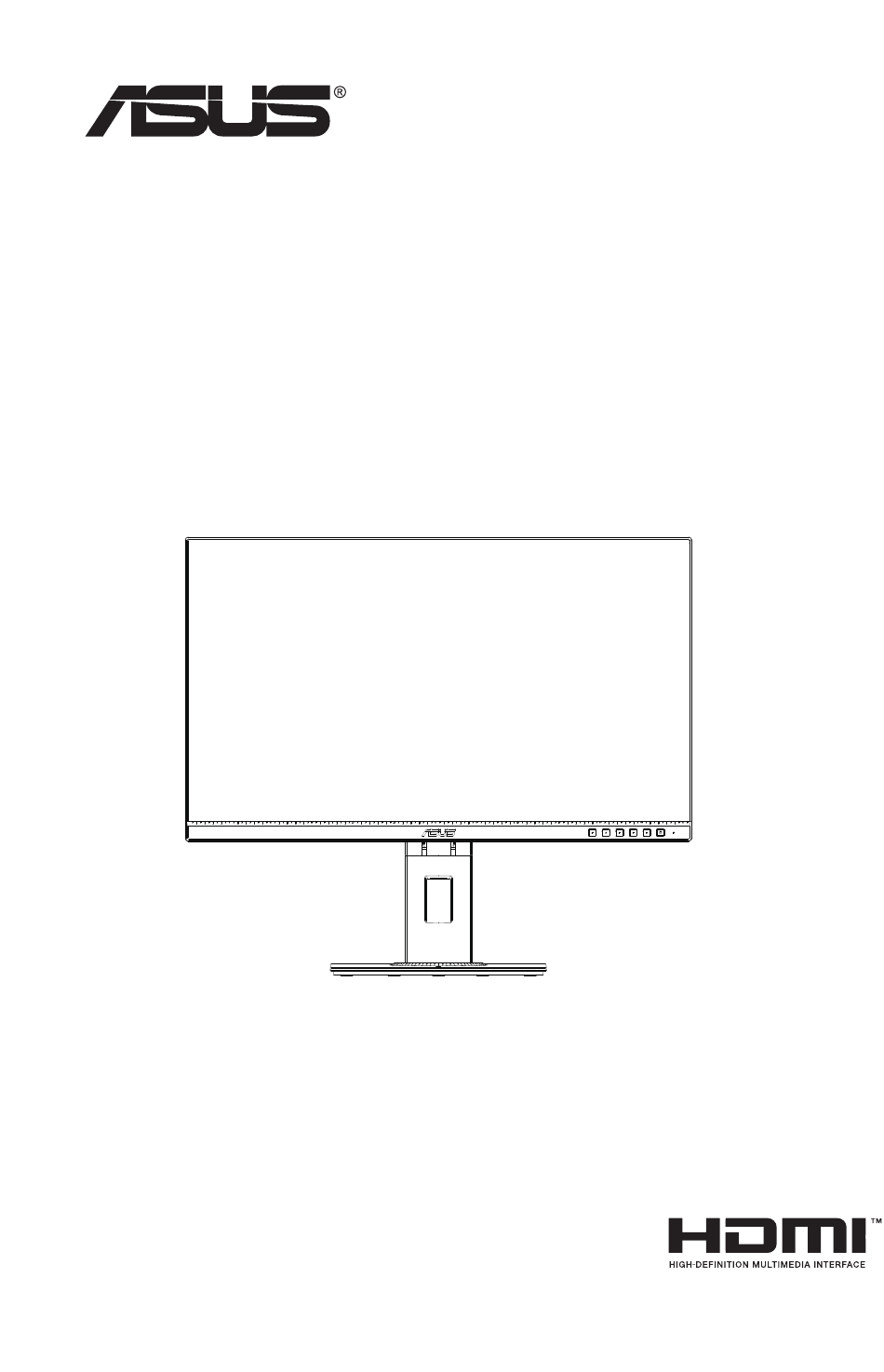

- Page 1 PA279CV Series LCD Monitor User Guide...
-
Page 2: Table Of Contents
Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing. - Page 3 A third-party certification according to ISO 14024 Toward sustainable IT products Say hello to a more sustainable product IT products are associated with a wide range of sustainability risks throughout their life cycle. Human rights violations are common in the factories.
-
Page 4: Notices
Notices Federal Communications Commission Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation. -
Page 5: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury. - Page 6 WARNING Usage of other than specified head- or earphones can result in hearing loss due to excessive sound pressures.
-
Page 7: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord. • Cleaning. - Page 8 These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
-
Page 9: Welcome
® Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a crisper, broader, and brighter display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual... -
Page 10: Assembling The Monitor
Assembling the monitor To assemble the monitor: Align the screw hole on the arm with the bundled screw on the base. Then insert the base into the arm. Fix the base to the arm by fastening the bundled screw. *Base screw size: M6 x 17mm Chapter 1: Product Introduction... -
Page 11: Connect Cables
Rear of the LCD monitor 6 7 8 9 AC-IN Port Power Switch HDMI1 Port HDMI2 Port DP - in Port USB Type-C Port Earphone - out Port USB3.0 Port USB3.0 Port 10. USB3.0 Port 11. USB3.0 Port ASUS LCD Monitor PA279 Series... -
Page 12: Monitor Introduction
Monitor introduction 1.5.1 Using the Controls button Use the control button on the back of the monitor to adjust the image settings. Power button/power indicator: • Turns the monitor on/off. • The color definition of the power indicator is as the below table. Status Description White... - Page 13 Shortcut 2: • Press this button to display the OSD menu when the OSD is off. • Default: Blue light filter hotkey • To change the hotkey function, go to the Shortcut > Shortcut 2 menu. ASUS LCD Monitor PA279 Series...
-
Page 14: Adjusting The Monitor
• Hold the stand to prevent the monitor from falling when you change its angle. • You can adjust the monitor’s angle from +35˚ to -5˚ and it allows 45˚ swivel adjustment from either left or right. -5 ~ 35 +45° -45° 150mm 90° 90° ASUS LCD Monitor PA279 Series... -
Page 15: Detaching The Arm/Stand (For Vesa Wall Mount)
Detaching the arm/stand (for VESA wall mount) The detachable stand of this monitor is specially designed for VESA wall mount. To detach the arm/stand Disconnect power and signal cables. Carefully put the monitor facedown on its EPS packaging. Press the quick release button from rear cover. Detach the stand (arm and base) from the monitor. -
Page 16: Outline Dimension
Outline dimension Unit: mm ASUS LCD Monitor PA279 Series... -
Page 17: Osd (On-Screen Display) Menu
Press the Center key to enter the slide bar and then use the or buttons, according to the indicators on the menu, to make your changes. Press the ◄/► to move left / right menu. ASUS LCD Monitor PA279 Series... -
Page 18: Osd Function Introduction
• Rec. 709 Mode: Compatible with Rec. 709 color space. • DCI-P3 Mode: • HDR: High Dynamic Range. Contains three HDR modes (ASUS Cinema HDR, ASUS Gaming HDR and Console Mode). • DICOM Mode: • Scenery Mode: Best choice for scenery photo display. - Page 19 Blue Light Filter Adjust the energy level of blue light emitted from LED backlight. ASUS PA279CV Blue Light Filter ProArt Preset Racing Mode DisplayPort 640x480@60Hz Level 0 Level 1 Level 2 Level 3 Level 4 ASUS LCD Monitor PA279 Series...
- Page 20 High energy blue light may lead to eye strain and AMD (Age-Related Macular Degeneration). Blue light Filter to reduce 70% (max.) harmful blue light to avoiding CVS (Computer Vision Syndrome). ProArtPalette ASUS PA279CV ProArtPalette ProArt Preset Racing Mode DisplayPort 640x480@60Hz...
- Page 21 Resets the color settings of all color modes to the factory default value. • In the User Mode, colors of R (Red), G (Green), and B (Blue) are user- configurable; the adjusting range is from 0 ~ 100. ASUS LCD Monitor PA279 Series...
- Page 22 Image You can adjust Sharpness, Trace Free, Aspect Control and ASCR from this main function. ASUS PA279CV Image ProArt Preset Racing Mode DisplayPort 640x480@60Hz Sharpness Trace Free Aspect Control ASCR • Sharpness: Adjusts the picture sharpness. The adjusting range is from 0 to 100.
- Page 23 Input Select Select the input source from HDMI-1, HDMI-2, DisplayPort, USB Tpye-c and Auto Source Detection input signal. ASUS PA279CV Input Select ProArt Preset Racing Mode DisplayPort 640x480@60Hz HDMI-1 HDMI-2 DisplayPort USB Type-C Auto Source Detection ASUS LCD Monitor PA279 Series...
- Page 24 System Setup Select the input source from Language, Information and All Reset input signal. ASUS PA279CV System Setup Racing Mode DisplayPort 640x480@60Hz Language English Information All Reset • language: Select OSD language. The selections are: English, French, German, Spanish, Italian, Dutch, , Russian, Poland, Czech, Croacia, Hungary, Romania, Portugal, Turkey, Simplified Chinese, Traditional Chinese, Japanese, Korean, Persian, Thai, Indonesian.
-
Page 25: Specifications
614 x 369.9 x 59.5 mm (WxHxD) (For VESA Wall Mount) Box Dimension (WxHxD) 680 x 161 x 516 mm Net Weight (Esti.) 8.6 kg Gross Weight (Esti.) 11.2 kg Voltage Rating AC 100~240V(Built-in) Operational temperature 0~40° ASUS LCD Monitor PA279 Series... -
Page 26: Troubleshooting (Faq)
Troubleshooting (FAQ) Problem Possible Solution Power LED is not ON • Press the button to check if the monitor is in the ON mode. • Check if the power cord is properly connected to the monitor and the power outlet. • Check Power Indicator function in main menu OSD. -
Page 27: Supported Timing List
800x600-56Hz 800x600-60Hz 800x600-72Hz 800x600-75Hz 1024x768-60Hz 1024x768-70Hz 1024x768-75Hz 1152x864-75Hz 1280x720-60Hz(RB) 1280x720-60Hz 1280x720-60Hz 1280x960-60Hz 1280x1024-60Hz 1440x900-60Hz(CVT RB) 1440x900-60Hz 1680x1050-60Hz(CVT RB) 1680x1050-60Hz 1920x1080-60Hz 1920x1080-60Hz 1920x1080-120Hz(CEA) 1920x1080-144Hz(CVT2) 1920x1080-165Hz 720x480P-60Hz 720x576P-50Hz 1280x720P-50Hz 1280x720P-60Hz 1280x720P-60Hz 1440x480P-60Hz 1440x480P-60Hz 1440x576P-50Hz 1920x1080P-50Hz 1920x1080P-60Hz ASUS LCD Monitor PA279 Series 3-11... - Page 28 3-12 Chapter 3: General Instruction...
