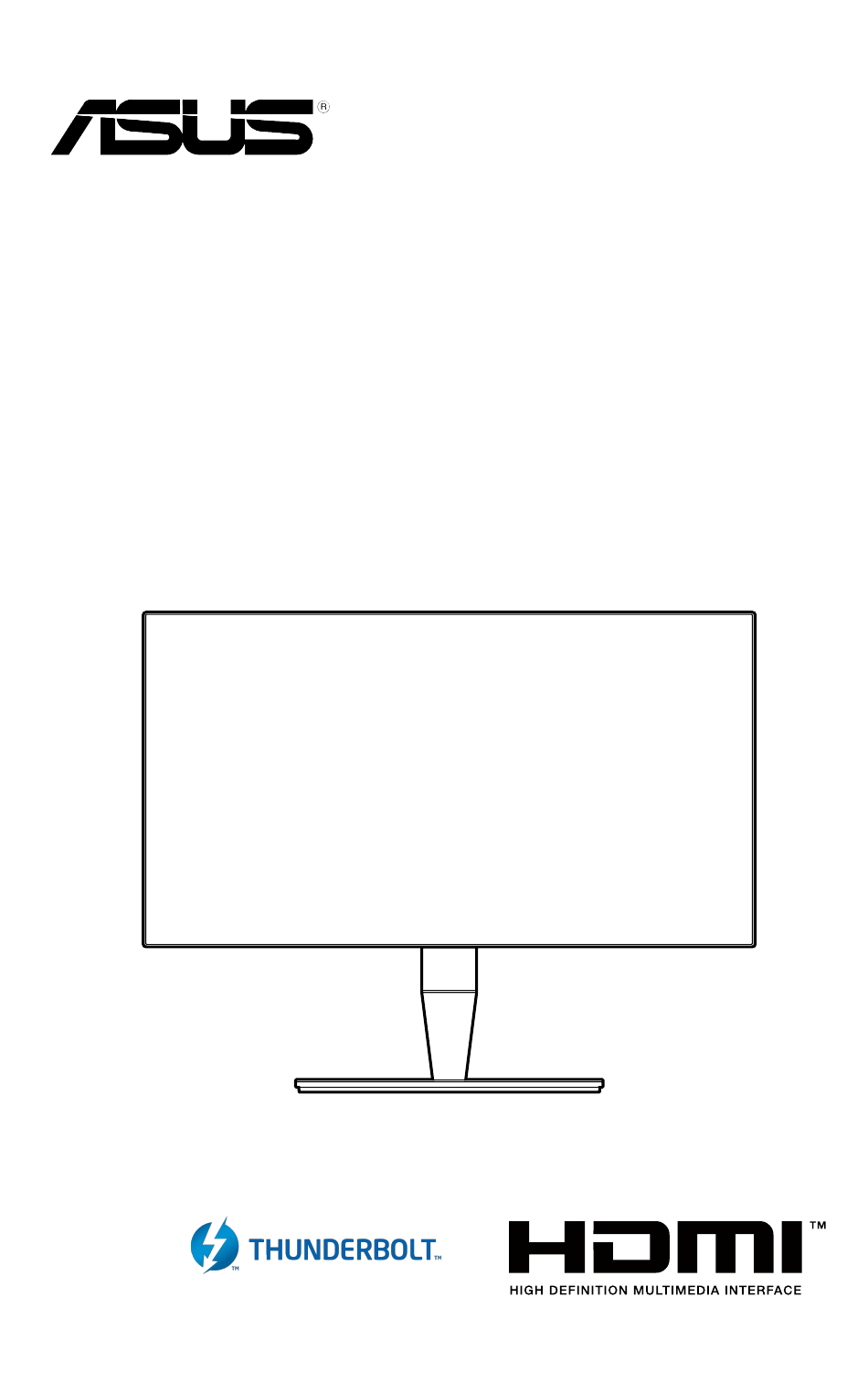

Page 1 PA27A Series LCD Monitor User Guide...
Page 2 Product warranty or service will not be extended if: (1) the product is repaired, modified or altered, unless such repair, modification of alteration is authorized in writing by ASUS; or (2) the serial number of the product is defaced or missing.
Page 3 Contents Contents....................... iii Notices......................iv Safety.information..................v Care.&.Cleaning................... vi Takeback.Services..................vii Chapter.1:..Product.introduction 1.1. Welcome!..................1-1 1.2. Package.contents................1-1 1.3. Monitor.introduction..............1-2 1.3.1 Front view ............... 1-2 1.3.2 Back view ................ 1-3 1.3.3 QuickFit Function ............1-4 1.3.4 Other Functions ..............
Page 4: Canadian Department Of Communications Statement
Notices Federal.Communications.Commission.Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: • This device may not cause harmful interference, and • This device must accept any interference received including interference that may cause undesired operation.
Page 5: Safety Information
Safety information • Before setting up the monitor, carefully read all the documentation that came with the package. • To prevent fire or shock hazard, never expose the monitor to rain or moisture. • Never try to open the monitor cabinet. The dangerous high voltages inside the monitor may result in serious physical injury.
Page 6: Care & Cleaning
Care & Cleaning • Before you lift or reposition your monitor, it is better to disconnect the cables and power cord. Follow the correct lifting techniques when positioning the monitor. When lifting or carrying the monitor, grasp the edges of the monitor. Do not lift the display by the stand or the cord.
Page 7 These documents are not part of the standard package. Takeback Services ASUS recycling and takeback programs come from our commitment to the highest standards for protecting our environment. We believe in providing solutions for our customers to be able to responsibly recycle our products, batteries and other components as well as the packaging materials.
Page 8: Energy Efficiency
Congratulations! This product is TCO Certified for Sustainable IT TCO Certified is an international third party sustainability certification for IT products. TCO Certified ensures that the manufacture, use and recycling of IT products reflect environmental, social and economic responsibility. Every TCO Certified product model is verified by an accredited independent test laboratory.
Page 9: Welcome!
Thank you for purchasing the ASUS LCD monitor! The latest widescreen LCD monitor from ASUS provides a broader, brighter and crystal-clear display, plus a host of features that enhance your viewing experience. With these features, you can enjoy the convenience and delightful visual...
Page 10: Monitor.introduction
Monitor introduction 1.3.1. Front.view Menu Close Input Select QuickFit Brightness Blue Light Filter Menu (5-way) button: • Press this button to enter the OSD menu. • Enacts the selected OSD menu items. • Increases/Decreases values or moves your selection up/down/left/right. Close button: •...
Page 11: Back View
The default setting of DisplayPort Stream in the OSD menu is DisplayPort 1.2. You can change it to DisplayPort 1.1 when your device output signal is DisplayPort 1.1. USB.2.0.Type.A. This port is for service only. ASUS PA27A Series LCD Monitor...
Page 12: Quickfit Function
Thunderbolt. These ports are for connection with Thunderbolt compatible devices. These ports consolidate data transfer, video output, and charging into a single compact connector (The charging rate from a signle port is 15W to 45W. The charging rate from both port is 60W in total.). Among them, the first port plugged in will be recognized as an input source.
Page 13 QuickFit provides standard A4 paper size for users to view their documents in real size on the screen. QuickFit provides standard B5 paper size for users to view their documents in real size on the screen. Customization ASUS PA27A Series LCD Monitor...
Page 14: Other Functions
You can decide the frame size by moving the Menu (5-way) button up/down/ left/right. You can press the Menu (5-way) button for longer than 3 seconds to switch the measurements between millimeter and inch. Customization Ruler This pattern presents physical ruler on top and left side. You can press the Menu (5-way) button for longer than 3 seconds to switch the measurements between metric and imperial.
Page 15: Wall Mount
Press the release button, and then detach the arm/base from the monitor (Figure 2). (Figure 1) (Figure 2) We recommend that you cover the table surface with soft cloth to prevent damage to the monitor. ASUS PA27A Series LCD Monitor...
Page 16: Adjusting The Monitor
• The VESA wall mount kit (100 x 100 mm) is purchased separately. • Use only the UL Listed Wall Mount Bracket with minimum weight/load 22.7kg (Screw size: M4 x 10 mm). Adjusting the monitor • For optimal viewing, we recommend that you look at the full face of the monitor, then adjust the monitor to the angle that is most comfortable for you.
Page 17 It is normal that the monitor slightly shakes while you adjust the viewing angle. The OSD menu item will automatically rotate when the monitor rotates. Menu Close Input Select Menu QuickFit Close Brightness Input Select Blue Light Filter QuickFit Brightness Blue Light Filter ASUS PA27A Series LCD Monitor...
Page 18 2.4 Connecting the cables Connect the cables as the following instructions: For service only • To connect the power cord: Connect one end of the power cord securely to the monitor’s AC input port, the other end to a power outlet. • To connect the HDMI/DisplayPort cable: Plug one end of the HDMI/DisplayPort cable to the monitor’s HDMI/ DisplayPort jack.
Page 19: Turning On The Monitor
Attach the input/output port cover and/or cable clip if needed. Turning on the monitor Press the power button . See page 1-2 for the location of the power button. The power indicator lights up in white to show that the monitor is ON. ASUS PA27A Series LCD Monitor...
Page 20 Chapter 2: Setup...
Page 21 R e a d in g M o d e D a rk ro o m M o de U s e r M od e 1 U s e r M od e 2 ASUS PA27A Series LCD Monitor...
Page 22 Disable Disable Disable Disable Compensation Blue.Light.Filter In this function, you can adjust the blue light filter level. ASUS PA27A Blue Light Filter Standard Mode Thunderbolt 2560 x 1440@ 60Hz Lev el 0 Lev el 1 Lev el 2 Lev el 3...
Page 23 Hue: Shifts the image color between green and purple. •. Color.Temp.: Contains 4 modes including 9300K, 6500K, 5500K and 5000K. •. Gamma: Allows you to set the color mode to 2.6, 2.4, 2.2, 2.0 or 1.8. ASUS PA27A Series LCD Monitor...
Page 24 •. VividPixel: Enhances the outline of the displayed picture and generates high-quality images on screen. •. ASCR: Turns on/off the ASCR (ASUS Smart Contrast Ratio) function. Chapter 3: OSD (On-Screen Display) menu...
Page 25 DisplayPort and Thunderbolt will not display simutaneously in PIP/PBP mode. • If one Thunderbolt port is plugged, the other one outputs DisplayPort signal only. •. Color.Setting: Selects an individual Splendid Mode for the selected PIP/ PBP source. ASUS PA27A Series LCD Monitor...
Page 26 HDMI-2 window HDMI-3 (HDR) DisplayPort Thunderbolt Input.Select. In this function, you can select your desired input source. ASUS PA27A Input Select Standard Mode Thunderbolt 2560 x 1440@ 60Hz H DMI -1 H DMI -2 H DMI -3 (HD R) D isplayP o rt Thunderbo lt •...
Page 27 Adjusts the OSD rotation. •. Language: There are 21 languages for your selection, including English, French, German, Italian, Spanish, Dutch, Portuguese, Russian, Czech, Croatian, Polish, Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia, Persian. ASUS PA27A Series LCD Monitor...
Page 28 Information: Shows the monitor information. •. All.Reset: “Yes” allows you to restore the default settings. Shortcut Defines the functions for Shortcut 1 and 2 buttons. ASUS PA27A Shortcut Standard Mode Thunderbolt 2560 x 1440@ 60Hz S h or tcut 1 S h or tcut 2 •.
Page 29 Romanian, Hungarian, Turkish, Simplified Chinese, Traditional Chinese, Japanese, Korean, Thai, Indonesia, Persian) Accessories HDMI cable, DisplayPort cable, Thunderbolt cable, Power cord, USB cable, Quick start guide, Warranty card, Support CD, Cable clip, Color Calibration Testing Report, Input/Output port cover ASUS PA27A Series LCD Monitor...
Page 30 Regulation.approvals Energy Star**, UL/cUL, CB, CE, EuP, FCC, CCC, BSMI, CU, VCCI, TCO 7.0, J-MOSS, RoHS, WEEE, PSE, KCC, ICES-3, EAPEAT, ErP, CEL, ISO 9241-307, UkrSEPRO, RCM, MEPS, PC Recycle, KC, e-Standby, TUV Flicker Free, TUV Low Blue Light, Windows 7, 8.1 and 10 WHQL, Mac Compliance*** *Specifications.are.subject.to.change.without.notice.
Page 31: Supported Operating Modes
1680x1050 65.29(N) 60.00(P) 146.25 1920x1080 67.5(P) 60.00(P) 148.5 1920x1200 (Reduced 74.038(P) 59.95(N) Blanking) 1920x1200 74.556(N) 59.885(P) 193.25 2560x1080 66.636(P) 59.978(N) 181.25 2560x1440 88.787(P) 59.951(N) 241.50 2560x1440* 111.857(P) 74.971(N) 304.25 *Supported.for.the.following.graphic.cards.when.the.input.source.is.DisplayPort:.AMD.R9.295X2,. AMD.R9.290,.AMD.R9.285,.AMD.R9.270X,.AMD.R7.260X,.AMD.R7.250,.AMD.HD.7990.,.AMD.HD. 7970,.AMD.HD.7850,.AMD.HD.7790,.AMD.HD.7770,.AMD.HD.6990,.NVIDIA.GTX.980,.NVIDIA.GTX. 960,.NVIDIA.GTX.TITAN.Z,.NVIDIA.GTX.780,.NVIDIA.GTX.770,.NVIDIA.GTX.750.Ti,.NVIDIA.GTX.750,. NVIDIA.GTX.690,.NVIDIA.GTX.680,.NVIDIA.GTX.770,.Intel.HD.Graphics.4400,.Intel.HD.Graphics.4600. ASUS PA27A Series LCD Monitor 3-11...
Page 32 Timing.Name Pixel.Format Horizational. Vertical. Pixel.Rate. Frequency.(kHz) Frequency.(Hz) (MHz) 480p 720 x 480 31.469 720p60 1280 x 720 74.25 576p 720 x 576 31.25 720p50 1280 x 720 37.5 74.25 1080p60 1920 x 1080 67.5 148.5 1080p50 1920 x 1080 56.25 148.5 3-12 Chapter 3: OSD (On-Screen Display) menu...
Page 33: Declaration Of Conformity
DECLARATION OF CONFORMITY Per FCC Part 2 Section 2. 1077(a) Asus Computer International Responsible Party Name: Address: 800 Corporate Way, Fremont CA 94539. Phone/Fax No: (510)739-3777/(510)608-4555 hereby declares that the product Product Name : LCD Monitor Model Number : PA27A*******...
Page 34: Eu Declaration Of Conformity
EU Declaration of Conformity We, the undersigned, Manufacturer: ASUSTeK COMPUTER INC. Address: 4F, No. 150, LI-TE Rd., PEITOU, TAIPEI 112, TAIWAN Authorized representative in Europe: ASUS COMPUTER GmbH Address, City: HARKORT STR. 21-23, 40880 RATINGEN Country: GERMANY declare the following apparatus: LCD Monitor...
