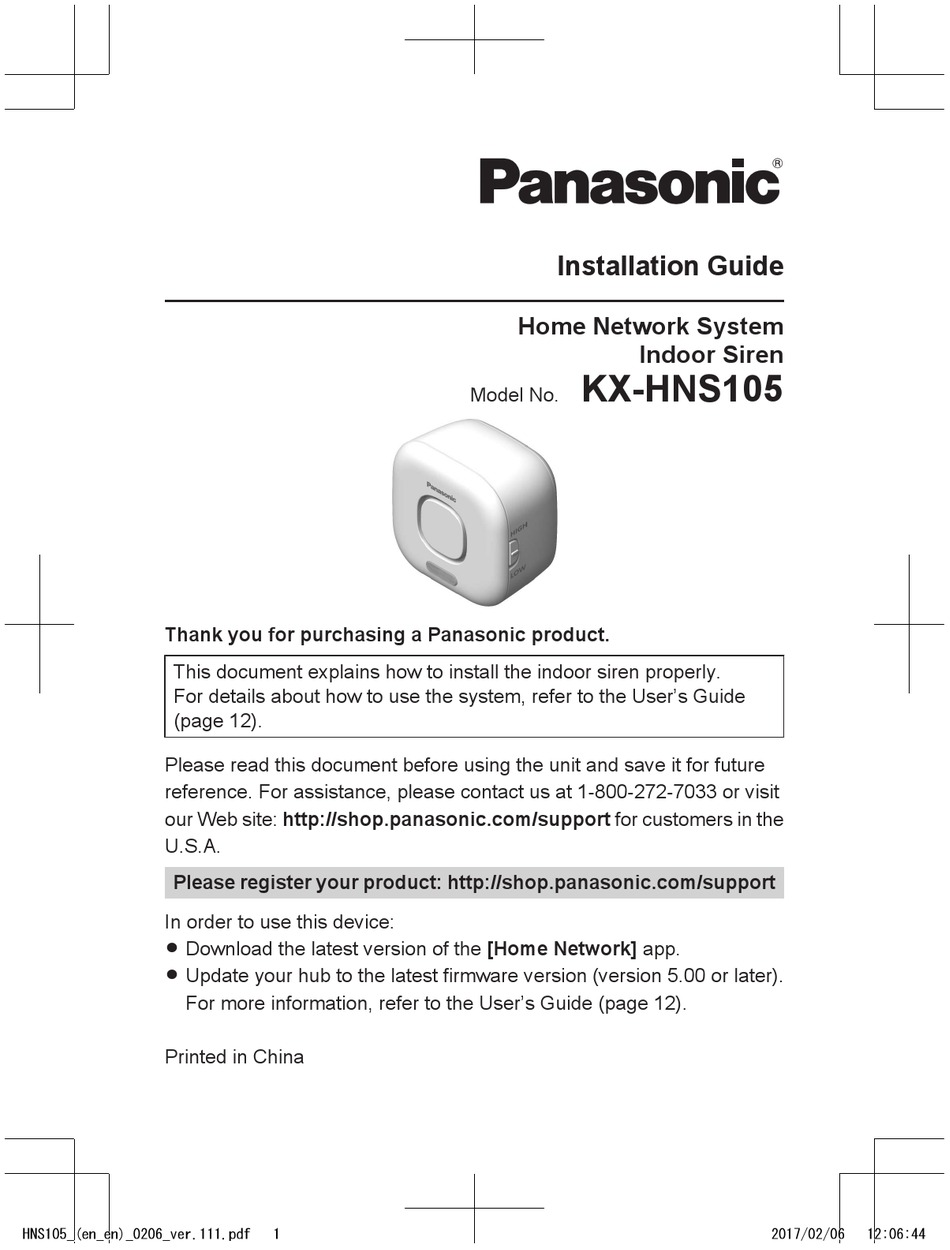

Thank you for purchasing a Panasonic product.
This document explains how to install the indoor siren properly.
For details about how to use the system, refer to the User's Guide
(page 12).
Please read this document before using the unit and save it for future
reference. For assistance, please contact us at 1-800-272-7033 or visit
our Web site: http://shop.panasonic.com/support for customers in the
U.S.A.
Please register your product: http://shop.panasonic.com/support
In order to use this device:
R Download the latest version of the [Home Network] app.
R Update your hub to the latest firmware version (version 5.00 or later).
For more information, refer to the User's Guide (page 12).
Printed in China
HNS105_(en_en)_0206_ver.111.pdf
1
Installation Guide
Home Network System
Indoor Siren
KX-HNS105
Model No.
2017/02/06
12:06:44
Advertisement
Chapters
Table of Contents
Related Manuals for Panasonic KX-HNS105
Summary of Contents for Panasonic KX-HNS105
- Page 1 (page 12). Please read this document before using the unit and save it for future reference. For assistance, please contact us at 1-800-272-7033 or visit our Web site: http://shop.panasonic.com/support for customers in the U.S.A. Please register your product: http://shop.panasonic.com/support In order to use this device: R Download the latest version of the [Home Network] app.
-
Page 2: Table Of Contents
Table of Contents Introduction Accessory information ....3 Important Information About this system ......4 For your safety ......4 Important safety instructions ..5 For best performance ....5 Other information .......6 Setup Part names and functions ..7 LED indicator ......7 Setup overview ......7 Registering the siren ....8 Confirming the usage area ..9 Installation .......10... -
Page 3: Introduction
R Microsoft, Windows, and Internet Explorer are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries. R All other trademarks identified herein are the property of their respective owners. For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06... -
Page 4: Important Information
These conditions can Panasonic will not be held cause fire or electric shock. Confirm responsible in the event that that smoke has stopped emitting... -
Page 5: Important Safety Instructions
1 m (3 feet) The hub and other compatible from a child’s crib and out of the Panasonic devices use radio waves to reach of small children. communicate with each other. For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf... -
Page 6: Other Information
It should not be placed in rooms where the temperature is less than 0 °C (32 °F) or greater than 40 °C (104 °F). Damp basements should also be avoided. For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:44... -
Page 7: Setup
Confirm the installation area (page 12). Read the information in this Rear cover document to confirm that the desired installation area is suitable Used to register the siren to the to proper operation. hub. For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:44... -
Page 8: Registering The Siren
(page 7). R When registration is complete, the hub sounds one long beep. Note: R To cancel without registering the siren, press M N on the hub and on the siren again. For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:44... -
Page 9: Confirming The Usage Area
Usage area cautions Using the siren in the following areas may cause deformation, malfunction, or operational failure. R In direct sunlight R Areas exposed to grease or steam, such as kitchens For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:44... -
Page 10: Installation
R Do not mount the siren on the following places: gypsum board, ALC (autoclaved lightweight cellular concrete), concrete block, plywood less than 25.4 mm (1 inch) thick, etc. R Use only the supplied Panasonic AC adaptor PNLV236. For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06... -
Page 11: Note About Power Connections
AC adaptor to a ceiling-mounted AC outlet, as the weight of the adaptor may cause it to become disconnected. Power failure R The siren will not work during a power failure. For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:44... -
Page 12: Appendix
You can also use the app to stop the siren from sounding. For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:45... -
Page 13: Specifications
R Dimensions (height ´ width ´ depth) Approx. 71 mm ´ 73 mm ´ 46 mm (2 13/16 inches ´ 2 7/8 inches ´ 1 13/16 inches) R Mass (weight) Approx. 90 g (0.20 lb) For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:45... -
Page 14: Fcc And Other Information
Notice: user is encouraged to try to correct the R FCC ID can be found inside the unit. For assistance, please visit http://shop.panasonic.com/support HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:45... -
Page 15: Customer Services
Appendix Customer services Shop Accessories! for all your Panasonic gear Go to http://shop.panasonic.com/support Get everything you need to get the most out of your Panasonic products Accessories & Parts for your Camera, Phone, A/V products, TV, Computers & Networking, Personal Care, Home Appliances, Headphones, Ba eries, Backup Chargers &... -
Page 16: Limited Warranty (Only For U.s.a.)
If your product does not work properly because of a defect in materials or workmanship, Panasonic Corporation of North America (referred to as “the warrantor”) will, for the length of the period indicated on the chart below, which starts with the date of original purchase (“warranty period”), at its option either (a) repair your product with new or refurbished parts,... - Page 17 Service Center. If the problem is not handled to your satisfaction, then write to: Consumer Affairs Department Panasonic Corporation of North America 661 Independence Pkwy Chesapeake, VA 23320 PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR RESPONSIBILITY.
- Page 18 Notes HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:45...
- Page 19 Notes HNS105_(en_en)_0206_ver.111.pdf 2017/02/06 12:06:45...
- Page 20 Reconnect the AC adaptor to the siren. Use the Home Network app to access the User’s Guide and refer to the Troubleshooting section. Visit our Web site: http://shop.panasonic.com/support • FAQ and troubleshooting hints are available. For your future reference We recommend keeping a record of the following information to assist with any repair under warranty.
- Page 21 Lea este documento antes de usar la unidad, y guárdelo para consultarlo en el futuro. Para obtener ayuda, comuníquese con nosotros llamando al 1-800-272-7033 o visite nuestro sitio web: http://shop.panasonic.com/ support para clientes en los EE. UU. (solo en inglés) Por favor, registre su producto: http://shop.panasonic.com/support...
- Page 22 Tabla de Contenido Configuración Nombres de los componentes y funciones .........3 Led indicador ........3 Resumen de configuración ....3 Registro de la sirena ......4 Confirmación del área de uso ..5 Instalación ........6 Nota acerca de las conexiones de alimentación ........7 Apéndice Prueba de la sirena ......8 Ajuste del volumen de la sirena ..8 Acceso a la Guía del usuario ...8...
-
Page 23: Configuración
