Audiovox P105 Owner's Manual

Audiovox p105: owners manual
Hide thumbs Also See for P105:

Advertisement

Quick Links

Download this manual See also: Installation Manual

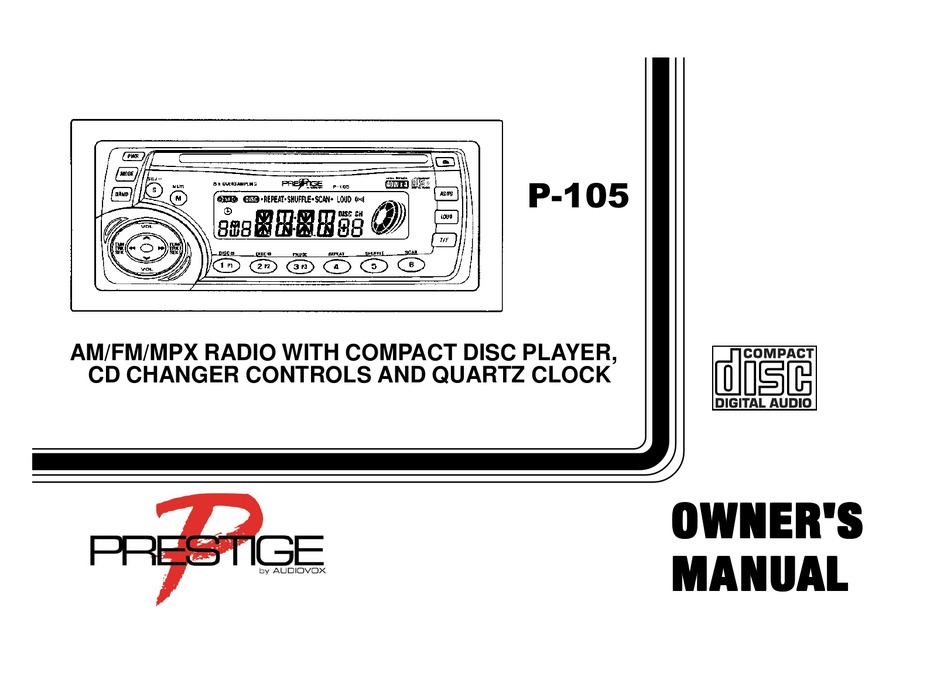

AM/FM/MPX RADIO WITH COMPACT DISC PLAYER,
CD CHANGER CONTROLS AND QUARTZ CLOCK
O O O O O WNER'S
WNER'S
WNER'S
WNER'S
WNER'S
MA
MA
NUAL
NUAL
MA NUAL
MA
MA
NUAL
NUAL

Advertisement

loading

Related Manuals for Audiovox P105

Summary of Contents for Audiovox P105

  • Page 1 AM/FM/MPX RADIO WITH COMPACT DISC PLAYER, CD CHANGER CONTROLS AND QUARTZ CLOCK O O O O O WNER'S WNER'S WNER'S WNER'S WNER'S NUAL NUAL MA NUAL NUAL NUAL...

  • Page 2: Table Of Contents

    INDEX Page Operating Instructions ... 3 - 9 Setting the Clock ... 10 CD Player Error Codes ... 10 CD Changer Controls ... 11 CD Changer Error Codes ... 12 Specifications ... 13 Care and Maintenance ... 14 Warranty ... 15...

  • Page 3: Operating Instructions

    OPERATING INSTRUCTIONS POWER ON-OFF BUTTON ( PWR ) Press this button to turn the unit on or off. If the ignition switch is “on”, the unit will turn on automatically when a compact disc is inserted. VOLUME CONTROL BUTTONS ( VOL To increase the volume level, press the VOL appear and the volume level will be shown on the display panel from a minimum of V -- 0 to a maximum of V -- 46.
  • Page 4 Pressing and holding this button enables/disables the beep tone function. When the function is enabled the ( on the display. Each time a front panel key is pressed a beep tone will sound. TREBLE CONTROL To adjust the treble level, first select the Treble mode by pressing the S button so the TRE indication appears on the display panel.
  • Page 5 characteristics of human hearing. Press the LOUD button momentarily to activate this feature and the indication LOUD will appear on the display panel. Pressing the button again momentarily will deactivate the feature (the LOUD indication will disappear from the display panel). AM/FM BAND SELECTOR (BAND) During radio operation, each time this button is pressed, the radio band is changed.
  • Page 6 panel will flash during Pre-Set Scan operation). Press the button again momentarily to stop Pre-Set Scan operation and remain on the selected frequency. If no buttons are pressed during the scan, the unit will return to the original station before the scan was started.
  • Page 7 6. Repeat step 1, except set the desired fade (FAD) ratio between the front and rear speakers for the current broadcast, and set this level using the VOL While FAD is displayed, press and hold the P1 button until P_1 appears to the left of the FAD display. The speaker fade ratio is now pre-set for the current type of broadcast.
  • Page 8 disc can be made by the Cue and Review functions of the TUNE TRACK button. Press and hold the Cue ( to advance rapidly in the forward direction; the advancing disc playing time will be shown on the display panel, and the disc symbol rotates rapidly in the clockwise direction.
  • Page 9 accidentally damaged ( will appear on the display panel to indicate that a disc is loaded in the player). Play of the disc can be resumed from the first track on the disc by using the MODE button to choose the CD player function. TIME/FREQUENCY SELECTOR (T/F) During radio operation, press this button to call the time display on the quartz clock;...

  • Page 10: Setting The Clock

    CD PLAYER ERROR CODES If a problem should develop while operating the CD player, the following error codes may appear on the display panel. ER-1: Indicates an error in the microprocessor control of the CD player. Eject the disc, make sure it is clean, undamaged, and loaded correctly (label side up).

  • Page 11: Cd Changer Controls

    CD CHANGER CONTROLS Built into this radio are controls to operate an optional CD changer. Please check with your Prestige/Audiovox car stereo specialist or call 1-800-645-4994 for recommendations of the models that will work with this radio. Adjustment of the audio functions (volume, tone, balance, and fader) for the CD changer operate in the same manner as they do for radio play.

  • Page 12: Cd Changer Error Codes

    DISC/TRACK REPEAT PLAY (REPEAT) When the REPEAT button is pressed, the REPEAT indication will appear on the display panel and play of the selected track will be continually repeated until the Track Repeat mode is canceled by pressing the REPEAT button again, or by activating the Scan or Random Play functions.

  • Page 13: Specifications

    SPECIFICATIONS Size: 3.75" H x 8.375" W 95.25mm x 212.73mm x 158.75mm Operating Voltage: 12 Volts DC, Negative Ground Output Power: 160 Watts Maximum (40 Watts x 4 Channels) Output Wiring: Floating-Ground Type Designed for use with 4 Speakers (Front and Rear Channels Cannot be Combined (Bridged) for use with 2 Speakers) Output Impedance:Compatible with 4/8-Ohm Speakers Low-Level Output: 2.0 Volts (2000 mV)

  • Page 14: Care And Maintenance

    CARE AND MAINTENANCE The radio portion of your new sound system does not require any maintenance. We recommend you keep this manual for reference to the many features found in this unit as well as how to set the clock. The compact disc player section also requires no routine maintenance, but proper understanding of its use and handling will help you obtain maximum enjoyment of its capabilities.

  • Page 15: Warranty

    AUDIOVOX CORPORATION (the Company) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company's option) without charge for parts and repair labor.
  • Page 16 © 2000 Audiovox Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788 Printed in China 128-5909...
