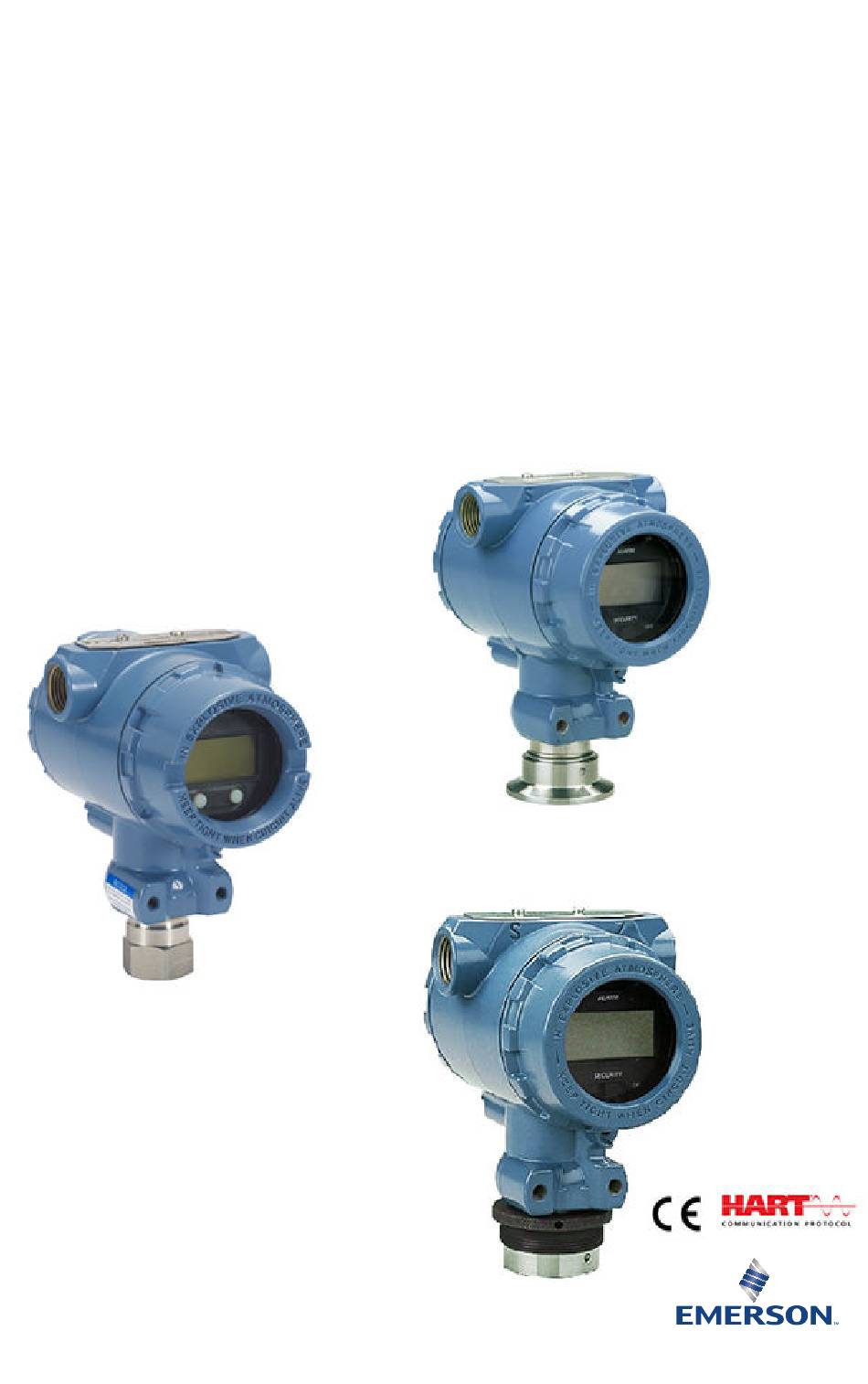

Quick Start Guide
00825-0100-4690, Rev GD
February 2019
™
Rosemount
2088, 2090P, and 2090F
Pressure Transmitters
®
with 4–20 mA HART
and 1–5 Vdc HART
Low Power Protocol

Advertisement

loading

Related Manuals for Emerson Rosemount 2088

Summary of Contents for Emerson Rosemount 2088

  • Page 1 Quick Start Guide 00825-0100-4690, Rev GD February 2019 ™ Rosemount 2088, 2090P, and 2090F Pressure Transmitters ® with 4–20 mA HART and 1–5 Vdc HART Low Power Protocol...

  • Page 2: Table Of Contents

    Mount the transmitter........3 Safety instrumented systems....... 16 Set the jumpers..........7 Product Certifications........19 Connect the wiring and power....... 9 Rosemount 2088 and 2090 Declaration of Conformity..........40 Verify configuration........12 Trim the transmitter........14 Rosemount 2088, 2090P, and 2090F Pressure Transmitters...

  • Page 3: Mount The Transmitter

    February 2019 Quick Start Guide Mount the transmitter ™ Rosemount 2088 Mount directly to the impulse line without using an additional mounting bracket or mount directly to a wall, panel, or two-inch pipe using an optional mounting bracket. ™ Rosemount 2090P Mount directly to the process pipe using an existing weld spud, or have a skilled welder install a new weld spud using a TIG welder.
  • Page 4 2. Mount beside or below the taps. Example Gas flow applications Transmitter mounting procedure for gas flow applications. Procedure 1. Place taps in the top or side of the line. 2. Mount level or above the taps. Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 5 February 2019 Quick Start Guide Example Steam flow applications Transmitter mounting procedure for steam flow applications. Procedure 1. Place taps to the side of the line. 2. Mount beside or below the taps. 3. Fill impulse lines with water. Example Environmental seal for housing Thread sealing (PTFE) tape or paste on male threads of conduit is required to ®...
  • Page 6 Keep the vent path free of any obstruction, including but not limited to paint, dust, and lubrication by mounting the transmitter so that the process can drain away. Figure 1-3: Gage Low Side Pressure Port A. Low side pressure port (atmospheric reference) Rosemount 2088, 2090P, and 2090F Pressure Transmitters...

  • Page 7: Set The Jumpers

    5. Reattach the transmitter cover. The cover must be fully engaged to comply with explosion-proof requirements. Example Figure 2-1: Rosemount 2088 Transmitter Electronics Board Without LCD display With LCD display Low power without LCD display Low power with LCD display...
  • Page 8 Quick Start Guide February 2019 A. Alarm B. Security Rosemount 2088, 2090P, and 2090F Pressure Transmitters...

  • Page 9: Connect The Wiring And Power

    Be connected to a good earth ground at the power supply end Note Installation of the transient protection terminal block does not provide transient protection unless the Rosemount 2088 case is properly grounded. Note Do not connect the powered signal wiring to the test terminals. Power could damage the test diode in the test connection.
  • Page 10 A. R ≥ 250Ω B. 24 Vdc supply C. Current meter Figure 3-2: Field Wiring for Rosemount 2088 — Low Power Option Code N A. Voltmeter B. Power supply Power supply The dc power supply (Option S: 10.5–42.4 V and Option N: 6–14 V) should provide power with less than two percent ripple.
  • Page 11 February 2019 Quick Start Guide Figure 3-3: Maximum Loop Resistance = 43.5 × (Power Supply Voltage – 10.5) The Field Communicator requires a minimum loop resistance of 250Ω for communication. Quick Start Guide...

  • Page 12: Verify Configuration

    1, 2, 3, 1 Scaled D/A Trim (4–20 mA Output) 1, 2, 3, 2, 2 Self Test (Transmitter) 1, 2, 1, 1 Sensor Info 1, 4, 4, 2 Sensor Trim (Full Trim) 1, 2, 3, 3 Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 13 February 2019 Quick Start Guide Function HART Fast Key sequence Sensor Trim Points 1, 2, 3, 3, 5 Status 1, 2, 1, 2 ✓ Tag 1, 3, 1 Transmitter Security (Write Protect) 1, 3, 4, 4 ✓ Units (Process Variable) 1, 3, 2 Upper Range Value 5, 2...

  • Page 14: Trim The Transmitter

    2. Apply the desired pressure for the 4 mA output. 3. Set the 4 mA point by pressing the zero button for two seconds. Verify that the output is 4 mA. The optional LCD display will show “ZERO PASS”. Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 15 February 2019 Quick Start Guide Example A. Zero adjustment button Quick Start Guide...

  • Page 16: Safety Instrumented Systems

    Quick Start Guide February 2019 Safety instrumented systems The following section applies to Rosemount 2088 Transmitters used in SIS applications. Note Transmitter output is not safety-rated during the following: configuration changes, multidrop, loop test. Alternative means should be used to ensure process safety during transmitter configuration and maintenance activities.
  • Page 17 Table 7-1 to perform a Loop Test, Analog Output Trim, or Sensor Trim. See the Rosemount 2088 Reference Manual for additional information. 6.3.2 Proof test This proof test will detect 92 percent of DU failures not detected by the Rosemount 2088 automatic diagnostics.
  • Page 18 Rosemount 2088 Reference Manual for additional information. Reference 6.4.1 Specifications The Rosemount 2088 must be operated in accordance to the functional and performance specifications provided in the Rosemount 2088 Reference Manual. 6.4.2 Failure rate data The FMEDA report includes failure rates. This report is available at Emerson.com/Rosemount.

  • Page 19: Product Certifications

    ≤ +70 °C); Type 4x Special Condition for Safe Use (X): 1. The Rosemount 2088 Transmitter with the transient terminal block (Option code T1) will not pass the 500 Vrms dielectric strength test and this must be taken into account during installation.
  • Page 20 If paint is ordered through a special option code, contact the manufacturer for more information. I1 ATEX Intrinsic Safety Certificate: BAS00ATEX1166X Standards: EN60079-0:2012 + A11:2013, EN60079-11:2012 Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 21 February 2019 Quick Start Guide Markings: II 1 G Ex ia IIC T4 Ga (–55 °C ≤ T ≤ +70 °C) Table 7-1: Input Parameters Parameter HART Voltage U 30 V Current I 200 mA Power P 0.9 W Capacitance C 0.012 μF Special Condition for Safe Use (X): 1.
  • Page 22 4. Cable entries and blanking plugs must be suitable for the ambient range of the apparatus and capable of withstanding a 7 J impact test. 5. The Rosemount 2088/2090 sensor module must be securely screwed in place to maintain the ingress protection of the enclosure.
  • Page 23 Special Conditions for Safe Use (X): 1. When fitted with a transient suppression terminal block, the Rosemount 2088 is incapable of passing the 500 V isolation test. This must be taken into account during installation. 2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish;...
  • Page 24 Ex ia IIC T4 Ga (–55 °C ≤ T ≤ +70 °C) Table 7-4: Input Parameters Parameter HART Voltage U 30 V Current I 200 mA Power P 0.9 W Capacitance C 0.012 μF Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 25 Special Conditions for Safe Use (X): 1. When fitted with a transient suppression terminal block, the Rosemount 2088 is incapable of passing the 500 V isolation test. This must be taken into account when installing the equipment. 2. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish;...
  • Page 26 8. During installation, use and maintenance of this product, observe the following standards: GB3836.13-2013, GB3836.15-2000, GB3836.16-2006, GB3836.18-2010, GB50257-2014. Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 27 February 2019 Quick Start Guide N3 China Type n Certificate: GYJ15.1108X Standards: GB3836.1-2000, GB3836. 8-2003 Markings: Ex nA nL IIC T5 Gc (–40 °C ≤ T ≤ +70 °C) Special Conditions For Safe Use (X): 1. The apparatus is not capable of withstanding the 500 V r.m.s. insulation test required by GB3836.8-2003.
  • Page 28 II 2 G Ex de IIC Gb Table 7-5: Conduit Plug Thread Sizes Thread Identification mark M20 × 1.5 – 6g 1/2–14 NPT 1/2 NPT G1/2A G1/2 Table 7-6: Thread Adapter Thread Sizes Male thread Identification mark Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 29 February 2019 Quick Start Guide Table 7-6: Thread Adapter Thread Sizes (continued) M20 × 1.5 – 6H 1/2–14 NPT 1/2–14 NPT 3/4–14 NPT 3/4–14 NPT Female thread Identification mark M20 × 1.5 – 6H 1/2–14 NPT 1/2–14 NPT G1/2 G1/2 Special Conditions For Safe Use (X): 1.
  • Page 30 XP CL I, DIV 1, GP B, C, D; DIP CL II, DIV 1, GP E, F, G; CL III, DIV 1; T5(–40 °C ≤ T ≤ +85 °C); Factory Sealed; Type 4X Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 31 February 2019 Quick Start Guide I5 USA Intrinsic Safety (IS) and Nonincendive (NI) Certificate: 0V9A7.AX Standards: FM Class 3600 – 1998, FM Class 3610 – 2010, FM Class 3611 – 2004, FM Class 3810 – 1989 Markings: IS CL I, DIV 1, GP A, B, C, D; CL II, DIV 1, GP E, F, G; Class III; DIV 1 when connected per Rosemount drawing 02088-1018;...
  • Page 32 Special Condition for Safe Use (X): 1. This apparatus is not capable of withstanding the 500 V insulation test that is required by EN60079-15. This must be taken into account when installing the apparatus. Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 33 February 2019 Quick Start Guide ND ATEX Dust Certificate: BAS01ATEX1427X Standards: EN60079-0:2012, EN60079-31:2009 Markings: Ex t IIIC T 50 °C T 60 °C Da Special Conditions for Safe Use (X): 1. The user must ensure that the maximum rated voltage and current (36 volts, 24 milliamps, d.c.) are not exceeded.
  • Page 34 Ex ia IIC T5/T4 Ga, T5(–55 °C ≤ T ≤ +40 °C), T4(–55 °C ≤ T ≤ +70 °C) Table 7-9: Input Parameters Parameter HART Voltage U 30 V Current I 200 mA Power P 0.9 W Capacitance C 0.012 μF Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 35 February 2019 Quick Start Guide Special Conditions for Safe Use (X): 1. When fitted with a transient suppression terminal block, the Rosemount 2090 is incapable of passing the 500 V isolation test. This must be taken into account during installation. 2.
  • Page 36 8. During installation, use and maintenance of this product, observe the following standards: GB3836.13-2013, GB3836.15-2000, GB3836.16-2006, GB50257-2014. I3 China Intrinsic Safety Certificate: GYJ15.1508X Standards: GB3836.1-2010, GB3836.4-2010, GB3836.20-2010 Markings: Ex ia IIC T4/T5 Ga Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 37 February 2019 Quick Start Guide Special Conditions for Safe Use (X): 1. The enclosure may be made of aluminum alloy and given a protective polyurethane paint finish; however, care should be taken to protect it from impact or abrasion if located in a zone 0 environment. 2.
  • Page 38 7.2.9 Conduit plugs and adapters IECEx Flameproof and Increased Safety Certificate: IECEx FMG 13.0032X Standards: IEC60079-0:2011, IEC60079-1:2007, IEC60079-7:2006-2007 Markings: Ex de IIC Gb ATEX Flameproof and Increased Safety Certificate: FM13ATEX0076X Standards: EN60079-0:2012, EN60079-1:2007, EN60079-7:2007 Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 39 February 2019 Quick Start Guide Markings: II 2 G Ex de IIC Gb Table 7-11: Conduit Plug Thread Sizes Thread Identification mark M20 × 1.5 1/2–14 NPT 1/2 NPT G1/2A G1/2 Table 7-12: Thread Adapter Thread Sizes Male thread Identification mark M20 ×...

  • Page 40: Rosemount 2088 And 2090 Declaration Of Conformity

    European Union notified body certification, as shown in the attached schedule. Vice President of Global Quality (signature) (function) Chris LaPoint 1-Feb-19; Shakopee, MN USA (name) (date of issue) Page 1 of 3 Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 41 February 2019 Quick Start Guide EU Declaration of Conformity No: RMD 1010 Rev. N EMC Directive (2014/30/EU) Harmonized Standards: EN 61326-1:2013, EN 61326-2-3:2013 RoHS Directive (2011/65/EU) Model 2090F Pressure Transmitter Harmonized Standard: EN 50581:2012 ATEX Directive (2014/34/EU) BAS00ATEX1166X - Intrinsic Safety Certificate Equipment Group II Category 1 G Ex ia IIC T4 Ga Harmonized Standards:...
  • Page 42 P.O. Box 30 (Särkiniementie 3) 00211 HELSINKI Finland ATEX Notified Body for Quality Assurance SGS FIMCO OY [Notified Body Number: 0598] P.O. Box 30 (Särkiniementie 3) 00211 HELSINKI Finland Page 3 of 3 Rosemount 2088, 2090P, and 2090F Pressure Transmitters...
  • Page 43 February 2019 Quick Start Guide Quick Start Guide...
  • Page 44 The Emerson logo is a Facebook.com/Rosemount trademark and service mark of Emerson Electric Youtube.com/user/ Co. Rosemount is mark of one of the Emerson RosemountMeasurement family of companies. All other marks are the Google.com/+RosemountMeasurement property of their respective owners.
