Datalogic Gryphon GM41XX Setup Instructions

Linking the Reader to a Base Station
RF Devices
For RF devices, before configuring the interface it is necessary to link the
handheld with the base.

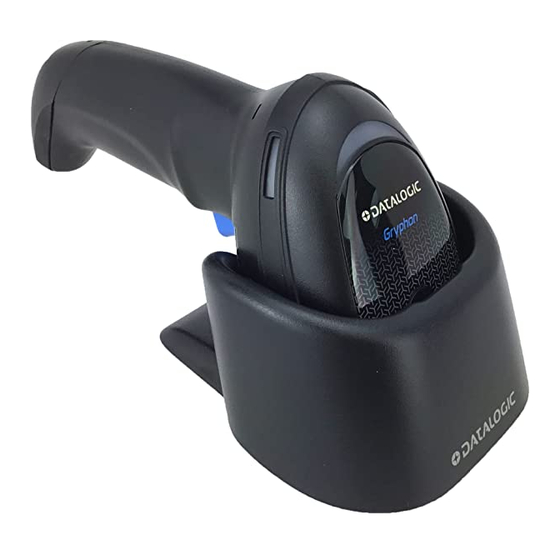

To link the handheld and the base, press the trigger to wake it and place it
on the base. If the reader was previously linked to another base, you must
first scan the Unlink action command before re-linking to the new base.
Country Mode
This feature specifies the country/language supported by the keyboard. Only the following interfaces support ALL Country
Modes.
• USB Keyboard (without alternate key encoding)
• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 w/Std Key Encoding
• Keyboard Wedge for IBM AT PS2 with standard key encoding but without external keyboard
• AT, PS/2 25-286, 30-286, 50, 50Z, 60, 70, 80, 90 & 95 without Alternate Key
• Keyboard Wedge for IBM AT PS2 without alternate key encoding but without external keyboard
All other interfaces support ONLY the following Country Modes: U.S., Belgium, Britain, France, Germany, Italy, Spain,
Sweden.
Country Mode Selection
To select a Country Mode:
1. Scan the ENTER/EXIT barcode below to enter Programming Mode.
2. From the opposite page, scan the desired Country Mode barcode.
3. Scan the ENTER/EXIT barcode again to exit Programming Mode.
© 2009 Datalogic Scanning, Inc.
ENTER/EXIT PROGRAMMING MODE
ENTER/EXIT PROGRAMMING MODE
R44-3050 (Rev. A)
Gryphon™ I GM41XX
Setup Instructions
Unlink
8/09
