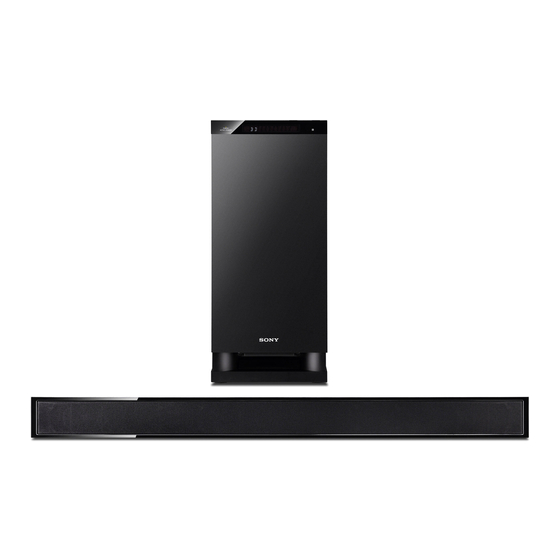

Sony HT-CT150 Service Manual

SERVICE MANUAL
Ver. 1.0 2010.03
• HT-CT150/CT350 are composed of following models.
As service manuals are issued for each component model, please
refer to them.
COMPONENT MODEL NAME
Active Subwoofer
Speaker System
Speaker Bracket Package
Note: As for WS-CT350EB, the part number has been described to this service manual.
SPECIFICATIONS
WS-CT350EB (HT-CT350 only)
Extension bracket
Dimensions (approx.) 180 mm × 147 mm × 26
mm (w/h/d)
Mass (approx.) 555 g
Rear cover A
Dimensions (approx.) 80 mm × 85 mm × 14 mm
(w/h/d)
Mass (approx.) 25 g
Rear cover B
Dimensions (approx.) 80 mm × 82 mm × 47 mm
(w/h/d)
Mass (approx.) 35 g
Rear cover C
Dimensions (approx.) 80 mm × 82 mm × 47 mm
(w/h/d)
Mass (approx.) 35 g
Cover for the TV
Dimensions (approx.) 273 mm × 245 mm × 31
mm (w/h/d)
Mass (approx.) 165 g
Sony Corporation
9-889-813-01
2010C05-1 Audio&Video Business Group
©
2010.03 Published by Sony Techno Create Corporation
HT-CT150/CT350
HT-CT150 HT-CT350
SA-WCT150 SA-WCT350
SS-CT150 SS-CT350
– WS-CT350EB
General
Power requirements 120 V AC, 60 Hz
(US, Canadian models)
220 V – 240 V AC, 50/60 Hz
(Other models)
Power consumption
On: 75 W (CT150)
On: 80 W (CT350)
Standby mode: 0.3 W or less (Control for HDMI
is off.)
Power output
(DIGITAL MEDIA PORT) DC OUT: 5 V, 700 mA
Design and specifications are subject to change without
notice.
Standby power consumption 0.3 W or less.
Halogenated flame retardants are not used in the
certain printed wiring boards.
Over 85 % power efficiency of amplifier block is
achieved with the full digital amplifier, S-Master.
US Model
Canadian Model
HT-CT150/CT350
AEP Model
UK Model
Unpacking
• Subwoofer (SA-WCT150) (1) (For HT-CT150)
• Subwoofer (SA-WCT350) (1) (For HT-CT350)
• Speaker (SS-CT150) (1) (For HT-CT150)
• Speaker (SS-CT350) (1) (For HT-CT350)
• AM loop antenna (aerial) (1) (For HT-CT350)
• FM wire antenna (aerial) (1) (For HT-CT350)
• Speaker cord (1)
• Digital optical cord for a TV (2.5 m) (1)
• Remote commander (RM-AAU072) (1) (For HT-CT150)
• Remote commander (RM-AAU071) (1) (For HT-CT350: US, Canadian
models)
• Remote commander (RM-AAU074) (1) (For HT-CT350: AEP, UK
models)
• R6 (size AA) batteries (2)
• WS-CT350EB (For HT-CT350)
• Extension bracket (1)
• Rear cover A (1)
• Rear cover B (1)
• Rear cover C (1)
• Cover for the TV (1)
• Screws for the extension bracket (large, +PSW5 x 16 mm) (6) (For HT-
CT350)
• Screws for the rear cover (small, M3 x 8 mm) (1) (For HT-CT350)
• Support belt (1) (For HT-CT350)
• Screws for the support belt (+PSW4 x 20 mm) (1) (For HT-CT350)
• Wood screw for the support belt (M3.8 x 20 mm) (1) (For HT-CT350)
• Clamp screw (2) (For HT-CT350)
• Warranty (1)
• Operating Instructions (1)
– Refer to next page for accessories list –
HOME THEATRE SYSTEM
HT-CT350
