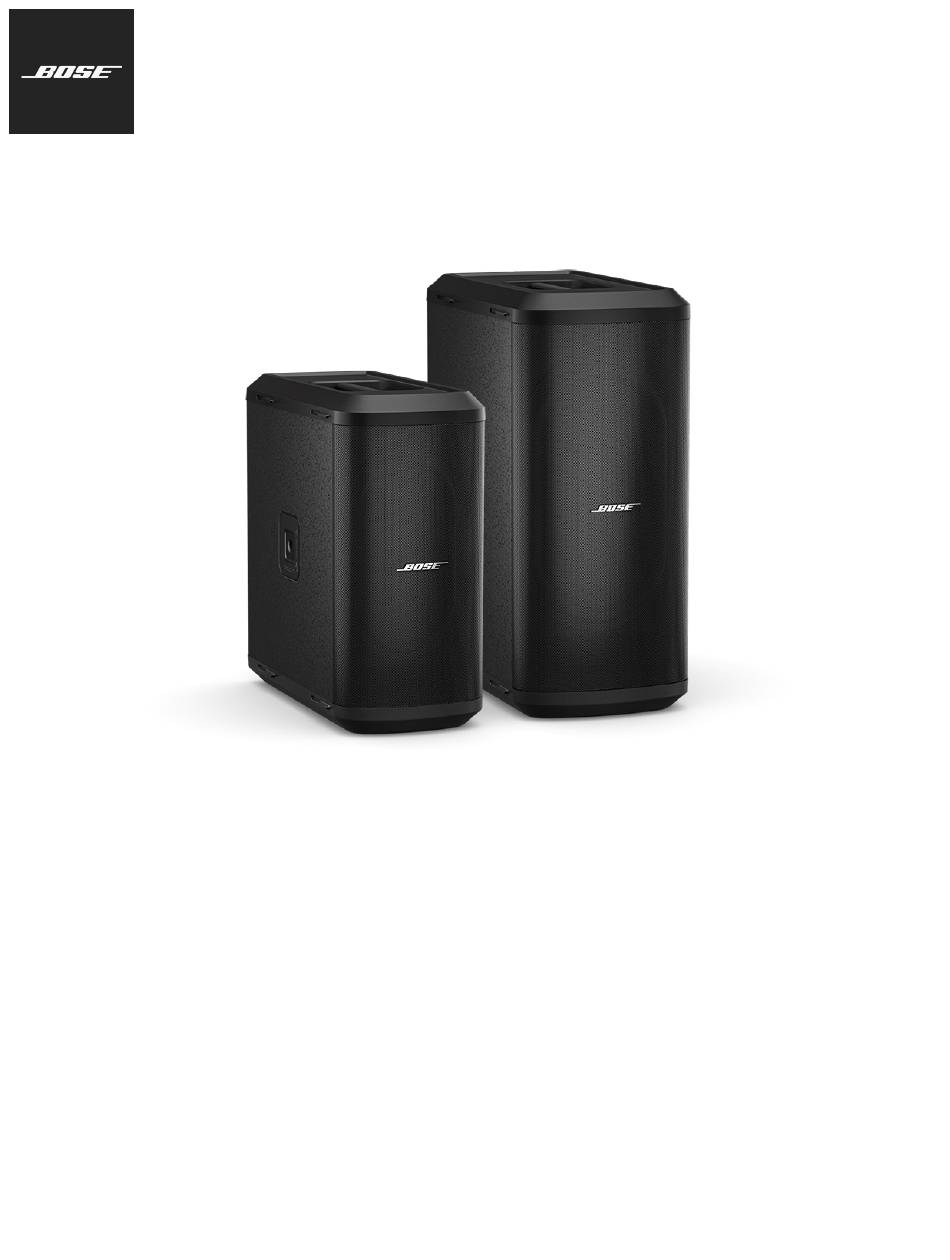

- Page 1 Sub1 & Sub2 Powered Bass Modules Owner's Guide...
- Page 2 If this equipment does pole of up to 1.3 meters (51 inches) with a Bose S1 Pro mounted on the pole. Do not use cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or the Sub1 or Sub2 with a pole exceeding 1.3 meters (51 inches) in height or a loudspeaker...
- Page 3 Proper Mexico Importer: Bose de México, S. de R.L. de C.V. , Paseo de las Palmas 405-204, Lomas de disposal and recycling helps protect natural resources, human health, and the Chapultepec, 11000 México, D.F.
-
Page 4: Table Of Contents
Contents PRO.BOSE.COM Overview Package Contents ..................................... 5 Optional Accessories ....................................5 Setup Connections and Controls ..................................6 Connecting Power ..................................... 7 Connecting Directly to a Power Outlet ............................. 7 Connecting to an L1 Pro32 with a SubMatch Cable......................8 AutoOff/Low-power Standby ............................... 8 Inputs and Outputs .................................... -
Page 5: Overview
Overview PRO.BOSE.COM Overview Package Contents Sub1 Sub2 Optional Accessories • Sub1/Sub2 Roller Bag • Sub1/Sub2 Adjustable Speaker Pole • SubMatch Cable For additional information on Sub1/Sub2 accessories, visit PRO.BOSE.COM. Owner's Guide • Sub1/Sub2 Powered Bass Module English • 5... -
Page 6: Setup
SubMatch Input: Connect the Sub to an L1 Pro32 with a SubMatch cable. Power Input: IEC power cord connection. USB Port: USB-C connector for Bose service use and firmware updates. Note: This port is not compatible with Thunderbolt 3 cables. -
Page 7: Connecting Power
Setup PRO.BOSE.COM Connecting Power There are two ways to connect a Sub to power: connecting to a power outlet or connecting to an L1 Pro32 with a SubMatch cable. The Power Input Cover prevents simultaneous connection of both power inputs. Only one of the two power connections should be used at a time. -
Page 8: Connecting To An L1 Pro32 With A Submatch Cable
Note: Do not power on the L1 Pro or the Sub until after you've connected your sources. See the L1 Pro32 owner's guide at PRO.BOSE.COM for more information about connecting sources to an L1 Pro32. 5. Press the Standby Button on the L1 Pro32 then press the Standby Button on the Sub. The LEDs will illuminate white while the L1 Pro and Sub are on. -
Page 9: Inputs And Outputs
Setup PRO.BOSE.COM Inputs and Outputs Line Input Analog input for connecting an L1 Pro or other line-level audio source. Compatible with XLR, TRS balanced, and TS unbalanced cables. Use Line Input 1 (Left) and Line Input 2 (Right) together for stereo applications. -
Page 10: Level
Setup PRO.BOSE.COM Level Adjust the level of audio output from the Sub. Begin with the Level Control set to a low setting and increase the level until the Signal/Clip Indicator illuminates green. The Level Control does not affect the Line Outputs. -
Page 11: Using The Pole-Mount Insert With An S1 Pro
WARNING: The pole-mount M20 threaded insert on the Sub1 and Sub2 is designed to support a pole of up to 1.3 meters (51 inches) with a Bose S1 Pro mounted on the pole. Do not use the Sub1 or Sub2 with a pole exceeding 1.3 meters (51 inches) in height or a loudspeaker weight that exceeds 7.1... -
Page 12: Care & Maintenance
