- Page 1 取扱説明書 Owner’s Manual Bedienungsanleitung DL-A110 Manuel de l’Utilisateur Manuale delle istruzioni Manual del usuario Gebruiksaanwijzing Bruksanvisning Руководство пользователя Instrukcja obsługi 操作说明书...

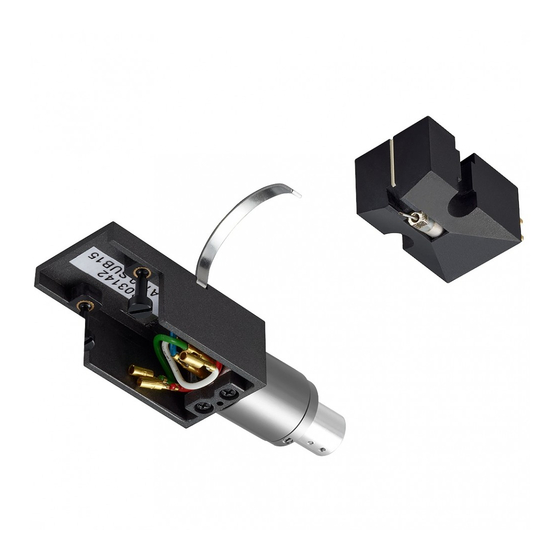

- Page 2 Thank you for purchasing a Denon 110th anniversary DL-A110 cartridge. This unit reproduces the head shell of the DL-103 head cartridge, with a 56-year history and which can be said to be the Japanese standard MC cartridge, used by Japan’s public broadcaster NHK for broadcasting when first released.
- Page 3 Accessories 日本 Check that the following parts are supplied with the product. q S tylus cover ···········································································1 w S tylus cleaning brush ·····························································1 e Owner’s Manual ·····································································1 r Data sheet ·············································································1 t Safety Instructions ·································································1 y Certificate of Authenticity ·······················································1 •...
- Page 4 Attaching this unit to the tone arm This unit is very delicate. Be especially careful when handling it. Insert this unit into the tip of the tone arm. • Insert this unit with its guide pin facing up and aligned with the hole on the top of the tone arm.
- Page 5 日本 Turn the lock nut in the direction of the arrow to secure this unit. Lock nut • The head shell adapter is attached to this unit beforehand. That gains appropriate overhang when attaching this unit to a standard universal type tone arm. We recommend that you use it without removing.
-
Page 6: Output Voltage
Tracking force adjustment Tracking force in the range of 25 mN ±3 mN (2.5 g ±0.3 g) should be used. Output voltage The output voltage is 0.3 mV. If your amplifier does not support the MC cartridge input, use a step-up transformer or head amplifier designed for MC type cartridges. -
Page 7: Specifications
日本 Specifications Moving coil (MC) type Principle: Output Voltage: 0.3 mV (1 kHz, 50 mm/s horizontal direction) Channel Balance: 1 dB max. (1 kHz) 25 dB min. (1 kHz) Channel Separation: Electrical Impedance: 40 Ω/ohms ±20 % (1 kHz) Load resistance: 100 Ω/ohms or more (40 Ω/ohms when using a transformer) 5 x 10 -3 m/N (Using a 100 Hz record) -
Page 8: Dimensions (Unit : Mm)
Dimensions (Unit : mm) 【 Overall dimensions 】... - Page 9 日本 【 Cartridge dimensions 】 22.5 26.8 中簡 z For the purpose of improvement, the specifications and design are subject to change without notice.
