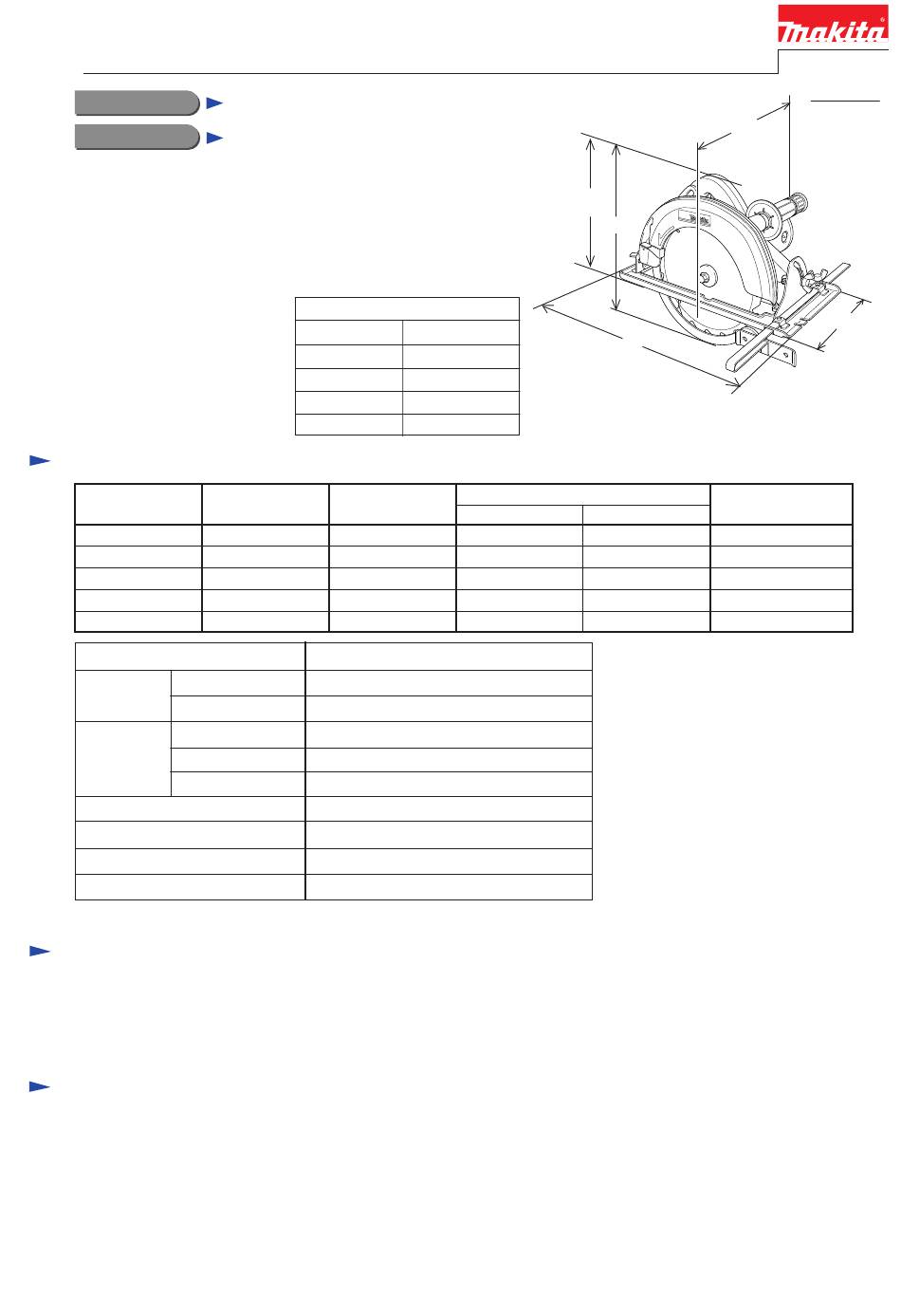

ECHNICAL INFORMATION
Models No.
Description
C
ONCEPT AND MAIN APPLICATIONS
The above product has been developed as a less expensive
version of the existing model 5900B, with taking over the
same feature and benefit.
This product is equipped with steel made safety cover.
S
pecification
Voltage (V)
110
120
220
230
240
No load speed : rpm.= min.
Diameter : mm (")
Size of blade
Arbor : mm (")
Max.cutting
at 90°
capacities
at 45°
: mm (")
at 50°
Electric brake
Protection against electric shock
Net weight : Kg (lbs.)
Cord length : m (ft)
S
tandard equipment
* T.C.T. saw blade 235mm 20T .......................... 1 pc.
* Guide rule ......................................................... 1 pc.
* Wrench 13 ....................................................... 1 pc.
< Note > The standard equipment for the tool shown may differ from country to country.
O
ptional accessories
* Various saw blade
* Joint for connecting with vacuum cleaner
N5900B
Circular Saw 235mm (9-1/4")
Dimensions : mm ( " )
Length ( L )
Width ( W-1 )
Width ( W-2 )
Height ( H-1 )
Height ( H-2 )
Current (A)
Cycle (Hz)
50 / 60
15.0
15.0
50 / 60
9.6
50 / 60
9.2
50 / 60
8.8
50 / 60
-1
Double insulation
2.5 (8.2)
380 (15)
255 (10)
165 (6-1/2)
287 (11-1/4)
192 (7-9/16)
Continuous Rating (W)
Input
1,650
1,650
2,000
2,000
2,000
4,100
235 (9-1/4)
25 (1)
85 (3-3/8)
60 (2-3/8)
53 (2-1/16)
No
7.0 (15.4)
2.0 (6.6) for Australia
W-1
H-2
H-1
L
Max. Output(W)
Output
950
950
1,300
1,300
1,300
PRODUCT
P 1 / 9
W-2
2,300
2,300
2,600
2,600
2,600

Advertisement

loading

Related Manuals for Makita N5900B

Summary of Contents for Makita N5900B

  • Page 1 ECHNICAL INFORMATION PRODUCT P 1 / 9 Models No. N5900B Description Circular Saw 235mm (9-1/4") ONCEPT AND MAIN APPLICATIONS The above product has been developed as a less expensive version of the existing model 5900B, with taking over the same feature and benefit.
  • Page 2 First of all, detach the saw blade for your safety repair. < 1 > Lubrication Apply MAKITA grease N. No.1 to the following portions designated by black triangle to protect parts and product from unusual abrasion. Amount : g...
  • Page 3 P 3 / 9 epair ( 4 ) Put the removed gear section on the turn base of arbor press. And put No.1R286 "Round bar for arbor" on the spindle. See Fig. 5. And press the round bar for arbor with arbor press. See Fig. 6. Fig.
  • Page 4 P 4 / 9 epair ( 6 ) Remove bearing retainer 23-36 with No. 1R316 "Adjustable bearing retainer wrench". See Fig. 10. ( 7 ) Remove ball bearing 6202DDW from bearing retrainer 23-36 by pressing it as illustrated in Fig. 11. No.1R316 Adjustable bearing retainer wrench...
  • Page 5 P 5 / 9 epair ( 3 ) Mount spindle by pressing with arbor press. See Fig. 14. ( 4 ) Mount helical gear 39 by pressing with arbor press. See Fig. 15. ( 5 ) Mount ball bearing 6000DDW. See Fig. 16. The gear section has been completed in this step. ( 6 ) Mount the gear section to blade case.
  • Page 6 P 6 / 9 epair ( 7 ) Mount safety cover. Connect tension spring 5 with blade case and safety cover. Secure safety cover with retaining ring S-45. See Fig. 18. Blade case Hitch blade case with the hook of taper formed side. Tension spring 5 Retaining...
  • Page 7 P 7 / 9 epair < 5 > Replacing power supply cord The distance between blade case and handle is too small to approach strain relief with screwdriver. Power supply cord can be replaced as illustrated below. However, if the screwdriver as illustrated in Fig. A, is used, the power supply cord can be removed without separating the blade case section.
  • Page 8 P 8 / 9 epair < 6 > Separating base from motor section ( 1 ) Remove safety cover as illustrated in Fig. 2 and Fig. 3 in page 2/9 before the step in Fig. 23. ( 2 ) Take off ring spring 12 from lever 54. Remove lever 54 together with hex nut M8 from cap square neck bolt M8x90.

  • Page 9: Circuit Diagram

    P 9 / 9 ircuit diagram Color index of lead wires' sheath Black Switch 5 2 4 Field Power supply cord Noise suppressor (Noise suppressor is not used in some countries.) iring diagram Switch * Noise suppressor * Noise suppressor is not used in some countries.
