K-400 Drain Cleaning Machine

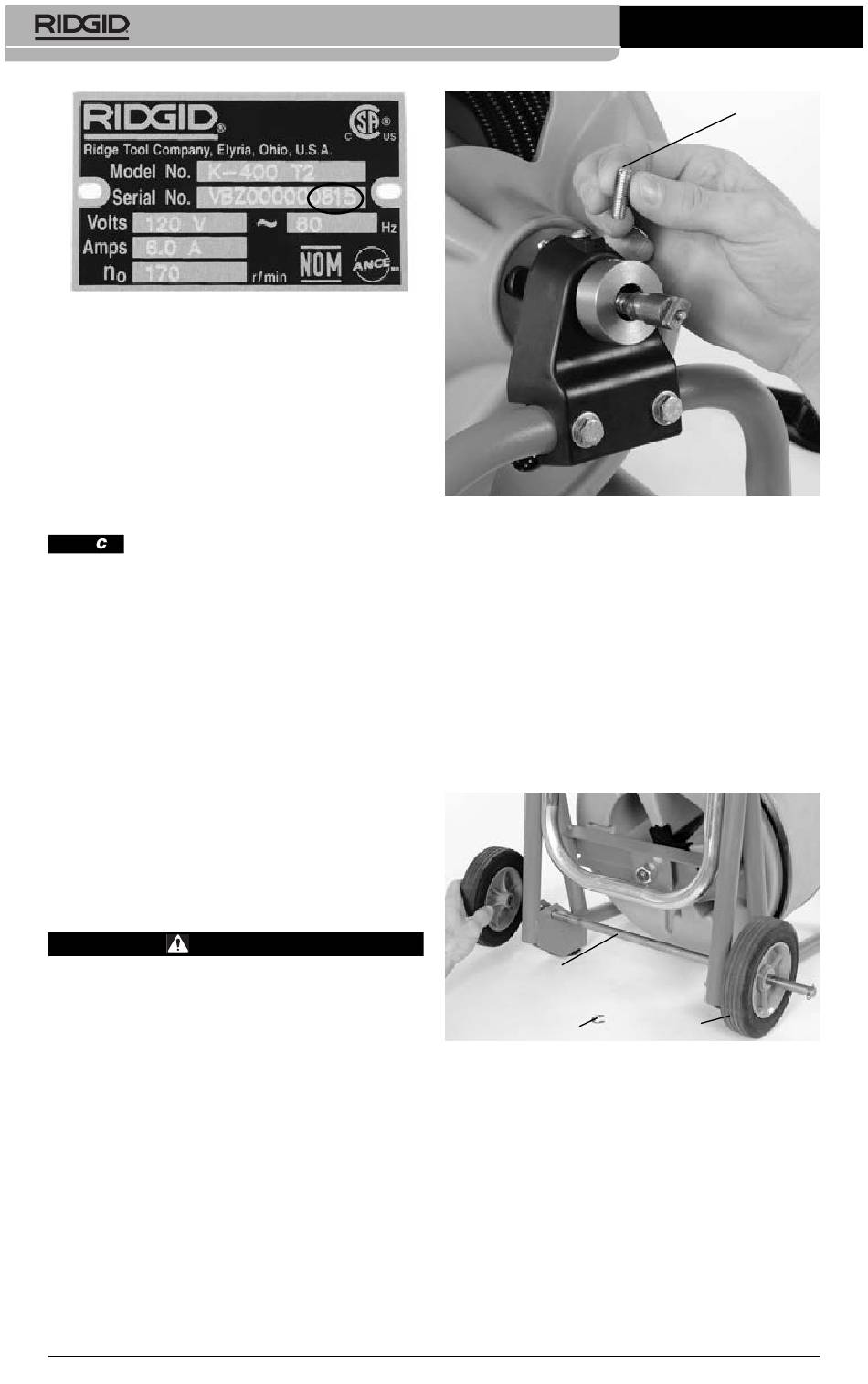

Figure 2 – Machine Serial Number
The machine serial number is located on motor
table. The last 4 digits indicate the month and
year of the manufacture. (08 = month, 15 =
year).
Standard Equipment
All K-400 Drain Cleaning Machines come with
one pair of RIDGID Drain Cleaning Gloves.
This machine is made to clean
NOTI E
drains. If properly used it will not damage a
drain that is in good condition and properly de-
signed, constructed and maintained. If the
drain is in poor condition, or has not been
properly designed, constructed and main-
tained, the drain cleaning process may not
be effective or could cause damage to the
drain. The best way to determine the condition
of a drain before cleaning is through visual in-
spection with a camera. Improper use of this
drain cleaner can damage the drain cleaner
and the drain. This machine may not clear
all blockages.
Machine Assembly
WARNING
To reduce the risk of serious injury dur-
ing use, follow these procedures for
proper assembly.
FOR/OFF/REV switch should be OFF and
machine unplugged before assembly.
Remove and discard the
screw from the Set Collar Assembly. The cable
lock set screw is provided during packaging to
keep the cable from coming out of the drum
during transport (Figure 3).
6
5 / " x 1" cable lock set
16
Figure 3 – Remove and discard the Cable Lock
Set Screw
Installing Wheels
1. Install retaining clip into groove on one
end of axle.
2. Slide one wheel onto axle with the boss
away from the clip. (See Figure 4.)
3. Fully insert axle through hole in bracket.
4. Slide second wheel onto axle, boss first.
5. Install retaining clip into groove.
Axle
Retaining Clip
Figure 4 – Assembling Wheel
Mounting AUTOFEED
(Optional Equipment)
1. If needed, remove and discard cable
lock set screw from the set collar. (See
Figure 3.)
2. Pull approximately 6" (150mm) of cable
from the machine.
3. Insert handle through AUTOFEED
and securely screw in place.
Set Screw
Wheel
®
® cover
