Summary of Contents for Apogee X-HD

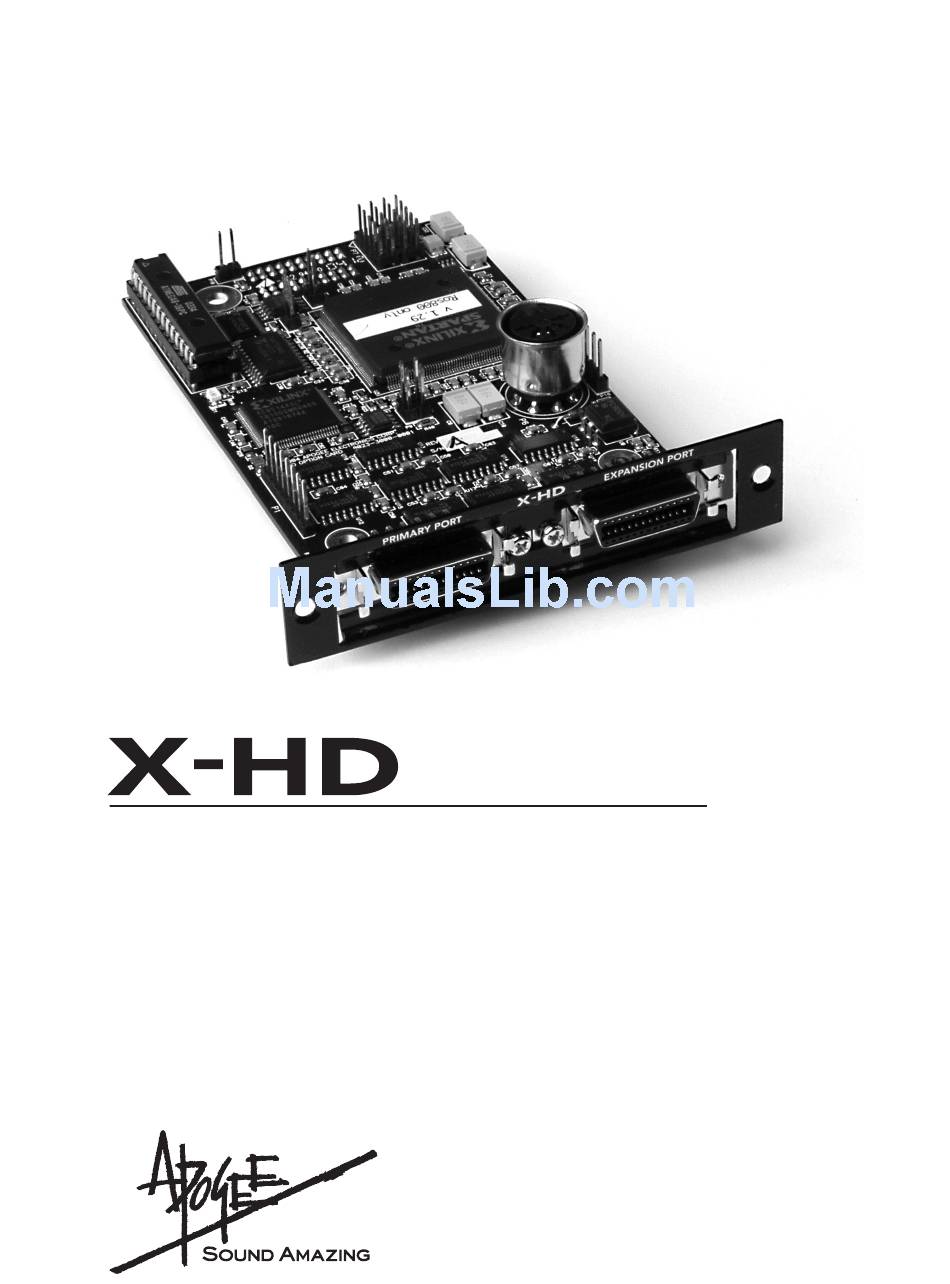

- Page 1 Apogee X-Series Expansion Card User’s Guide V2.1 - August 2007...
- Page 2 X-Series Expansion Card User’s Guide v2.1 - August 2007...
-
Page 3: Declarations Of Conformity
Copyright Notice The Apogee X-HD card is a computer-based device, and as such contains and uses software in ROMs. This soft- ware, and all related documentation, including this User’s Guide contain proprietary information which is protected by copyright laws. -
Page 4: Registration And Warranty Information
Apogee. In the event your X-HD card needs to be upgraded or repaired, it is necessary to contact Apogee prior to shipping, and a Return Materials Authorization (RMA) number will be assigned. This number will serve as a reference for you and helps facilitate and expedite the return process. -
Page 5: Table Of Contents
Order of Apogee Interface Connection (continued) Multiple Digidesign PCI cards Incorporating Digidesign and other HD-compatible interfaces Clock Connections Using a Master Clock (such as Apogee’s Big Ben) Clocking to the first interface Clock Connections Incorporating a SYNC I/O DigiLink Connections... -
Page 6: Introduction
Rosetta 800 – any firmware version; 192k sessions may not be run with a Rosetta 800 96k Four Steps to Getting Started 1 Install the X-HD card - To install the X-HD in your Apogee interface, please see page 2 Determine the best order of interfaces - As described on pages 3-4, the order in which Apogee interfaces are connected determines many details of your setup. -
Page 7: Order Of Apogee Interface Connection (Continued)
X-HD card – User’s Guide Clock Connections In an Apogee-equipped Pro Tools system the first interface serves as the clock master to the entire system, and may be set to Internal or External clock in Pro Tools Hardware Setup window. All remaining interfaces must receive a word clock signal synchronous with the first interface’s clock... -
Page 8: Clock Connections
(Pro Tools PCI card installed in computer) Like Digidesign interfaces, the X-HD card is equipped with two ports, Primary and Expansion. Please note that the Primary Port on the X-HD card is the LEFT connector when looking from the back of the unit. -
Page 9: Configuring Pro Tools
Pro Tools: 1 In Pro Tools, select Setup>Hardware. 2 From the Peripherals list on the left side of the Hardware Setup window, verify that Apogee interfaces have been detected correctly (as indicated in the Interface Connections Chart found on pages 10-16). -
Page 10: Interface Connections Chart: Standard Routing
Important Configuration Notes: • Be sure to connect interfaces in the order indicated. • The Apogee AD-8000 and Trak2, not shown on the chart, are equivalent to a Rosetta 800. • The Rosetta 200 is equivalent to the Rosetta 800. -
Page 11: Ad-16X, Da-16X & Rosetta 800
X-HD card – User’s Guide APPEARS AS... in Hardware Setup INTERFACE SET AD-16X & DA-16X continued A1-16 From Computer INPUT OUTPUT A1-16 From Computer INPUT OUTPUT A1-16 From Computer INPUT OUTPUT A1-16 From Computer INPUT OUTPUT AD-16X, DA-16X & ROSETTA 800... -
Page 12: Digi, Ad-16X, Da-16X & Rosetta 800
(per Digidesign Core, Process or Accel card) B1-16 When Advanced Option routing is enabled on AD16X or DA16Xs, the additional digital I/O accessible to the X-HD AD-16X #1 card causes the interfaces to be detected differently in the Pro Tools’ Hardware Setup page. For example, an AD... -
Page 13: Ad-16X, Da-16X & Rosetta 800
4 Install the two aluminium standoffs in the threaded holes vacated by the screws. 5 On the X-HD card, install the plastic standoff in the hole adjacent to the multi-pin motherboard connector. 6 Insert the Port connector end of the X-HD card through the host... -
Page 14: Upgrading Firmware On The X-Hd Card
• Patience to follow each step precisely. Verify X-HD Firmware Version In most cases, the present X-HD firmware version is indicated on a label affixed to the board. After updating, it may be best to replace this label with a new one indicating the new firmware version. - Page 15 X-HD card USER’S GUIDE - v2.1 - August 2007 Text conceived and delivered by: Roger Robindore Graphics and illustrations by: Sean McArthur...
